C/N: 10310000541
Programmable Logic Controller
Installation Guide
Smart I/O Pnet
GPL-AV8C/AC8C
10310000541
This installation guide provides simple function information or PLC control. Please readcarefully this data sheet and manuals before using products. Especially read precautions thenhandle the products properly.
Safety Precautions
■ Meaning of warning and caution label
 WARNING |
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury |
| CAUTION |
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices |
WARNING
- Do not contact the terminals while the power is applied.
- Be sure there are no foreign metallic matters.
- Do not manipulate the battery(charge, disassemble, hitting, short, soldering).
CAUTION
- Be sure to check the rated voltage and terminal arrangement before wiring
- When wiring, tighten the screw of terminal block with the specified torque range
- Do not install the flammable things on surroundings
- Do not use the PLC in the environment of direct vibration
- Except expert service staff, do not disassemble or fix or modify the product
- Use the PLC in an environment that meets the general specifications contained in this datasheet.
- Be sure that external load does not exceed the rating of output module.
- When disposing of PLC and battery, treat it as industrial waste.
- I/O signal or communication line shall be wired at least 100mm away from a highvoltage cable or power line.
Operating Environment
■ To install, observe the below conditions.
| No | Item | Specification | Standard | |||
| 1 | Ambient temp. | 0 ~ 55℃ | – | |||
| 2 | Storage temp. | -25 ~ 70℃ | – | |||
| 3 | Ambient humidity | 5 ~ 95%RH, non-condensing | – | |||
| 4 | Storage humidity | 5 ~ 95%RH, non-condensing | – | |||
| 5 | Vibration Resistance | Occasional vibration | – | – | ||
| Frequency | Acceleration | IEC 61131-2 | ||||
| 5≤f<8.4㎐ | – | 3.5mm | 10 times in each direction for X, Y, Z | |||
| 8.4≤f≤150㎐ | 9.8㎨(1g) | – | ||||
| Continuous vibration | ||||||
| Frequency | Frequency | Frequency | ||||
| 5≤f<8.4㎐ | – | 1.75mm | ||||
| 8.4≤f≤150㎐ | 4.9㎨(0.5g) | – | ||||
Accessories and Cable Specifications
■ Check Profibus Connector contained in the box
- Usage: Profibus Communication Connector
- Item: GPL-CON

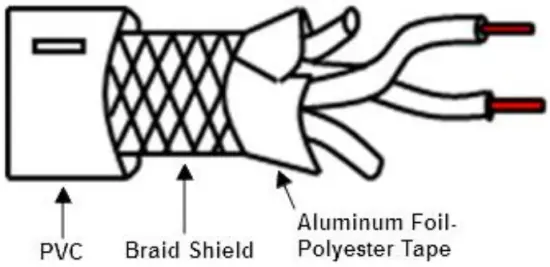

■ When using Pnet communication, shielded twisted pair cable shall be used with consideration of communication distance and speed.
- Manufacturer: Belden or the maker of equivalent material specification below
- Cable Specification
| Classification | Description | |
| AWG | 22 |  |
| Type | BC (Bare Copper) | |
| Insulation | PE (Polyethylene) | |
| Diameter(inch) | 0.035 | |
| Shield | Aluminum Foil-Polyester, Tape/Braid Shield | |
| Capacifance(pF/ft) | 8.5 | |
| Characteristic impedance(Ω) | 150Ω | |
Dimension (mm)
- This is front part of the product. Refer to each name when operating the system. For more information, refer to user’s manual.
- LED Details
Name Description RUN Displays the status of power RDY Displays the communication status of Comm. Module ERR Displays the abnormal err of comm. module
Analog Performance Specification
■ This is analog performance specifications of the product. Refer to each name when driving the system. For more information, refer to user manual.
| Item | GPL-AV8C (Voltage input) | GPL-AC8C (Current input) | ||
| Analog output channels | 8 channels/1 module | |||
| Analog input | 1~5V | 0~4000 | 4~20mA | 0~8000 |
| 0~5V | 0~20mA | |||
| 0~10V | 0~8000 | -20~20mA | -8000~8000 | |
| -10~10V | -8000~8000 | |||
| Resolution | 1~5V | 1.250mV | 4~20mA | 2.5µA |
| 0~5V | 0~20mA | |||
| 0~10V | -20~20mA | |||
| -10~10V | ||||
| Accuacy(Ambient tem.) | ±0.3% or less | ±0.4% or less | ||
| Conversion speed | 10ms/module + Update time | |||
| Absolute max. input | ±15V | ±25mA | ||
| Insulation method | Photo-coupler insulation between input terminal and PLC power (no insulation between channels) | |||
| Terminal connected | 38-point terminal | |||
| Internal consumed current | DC24V, 220mA | |||
| Weight | 313g | |||

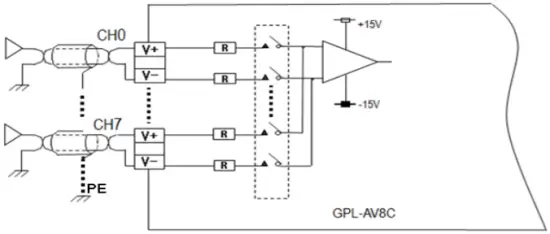

Terminal Block Layout for I/O Wiring
■ This is terminal block layout for I/O wiring. Refer to each name when driving the system. For more information, refer to user manual.
- GPL-AV8C
- GPL-AC8C

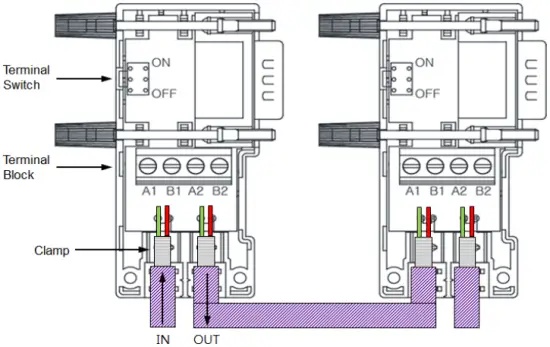

Wiring
■ Connector structure and wiring method
- Input line: green line is connected to A1, red line is connected to B1
- Output line: green line is connected to A2, red line is connected to B2
- Connect shield to clamp of shield
- In case of installing the connector at terminal, install the cable at A1, B1
- For more information about wiring, refer to user manual.
Warranty
■ The warranty period is 36 months from the date of manufacture.
■ The initial diagnosis of faults should be conducted by the user. However, upon request, LS ELECTRIC or its representative(s) can undertake this task for a fee. If the cause of the fault isfound to be the responsibility of LS ELECTRIC, this service will be free of charge.
■ Exclusions from warranty
- Replacement of consumable and life-limited parts (e.g. relays, fuses, capacitors, batteries, LCDs, etc.)
- Failures or damages caused by improper conditions or handling outside those specified in the user manual
- Failures caused by external factors unrelated to the product
- Failures caused by modifications without LS ELECTRIC’s consent
- Use of the product in unintended ways
- Failures that cannot be predicted/solved by current scientific technology at the time of manufacture
- Failures due to external factors such as fire, abnormal voltage, or natural disasters
- Other cases for which LS ELECTRIC is not responsible
■ For detailed warranty information, please refer to the user’s manual.
■ The content of the installation guide is subject to change without notice for product performance improvement.
LS ELECTRIC Co., Ltd.
www.ls-electric.com
10310000541
V4.5 (2024.6)
