VEVOR 580 sq. in. Wood Pellet Smoker Grill Instruction Manual

1. ຄໍາແນະນໍາຄວາມປອດໄພ

Please read and understand all safety warnings and operating instructions before using this VEVOR Wood Pellet Smoker Grill. Failure to follow these instructions may result in property damage, bodily injury, or death.

• ການ​ນໍາ​ໃຊ້​ພາຍ​ນອກ​ເທົ່າ​ນັ້ນ​: This grill is designed for outdoor use in a well-ventilated area. Do not operate indoors or in enclosed spaces.
• ຮັກສາການເກັບກູ້: ຮັກສາໄລຍະຫ່າງຢ່າງໜ້ອຍ 10 ຟຸດ (3 ແມັດ) ຈາກວັດສະດຸທີ່ຕິດໄຟໄດ້, ຝາຜະໜັງ ຫຼື ໂຄງສ້າງຕ່າງໆ.
• ເດັກ​ນ້ອຍ​ແລະ​ສັດ​ລ້ຽງ​: Keep children and pets away from the grill at all times. Hot surfaces can cause severe burns.
• ປະເພດນໍ້າມັນເຊື້ອໄຟ: Use only food-grade wood pellets as fuel. Do not use charcoal, lighter fluid, gasoline, or other flammable liquids.
• ຄວາມປອດໄພທາງໄຟຟ້າ: Ensure the power cord is properly grounded and protected from heat and moisture. Do not operate with a damaged cord.
• ພື້ນຜິວຮ້ອນ: The grill's exterior and interior surfaces become extremely hot during operation. Use heat-resistant gloves and appropriate tools.
• ການຄຸ້ມຄອງນໍ້າມັນ: Regularly clean the grease tray to prevent grease fires.
• ການເບິ່ງແຍງກວດກາ: ຢ່າປະໄວ້ເຕົາປີ້ງໂດຍບໍ່ໃສ່ໃຈໃນເວລາເຮັດວຽກ.

2. ຜະລິດຕະພັນເກີນview

The VEVOR 580 sq. in. Wood Pellet Smoker Grill is a versatile outdoor cooking appliance designed for grilling, roasting, searing, smoking, baking, braising, barbecuing, and char-grilling. It features a large cooking area, precise PID temperature control, and a robust construction for consistent performance.

ຄຸນ​ນະ​ສົມ​ບັດ​ທີ່​ສໍາ​ຄັນ​:

• AmpLe Cooking Space: Approximately 580 square inches of cooking area with two layers of grills.
• 8-in-1 versatility: Functions as a grill, roast, sear, smoke, bake, braise, barbecue, and char-grill.
• ການຄວບຄຸມອຸນຫະພູມ PID: Maintains temperatures between 175°F and 500°F for precise cooking.
• Large Pellet Hopper: 13L capacity for extended cooking times without frequent refilling.
• ການອອກແບບແບບພົກພາ: Features universal wheels and a folding design for easy transport and storage.

ອົງປະກອບ:

• Main Grill Body with Lid
• Pellet Hopper and Auger System
• Digital PID Temperature Control Panel
• ການກວດສອບຊີ້ນ
• Integrated Thermometer (on lid)
• Cooking Grates (2 layers)
• Grease Management System with Bucket
• ຊັ້ນວາງຂ້າງ
• Folding Storage Board
• Universal Wheels
• Anti-Scald Handle

Figure 2.1: VEVOR Wood Pellet Smoker Grill in operation, showcasing the dual-layer cooking area with various foods.

3. ຕັ້ງຄ່າ

3.1 ການຫຸ້ມຫໍ່ແລະການປະກອບ

1. ເອົາສ່ວນປະກອບທັງຫມົດອອກຈາກການຫຸ້ມຫໍ່ຢ່າງລະມັດລະວັງ.
2. Refer to the included assembly diagram for detailed steps. Attach the legs and universal wheels to the main grill body.
3. Install the pellet hopper and ensure all connections are secure.
4. Place the cooking grates and grease tray into position.
5. Connect the power cord to a grounded outdoor outlet.

3.2 Initial Burn-In Procedure

Before cooking food for the first time, perform an initial burn-in to remove any manufacturing oils or residues.

1. Fill the pellet hopper with food-grade wood pellets.
2. Turn on the grill and set the temperature to 350°F (175°C).
3. Allow the grill to operate at this temperature for at least 45 minutes.
4. Turn off the grill and let it cool completely before cleaning the grates.

Figure 3.1: Key components and construction features of the VEVOR Smoker Grill.

4. ຄໍາແນະນໍາການດໍາເນີນງານ

4.1 Loading Wood Pellets

Ensure the pellet hopper is clean and dry before adding wood pellets. Open the hopper lid and pour food-grade wood pellets into the hopper. The 13L capacity allows for extended cooking without frequent refilling.

Figure 4.1: Steps for preparing and operating the VEVOR Smoker Grill for wood-fired taste.

4.2 Powering On and Temperature Control

1. Press the power button on the PID control panel to turn on the grill.
2. Use the temperature dial to select your desired cooking temperature, ranging from 175°F to 500°F. The PID system will automatically adjust pellet feed and fan speed to maintain the set temperature.
3. The digital display will show the set temperature and the actual internal temperature of the grill.

4.3 ການ​ນໍາ​ໃຊ້ Meat Probe

Insert the provided meat probe into the thickest part of the food, avoiding bone. Plug the probe into the designated port on the control panel. The internal food temperature will be displayed, allowing for precise cooking and ensuring food safety.

4.4 ຟັງຊັນການປຸງແຕ່ງອາຫານ 8-in-1

This grill offers multiple cooking methods:

• ປີ້ງ: Direct heat cooking for steaks, burgers, and vegetables.
• ປີ້ງ: Indirect heat cooking for larger cuts of meat like chicken or roasts.
• Sear: High-temperature cooking for a crispy exterior.
• ຄວັນຢາສູບ: Low and slow cooking for tender, smoky flavor.
• ອົບ: Consistent temperature for items like pizza or bread.
• Braise: Slow cooking with moisture for tender results.
• ບາບີຄິວ: Traditional BBQ cooking with smoke and heat.
• Char-grill: Intense direct heat for char marks and flavor.

Figure 4.2: Visual representation of the eight distinct cooking functions available with the grill.

4.5 ວິດີໂອສາທິດ

Video 4.1: This video demonstrates the VEVOR Wood Pellet Smoker Grill in use, highlighting features such as the dual cooking areas, pellet loading, PID temperature control, meat probe functionality, and additional storage space. It also shows various cooking methods and the grill's robust construction.

5. ບໍາລຸງຮັກສາ

5.1 ເຮັດຄວາມສະອາດເຄື່ອງປຸງອາຫານ

After each use, allow the grates to cool slightly. Use a grill brush to remove any food residue. For deeper cleaning, the anti-stick enamel grates can be washed with warm, soapy water.

Figure 5.1: The interior of the grill with cooking grates, illustrating the accessible design for cleaning.

5.2 Emptying the Grease Bucket

The grill is equipped with a grease management system that collects drippings in a removable bucket. Regularly check and empty the grease bucket to prevent overflow and potential fire hazards. Clean the bucket with warm, soapy water.

5.3 ການກຳຈັດຂີ້ເທົ່າ

After the grill has completely cooled, remove any accumulated ash from the fire pot and ash collection system. Use a vacuum cleaner designed for ash or a small brush and dustpan. Ensure all ash is cold before disposal.

5.4 Exterior Cleaning and Storage

ເຊັດພື້ນຜິວພາຍນອກດ້ວຍການໂຄສະນາamp cloth. For long-term storage, ensure the grill is clean and dry. The portable design with universal wheels and a folding storage board allows for convenient movement and compact storage. Consider using a grill cover to protect it from the elements.

6. ການແກ້ໄຂບັນຫາ

This section provides solutions to common issues you might encounter with your VEVOR Wood Pellet Smoker Grill.

7. ຂໍ້ມູນຈໍາເພາະ

The following table outlines the key specifications for the VEVOR 580 sq. in. Wood Pellet Smoker Grill.

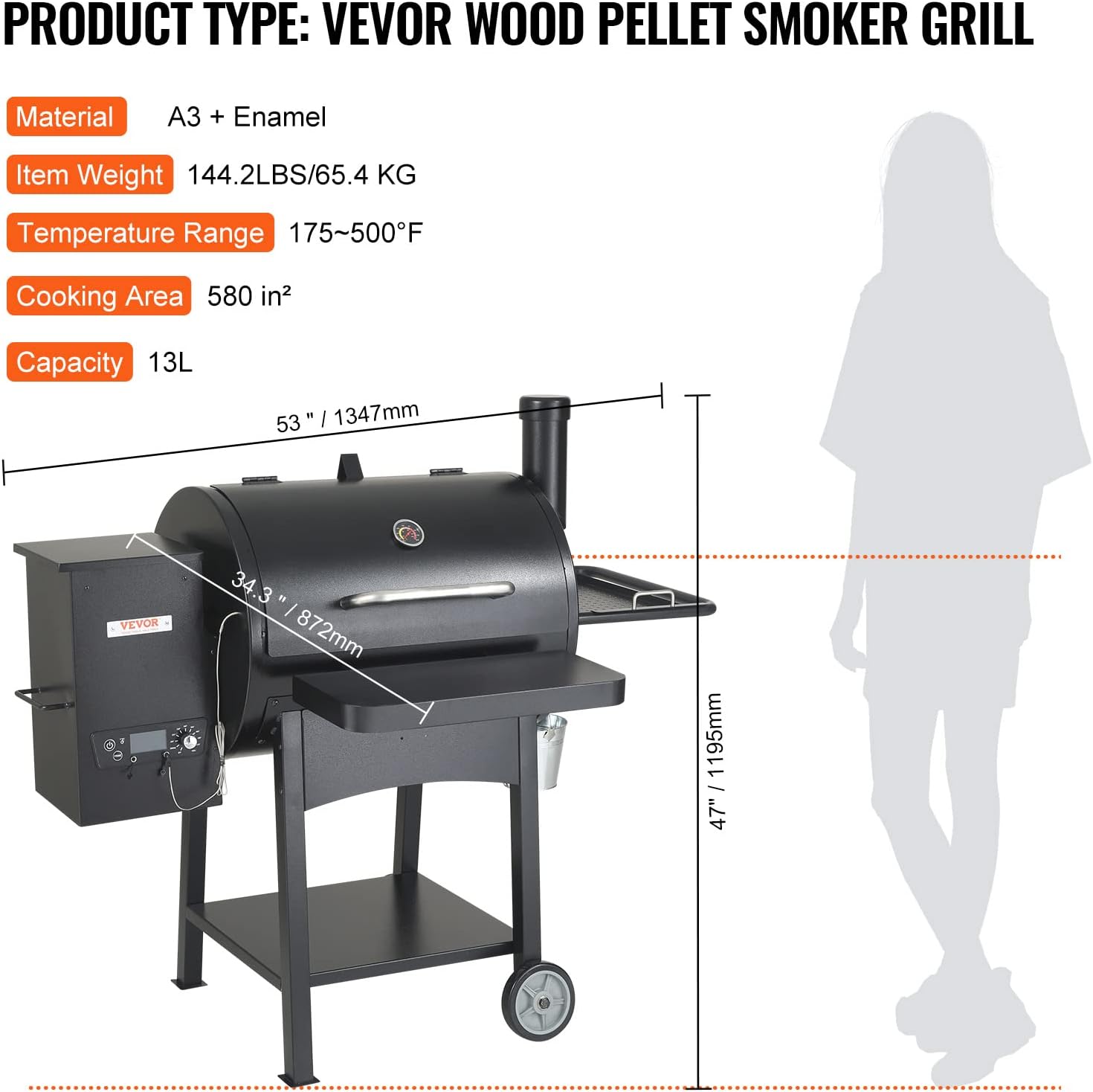

Figure 7.1: Detailed dimensions and key specifications of the VEVOR Smoker Grill.

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

VEVOR products are designed and manufactured to high-quality standards. For warranty information, product support, or to purchase replacement parts, please visit the official VEVOR webເວັບໄຊ ຫຼືຕິດຕໍ່ພະແນກບໍລິການລູກຄ້າຂອງເຂົາເຈົ້າ. ຮັກສາໃບຮັບເງິນການຊື້ຂອງທ່ານໄວ້ເປັນຫຼັກຖານການຊື້ສໍາລັບການຮຽກຮ້ອງການຮັບປະກັນໃດໆ.

For further assistance, please refer to the contact information provided with your product packaging or on the VEVOR official webເວັບໄຊ.
