1. ບົດແນະນຳ
This manual provides essential information for the safe and efficient operation of your NOVOPAL DLCD3000PEU24 3000W Pure Sine Wave Power Inverter. Please read these instructions carefully before installation and use to ensure proper functionality and safety.
ຂໍ້ມູນຄວາມປອດໄພ
- Ensure proper ventilation around the inverter. Do not block air vents.
- ຢ່າປ່ອຍຕົວ inverter ກັບນ້ໍາ, ຝົນ, ຫຼືຄວາມຊຸ່ມຊື່ນຫຼາຍເກີນໄປ.
- Connect the inverter to a 24V DC power source only. Verify battery voltage ກ່ອນທີ່ຈະເຊື່ອມຕໍ່.
- Do not reverse polarity during battery connection. Incorrect polarity will damage the inverter.
- ຮັກສາອິນເວີເຕີໃຫ້ຫ່າງຈາກວັດສະດຸໄວໄຟ ແລະ ອາຍແກັສ.
- ຕັດການເຊື່ອມຕໍ່ແຫຼ່ງພະລັງງານທັງໝົດກ່ອນປະຕິບັດການຮັກສາ ຫຼື ການທຳຄວາມສະອາດໃດໆ.
- This device contains no user-serviceable parts. Refer servicing to qualified personnel.
2. ຜະລິດຕະພັນເກີນview
ຄຸນນະສົມບັດທີ່ສໍາຄັນ
- Pure Sine Wave Output: Converts 24V DC to stable 220V/230V AC, suitable for sensitive electronics.
- ຄວາມອາດສາມາດພະລັງງານສູງ: Provides 3000 Watts of continuous power and 6000 Watts of peak surge capacity.
- Versatile Output Ports: Features two standard AC outlets and one 2.1A USB port for charging devices.

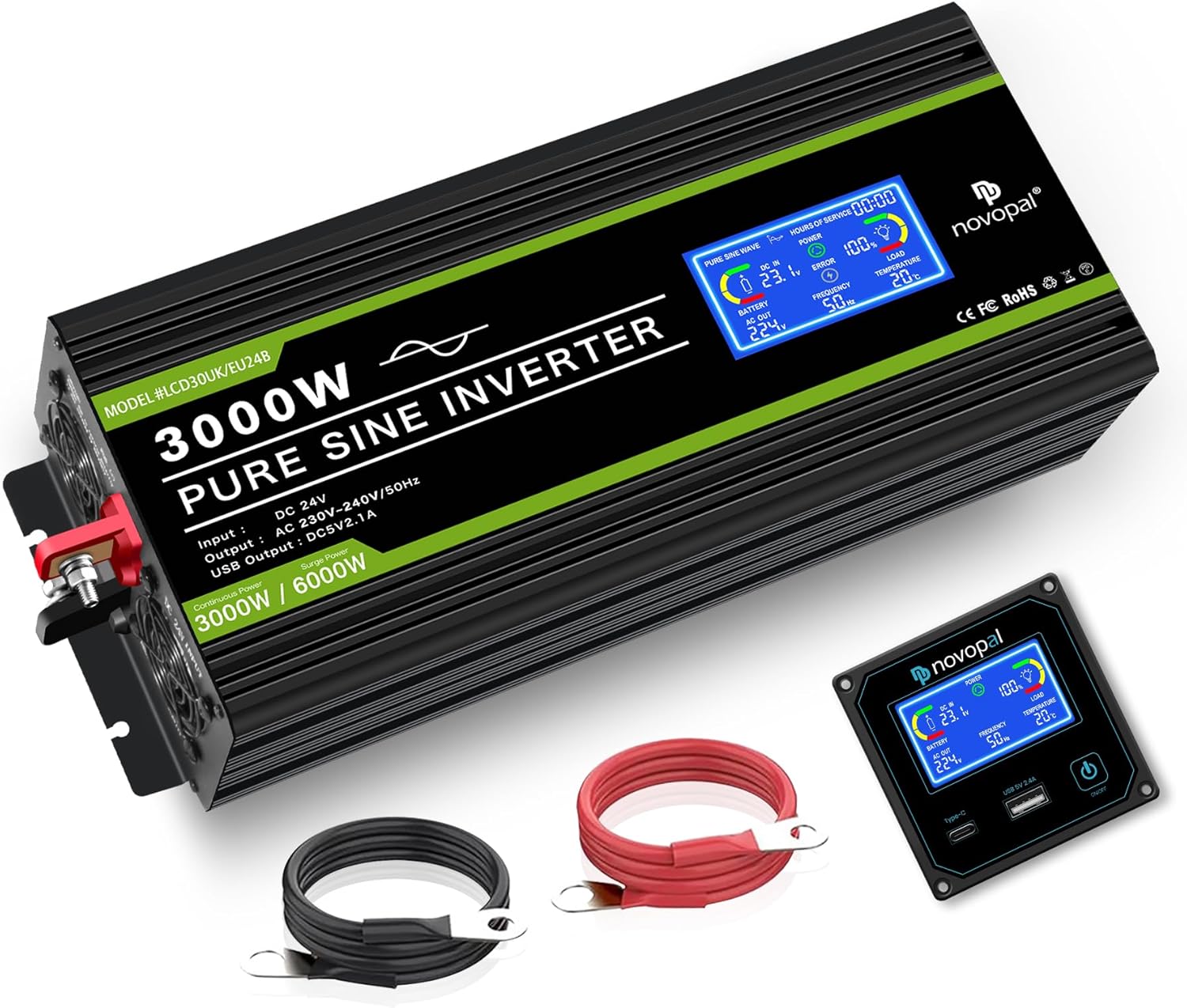

- ການຄວບຄຸມໄລຍະໄກແບບມີສາຍ: Includes a 5-meter wired remote control for convenient power management from a distance.
- Comprehensive LCD Display: Real-time monitoring of input voltage, ຜົນຜະລິດ voltage, battery level, load status, frequency, operating temperature, and error codes.
- ລະບົບການປ້ອງກັນຫຼາຍ: Integrated safeguards against overload, over-voltage, under-voltage, over-temperature, and short-circuit conditions.
- ລະບົບເຮັດຄວາມເຢັນອັດສະລິຍະ: Equipped with an intelligent and silent cooling fan system that activates based on internal temperature or power load.
- ການກໍ່ສ້າງທົນທານ: Housed in a robust aluminum alloy casing for enhanced protection.
ເນື້ອໃນຊຸດ

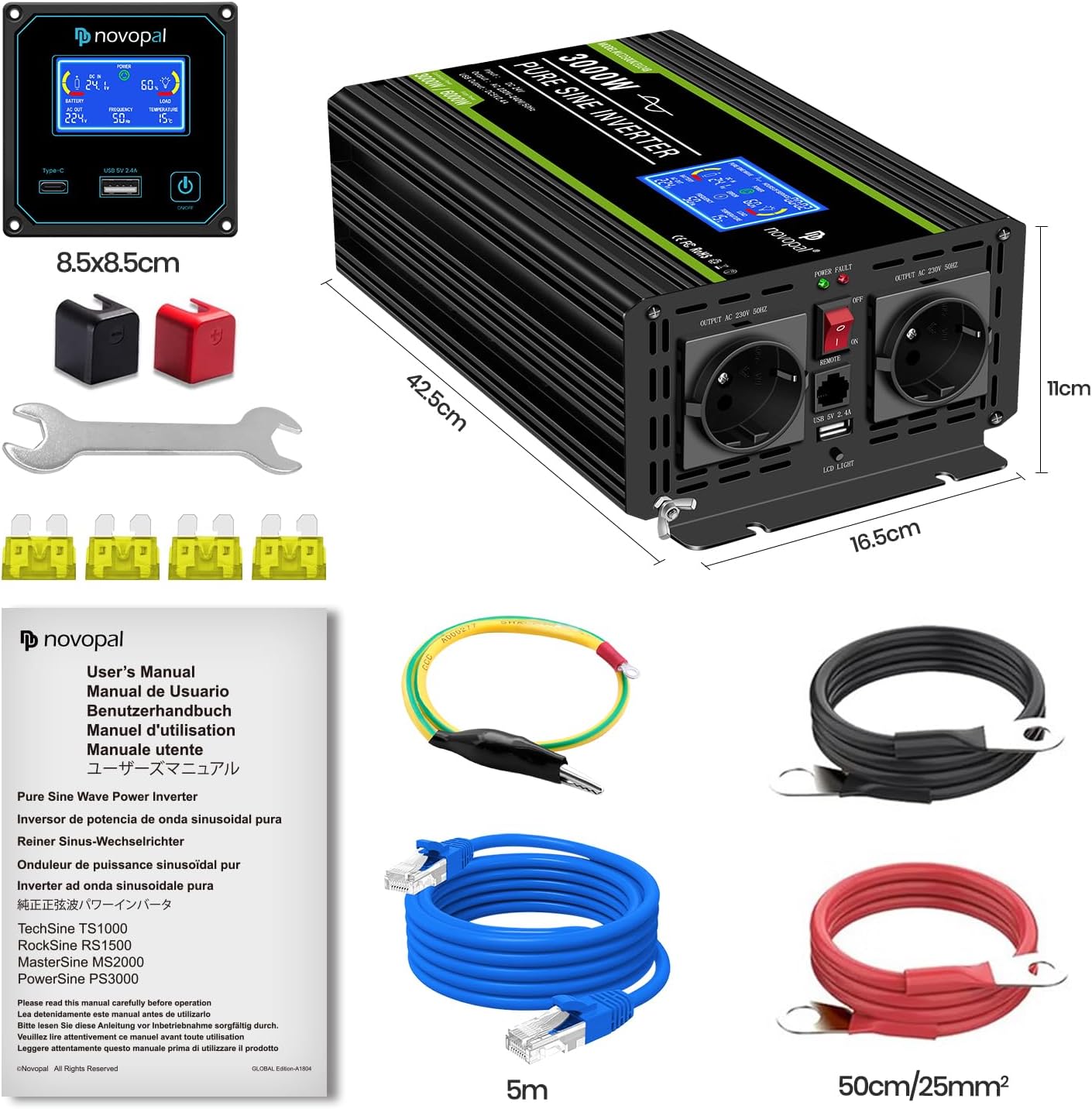

- 1x NOVOPAL DLCD3000PEU24 3000W Pure Sine Wave Power Inverter
- 1x Wired Remote Control (5 meters)
- 1x Set of Battery Connection Cables (Red for positive, Black for negative)
- 1x Ground Cable (GND)
- 1x User Manual (English and French)
- Additional Fuses (Note: Fuses are integrated within the unit; no external installation required)
3. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ
ການເຊື່ອມຕໍ່ Inverter
ການຈັດວາງ: Choose a dry, well-ventilated area for the inverter. Ensure there is sufficient space (at least 15 cm) around the unit for proper airflow and cooling. Avoid direct sunlight or heat sources.
ການເຊື່ອມຕໍ່ຫມໍ້ໄຟ: Connect the red battery cable to the positive (+) terminal of your 24V DC battery and to the positive (+) terminal on the inverter. Connect the black battery cable to the negative (-) terminal of your battery and to the negative (-) terminal on the inverter. Ensure all connections are tight and secure to prevent arcing and power loss.
ການຕໍ່ດິນ: Connect the ground cable (GND) from the inverter's grounding screw to a proper earth ground point. This is crucial for safety.
ການເຊື່ອມຕໍ່ການຄວບຄຸມໄລຍະໄກ: Plug the 5-meter remote control cable into the designated RJ45 port on the inverter.
ການເປີດເຄື່ອງເບື້ອງຕົ້ນ: After all connections are secure, switch on the inverter using the main power switch. The LCD display should illuminate, indicating the inverter is operational.
ຫມາຍເຫດຄວາມປອດໄພທີ່ສໍາຄັນ:
- Incorrect polarity connection will damage the inverter and void the warranty. Double-check all connections before powering on.
- Ensure the battery capacity is sufficient for the inverter's power rating. For the 3000W model, a recommended battery capacity is 180AH (24V) to support sustained operation.
4. ຄໍາແນະນໍາການດໍາເນີນງານ
ການນໍາໃຊ້ Inverter
ເປີດ: Ensure the inverter is correctly connected to the battery. Press the main power switch on the inverter or use the remote control to turn it on.
ອຸປະກອນເຊື່ອມຕໍ່: Plug your AC appliances into the inverter's AC outlets. For USB charging, use the 2.1A USB port. Ensure the total power consumption of connected devices does not exceed 3000W.
ການຕິດຕາມ: Observe the LCD display for real-time operational data such as input voltage, ຜົນຜະລິດ voltage, load percentage, and temperature. This helps in managing power usage and identifying potential issues.
ປິດພະລັງງານ: When finished, switch off the inverter using the main power switch or the remote control. Disconnect appliances before prolonged storage or when the inverter is not in use.
ການດໍາເນີນງານການຄວບຄຸມໄລຍະໄກ
The wired remote control allows for convenient operation and monitoring from a distance of up to 5 meters.
ຂ່າວຍາວ: Press and hold the ON/OFF button on the remote control for approximately 3 seconds to power the inverter ON or OFF.
ຂ່າວສັ້ນ: A short press of the ON/OFF button will toggle the LCD screen ON or OFF, saving power when continuous monitoring is not required.
5. ບໍາລຸງຮັກສາ
ທໍາຄວາມສະອາດ: Periodically clean the exterior of the inverter with a dry, soft cloth. Ensure ventilation openings and cooling fans are free from dust, dirt, and debris to maintain optimal airflow.
ກວດສອບການເຊື່ອມຕໍ່: Regularly inspect battery cable connections and the grounding connection to ensure they remain tight, secure, and free from corrosion. Loose connections can lead to power loss or overheating.
ການລະບາຍອາກາດ: Ensure the cooling fans are not obstructed. The intelligent cooling fan system activates automatically when the internal temperature exceeds 45°C or the inverter power load exceeds 40%. Proper ventilation is critical for preventing overheating.
ການເກັບຮັກສາ: If storing the inverter for an extended period, disconnect it completely from the battery and store it in a cool, dry, and well-ventilated place, away from direct sunlight and extreme temperatures.
6. ການແກ້ໄຂບັນຫາ
The LCD display and remote control provide error codes to assist in identifying and resolving common issues. Refer to the table below for guidance.
| ລະຫັດ | ລາຍລະອຽດ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|---|
| 01 | ໂຫຼດເກີນ | Connected appliances exceed the inverter's continuous power rating (3000W) or surge capacity (6000W). | Reduce the total load by disconnecting some appliances. Restart the inverter. |
| 02 | ລະດັບສຽງຕໍ່າtage | ຫມໍ້ໄຟ voltage is too low (below 21V for a 24V system). | Recharge the battery. Check battery connections for looseness or corrosion. |
| 03 | Over-Temperature or Short-Circuit | Inverter is overheating due to poor ventilation or excessive load, or a short circuit is detected in the AC output. | Ensure adequate ventilation. Reduce load. Check AC output for short circuits. Allow inverter to cool down before restarting. |
| 04 | ເກີນ Voltage | ຫມໍ້ໄຟ voltage is too high (above 30V for a 24V system). | Check the charging system for the battery. Ensure correct battery type and charging voltage. |
7. ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ໝາຍເລກຕົວແບບ | DLCD3000PEU24 |
| ຍີ່ຫໍ້ | NOVOPAL |
| ການປ້ອນຂໍ້ມູນ Voltage | 24 volts DC |
| ຜົນໄດ້ຮັບ Voltage | 220V / 230V AC |
| ພະລັງງານຢ່າງຕໍ່ເນື່ອງ | 3000 ວັດ |
| ພະລັງງານສູງສຸດ | 6000 ວັດ |
| Output Waveform | ຄື້ນ Sine Wave (THD <5%) |
| USB Output | 5V 2.1A |
| ຄວາມອາດສາມາດຫມໍ້ໄຟທີ່ແນະນໍາ | 180 Amp-hours (for 24V system) |
| ຂະໜາດ (L x W x H) | 42ຊມ x 16.5ຊມ x 10ຊມ |
| ແຫຼ່ງພະລັງງານ | Battery Powered, Solar Powered (with compatible solar charge controller) |
| ຜູ້ຜະລິດ | NOVOPAL |
| ປະເທດຕົ້ນກໍາເນີດ | ຈີນ |
8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
The NOVOPAL DLCD3000PEU24 inverter comes with a ຮັບປະກັນ 1 ປີ against manufacturer defects from the date of purchase.
ການຮັບປະກັນ: This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, abuse, accidents, unauthorized repairs, or natural disasters.
ສະຫນັບສະຫນູນດ້ານວິຊາການ: For technical assistance, troubleshooting guidance, or to initiate a warranty claim, please contact NOVOPAL customer service. Refer to the contact information provided in the original product packaging or on the official NOVOPAL webເວັບໄຊ. ກະລຸນາມີໃບຮັບເງິນຊື້ ແລະໝາຍເລກຕົວແບບຜະລິດຕະພັນໃຫ້ພ້ອມເມື່ອຕິດຕໍ່ກັບຝ່າຍຊ່ວຍເຫຼືອ.
ອາໄຫຼ່: Information regarding the availability of spare parts is not explicitly provided. Software updates are not applicable for this device.
9. ຄໍາຮ້ອງສະຫມັກ
The NOVOPAL DLCD3000PEU24 Pure Sine Wave Inverter is designed for a wide range of applications, providing reliable AC power from a 24V DC source for various needs.
ພາຫະນະ: Ideal for cars, trucks, recreational vehicles (RVs), and boats to power various electronics and small appliances while on the move.
ກິດຈະກຳກາງແຈ້ງ: ທີ່ສົມບູນແບບສໍາລັບຄamping, picnics, tailgating, and other outdoor events where access to grid power is unavailable.
Home/Office Backup: Can serve as a reliable backup power source for essential devices during power outages or in off-grid setups.
Sensitive Electronics: The pure sine wave output ensures safe operation and extends the lifespan of sensitive equipment such as laptops, cameras, medical devices, and audio equipment.
High-Power Appliances: Capable of running power tools, microwave ovens, coffee machines, small refrigerators, and other high-wattage devices within its specified power limits.
