ສິນຄ້າເກີນview
This UP Ink Cartridge Chip Resetter is designed to reset the chips on genuine and compatible ink cartridges for various Brother MFC and J series printers. It allows for the reuse of ink cartridges by resetting their chip's ink level status, enabling refilling and continued use. The device is designed for approximately 60 uses.
ຄວາມເຂົ້າກັນໄດ້:
- Ink Models: LC3011, LC3013, LC3017, LC3019, LC3029
- Printer Models: Brother MFC-J491DW, MFC-J497DW, MFC-J690DW, MFC-J895DW, MFC-J5330DW, MFC-J6530DW, MFC-J6930DW, MFC-J6730DW, MFC-J5830DW, MFC-J5830DW-XL, MFC-J6535DW, MFC-J6535DW-XL, MFC-J5930DW, MFC-J6935DW
Important Note: This resetter is intended for use with genuine or UP brand compatible cartridge chips only. It is not compatible with SETUP/Initialize cartridge chips or other third-party chips.
ເນື້ອໃນຊຸດ
- 1 x UP Ink Cartridge Chip Resetter
- 1 x ສາຍ USB
Image: The UP Ink Cartridge Chip Resetter shown with its product box and included USB cable.
ຕັ້ງຄ່າ
- ການກະກຽມອົງປະກອບ: Gather the chip resetter, the USB cable, and the ink cartridge you intend to reset.
- ເຊື່ອມຕໍ່ພະລັງງານ: Connect the chip resetter to a 5V power source using the USB cable. This can be a computer's USB port or a cell phone charger.
- ຕົວຊີ້ບອກພະລັງງານ: The resetter's LED light will flash red, indicating it is ready for operation.
ຄໍາແນະນໍາການແກ້ໄຂບັນຫາ: If the LED light does not illuminate, try connecting the USB cable to a different USB port or power source.
ຮູບພາບ: A close-up view of the chip resetter, highlighting the USB input port for power connection.
ຄໍາແນະນໍາການດໍາເນີນງານ
- ເອົາຕະຫຼັບໝຶກອອກ: Open the printer's cartridge cover and remove the ink cartridge you wish to reset. Close the printer cover after removal.
- Position Cartridge: Place the ink cartridge onto the fixed position of the chip resetter. Ensure the chip on the cartridge makes proper contact with the resetter's thimble.
- Reset Confirmation: The resetter's LED light will turn solid red or green and stop flashing, indicating a successful chip reset.
ຄໍາແນະນໍາການແກ້ໄຂບັນຫາ: If the LED light continues to flash red, the reset step has failed. This may be due to poor contact between the chip and the thimble, or the chip resetter may have exceeded its usage limit.
- Refill Ink: After a successful reset, it is crucial to refill the ink cartridge. Ensure the cartridge is refilled to at least 80% capacity before reinstallation.
Attention: If the ink cartridge's real ink level is lower than 50% when resetting the chip, refill the ink cartridge to more than 80% before installing it back into the printer.
- Reinstall Cartridge: Open the printer's cartridge cover again and re-install the reset and refilled ink cartridge. Close the cover.
- ການຮັບຮູ້ເຄື່ອງພິມ: The printer may initially display a "?" or "!" sign for the reset cartridge. Navigate to the "Ink Volume" option on the printer's screen. The printer should then recognize the chip and display a full ink level.
ຄໍາແນະນໍາການແກ້ໄຂບັນຫາ: If the printer does not recognize the ink cartridge chip, verify that you refilled the ink to more than 80% after resetting the chip ink level.
- Repeat for other colors: Repeat these steps for any other ink cartridges that require resetting.

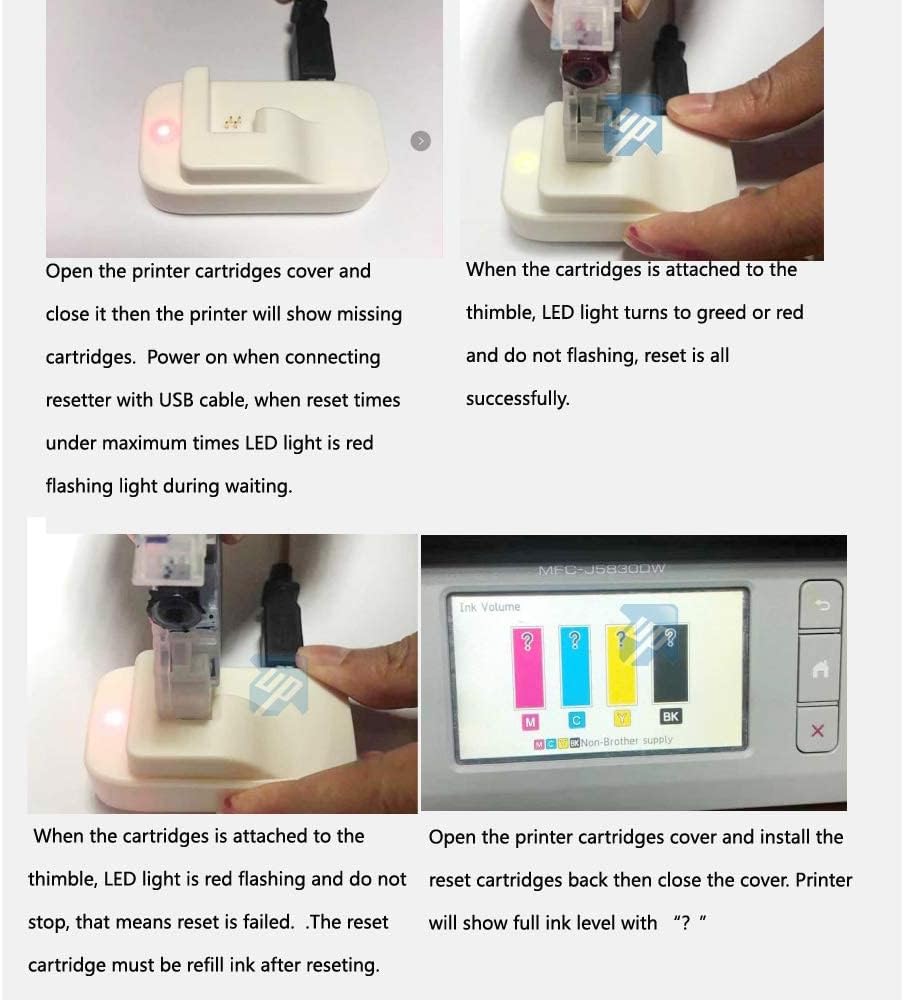

Image: A composite image illustrating the process of removing an ink cartridge, resetting its chip with the device, and the printer's display showing ink levels before and after resetting.
ວິດີໂອການສອນ
Video: A detailed demonstration of how to use the UP Ink Cartridge Chip Resetter with a Brother printer, showing the steps for removing, resetting, refilling, and reinstalling ink cartridges.
ບໍາລຸງຮັກສາ
The chip resetter has a designed lifespan of approximately 60 uses. After this limit, the device may no longer function correctly and will need to be replaced.
Store the chip resetter in a clean, dry environment away from direct sunlight and extreme temperatures to ensure its longevity.
ການແກ້ໄຂບັນຫາ
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| Chip resetter LED does not light up. | Poor power connection or faulty USB port. | Try changing to another USB port (e.g., another computer USB interface or a cell phone charger). |
| Reseter LED keeps red flashing and does not stop. | Chip did not contact well with thimble, or chip resetter exceeded its limited usage times. | Ensure the ink cartridge chip is properly seated and making firm contact with the resetter's thimble. If the issue persists, the resetter may have reached its 60-use limit. |
| Printer cannot recognize ink cartridge chip after resetting. | Ink not refilled sufficiently after reset. | Check if you refilled ink more than 80% full after resetting the chip ink level. Ensure the cartridge is properly installed. |
| Reseter does not work with SETUP/Initialize cartridges or third-party chips. | Incompatible cartridge type. | This resetter is designed only for genuine and UP brand compatible cartridge chips. It will not work with SETUP/Initialize cartridges or other third-party chips. |
ຂໍ້ມູນຈໍາເພາະ
- ໝາຍເລກຕົວແບບ: R-LC3013
- ຍີ່ຫໍ້: UP
- ຜູ້ຜະລິດ: UniPrint
- ນ້ໍາຫນັກລາຍການ: 1.2 ອອນສ໌ (ປະມານ 34 ກຣາມ)
- ຂະໜາດແພັກເກດ: 3.86 x 1.93 x 1.85 ນິ້ວ (ປະມານ 9.8 x 4.9 x 4.7 ຊມ)
- ວັນທີທໍາອິດທີ່ມີ: ວັນທີ 27 ພຶດສະພາ 2020
- Ink Color Compatibility: Black (and other colors for compatible ink models)
- ອຸປະກອນທີ່ເຂົ້າກັນໄດ້: ເຄື່ອງພິມ
- ຄຸນນະສົມບັດພິເສດ: Refillable (enables refilling of cartridges)
- ຕົວເລືອກຄວາມເຂົ້າກັນໄດ້: ເຂົ້າກັນໄດ້
- Ink Base: Water (for compatible inks)
- ຈໍານວນລາຍການ: 1 (chip resetter)
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
Information regarding specific warranty terms or direct support contacts for the UP Ink Cartridge Chip Resetter is not provided in the available product details. For any issues or inquiries, please refer to the seller's contact information on the platform where the product was purchased.
