1. ເກີນview
This manual provides essential information for the Matrix Pedal Arm Pivot Assembly, part number 0000090522. This component is a critical replacement part for various Matrix residential elliptical models, ensuring the smooth and proper function of the pedal arm pivot mechanism.
2. ຄວາມເຂົ້າກັນໄດ້
The 0000090522 Pedal Arm Pivot Assembly is compatible with the following Matrix elliptical and ascent trainer models:
- Matrix A7x Ascent Trainer
- Matrix A7xe Ascent Trainer
- Ascent - A5x-07 (2006-2008, EP72)
- E5x-02
- E7x-01
- E7xe-01
- I5x-G3 (EP76)
- MX-E5xc - E5xc-06-G3 (2006-2008, Silver - After SN EP74080204567)
- MX-E5xc - E5xc-06-G3 (2006-2008, Silver - Before SN EP74071003341)
- MX-E5xc - E5xc-06-G3 (2006-2008, Silver - SN EP74071003341-EP74080204567)
- Premium - A5x-02-G4 (2009, Silver - Before SN EP84100900768)
- Premium - E5x-02-G4 (2009, Silver - Before SN EP8110090307)
- Premium - E7x-01-G4 (2009, Silver - Before SN EP8110090307)
Always verify compatibility by locating your equipment's model name and serial number, then cross-referencing with the product description or manufacturer's specifications.
3. Installation & Replacement Guidance
When replacing parts for exercise equipment, it is crucial to identify the correct component. Locate your machine's Model Name and Model (Icon) or Serial Number (for all other manufacturers). The first 2-5 characters of the serial number are often sufficient for identification.
If you are not comfortable diagnosing and replacing parts on your machine, it is highly recommended to consult with a qualified fitness technician. Improper installation can lead to further damage or unsafe operation of the equipment.

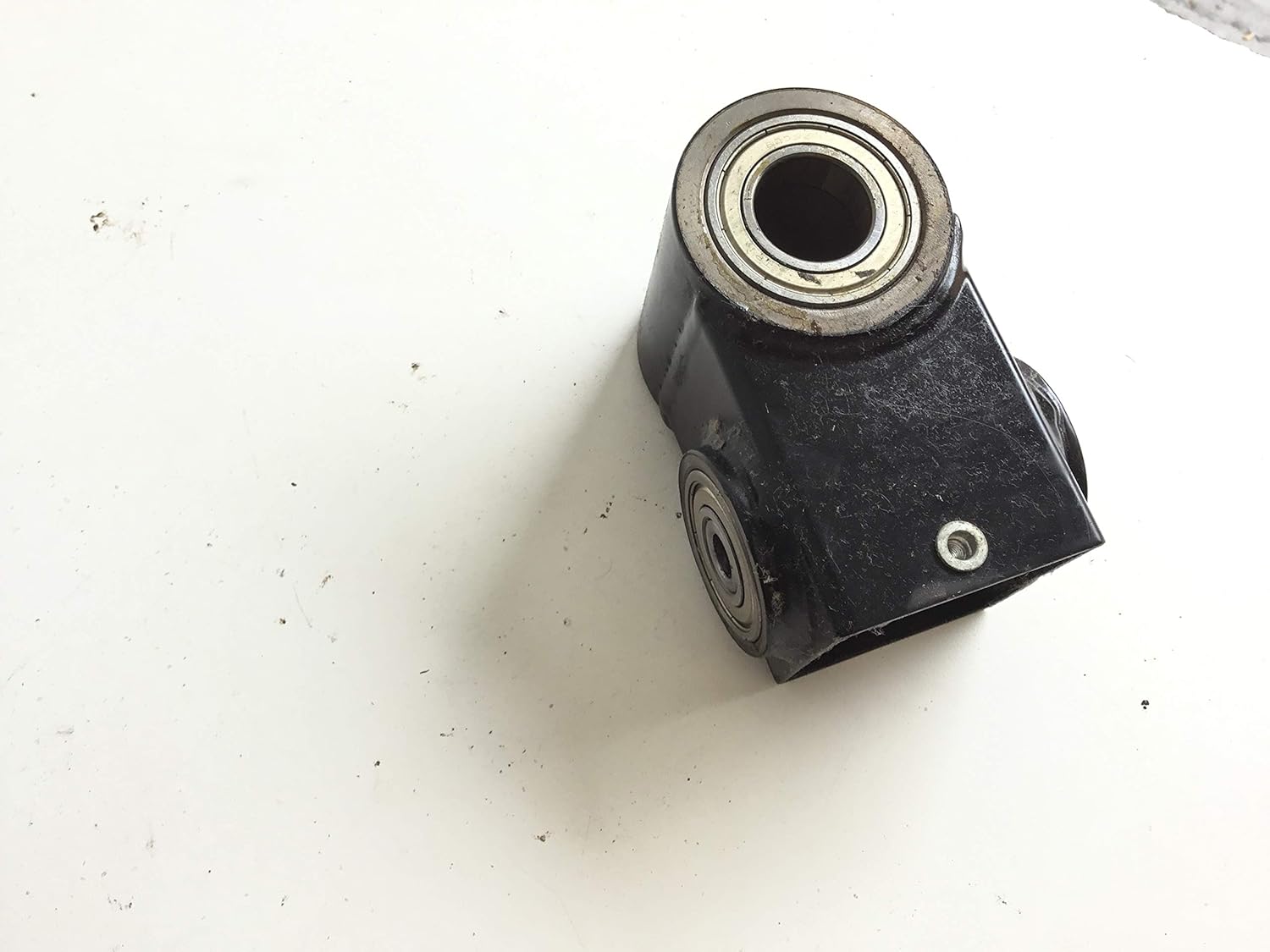

4. ຮູບພາບຜະລິດຕະພັນ
5. ຂໍ້ມູນຈໍາເພາະ
| ຄຸນລັກສະນະ | ມູນຄ່າ |
|---|---|
| ເລກສ່ວນ | 0000090522 |
| ຍີ່ຫໍ້ | ມາຕຣິກເບື້ອງ |
| ຜູ້ຜະລິດ | Matrix Fitness |
| ວັດສະດຸ | ໂລຫະ |
| ນ້ໍາຫນັກລາຍການ | 16 ອອນ |
| ນ້ໍາຫນັກຊຸດ | 5 ປອນ |
| ຂະໜາດລາຍການ (LxWxH) | 10 x 8 x 4 ນິ້ວ |
| ASIN | B07G5NMWSR |
| ວັນທີທໍາອິດທີ່ມີ | ວັນທີ 3 ສິງຫາ 2018 |
| UPC | 081224152645 |
6. Support & Assistance
For complex diagnostics, repairs, or if you are uncertain about the correct replacement part or installation procedure, it is advisable to seek professional assistance. A fitness technician in your area can provide expert guidance and ensure your equipment is serviced correctly.
