ຄູ່ມືຜູ້ໃຊ້ສ່ວນຂະຫຍາຍດ້ານຫຼັງ Matrix G7-S52

1. ບົດແນະນຳ

This manual provides essential information for the safe and effective operation, setup, and maintenance of your Matrix G7-S52 Back Extension machine. Please read this manual thoroughly before using the equipment to ensure proper usage and to prevent injury.

The Matrix G7-S52 Back Extension is designed for strength training, specifically targeting back muscles. It features multi-position foot placement, thumb switch controls for easy adjustments, and a contoured back pad for user comfort.

2. ຂໍ້ມູນຄວາມປອດໄພ

Your safety is paramount. Adhere to all warnings and instructions provided in this manual. Failure to do so may result in serious injury or damage to the equipment.

• ປຶກສາແພດ: Before beginning any exercise program, consult with a healthcare professional to ensure it is appropriate for your physical condition.
• ອ່ານຄໍາແນະນໍາ: Always read and understand the entire manual before operating the machine.
• ການ​ນໍາ​ໃຊ້​ທີ່​ເຫມາະ​ສົມ​: Use the equipment only for its intended purpose as described in this manual. Do not modify the machine.
• ການເບິ່ງແຍງກວດກາ: Children and individuals with physical or mental limitations should be supervised when near the equipment.
• ການເກັບກູ້: ຮັບປະກັນໃຫ້ມີພື້ນທີ່ຫວ່າງພຽງພໍອ້ອມຮອບເຄື່ອງຈັກໃນລະຫວ່າງການປະຕິບັດງານ.
• ກວດ​ສອບ​ກ່ອນ​ການ​ນໍາ​ໃຊ້​: ກ່ອນການນຳໃຊ້ແຕ່ລະຄັ້ງ, ໃຫ້ກວດສອບເຄື່ອງຈັກວ່າມີຊິ້ນສ່ວນທີ່ວ່າງ, ສາຍໄຟທີ່ສວມໃສ່, ຫຼື ມີຮ່ອງຮອຍຂອງຄວາມເສຍຫາຍຫຼືບໍ່. ຢ່າໃຊ້ຖ້າມັນເສຍຫາຍ.
• ການ​ຕົບ​ແຕ່ງ​ທີ່​ເຫມາະ​ສົມ​: Wear appropriate athletic clothing and footwear. Avoid loose clothing that could get caught in moving parts.
• ການປັບຕົວ: Make sure all adjustments are securely locked before beginning an exercise.
• ຈຳກັດນ້ຳໜັກ: ຢ່າເກີນນ້ຳໜັກສູງສຸດຂອງຜູ້ໃຊ້ ຫຼື ຄວາມຈຸຂອງນ້ຳໜັກທີ່ວາງຊ້ອນກັນໄດ້.
• ການຢຸດສຸກເສີນ: Familiarize yourself with how to safely dismount the machine in an emergency.

3. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

The Matrix G7-S52 Back Extension machine is a heavy-duty piece of equipment. Professional installation is highly recommended.

3.1 ການຫຸ້ມຫໍ່ແລະການຈັດວາງ

• Carefully unpack all components. Retain packaging for future transport if needed.
• Place the machine on a flat, stable, and level surface. Ensure sufficient clearance around the machine for safe operation and maintenance.
• The machine weighs approximately 283 kg (623 lbs). Use appropriate lifting techniques and equipment to move it.

3.2 Assembly (Professional Recommended)

While specific assembly steps are not detailed here, ensure all components are securely fastened according to the manufacturer's instructions. Pay close attention to the cable routing and connections.

3.3 ການເຊື່ອມຈອດ

The machine features independent machine hold down brackets. For maximum stability and safety, especially in commercial environments, it is recommended to anchor the machine to the floor using appropriate hardware (not included).

ຮູບ 3.1: ເຕັມ view of the Matrix G7-S52 Back Extension machine, showing its robust construction and design.

4. ຄໍາແນະນໍາການດໍາເນີນງານ

Follow these steps for safe and effective use of your Back Extension machine.

4.1 ການປັບເຄື່ອງຈັກ

1. Select Weight: Adjust the weight stack to your desired resistance level. The total stack weight is 109 kg (240 lbs), with incremental weights of 2.5 lbs, 5 lbs, 7.5 lbs, and 10 lbs plates.
2. Adjust Back Pad: The contoured back pad has 5 start positions. Use the thumb switch controls to easily adjust the back pad to a comfortable and effective starting position for your height and flexibility.
3. Adjust Foot Placement: The multi-position foot placement accommodates a variety of users. Position your feet firmly on the foot pads for stability.

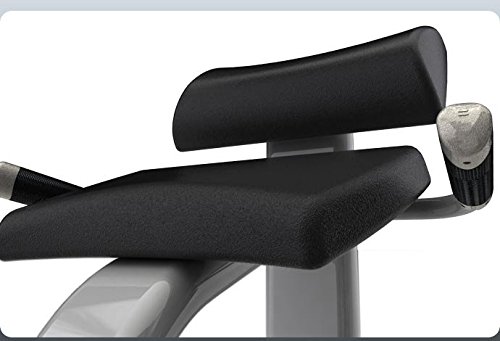

Figure 4.1: Contoured seat and back pad for enhanced user comfort.

Figure 4.2: Thumb switch controls for easy and precise adjustments.

Figure 4.3: Multi-position foot placement to accommodate various users.

4.2 ການປະຕິບັດການຝຶກຊ້ອມ

• Sit on the machine with your back against the pad and feet securely on the foot platforms.
• Grasp the handles firmly.
• Engage your core and slowly extend your back, pushing against the pad.
• Control the movement on the way back to the starting position. Avoid sudden movements.
• Refer to the front placards on the machine for muscle call-outs, machine-specific stretching, and proper exercise illustrations.

4.3 Using the Rep Counter

The electronic rep counter displays reps, exercise time, and rest time. It is powered by 2 AA batteries with an approximate life of 3 years. The service mode tracks total machine reps and hours of use.

5. ບໍາລຸງຮັກສາ

Regular maintenance ensures the longevity and safe operation of your Matrix G7-S52 Back Extension machine.

• ທໍາຄວາມສະອາດປະຈໍາວັນ: Wipe down all surfaces, especially the pads and handles, with a mild, non-abrasive cleaner after each use.
• Weekly Inspection:
  • Check all nuts, bolts, and fasteners for tightness. Tighten as necessary.
  • Inspect cables and pulleys for any signs of fraying, wear, or damage. The cables are internally lubricated, but external inspection is crucial.
  • Ensure all adjustment mechanisms (thumb switches, back pad positions) operate smoothly and lock securely.
• ການປ່ຽນແບັດເຕີຣີ: Replace the 2 AA batteries in the rep counter approximately every 3 years, or when the display becomes dim or unresponsive.
• ການບໍລິການແບບມືອາຊີບ: For complex issues or annual preventative maintenance, contact a certified service technician.

6. ການແກ້ໄຂບັນຫາ

This section addresses common issues you might encounter with your Matrix G7-S52 Back Extension machine.

7. ຂໍ້ມູນຈໍາເພາະ

Detailed technical specifications for the Matrix G7-S52 Back Extension machine.

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For specific warranty information, please refer to the warranty card included with your purchase or contact the manufacturer directly. Warranty terms may vary based on region and purchase date.

8.1 ສະຫນັບສະຫນູນລູກຄ້າ

If you have any questions, require technical assistance, or need to order replacement parts, please contact Johnson Health Tech, the manufacturer of Matrix fitness equipment. Have your model number (G7-S52) and serial number (if applicable) ready when contacting support.

Please note: Contact information for Johnson Health Tech is typically found on their official webເວັບໄຊ ຫຼືເອກະສານການຊື້ຂອງທ່ານ.
