LIQUID Arbitrary Waveform Generator Software User Manual

Arbitrary Waveform Generator
Moku: Go, User Manual,

Moku:Go’s Arbitrary Waveform Generator can generate custom waveforms with up to 65,536 points at update rates of up to 125 MSa/s. Waveforms can be loaded from a file, or input as a piecewise mathematical function with up to 32 segments, enabling you to generate truly arbitrary waveforms. In pulsed mode, waveforms can be output with more than 250,000 cycles of dead time between pulses, allowing you to excite your system with an arbitrary waveform at regular intervals over extended periods of time.

Ensure Moku: Go is fully updated. For the latest information: www.liquidinstruments.com

Contents hide

1 User Interface

2 Main Menu

3 Output Configuration

4 Waveform Types

5 Power Supply

6 Documents / Resources

6.1 References

7 Related Posts

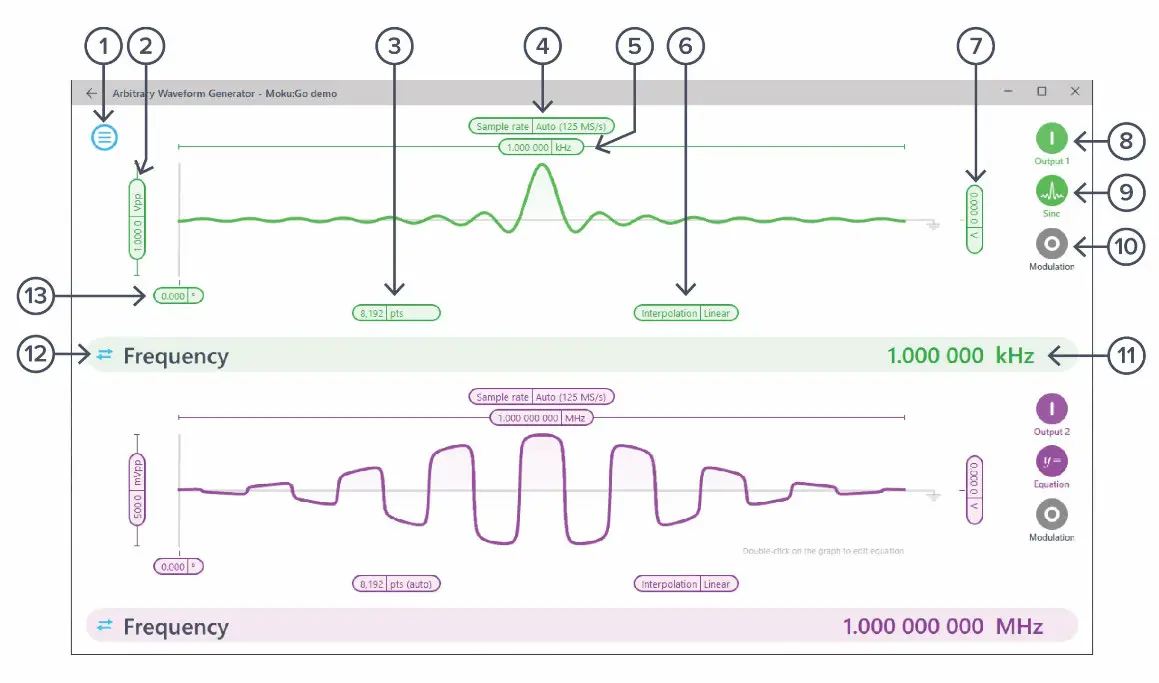

User Interface

ID Description

Main menu

Configure amplitude / high level
Configure number of points

Configure sample rate
Configure frequency / period / update rate

Turn linear interpolation on or off
Configure offset

Enable/disable output
Configure waveform shape

Enable/disable modulation
Active parameter*

Switch between representations*
Configure phase

*Click the amplitude, offset, frequency, or phase number to make it the active parameter. For amplitude and offset, click the swap button to switch between Vpp/offset or high/low-level representations. For frequency, click the swap button to switch between frequency or period representations.

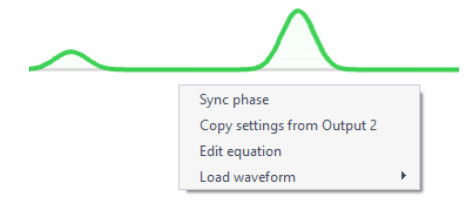

Secondary click

Sync phase with copy settings between channels can be accessed by right-click (secondary click) menu on the main user interface. The settings on one output can be instantly applied to the other output with copy settings. And the phase between two channels can be aligned with the sync phase. In addition, you can edit the equation or load your custom waveform via this menu. Detailed information about the equation editor and custom waveform can be found in a later section.

Main Menu

The main menu can be accessed by pressing the icon on the top-left corner.

This menu provides the following options:

Options	Shortcuts	Description
Save/recall settings:
· Save instrument state	Ctrl+S	Save the current instrument settings.
· Load instrument state	Ctrl+O	Load last saved instrument settings.
· Show current sate		Show the current instrument settings.
Reset instrument	Ctrl+R	Reset the instrument to its default state.
Power supply		Access power supply control window.*
File manager		Open file manager tool.
File converter		Open file converter tool.
Help
· Liquid Instruments website		Access Liquid Instruments website.
· Shortcuts list	Ctrl+H	Show Moku:Go app shortcuts list.
· Manual	F1	Access instrument manual.
· Report an issue		Report bug to Liquid Instruments.
· About		Show app version, check update, or license information.

* Power supply is available on Moku: Go M1 and M2 models. Detailed information about power supply can be found in Moku: Go power supply manual.

Output Configuration

Enable / Disable Outputs
Enable the output of the selected channel by pressing the icon
Disable the output of the selected channel by pressing the icon

Load Impedance
Make: Go assumes the external load to have a high load impedance.

Selecting the correct load impedance
Make: Go’s outputs have an impedance of 200 Ω. As such, voltages supplied to a 50 Ω load will be reduced and not recommended.

Modulation Modes

Moku: Go’s Arbitrary Waveform Generator supports three modulation modes: Off, Pulsed, and Bursted.
Off
In normal mode, the output waveform is repeated continuously with no dead time between cycles.

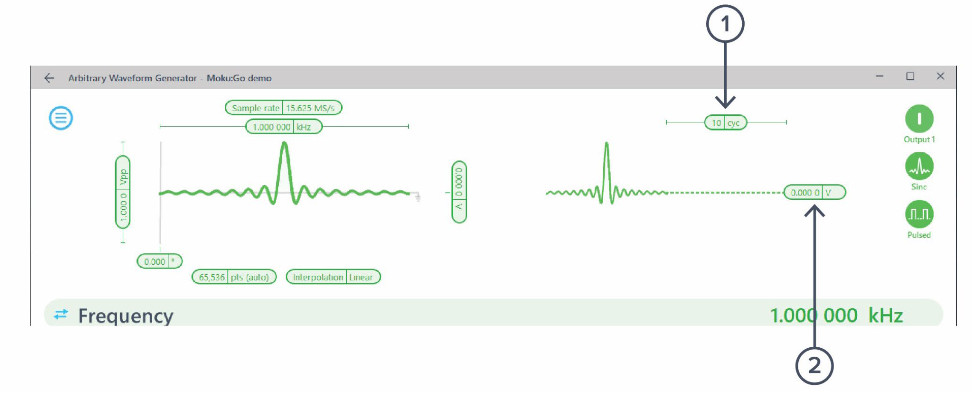

Pulsed
In pulsed mode, the output waveform can be configured to have up to 2 18 = 262144 cycles of dead time between each repetition of the arbitrary waveform.

ID	Parameter	Description
1	Dead cycles	The period of each cycle of dead time is equal to the selected period of the waveform.
2	Dead voltage	The dead time voltage can be configured to equal any DC value between the waveform’s minimum and maximum voltages.

Burst
In burst mode, the output waveform can be triggered from another signal source. The output once triggered varies according to the trigger mode.

ID	Parameter	Description
1	Burst cycle count	N – Cycle mode only. The number of cycles to generate before re-arming.
2	Burst mode	N -Cycle or Start. The Start mode generates infinite loops of the waveform after the trigger event.
3	Trigger level	Set the voltage level to trigger at.
4	Input range	Set the input channel range.
5	Trigger source	Select between input 1 or 2.

Waveform Types

Generate one of five pre-set waveforms, a custom waveform from a file, or a waveform defined by a series of piece-wise mathematical equations.

Custom

Uploading custom waveforms

Upload custom waveforms from a comma- or newline-delimited text from a computer file or clipboard.
Up to 8,192 points can be output at an update rate of 125 MSa/s, up to 16,384 points at 62.5
MSa/s, up to 32768 points at 31.25 MSa/s and up to 65,536 points at 15.625 MS/s

Maximum recommended sampling rate

The maximum safe frequency of the generated waveform is equal to the sampling rate divided by the number of points in the custom waveform .
o For example, the maximum safe frequency of a 1000-point waveform is 125 MSa/s ÷ 1000 Samples = 125 kHz.
Exceeding the maximum recommended frequency will result in some points being skipped.

Amplitude scaling and interpolation

The amplitude of custom waveforms will be normalized to the range [-1, +1] and then scaled to the desired amplitude and offset.
Select between linear and no interpolation.

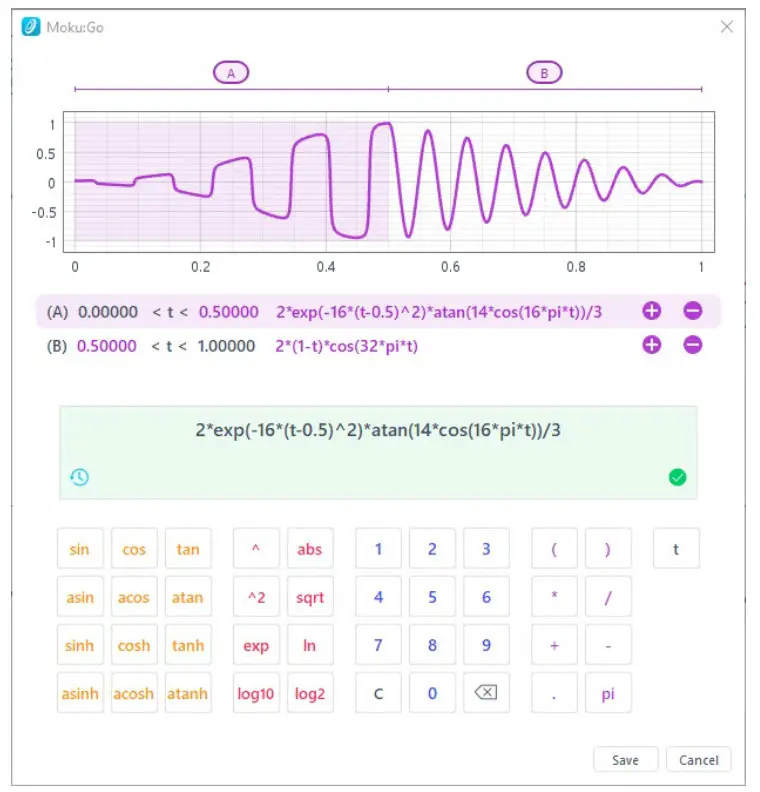

Equation
The equation waveform type enables you to design arbitrary waveforms using up to 32 piecewise mathematical functions.

Waveform segments

Add up to 32 waveform segments and define their time-fractional time periods within a single period of the total waveform.

To add or remove segments, press the Add / Remove label + and – click the icons that appear to the left of the equations.
To modify the period of an individual segment, click its time segment label and type in the desired end time for that period. The starting time for each segment is the end time for the previous segment.

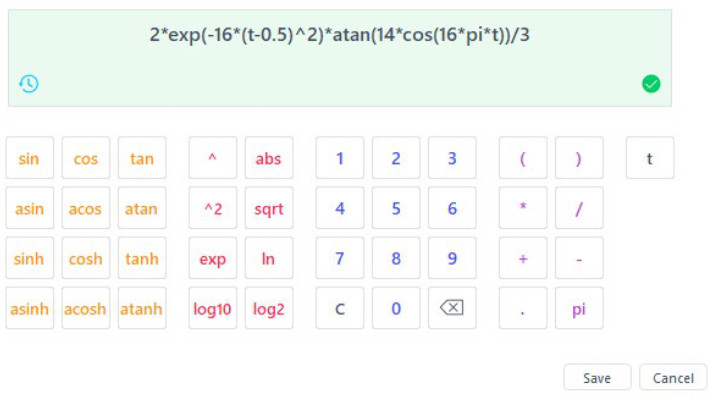

Equation editor

The equation editor allows you to define arbitrary mathematical functions for each segment in the waveform.
Select from a range of common mathematical expressions including trigonometric, quadratic, exponential, and logarithmic functions.
The variable t represents time in the range from 0 to 1 periods of the total waveform

Access recently entered equations by pressing the icon.
The validity of the entered equation is indicated by the and icons that appear to the right of the equation box.

Power Supply

Moku: Go Power supply is available on M1 and M2 models. M1 features a 2-channel power supply, while M2 features a 4-channel power supply. The power supply control window can be accessed in all instruments under the main menu.

The power supply operates in two modes: constant voltage (CV) or constant current (CC) mode.
For each channel, the user can set a current and voltage limit for the output. Once a load is connected, the power supply operates either at the set current or set voltage, whichever comes first. If the power supply is voltage limited, it operates in the CV mode. If the power supply is currently limited, it operates in the CC mode.

ID	Function	Description
1	Channel name	Identifies the power supply being controlled.
2	Channel range	Indicates the voltage/current range of the channel.
3	Set value	Click the blue numbers to set the voltage and current limit.
4	Readback numbers	Voltage and current readback from the power supply, the actual voltage and current being supplied to the external load.
5	Mode indicator	Indicates if the power supply is in CV (green) or CC (red) mode.
6	On/Off Toggle	Click to turn the power supply on and off.
