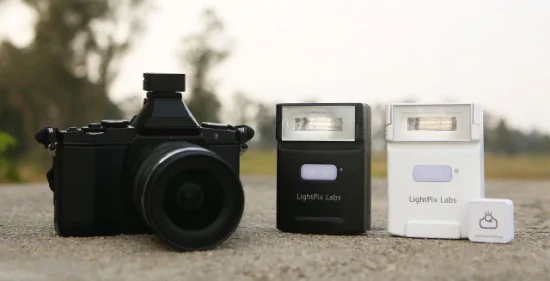

LightPix Labs FlashQ Q20III Camera Flash User Manual

USB charging for both FlashQ Transmitter and Q20111 body (using rechargeable Ni-MH batteries)
USB Type-C ports offer more convenient charging experience

Pairing multiple Transmitters to multiple Q20111 flashes / FlashQ Receivers (sold separately)
Tiltable flash head

With color gel holder
LED video / modeling light

Nomenclature

Low Battery Notification

FlashQ Transmitter : During power-ON, press power button once, a blinking
RED indicates low-battery and needs a recharge.
Q20111 Main Body :Any button actions make the Battery Charge Indicator blink RED. Flash / video light gets suspended. This needs a recharge / battery replacement.

Charging FlashQ Transmitter

Charge FlashQ Transmitter (with built-in Li-ion battery) by connecting to a computer or other USB power adapter using the included USB cable.

The Status indicator on Transmitter is in RED during charging and turns GREEN when charging is complete.
Take around 1.2 hours to fully charge the Transmitter.

WARNING:
The included USB charging cable is for charging FlashQ Q20111 / Transmitter / Receiver only. Total power rating (two USB-C outputs) is at 5V 800mA.

Package Contents

1 x FlashQ Q20111 main body (Battery is not included)
1 x FlashQ Transmitter (with built-in lithium battery)

1 x Diffuser panel (-1.3 EV)
1 x Color gel holder

x Color gel pack (7 colors)
1 x USB charging cable (two USB-C outputs)
1 x Protective pouch
1 x User manual

Charging FlashQ Q20111

Highly recommend to use rechargeable Ni-MH batteries on FlashQ Q20111 for quick recycling time and convenience of USB charging capability.

Charge FlashQ Q20111 (with rechargeable Ni-MH batteries installed) by connecting to a computer or other USB power adapter using the included USB cable.
The Battery Charge Indicator is in AMBER during charging and turns GREEN when charging is complete.
Take around 4.5 hours to fully charge two 2500mAh Ni-MH batteries with FlashQ Q20111.

WARNING:

FlashQ Q20111 also accepts two non-rechargeable AA-size alkaline batteries, but DO NOT attempt to recharge the alkaline batteries using USB charging.
Battery may leak or explode if improperly handled.
Make certain to install the batteries with correct polarity.
Remove the batteries from FlashQ Q20111 when not in use for a prolonged period.

Warranty

12 months warranty from the date of original purchase.
For support and inquiry, please contact us directly. Email : info@lightpixlabs.com
Message Box : https://lightpixlabs.com/contact

FCC Warranty

FCC ID: 2AT3V-Q20M3

This device complies with Part l 5 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 1 5 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there Is no guarantee that Interference wlll not occur In a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user Is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Safety Warnings and Cautions

The photoflash (Xenon flash tube) outputs high power light energy. Avoid direct eye exposure.
Caution hot around the flash tube window and video light window during use.
Do not expose the product to rain or moisture.

The product contains small parts. Keep out of reach of small children to prevent accidental swallowing.
Do not disassemble. Electric shock may occur if high voltage circuit inside the product is touched.

FlashQ Transmitter

Flash Mode

S1 Mode

S2 Mode

Video Mode

Modeling Mode

Pairing Up FlashQ Q20111 and Transmitter

Technical Specifications

Guide Number 20m (at ISO 100)
Focal length coverage: 32mm (on 35mm format)
Manual flash power ratio control (7 steps adjustable, 1 /64 to 1 / l)

LED video light (7 steps adjustable, Max. 60 lux output at 1 m)
2.4GHz low-power digital ° radio, 10 meters wireless operating °range °
Tiltable flash head, up to 90 and with click-stops at O’, 45′, 60 , 75 , 90°

Other functions: 51 / 52 optical slave, modeling light (LED)
Transmitter per charge: 80 hours operation and 120 days standby
Two AA-size alkaline / rechargeable Ni-MH batteries for Q20111 main body

Recycling time (1 /1 full power output) : 6 sec. by Ni-MH batteries I 7 sec. by fresh alkaline batteries
Number of flashes : 100 – 2000 flashes
LED lighting time: approx. 1 hour (at full power LED output and by Ni-MH batteries)

Flash color temperature : 5600K±200K (same as daylight)
LED color temperature : 5500K±300K, CRI 95
Dedicated socket for FlashQ Transmitter attachment

Dimensions : 59(W) x 101 (H) x 29(D) mm (including FlashQ Transmitter)
Weight : l l 5g (without battery)

Flash Length Range
