AN IDEAL SOLUTION FOR OUTDOOR RESIDENTIAL GENERATORS
Generator Inlet Box Kits
User Manual
Q-1229A Generator Inlet Box Kits
- Installed outside and used to connect generators to indoor electrical panels
- Ideal for safe applications when electrical panels are not located close to the exterior of a building

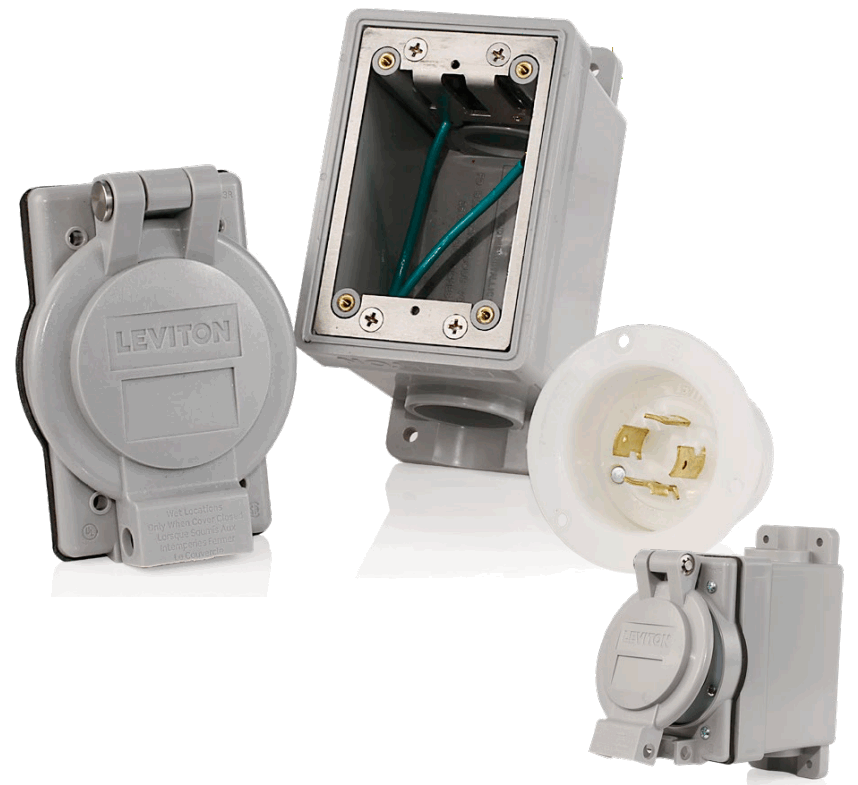

- Kit consists of Inlet, Wetguard® FD Box and Waterproof Flip Lid Cover for NEMA 3R protection
- Available in 20 and 30 Amp offerings
 20 A Kit 125/250 V NEMA L14-20P |
30 A Kit 125/250 V NEMA L14-30P |
| CATALOG NUMBER: 37820-KT | CATALOG NUMBER: 37830-KT |
| Corresponding Connector (L14-20R): 2413 Replacement Inlet (L14-20P): 2415 Replacement Waterproof Flip Lid Cover: WP2-G Replacement Wetguard® FD Box: FDBX1-GY |
Corresponding Connector (L14-30R): 2713 Replacement Inlet (L14-30P): 2715 Replacement Waterproof Flip Lid Cover: WP2-G Replacement Wetguard® FD Box: FDBX1-GY |
Visit our Website at: www.leviton.com/industrial
• email: industrial@leviton.com
© 2022 Leviton Manufacturing Co., Inc. All rights reserved. Q-1229A 060322
