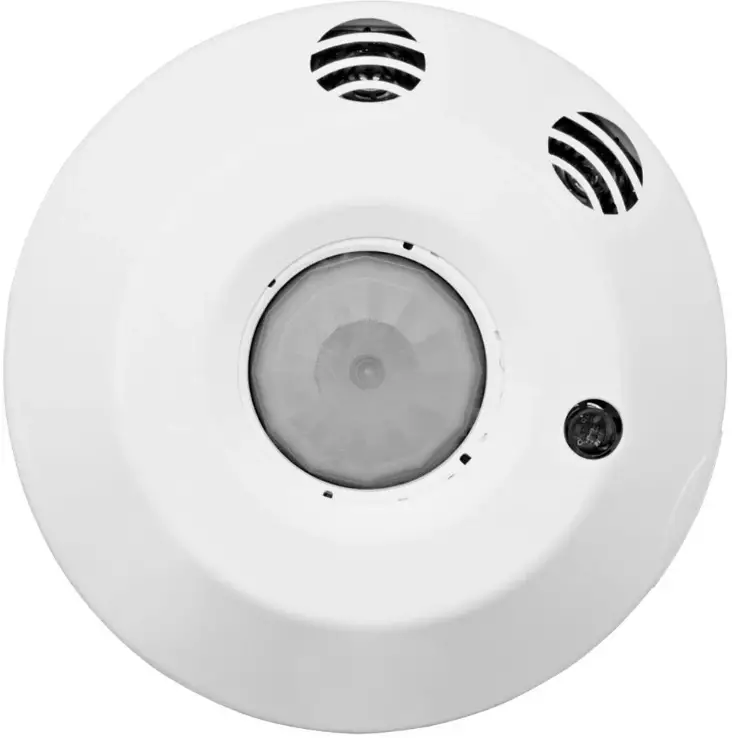

LEVITON BK00-CSW Smart Ceiling Mounted Room Controllers and Sensors
Specifications
- Electrical: CR2025 x2, 3 V
- Batteries: Wireless Companion Switch and Dimmer
- Wireless Network Range: 2.4GHz, 50 ft
- Environmental:
- Operating Temperature: N/A
- Storage Temperature: N/A
- Relative Humidity: N/A
- Physical:
- Color: White
- Other: IP20
- IP Rating: IP20
- Listing: UL 1472, CSA C22.2 No. 184.1-15, FCC Part 15, Class B
- Warranty: Limited 5-Year Warranty
Product Usage Instructions
Installation
This Wireless Companion Switch and Dimmer can be installed in two ways:
- Wallbox Mount: Install the switch/dimmer inside a wall box.
- Wall Surface Mount: Mount the switch/dimmer on a wall surface.
Note: These devices do not connect directly to the load or lights. Control of the load or lights is through the Leviton Smart Ceiling Mount Room Controller or Sensor, which are line voltage devices (sold separately).
Wireless Companion Switch and Dimmer
Description
The Wireless Companion Switch and Dimmer pairs wirelessly with the Smart Ceiling Mount Room Controller (SRC) and Smart Ceiling Mount Sensor (CMS) to provide a simple-to-install solution for wireless manual lighting control. The Wireless Companion Switch and Dimmer can be mounted directly on wall surfaces or at an existing single or multi-gang wallbox, no wiring is required. The Wireless Companion Switch and Dimmer are the perfect solution for locations where a wall box may not be located or locations where there is no wiring present
Applications
The Wireless Companion Switch and Dimmer work in conjunction with the SRC and CMS which offer occupancy/vacancy sensing, dimming (SRC only), and daylight harvesting capabilities.
- The SBK00-CSW is a rocker switch that provides ON/OFF control
- The SBK00-CDW is a rocker dimmer that provides ON/OFF control with a dimming bar for dimming control
Features
- Provides wireless switching or dimming control for Smart Ceiling Mount Room Controllers and Smart Ceiling Mount Sensors
- Place in any location near SRC or CMS
- 50 ft wireless RF range
- Mounts directly to wall surface or installs at existing wall box (single and multi-gang) or where wiring may not be present
- Easy to pair to SRC and CMS using Leviton’s Smart Sensor App
- Multiple control options including primary load, secondary load (if applicable), and 3-way (if applicable)
- Use with standard Decora wallplates (single and multi-gang)
- Replaceable CR2025 batteries, with an estimated 5-year battery life
- Easy battery replacement – no need to remove the device from the wall or wall box
- Designer styling complements any interior for sleek aesthetics
NOTE: These devices do not connect directly to the load or lights. Control of the load or lights is through the Leviton Smart Ceiling Mount Room Controller or Sensor, which are line voltage devices (sold separately).
Leviton Manufacturing Co., Inc. Lighting & Controls
10385 SW Avery Street, Tualatin, OR 97062 tel 800-736-6682 tech line (6:00 AM-4:00 PM PT Mon-Fri) 800-959-6004
©2024 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
Product Data
SBK00-CxW
Application
Specifications
| Electrical | |
| Batteries | CR2025 x2, 3 V |
| Wireless | |
| Network | 2.4GHz |
| Range | 50 ft |
| Environmental | |
| Operating Temperature | 32°F – 104°F (0°C – 40°C) |
| Storage Temperature | 14°F – 185°F (-10°C – 85°C) |
| Relative Humidity | 0-90% non-condensing |
| Physical | |
| Color | White |
| Other | |
| IP Rating | IP20 |
| Listing | UL 1472, CSA C22.2 No. 184.1-15, FCC Part 15, Class B |
| Warranty | Limited 5-Year Warranty |
Ordering Information
| Wireless Companion Switch and Dimmer | |
| Cat. No. | Description |
| SBK00-CSW | Wireless Companion Switch, Battery powered, White |
| SBK00-CDW | Wireless Companion Dimmer, Battery powered, White |
MORE INFORMATION
- Leviton Manufacturing Co., Inc. Lighting & Controls
10385 SW Avery Street, Tualatin, OR 97062 tel 800-736-6682 tech line (6:00 AM-4:00 PM PT Mon-Fri) 800-959-6004 - Leviton Manufacturing Co., Inc. Global Headquarters
201 North Service Road, Melville, NY 11747-3138 tel 800-323-8920 tech line (8:00 AM-10:00 PM ET Mon-Fri, 9:00 AM-7:00 PM ET Sat, 9:00 AM-5:00 PM ET Sun) 800-824-3005 - Visit our Website at: www.leviton.com/smartsensors
©2024 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
FAQ
- Q: Can I directly connect these devices to the lights?
- A: No, these devices do not connect directly to the load or lights. Control of the load or lights is through the Leviton Smart Ceiling Mount Room Controller or Sensor, which are sold separately.
- Q: What is the warranty period for these products?
- A: These products come with a limited 5-year warranty.
