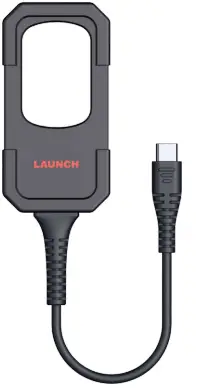

Launch X431 Key Programmer Remote Maker

Specifications

• Product Name: X-431 Key Programmer
• Functionality: Identify car key chips, generate chip models, read remote control frequency, and generate remote control devices
• Compatibility: Requires a diagnostic tool compatible with the Key Programmer App

Product Usage Instructions

• Before using the X-431 Key Programmer, ensure that you have the necessary accessories and a compatible diagnostic tool.
• The Key Programmer can identify various car key chips. Connect the key programmer to the diagnostic tool to begin the identification process.
• Use the Super Chip provided to generate different chip models for various car models. Ensure proper connection and follow the on-screen instructions.
• The Key Programmer can read the remote control frequency of car keys. Follow the instructions on the diagnostic tool to perform this task.
• Utilize the Key Programmer to generate remote control devices for different car models from various super remotes. Connect as needed and follow the programming steps.\

Product Profile

• The X-431 Key Programmer can identify car key chips and generate various types of chip models from super remotes, read the remote control frequency of car keys, and generate remote control devices for
• different car models from various types of super remotes. It can not work alone; it needs to work together with the diagnostic tool compatible with the Key Programmer App.

What’s Included

The following packing list is for reference purposes only. For different destinations, the accessories may vary. For details, please consult the local dealer or check the packing list supplied with this tool together.

Name	Quantity	Description
Key Programmer	1
USB A to Type C Converter	1	Connect the key programmer to the diagnostic tool.
Super Chip	1	Support the conversion of most car model chip types (including 8A, 8C, 8E, 4C, 4D, 4E, 48, 7935, 7936, 7938,7939, 11/12/13, etc.), and support separate matching to achieve vehicle startup.

Key Chip Programming Cable	1	Connect the remote key chip to the key programmer to perform wired programming.
The following keys can be applied in different situations according to actual requirements. It supports repeatable writing and batteries with button cell 2032 need to be installed while generating. LS NISN-01, LN PUGOT-01, and LE FRD-01 support wireless programming. Wired programming is applicable to LK VOLWG-01, which is not equipped with an anti-theft chip and needs to be used with an anti-theft chip (the key chip programming cable is required for wired programming).
LS NISN-01	1	Only compatible with vehicle models equipped with the KESSY (Keyless Entry Start & Stop) system, its functions include keyless starting and door edge sensing.
LN PUGOT-01	1	Not applicable to all vehicle models. It is necessary to check if the type of chip applies to the car model.Support vehicles with electronic chip keys or with 11, 12,13, 7936, 7937, 7947, 7946 chips.

LK VOLWG-01	1	It is applied in situations where the remote needs to be matched, but the chip is not needed, or it can also be used with the super chip. Support vehicles without electronic chip keys or car models with the 46, 48,4D/70, 83, 8A/H, G, 4E,11/12/13/4C, 42, 33, 47, 8C, 8C chips.
LE FRD-01	1	Only compatible with vehicle models equipped with the KESSY (Keyless Entry Start & Stop) system, its functions include keyless starting and door edge sensing.

FEATURE

Components & Controls

1. Induction area for the super chip and transponder
2. Power LED
   illuminates solid green when powered on. The
3. USB Type C connector
   connects it to the Type-C plug of the USB-A to Type-C converter. The
4. USB Type-C port
   connects it to the Type-C plug of the key chip programming cable.

Technical Parameters

• Size: 80*40*11.2mm
• Working voltage: 5V
• Operating temperature: 0-50°C
• Communication interface: USB
• Low-frequency communication interface: 125K low-frequency transceiver
• High-frequency communication interface: supports 13.56M high-frequency transceiver and 3000 M- 500 M high-frequency signal frequency measurement

Function Modules

Open the Key Programmer App on the diagnostic tool. The following screen will appear:

It provides the following functions:

1. Vehicle remote: Generate different car remote keys according to vehicle model, make, year, frequency and chip.
2. Read Transponder: Identify the type of car key transponder, including key ID, key model, and whether encrypted or not.
3. Generate Transponder: Generate different car key transponders according to vehicle model or chip type.
4. Frequency detection: Detect the frequency and modulation mode of car keys.
5. Ignition switch coil signal detection: Check if the ignition coil functions properly or not.
6. Set the type of super chip: Set the types of super chips and LN Series wireless remote chips. See Chapter 3.1 and 3.4 for details.
7. Set the type of wireless remote: Set the types of LE Series super remote chips. See Chapter 3.2 for details.
8. Remote function: Perform various other functions, such as remote failure detection, smart key clone and setting etc.
9. Unlock of Toyota Smart key: Unlock the original Toyota Smart key to match other cars.
10. Search: Retrieve the vehicle brand, model, or chip name to check its corresponding remote key and chips.
11. Language: Set the preferred language of the system user interface.
12. Update: Update key programmer app & software, firmware, and remote database to the latest version.

Operations

Set Type of Super Chip

1. Connect the key programmer to the Type C plug of the USB A to Type C converter, and the USB A plug to the Type A USB port of the diagnostic tool.
2. Tap the Set type of super chip and select the corresponding key chip type.
3. Place the super chip into the induction coil area of the key programmer.
4. Once successfully generated, it can be used.

How to Use LE FRD Super Remotes

1. Connect the key programmer to the Type C plug of the USB A to Type C converter, and the USB A plug to the Type A USB port of the diagnostic tool.
2. Tap Vehicle Remote and select the corresponding available super remote.
3. Select the corresponding key and place the super remote key on the top of the key programmer to generate.
4. After the remote control is successfully generated, enter the Set type of the super chip to generate the corresponding key chip.

How to Use LS NISN Super Remotes

1. Connect the key programmer to the Type C plug of the USB A to Type C converter, and the USB A plug to the Type A USB port of the diagnostic tool.
2. Tap Vehicle Remote and select the corresponding smart key model to generate.
3. Place the smart remote key on the top of the key programmer.
4. Double-check the remote information and tap Generate.

How to Use LN PUGOT Super Remotes

1. Connect the key programmer to the Type C plug of the USB A to Type C converter, and the USB A plug to the Type A USB port of the diagnostic tool.
2. Tap Vehicle Remote and select the corresponding electronic key model to generate.
3. Place the electronic remote key on the top of the key programmer to generate.
4. Double-check the remote information and tap Generate.
5. For car models without electronic keys, enter the Set type of wireless remote to generate the corresponding key.

How to Use LK VOLWG Super Remotes

1. Connect the key programmer to the Type C plug of the USB A to Type C converter, and the USB A plug to the Type A USB port of the diagnostic tool.
2. Tap Vehicle Remote and select the corresponding key model to generate.
3. Connect one end of the key chip programming cable to the remote key chip, and the other end to the Type C port of the key programmer. Tap Generate to generate.

Warranty

• THIS WARRANTY IS EXPRESSLY LIMITED TO PERSONS WHO PURCHASE LAUNCH PRODUCTS FOR PURPOSES OF RESALE OR USE IN THE ORDINARY COURSE OF THE BUYER’S BUSINESS.
• LAUNCH electronic product is warranted against defects in materials and workmanship for one year from the date of delivery to the user.
• This warranty does not cover any part that has been abused, altered, used for a purpose other than for which it was intended, or used in a manner inconsistent with instructions regarding use.
• The exclusive remedy for any automotive meter found to be defective is repair or replacement, and LAUNCH shall not be liable for any consequential or incidental damages.
• Final determination of defects shall be made by LAUNCH following procedures established by LAUNCH.
• No agent, employee, or representative of LAUNCH has any authority to bind LAUNCH to any affirmation, representation, or warranty concerning LAUNCH automotive meters, except as stated herein.

Disclaimer

• The above warranty is instead of any other warranty, expressed or implied, including any warranty of merchantability or fitness for a particular purpose.

Purchase Order

Replaceable and optional parts can be ordered directly from your LAUNCH authorized tool supplier. Your order should include the following information:

• Order quantity
• Part number
• Part name

CONTACT

• If you have any questions on the operation of the unit, please contact the local dealer, or contact LAUNCH TECH CO., LTD:
• Website: https://en.cnlaunch.com
• Phone: +86 755 2593 8674
• Email: DOD@cnlaunch.com

FAQ

• Q: Can the Key Programmer work independently without a diagnostic tool?
• A: No, the Key Programmer needs to work in conjunction with a diagnostic tool compatible with the Key Programmer App for full functionality.
• Q: What type of chips does the Super Chip support for conversion?
• A: The Super Chip supports various car model chip types, including 8A, 8C, 8E, 4C, 4D, 4E, 48, 7935, 7936, 7938, 7939, and more for successful conversion.
• Q: How do I perform wired programming with the Key Chip Programming Cable?
• A: Connect the remote key chip to the key programmer using the Key Chip Programming Cable to initiate wired programming for compatible keys.
