01 Түз термостатикалык радиатор клапанын колдонуучу колдонмосу

1. Продукт бүтүп калдыview

The 01 Straight Thermostatic Radiator Valve is designed to precisely control the outlet temperature of heating equipment. It achieves this by regulating the inlet flow to heat exchangers, air conditioning units, or other hot and cold equipment, making it suitable for water heating and geothermal control systems.

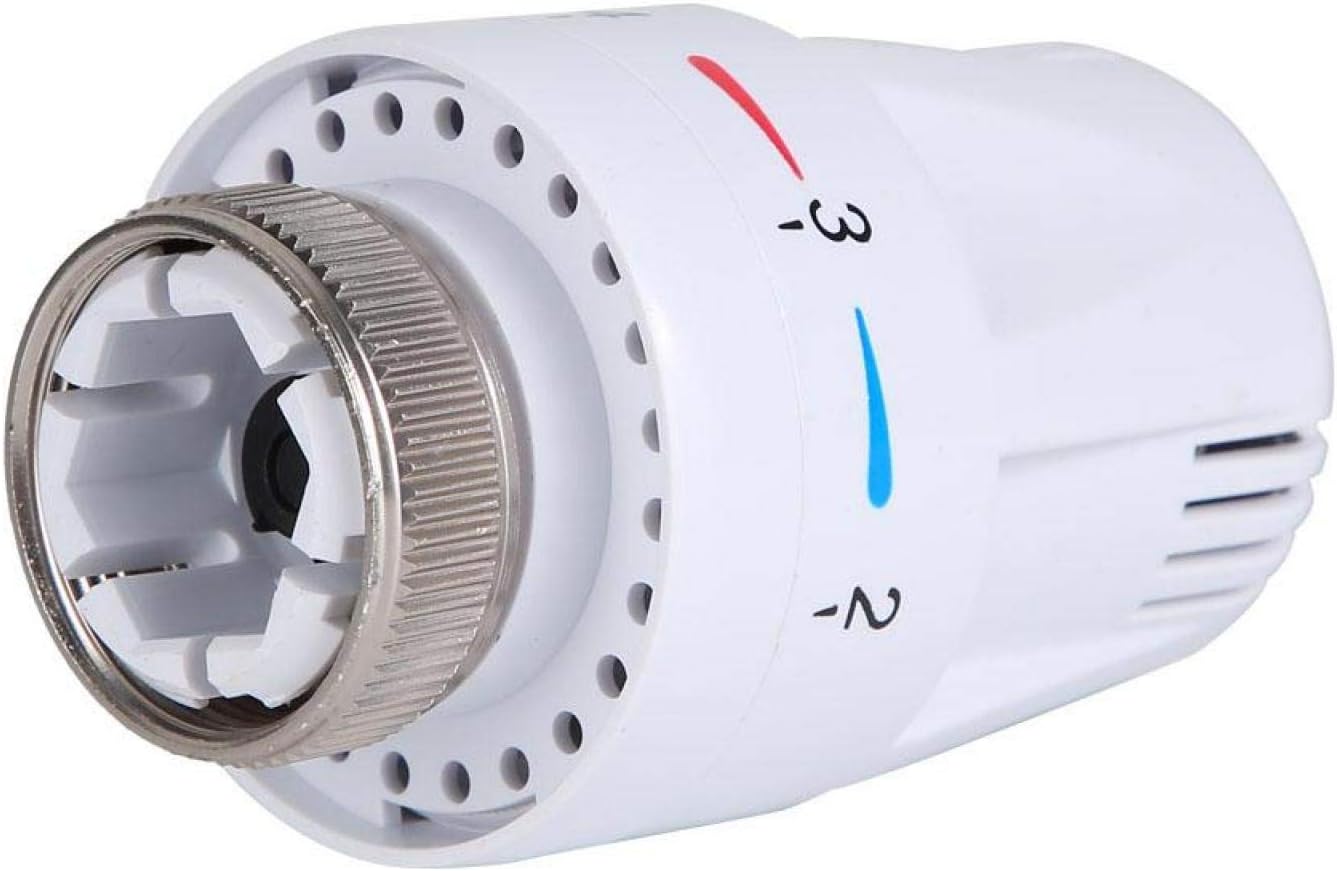

Сүрөт 1.1: Алдыңкы view of the 01 Straight Thermostatic Radiator Valve, showing the adjustment dial and connection point.

2. Негизги өзгөчөлүктөрү

• Температураны так көзөмөлдөө: Designed to regulate equipment outlet temperature by controlling the inlet of heat exchangers or other heating/cooling units.
• Туруктуу курулуш: Features a brass valve body, offering high temperature resistance and anti-corrosion properties for extended longevity.
• Жөнөкөй орнотуу: Utilizes a thread installation connection for straightforward setup.
• Натыйжалуу аткаруу: Provides good heat dissipation, stable performance, and reliable operation.
• Коопсуз дизайн: Manufactured with exactness to ensure good airtightness, minimizing the risk of leaks.

3. Орнотуу боюнча нускамалар

Proper installation is crucial for the optimal performance of your thermostatic radiator valve. Please follow these steps carefully:

1. Valve Body Placement: Install the valve body at the inlet of the radiator or heating equipment. Ensure the arrow on the valve body points in the direction of water flow.
2. Thermostat Preparation: Before attaching the thermostat head, set the handle to the maximum open position (typically indicated by the number '5' or highest setting). This facilitates easier installation.
3. Attach Thermostat Head: Screw the locking screw of the thermostat head onto the valve body until it is securely fastened. Do not overtighten.

Сүрөт 3.1: Бурчтуу view of the valve, highlighting the threaded connection for installation.

4. Операция

The thermostatic radiator valve allows for level adjustment to control the heat output. The numbered dial corresponds to different temperature settings.

• Температураны жөндөө: Rotate the dial to select your desired heat level. Higher numbers typically correspond to warmer settings.
• үшүктөн коргоо: The snowflake symbol (❄) indicates a frost protection setting, which maintains a minimum temperature to prevent pipes from freezing.

Сүрөт 4.1: Жогорку view of the valve, illustrating the numbered adjustment dial and the frost protection setting.

5. Техникалык тейлөө

To ensure the longevity and efficient operation of your thermostatic radiator valve, periodic maintenance is recommended:

• үзгүлтүксүз тазалоо: Wipe the exterior of the valve with a soft, damp чаңды жана калдыктарды тазалоо үчүн кездеме. Абразивдүү тазалагычтардан алыс болуңуз.
• Агышууларды текшерүү: Periodically inspect the valve and its connections for any signs of water leakage. Address any leaks promptly.
• Сезондук тууралоо: If the valve is not used for extended periods, it is advisable to cycle the adjustment dial through its full range a few times to prevent internal components from sticking.

6. Кыйынчылыктарды

If you encounter issues with your thermostatic radiator valve, consider the following common problems and solutions:

• Radiator Not Heating:
  • Ensure the valve is set to a sufficiently high temperature.
  • Check if the valve pin is stuck. Gently press the pin on the valve body (after removing the thermostat head) to ensure it moves freely.
  • Verify that the heating system is operational and water is circulating.
• Radiator Too Hot/Cold:
  • Adjust the dial to a different setting. Allow time for the room temperature to stabilize.
  • Ensure the valve is not obstructed by curtains or furniture, which can affect its ability to sense room temperature accurately.
• Суу агып кетиши:
  • Tighten connections if loose.
  • If leakage persists, the valve may require professional inspection or replacement.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For specific warranty information or technical support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your proof of purchase for warranty claims.
