kvm-tec First Aid
Quick Installation

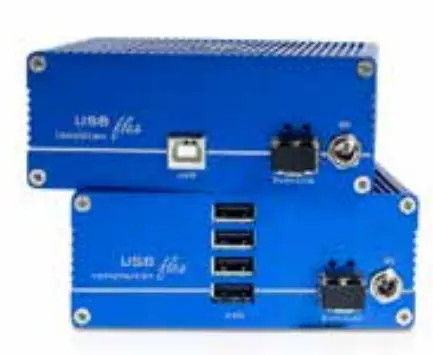

KT-6032L CPU/LOCAL
KT-6032R CON/REMOTE
Full HD over IP
USB flex
Update with USB-Stick
Plug the USB stick with update file into USB Flex.
2. press the button on the back left (if PtP, the USB channel will be disconnected) ~ 4 sec
3. wait until LED flashes orange (USB stick is scanned for updates) ~ 10-20 sec
4. LED lights up specifically for 3 seconds
LED red -> no update on stick found (remove stick and start at step 1)
LED green -> Update found, ready to start
5. press button again
6. wait until the update is completed or an error occurs (for PtP local is updated first) ~ 2-3 min (PtP ~ 5-6 min)
While update is running, LED flashes green, if data is transferred or copied, LED flashes very fast.
At the end of the update, the LED flashes orange 4 more times and then starts the reboot process (the Extender must not be disconnected from the power supply during this process!)
Quick Installation USBflex Fibre
local / CPU – remote/ CON
Check out our Installation Channel:
http://www.kvm-tec.com/videos/videos-installation-channel
kvm-tec Support
support@kvm-tec.com
Phone: +43 2253 81912 – 30
