FLYLINKTECH CF500 Jump Starter with Wireless Charger User Manual

1. Destpêk

Thank you for choosing the FLYLINKTECH CF500 Jump Starter. This device is designed to safely and efficiently jump-start 12V vehicles, charge your electronic devices, and provide illumination. Please read this manual thoroughly before use to ensure proper operation and safety.

Image: The FLYLINKTECH CF500 Jump Starter unit with its attached smart jump cables, illustrating its capability to start various vehicle types including SUVs, trucks, cars, motorcycles, and boats.

2. Taybetmendiyên Hilberê

• Destpêkerek Bi Hêz: 1500A peak current for starting 12V vehicles (up to 8L Gas or 6L Diesel engines). Capable of up to 40 jumps on a single charge.
• Bankeya Hêzê ya Kapasîteya Bilind: Kapasîteya pîlê 18000 mAh.
• Barkirina Wireless 10W: Conveniently charge compatible smartphones.
• USB Fast Charging 3.0: Two USB output ports (USB1: 5V/3A, 9V/2A, 12V/1.5A; USB2: 5V/2.4A) and one USB-C input (5V/2A).
• Derketina 12V DC: EC-5 cigarette lighter adapter for powering 12V automotive devices like vacuum cleaners, air compressors, or car refrigerators.
• Ronahîkirina Yekgirtî: Features a round light with 3 modes (illumination, SOS, strobe) and a 180-degree rotatable strip light with a magnetic base for hands-free use.
• Pergalên Parastinê yên Pirjimar: Overvol tê detage, short circuit, overheating, over-current, overcharge, reverse polarity, spark-proof, and overload protection. IP67 waterproof rating.

Image: The jump starter unit highlighting its 18000mAh power bank capabilities, with labels for 10W wireless charger, 12V-16V/8A DC output, USB outputs, and USB-C input ports.

3. Çi di Qutîkê de ye

Dema vekirina pakêtê, ji kerema xwe pê ewle bin ku hemî tiştên jêrîn li ber dest in:

• 1 x FLYLINKTECH CF500 Jump Starter Unit
• 1 x Smart Jump Cable with Clamps
• 1 x Cable USB-C
• 1 x USB to 3-in-1 Port Cable
• 1 x EC-5 Cigarette Lighter Adapter
• 1 x Rêbernameya Bikarhêner (ev belge)
• 1 x Storage Case

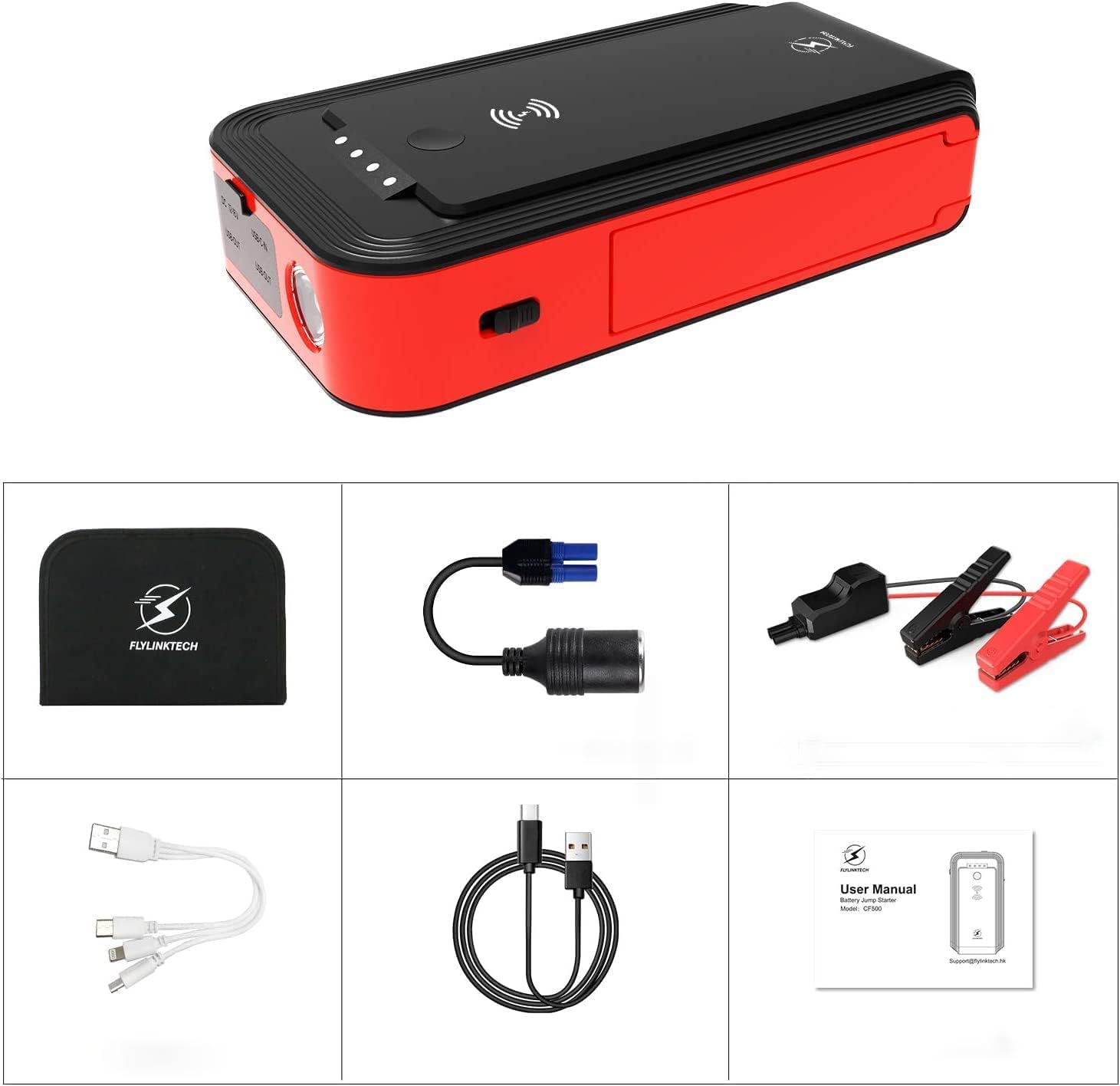

Image: A layout of all included accessories: the jump starter unit, smart jump cables, USB-C cable, multi-port USB cable, cigarette lighter adapter, user manual, and storage case.

4. Setup û Charging

4.1 Xerca Destpêkê

Before first use, fully charge the jump starter. Connect the provided USB-C cable to the USB-C input port on the jump starter and to a suitable USB power adapter (not included). The LED indicator lights will show the charging progress. All four lights will be solid when fully charged.

Image: Close-up of the jump starter's LED indicator lights, showing different levels of charge (25%, 50%, 75%, 100%).

4.2 Kontrolkirina Asta Pîlê

Press the power button briefly to check the current battery level indicated by the LED lights. Each light represents approximately 25% of the battery capacity.

5. Telîmatên Operating

5.1 Bikeve Destpêkirina Wesayîtek

1. Ensure the jump starter is at least 75% charged (three LED lights illuminated).
2. Connect the smart jump cable to the jump starter's EC-5 port. Ensure a secure connection.
3. Girêdana sor (+) clamp bo termînala erênî (+) a bataryaya wesayîtê.
4. Girêdana reş (-) clamp bo termînala neyînî (-) ya bataryaya wesayîtê.
5. Carekê clamps are correctly connected, the indicator on the smart cable will show a solid green light, indicating it's ready to jump. If it shows a red light or flashes, refer to the troubleshooting section.
6. Motora wesayîta xwe bidin destpêkirin.
7. Once the engine starts, immediately remove the smart jump cable from the vehicle battery terminals, then disconnect it from the jump starter.

Image: A visual guide showing the four steps for jump starting a vehicle: 1. Insert the smart cable into the jump starter. 2. Connect clamps to the car battery. 3. Start the engine. 4. Remove the clamps.

5.2 Charging Electronic Devices

The jump starter can act as a power bank for your electronic devices.

• Barkirina Wireless: Place your Qi-compatible device on the wireless charging pad located on top of the jump starter. Ensure the device is centered for optimal charging.
• Barkirina USB: Connect your device's USB charging cable to one of the USB output ports (USB1 or USB2) on the jump starter.

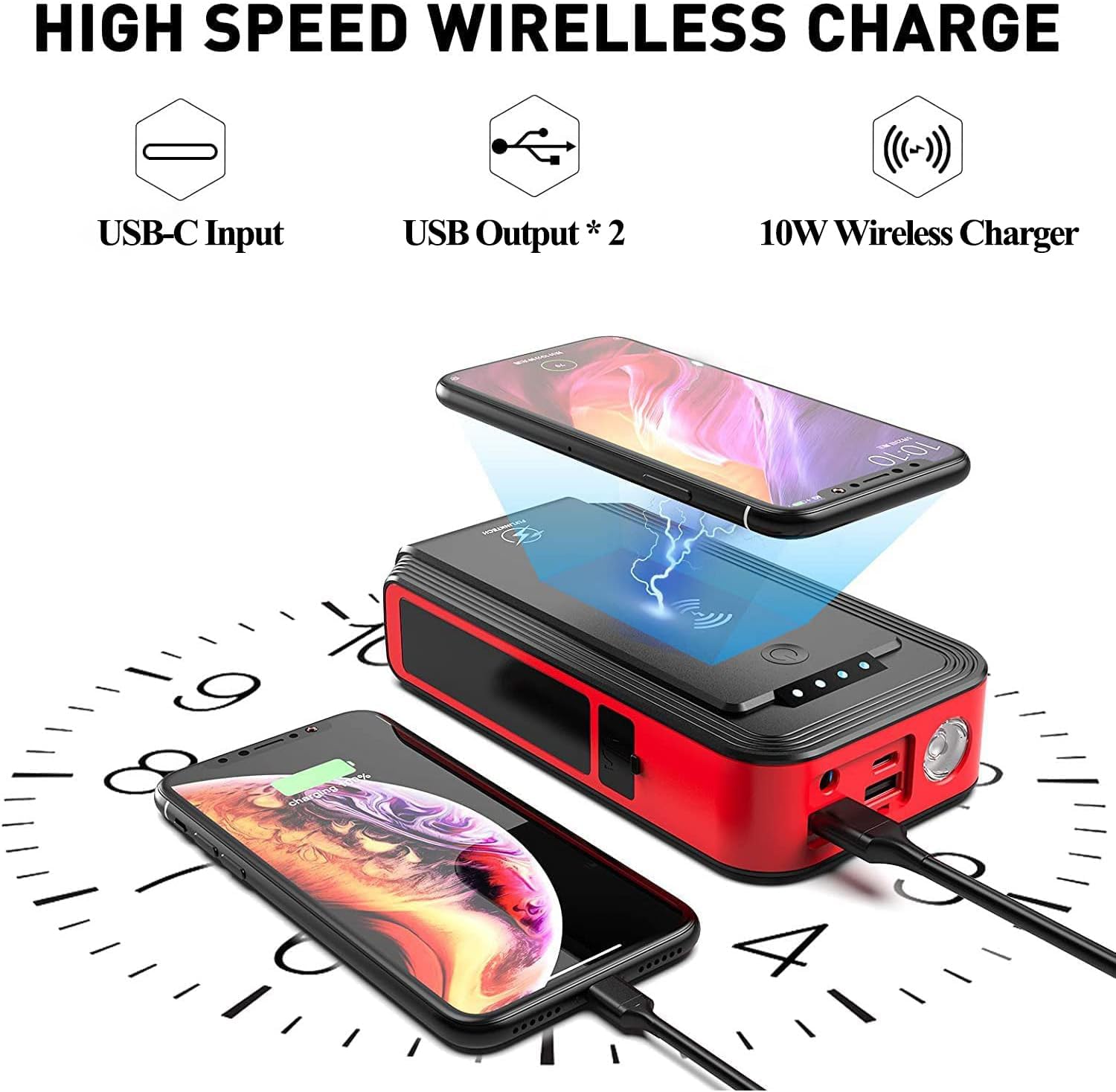

Image: The jump starter unit demonstrating its wireless charging capability for a smartphone and wired USB charging for another device, highlighting its power bank functionality.

5.3 Bikaranîna Ronahîyên LED

The jump starter features two types of lights:

• Round Light: Press and hold the power button for 3 seconds to turn on the round light. Short press to cycle through modes: illumination (steady light), SOS (flashing Morse code), and strobe (rapid flashing). Press and hold again to turn off.
• Rotatable Strip Light: This light can be rotated 180 degrees and has a magnetic base for attaching to metallic surfaces, such as a car hood, for hands-free lighting. The strip light has adjustable brightness.

Image: The jump starter unit highlighting its three LED light modes: Strobe, SOS, and standard LED illumination.

Image: A person using the jump starter's rotatable strip light, which is magnetically attached to the underside of a car hood, providing illumination for car repairs.

5.4 Powering 12V Auto Devices

Use the provided EC-5 cigarette lighter adapter to power 12V automotive accessories.

1. Plug the EC-5 end of the adapter into the jump starter's EC-5 port.
2. Plug your 12V device into the cigarette lighter socket of the adapter.
3. Ensure the device's power consumption does not exceed the jump starter's output limits (12V-16V/8A).

6. Tedbîrên Ewlekariyê

Always observe the following safety guidelines when using the jump starter:

• Do not attempt to jump-start a vehicle if the jump starter's battery level is below 75%.
• Ensure correct polarity when connecting the clamps (red to positive, black to negative). Incorrect connection can cause damage to the device, vehicle, or personal injury.
• Dest nede cl sor û reşampbi hev re.
• Do not expose the product to extreme temperatures (above 60°C/140°F or below -20°C/-4°F).
• Do not immerse the product in water, despite its IP67 rating, to prevent damage.
• Dûr negihêjin zarokan.
• If the jump starter becomes excessively hot during use, disconnect it immediately and allow it to cool down.
• Hewl nedin ku yekîneyê ji hev veqetînin an biguherînin.
• Remove the jump starter from the vehicle battery within 30 seconds after the engine starts.

Image: Diagram illustrating the eight upgraded protection features of the jump starter: short circuit, reverse polarity, spark-proof, high-temperature, over-current, overcharge, over-voltage, û parastina overload.

7. Maintenance

• Store the jump starter in its protective case in a cool, dry place when not in use.
• Recharge the unit every 3-6 months, even if not used, to maintain battery health and extend its lifespan.
• Ji derve bi nermî paqij bikin, damp çît. Kîmyewî û paqijkerên hişk bikar neynin.
• Keep the ports free from dust and debris.

Image: The jump starter unit with a switch indicating "OFF" and "ON", emphasizing its long standby time of up to 12 months when fully charged.

8. Destpêkirin

9. Specifications

10. Garantî û Piştgirî

FLYLINKTECH provides comprehensive support for your product:

• Libersekînîn: This product comes with a 24-month global warranty.
• Piştgiriya Teknîkî: 12 months of technical support is available.
• Balkeş bûn: After-sales customer service is available anytime.

For assistance, please contact FLYLINKTECH customer service through the retailer where you purchased the product or visit the official FLYLINKTECH webmalpera ji bo agahdariya têkiliyê.

Image: Graphic indicating 24-hour quick reply, 24-month global warranty, and lifetime after-sale service & technical support.
