BACNET CONNECTION C8
INSTALLATION AND SERVICE MANUAL
BACNET CONNECTION AND SETTINGS
BACnet is a standard communication protocol for Building Automation and Control (BAC) networks that can be used to monitor and control Komfovent air handling units with C8 controller. The supported Data Link Layer is BACnet / IP.
BACnet protocol works via Ethernet interface, connection is provided to RJ-45 socket (Pic.1) on the C8 controller (CAT5 cable is recommended):
Below is default network settings of the C8 controller. These can be changed according to the building network software requirements. To do so, it is needed to connect a laptop to the integrated webserver of C8 controller:
Picture 2. Connectivity settings
To have a stable connection between BMS and AHU via BACnet network, at least 1s. polling time is recommended.
C8 controller IP can also be viewed and changed on the control panel – from Main menu go to Advanced settings>Connectivity:

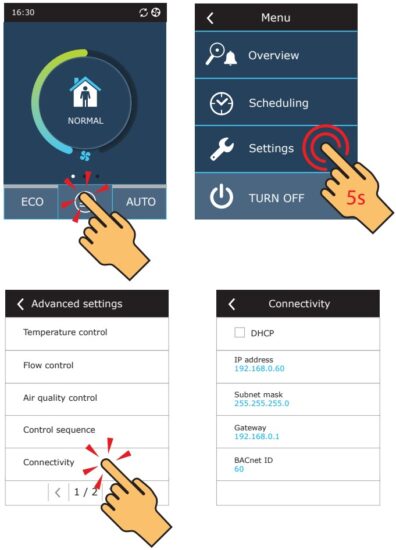

Picture 3. Connectivity settings on C6.1 control panel display
BACnet Interoperability Building Blocks Supported
| Data sharing | DS-RP-B | Read Property |
| DS-RPM-B | Read Property Multiple | |
| DS-WP-B | Write Property | |
| Device management | DM-DCC-B | Device Communication Control |
| DM-DDB-B | Dynamic Device Binding | |
| DM-DOB-B | Dynamic Object Binding | |
| DM-TS-B | Time Synchronization |
Standard Object Types Supported:
| Object type | Properties |
| Device | Object_Identifier, Object_Name, Object_Type, System_Status, Vendor_Name, Vendor_Identifier, Model_ Name, Firmware_Revision, Application_Software_Version, Protocol_Version, Protocol_Revision, Protocol_ Services_Supported, Protocol_Object_Types_Supported, Object_List, Max_APDU_Length_Accepted, Segmentation_Supported, APDU_Timeout, Number_Of_APDU_Retries, Device_Address_Binding, Database_ Revision, Property_List; Description, Local_Date, Local_Time |
| Analog value | Object_Identifier, Object_Name, Object_Type, Present_Value, Status_Flags, Event_State, Out_Of_Service, Units, Property_List; Reliability |
| Binary value | Object_Identifier, Object_Name, Object_Type, Present_Value, Status_Flags, Event_State, Out_Of_Service, Property_List; Incative_Text, Active_Text |
| Date value | Object_Identifier, Object_Name, Object_Type, Present_Value, Status_Flags, Property_List |
| Multi-state value | Object_Identifier, Object_Name, Object_Type, Present_Value, Status_Flags, Event_State, Out_Of_Service, Number_Of_States, Property_List; State_Text |
| Positive integer value | Object_Identifier, Object_Name, Object_Type, Present_Value, Status_Flags, Units, Property_List; Reliability |
| Time value | Object_Identifier, Object_Name, Object_Type, Present_Value, Status_Flags, Property_List |
Objects:
| Analog value | |||
| Object name | Object instance | Present value | |
| Range/values/units | Access | ||
| AWAY: setpoint | 0 | 5.0 – 40.0 [°C] | W |
| NORMAL: setpoint | 1 | 5.0 – 40.0 [°C] | W |
| INTENSIVE: setpoint | 2 | 5.0 – 40.0 [°C] | W |
| BOOST: setpoint | 3 | 5.0 – 40.0 [°C] | W |
| KITCHEN: setpoint | 4 | 5.0 – 40.0 [°C] | W |
| Analog value | |||
| Object name | Object instance | Present value | |
| Range/values/units | Access | ||
| FIREPLACE: setpoint | 5 | 5.0 – 40.0 [°C] | W |
| OVERRIDE: setpoint | 6 | 5.0 – 40.0 [°C] | W |
| HOLIDAYS: setpoint | 7 | 5.0 – 40.0 [°C] | W |
| ECO: minimum supply air temperature | 8 | 5.0 – 40.0 [°C] | W |
| ECO: maximum supply air temperature | 9 | 5.0 – 40.0 [°C] | W |
| AIR QUALITY: temperature setpoint | 10 | 5.0 – 40.0 [°C] | W |
| INFO: supply temperature | 11 | [°C] | R |
| INFO: extract temperature | 12 | [°C] | R |
| INFO: outdoor temperature | 13 | [°C] | R |
| INFO: water temperature | 14 | [°C] | R |
| INFO: panel 1 temperature | 15 | [°C] | R |
| INFO: panel 2 temperature | 16 | [°C] | R |
| INFO: current supply fan intensity | 17 | [%] | R |
| INFO: current extract fan intensity | 18 | [%] | R |
| INFO: heat exchanger | 19 | [%] | R |
| INFO: electric heater | 20 | [%] | R |
| INFO: analog output 0-10V | 21 | [%] | R |
| INFO: DX unit | 22 | [%] | R |
| Binary value | ||||
| Object name | Object instance | Present value | ||
| Range/values/units | Access | |||
| CONTROL: ON/OFF status | 0 | 0 – off | 1 – on | W |
| CONTROL: ECO mode | 1 | 0 – off | 1 – on | W |
| CONTROL: AUTO mode | 2 | 0 – off | 1 – on | W |
| AWAY: heating | 3 | 0 – off | 1 – on | W |
| NORMAL: heating | 4 | 0 – off | 1 – on | W |
| INTENSIVE: heating | 5 | 0 – off | 1 – on | W |
| BOOST: heating | 6 | 0 – off | 1 – on | W |
| KITCHEN: heating | 7 | 0 – off | 1 – on | W |
| FIREPLACE: heating | 8 | 0 – off | 1 – on | W |
| OVERRIDE: heating | 9 | 0 – off | 1 – on | W |
| HOLIDAYS: heating | 10 | 0 – off | 1 – on | W |
| ECO: free heating/cooling | 11 | 0 – off | 1 – on | W |
| ECO: heating enable denied | 12 | 0 – off | 1 – on | W |
| ECO: cooling enable denied | 13 | 0 – off | 1 – on | W |
| ECO: non stop recuperation | 14 | 0 – off | 1 – on | W |
| AIR QUALITY: enabled | 15 | 0 – disabled | 1 – enabled | W |
| AIR QUALITY: heating | 16 | 0 – off | 1 – on | W |
| ALARMS: return water temperature low | 17 | 0 – no | 1 – yes | R |
| ALARMS: low supply air temperature | 18 | 0 – no | 1 – yes | R |
| ALARMS: high supply air temperature | 19 | 0 – no | 1 – yes | R |
| ALARMS: electric heater overheat | 20 | 0 – no | 1 – yes | R |
| ALARMS: heat exchanger failure | 21 | 0 – no | 1 – yes | R |
| ALARMS: heat exchanger icing | 22 | 0 – no | 1 – yes | R |
| ALARMS: internal fire alarm | 23 | 0 – no | 1 – yes | R |
| Binary value | ||||
| Object name | Object instance | Present value | ||
| Range/values/units | Access | |||
| ALARMS: external fire alarm | 24 | 0 – no | 1 – yes | R |
| ALARMS: temperature sensor failure | 25 | 0 – no | 1 – yes | R |
| ALARMS: controller failure | 26 | 0 – no | 1 – yes | R |
| ALARMS: service mode | 27 | 0 – no | 1 – yes | R |
| ALARMS: clogged air filters | 28 | 0 – no | 1 – yes | R |
| ALARMS: heat exchanger low efficiency | 29 | 0 – no | 1 – yes | R |
| ALARMS: fire dampers communication error | 30 | 0 – no | 1 – yes | R |
| ALARMS: fire dampers failure | 31 | 0 – no | 1 – yes | R |
| INFO: heating | 32 | 0 – off | 1 – on | R |
| INFO: cooling | 33 | 0 – off | 1 – on | R |
| CLEAN FILTERS CALIBRATION | 34 | 0 – no | 1 – yes | W |
| Date value | |||
| Object name | Object instance | Present value | |
| Range/values/units | Access | ||
| HOLIDAYS: from | 0 | 2017-01-01 – 2035-12-31 | W |
| HOLIDAYS: till | 1 | 2017-01-01 – 2035-12-31 | W |
| Multi-state value | ||||
| Object name | Object instance | Present value | ||
| Range/values/units | Access | |||
| CONTROL: auto mode control | 0 | 1 – scheduling | 2 – air quality | R |
| CONTROL: current mode | 1 | 1 – standby 2 – away 3 – normal 4 – intensive 5 – boost 6 – kitchen |
7 – fireplace 8 – override 9 – holiday 10 – auto 11 – off |
W [2-5] |
| SCHEDULER: operation program | 2 | 1 – stay at home 2 – working week |
3 – office 4 – custom |
W |
| SCHEDULER: next mode | 3 | 1 – standby 2 – away 3 – normal |
4 – intensive 5 – boost |
R |
| SCHEDULER: next mode weekday | 4 | 1 – today 2 – mo 3 – tu 4 – we |
5 – th 6 – fr 7 – sa 8 – su |
R |
| CONTROL: temperature control | 5 | 1 – supply 2 – extract |
3 – room 4 – balance |
W |
| CONTROL SEQEUENCE: stage 1 | 6 | 1 – none 2 – external coil |
3 – electric heater 4 – external DX unit |
W |
| CONTROL SEQEUENCE: stage 2 | 7 | W | ||
| CONTROL SEQEUENCE: stage 3 | 8 | W | ||
| SETTINGS: coil type | 9 | 1 – hot water | 2 – cold water | W |
| Multi-state value | ||||
| Object name | Object instance | Present value | ||
| Range/values/units | Access | |||
| SETTINGS: language | 10 | 1 – en 2 – lt 3 – ru 4 – pl 5 – sk 6 – de 7 – fr 8 – hu 9 – it 10 – ee |
11 – nl 12 – lv 13 – pt 14 – se 15 – fi 16 – hr 17 – sl 18 – cz 19 – dk |
W |
| OVERRIDE: mode | 11 | 1 – all time 2 – if on |
3 – if off | W |
| HOLIDAYS: microventilation | 12 | 1 – 1 t. per day 2 – 2 t. per day |
3 – 3 t. per day 4 – 4 t. per day |
W |
| AIR QUALITY: sensor type B8 | 13 | 1 – none 2 – CO2 |
3 – VOC 4 – RH |
W |
| RESET SETTINGS | 14 | 1 – none 2 – “away” 3 – “normal” 4 – “intensive” 5 – “boost” 6 – “holidays” |
7 – “override” 8 – “kitchen” 9 – “fireplace” 10 – air quality 11 – eco 12 – advanced |
W |
| Positive integer value | |||
| Object name | Object instance | Present value | |
| Range/values/units | Access | ||
| CONNECTIVITY: IP address | 0 | 0 – 4294967295 | W |
| CONNECTIVITY: mask | 1 | 0 – 4294967295 | W |
| AWAY: supply flow | 2 | 20 – 100 [%] | W |
| AWAY: extract flow | 3 | 20 – 100 [%] | W |
| NORMAL: supply flow | 4 | 20 – 100 [%] | W |
| NORMAL: extract flow | 5 | 20 – 100 [%] | W |
| INTENSIVE: supply flow | 6 | 20 – 100 [%] | W |
| INTENSIVE: extract flow | 7 | 20 – 100 [%] | W |
| BOOST: supply flow | 8 | 20 – 100 [%] | W |
| BOOST: extract flow | 9 | 20 – 100 [%] | W |
| KITCHEN: supply flow | 10 | 20 – 100 [%] | W |
| KITCHEN: extract flow | 11 | 20 – 100 [%] | W |
| FIREPLACE: supply flow | 12 | 20 – 100 [%] | W |
| FIREPLACE: extract flow | 13 | 20 – 100 [%] | W |
| OVERRIDE: supply flow | 14 | 20 – 100 [%] | W |
| OVERRIDE: extract flow | 15 | 20 – 100 [%] | W |
| KITCHEN: timer | 16 | 0 – 300 [min] | W |
| FIREPLACE: timer | 17 | 0 – 300 [min] | W |
| OVERRIDE: timer | 18 | 0 – 300 [min] | W |
| AIR QUALITY: air quality setpoint | 19 | 0 – 2000 [ppm] 0 – 100 [%] | W |
| AIR QUALITY: humidity setpoint | 20 | 0 – 100 [%] | W |
| AIR QUALITY: minimum intensity | 21 | 0, 20 – 100 [%] | W |
| AIR QUALITY: maximum intensity | 22 | 0, 20 – 100 [%] | W |
| AIR QUALITY: check period | 23 | 1 – 24 [h] | W |
| Positive integer value | |||
| Object name | Object instance | Present value | |
| Range/values/units | Access | ||
| ALARMS: active alarms count | 24 | 0 – 10 | W [39366resets alarms] |
| ALARMS: alarm history count | 25 | 0 – 50 | R |
| INFO: current supply flow | 26 | [%] | R |
| INFO: current extract flow | 27 | [%] | R |
| INFO: filters impurity | 28 | [%] | R |
| INFO: air dampers | 29 | [%] | R |
| INFO: air quality/humidity sensor | 30 | [ppm, %] | R |
| INFO: panel 1 humidity | 31 | [%] | R |
| INFO: panel 2 humidity | 32 | [%] | R |
| INFO: panel 1 air quality | 33 | [ppm] | R |
| INFO: panel 2 air quality | 34 | [ppm] | R |
| EFFICIENCY/STATUS: heater power | 35 | [W] | R |
| OPERATION COUNTERS: supply air fan (day) | 36 | [h] | R |
| OPERATION COUNTERS: supply air fan (month) | 37 | [h] | R |
| OPERATION COUNTERS: supply air fan (total) | 38 | [h] | R |
| OPERATION COUNTERS: exhaust air fan (day) | 39 | [h] | R |
| OPERATION COUNTERS: exhaust air fan (month) | 40 | [h] | R |
| OPERATION COUNTERS: exhaust air fan (total) | 41 | [h] | R |
| OPERATION COUNTERS: electric heater (day) | 42 | [h] | R |
| OPERATION COUNTERS: electric heater (month) | 43 | [h] | R |
| OPERATION COUNTERS: electric heater (total) | 44 | [h] | R |
| OPERATION COUNTERS: heat exchanger (day) | 45 | [h] | R |
| OPERATION COUNTERS: heat exchanger (month) | 46 | [h] | R |
| OPERATION COUNTERS: heat exchanger (total) | 47 | [h] | R |
| Time value | |||
| Object name | Object instance | Present value | |
| Range/values/units | Access | ||
| SCHEDULER: next mode start time | 0 | 00:00 – 24:00 | R |
SERVICE AND SUPPORT
| LITHUANIA UAB KOMFOVENT Phone: +370 5 200 8000 service@komfovent.com www.komfovent.com |
FINLAND Komfovent Oy Muuntotie 1 C1 FI-01 510 Vantaa, Finland Phone: +358 20 730 6190 toimisto@komfovent.com www.komfovent.com |
| GERMANY Komfovent GmbH Konrad-Zuse-Str. 2a, 42551 Velbert, Deutschland Phone: +49 0 2051 6051180 info@komfovent.de www.komfovent.de |
LATV IA SIA Komfovent Bukaišu iela 1, LV-1004 Riga, Latvia Phone: +371 24 66 4433 info.lv@komfovent.com www.komfovent.com |
| SWEDEN Komfovent AB Ögärdesvägen 12A 433 30 Partille, Sverige Phone: +46 31 487 752 info_se@komfovent.com www.komfovent.se |
UNITED KINGDOM Komfovent Ltd Unit C1 The Waterfront Newburn Riverside Newcastle upon Tyne NE15 8NZ, UK Phone: +447983 299 165 steve.mulholland@komfovent.com www.komfovent.com |
PARTNERS
| AT | J. PICHLER Gesellschaft m. b. H. | www.pichlerluft.at |
| BE | Fan group ACB Airconditioning |
www.ventilairgroup.com www.acbairco.be |
| CZ | REKUVENT s.r.o. | www.rekuvent.cz |
| CH | WESCO AG SUDCLIMATAIR SA CLIMAIR GmbH |
www.wesco.ch www.sudclimatair.ch www.climair.ch |
| DK | Øland A/S | www.oeland.dk |
| EE | BVT Partners | www.bvtpartners.ee |
| FR | AND I B | www.atib.fr |
| HR | Microclimate | www.microclima.hr |
| HU | AIRVENT Légtechnikai Zrt. Gevent Magyarország Kft. Mercapt |
www.airvent.hu www.gevent.hu www.merkapt.hu |
| IE | Lindab | www.lindab.ie |
| IR | Fantech Ventilation Ltd | www.fantech.ie |
| IS | Blikk & Technical Services Ltd Heating Ltd |
www.bogt.is www.hitataekni.is |
| IT | ICARIA | www.icaria.srl |
| NL | Fan group DECIPOL-Vortvent CLIMA DIRECT BV |
www.ventilairgroup.com www.vortvent.nl www.climadirect.com |
| NO | Ventilution AS Ventistål AS Thermo Control AS |
www.ventilution.no www.ventistal.no www.thermocontrol.no |
| PL | Ventia Sp. z o.o. | www.ventia.pl |
| SE | Nordisk Ventilator AB | www.nordiskventilator.se |
| SI | Aggregates d.o.o | www.agregat.si |
| SK | TZB product, s.r.o. | www.tzbprodukt.sk |
| UA | TD VECON LLC | www.vecon.ua |
www.komfovent.com
2024-10
Documents / Resources
 |
komfovent C8 Air Handling Unit with Controller [pdf] Owner's Manual C8, C8 Air Handling Unit with Controller, Air Handling Unit with Controller, Handling Unit with Controller, Unit with Controller, Controller |
