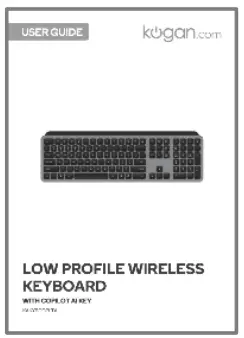

kogan com KAKYBDCPLTA Low Profile Wireless Keyboard
COMPONENTS
- Wireless Keyboard
- USB Receiver
- User Guide
INSTALLATION
Battery:
- Open the battery compartment on the keyboard.
- Insert a AAA battery paying attention to the orientation of the polarity symbols.
- Place the power switch to the ON position.
Note: Remove the battery if you do not intend to use the keyboard for an extended period of time.
Wireless Connection:
- Remove the USB receiver from the battery compartment.
- Plug the USB receiver into a USB port on your computer.
Note: Ensure there are no large metal objects between the keyboard and receiver, otherwise the connection will be affected.
OPERATION
Compatibility
The following systems are supported: Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP, MAC.
Multimedia Key Functions
To use the multimedia functions on your keyboard, simultaneously press the “Fn” key along with the relevant multimedia shortcut key. This combination will activate the desired multimedia feature.
- Fn+F1: Media
- Fn+F2: Volume –
- Fn+F3: Volume +
- Fn+F4: Mute
- Fn+F5: Previous Track
- Fn+F6: Next Track
- Fn+F7: Pause/Play
- Fn+F8: Stop
- Fn+F9: Decrease Screen Brightness
- Fn+F10: Increase Screen Brightness
- Fn+F11: Search
- Fn+F12: Lock Keys
Hot Keys
- My computer
- Homepage
- Email
- Favorite
- Calculator
Copilot AI Function
- The Copilot AI function button is a shortcut to deploy AI tools and features, making them more accessible and easier to use during regular computer operations.
- Press the Copilot button to activate an AI assistant to perform tasks, access information, or assist with workflows.
- The Copilot AI function is only available for Windows devices.
Low Battery
When the battery power is low, the battery indicator will flash. The battery will need to be replaced.
SPECIFICATIONS
| Key numbers | 109 + 5 hot keys |
| Dimensions | 430×135×25.8mm |
| Weight | 450g±20 |
| Switch travel distance | 2.0±0.1mm |
| Peak force | 55±7g |
| Operating temperature (°C) | 0-50 |
| Non-operating temperatures (°C) | -10-60 |
| Operating humidity | 20%- 90% RH |
| Key life cycle | 8,000,000 times |
| Power voltage | 1.5V |
| Power current | Max. 3mA |
| Battery | x1 AAA (not included) |
| Mode | 2.4G |
| Keystroke life | 10 million lifetimes |
| Layout | US layout |
| Interface type | USB receiver |
| Compatibility | *Windows, MacOS, Android |
*(Copilot AI function is only available for Windows)
