YZDTECH Digital Wireless Rain Gauge Weather Station User Manual

소개

This manual provides detailed instructions for the setup, operation, and maintenance of your YZDTECH Digital Wireless Rain Gauge Weather Station. This device offers comprehensive weather monitoring, including precise rain measurements, indoor and outdoor temperature and humidity readings, air pressure history, moon phase display, and weather forecasts. It also features an integrated calendar, dual snooze alarms, and automatic time calibration via WWVB for accurate timekeeping.

패키지 내용

• 메인 디스플레이 유닛
• 무선 레인 게이지 센서
• Wireless Outdoor Temperature/Humidity Sensor (1 included, supports up to 3)
• 전원 어댑터
• 사용자 설명서

Note: The package contains one outdoor temperature/humidity sensor. Additional sensors are sold separately.

설정

1. 메인 디스플레이 장치 전원 공급

The main display unit can be powered by the included DC adapter or by 3 x LR03 AAA batteries (not included). For continuous operation and adjustable backlight brightness, using the DC adapter is recommended.

• Connect the DC adapter to the main display unit and plug it into a power outlet.
• Alternatively, open the battery compartment on the back of the unit and insert 3 AAA batteries, observing polarity.

Image: The main display unit illustrating its two power options: a DC adapter for continuous power and a battery compartment for 3 AAA batteries.

2. Installing Batteries in Sensors

Insert batteries into the wireless rain gauge sensor and the outdoor temperature/humidity sensor. Ensure correct polarity. Close the battery compartments securely to protect against weather elements.

3. 센서 배치

• 우량계: Place the rain gauge in an open area, away from obstructions like trees or buildings, to ensure accurate rainfall collection. The self-draining design allows for maintenance-free operation.
• 실외 센서: Position the outdoor temperature/humidity sensor in a shaded area, protected from direct sunlight and rain, to obtain accurate readings. Ensure it is within the 100m (328ft) transmission range of the main unit.

Image: The main display unit and the wireless outdoor sensor, demonstrating their typical placement for optimal performance.

4. 초기 동기화

Once both the main unit and sensors are powered, the main unit will automatically search for and connect to the sensors. This process may take a few minutes. Ensure the sensors are within range.

5. Atomic Clock Synchronization

The weather station automatically synchronizes its time with the WWVB signal, ensuring accurate time display and automatic Daylight Saving Time (DST) adjustments. Set your time zone on the main unit for correct local time. If the WWVB signal is weak, manual time setting is possible.

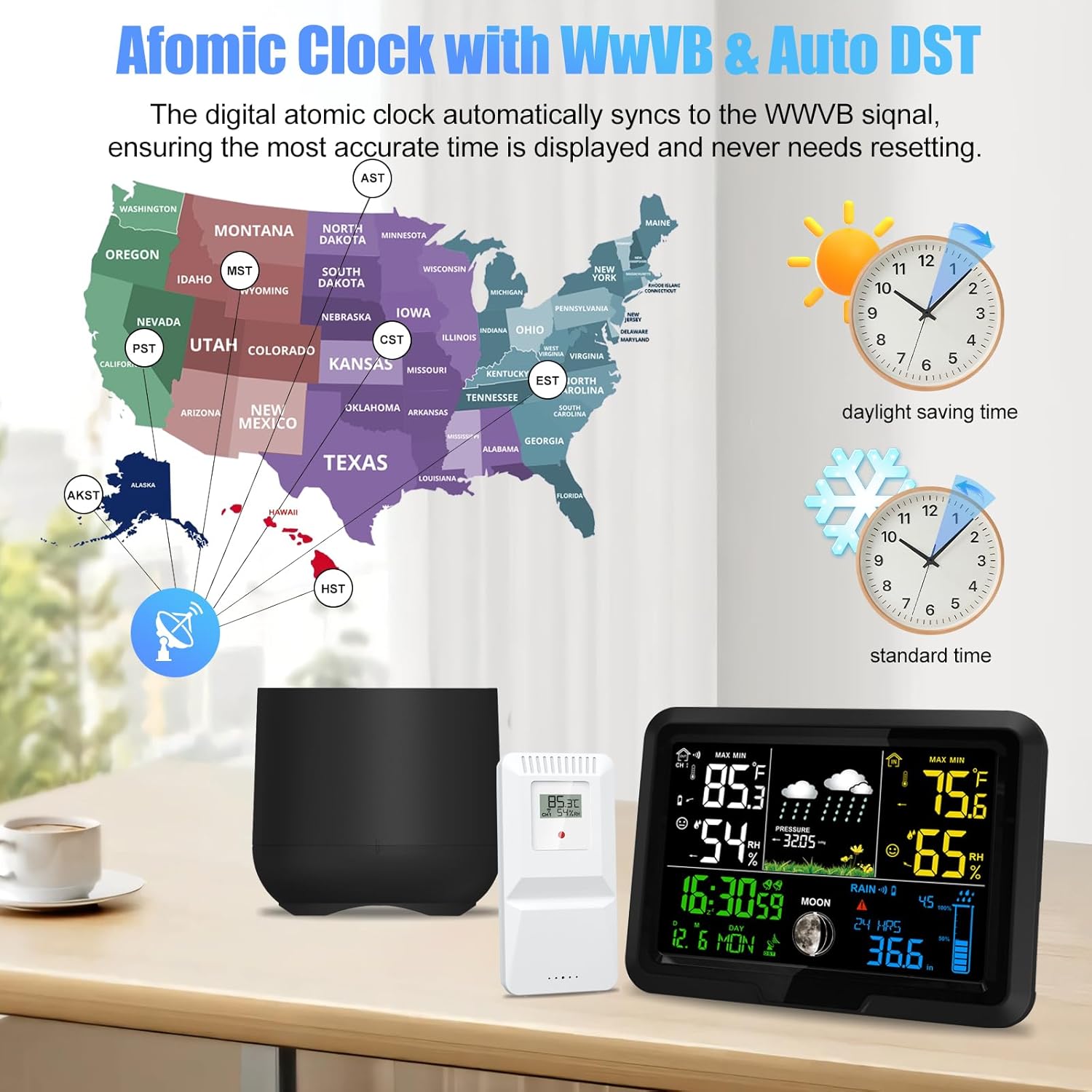

Image: A visual representation of the WWVB atomic clock signal coverage across the United States, illustrating how the weather station automatically adjusts for time zones and Daylight Saving Time.

작동 지침

1. Main Display Unit Overview

The full-color LCD display provides a wide range of information at a glance. Key display areas include:

• 실내/실외 온도 및 습도
• 일기 예보 아이콘
• 기압의 역사
• 시간, 날짜 및 요일
• 달의 위상
• 강수량 데이터
• 알람 표시기

Image: A labeled diagram of the weather station's display, highlighting sections for outdoor temperature and humidity, weather forecast and air pressure, time, date, alarm clock, rain gauge, and moon phase.

2. Rainfall Measurement

The wireless rain gauge provides precise rainfall data. The main unit displays rainfall in various dimensions:

• Current rainfall
• 일일 강우량
• 주간 강우량
• 월간 강우량
• Yearly rainfall

A rainfall alarm function can be configured to alert you to specific precipitation levels.

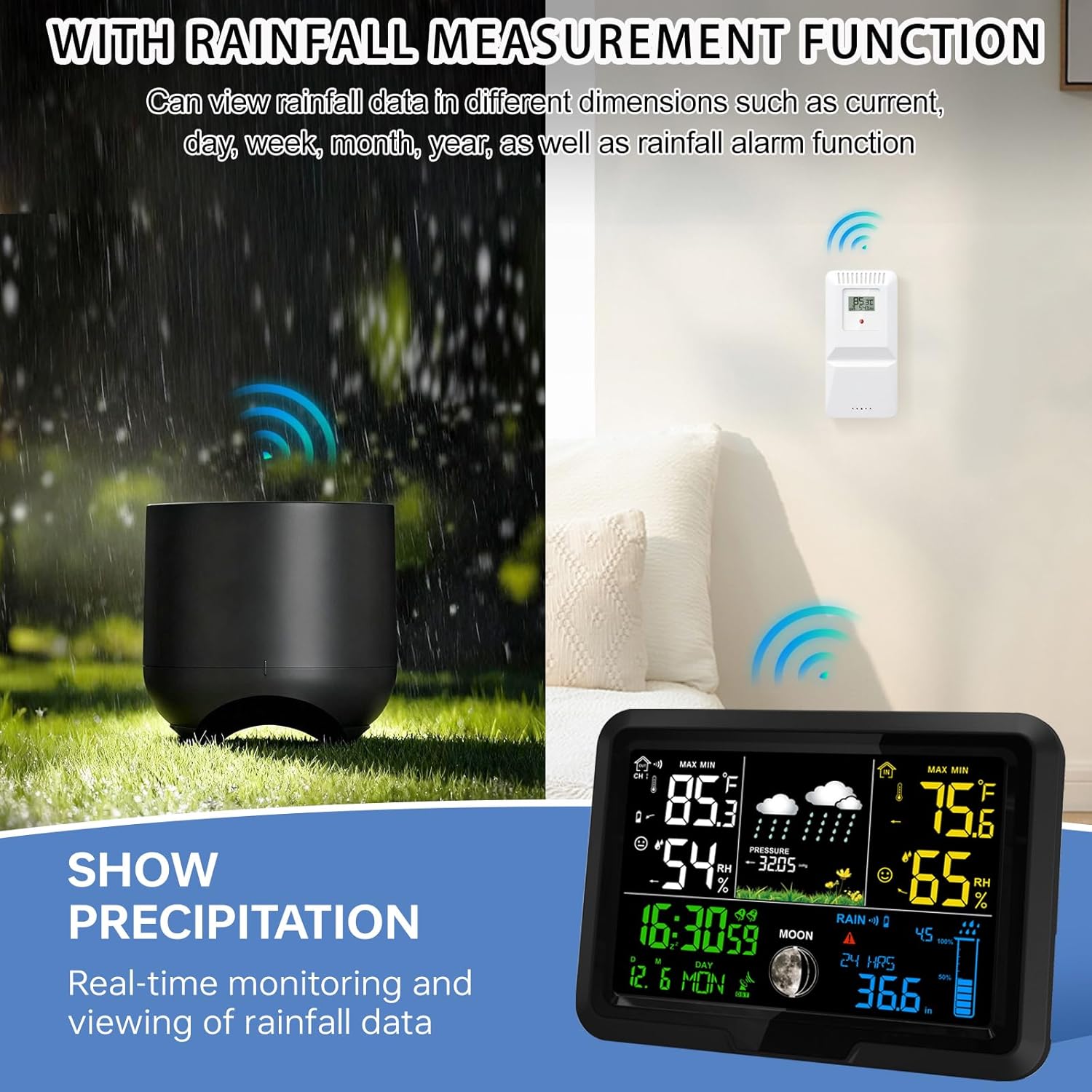

Image: The wireless rain gauge positioned outdoors, alongside the main display unit showing real-time rainfall data and other environmental readings.

3. 온도 및 습도 모니터링

The station displays both indoor and outdoor temperature and humidity. It also tracks trends and provides a comfort indicator.

Image: The main display unit showing temperature, humidity, and comfort levels, with illustrations suggesting its capability to connect to multiple sensors for monitoring different indoor and outdoor locations.

4. Weather Forecast and Atmospheric Pressure

The station provides a weather forecast based on atmospheric pressure changes, displayed with intuitive icons (e.g., sunny, cloudy, rainy, snowy). It also shows air pressure history and trends.

Image: A visual guide to the six types of weather forecast icons displayed on the weather station: Sunny, Cloudy, Overcast, Rain, Sunshower, and Snow, providing comprehensive weather notifications.

5. Time Management and Alarms

The atomic clock ensures precise time and date. The station includes two daily alarms with a snooze function for daily planning.

6. 디스플레이 밝기 조정

When powered by the DC adapter, the LCD backlight has four adjustable brightness levels (100%, 75%, 50%, 25%) and an OFF option. This allows for optimal visibility in various lighting conditions and power saving.

Image: The main display unit demonstrating its five brightness levels (LI/4 to OFF) when powered by the DC adapter, alongside an illustration of battery power option.

유지

• 청소: 부드러운 천으로 메인 디스플레이 장치와 센서를 닦으십시오.amp 천으로 닦으세요. 연마성 세제나 용제는 사용하지 마세요.
• 우량계: The rain gauge is self-draining. Periodically check for debris (leaves, insects) that might obstruct the funnel or tipping bucket mechanism. Clear any blockages carefully.
• 배터리 교체: Replace batteries in the sensors and main unit (if battery-powered) when the low battery indicator appears on the display.
• 센서 배치: Ensure outdoor sensors remain securely mounted and free from obstructions.

문제 해결

본체에 화면이 표시되지 않습니다.

• Check if the DC adapter is securely plugged in and the power outlet is functional.
• 배터리를 사용하는 경우, 배터리가 올바르게 삽입되었는지, 방전되지 않았는지 확인하세요. 필요하면 교체하세요.

No Sensor Data (Outdoor Temp/Humidity, Rain)

• Ensure batteries in the sensors are fresh and correctly installed.
• Verify that sensors are within the 100m (328ft) transmission range of the main unit and there are no major obstructions (thick walls, metal objects) between them.
• Try bringing the sensors closer to the main unit to re-establish connection.
• Reboot the main unit and sensors by removing and reinserting batteries/power.
• If the rain gauge connection frequently drops, ensure it is placed optimally and free from interference.

부정확한 일기예보

• The weather forecast is based on atmospheric pressure changes over time and is an estimation for a local area. It may not always perfectly match official weather reports.
• Allow the station sufficient time (24-48 hours) to calibrate and learn local pressure patterns after initial setup.

Atomic Clock Not Synchronizing

• Ensure the main unit is placed away from electronic devices that might cause interference.
• Try repositioning the main unit to a location with better reception for the WWVB signal.
• If automatic synchronization fails, you can set the time and date manually.
