소개
The Smeg DN83SE is an 8 kg capacity, A+++ energy-rated freestanding front-load heat pump dryer. This appliance is designed for efficient and gentle drying of various fabric types, utilizing advanced heat pump technology to minimize energy consumption and protect garments. Please read this manual carefully before using your dryer to ensure safe and optimal operation.
Image: The Smeg DN83SE dryer, white, with its front-loading door open, revealing the empty stainless steel drum and control panel.
설정
짐 풀기
Carefully remove all packaging materials. Inspect the dryer for any transport damage. Report any damage immediately to your retailer.
위치 지정
Place the dryer on a firm, level surface. Ensure adequate ventilation around the appliance. The dryer features reversible doors, allowing for flexible installation to suit your laundry room layout.
Image: A side-front view of the white Smeg DN83SE dryer with its door closed, highlighting its compact design.
전기 연결
Connect the dryer to a properly grounded electrical outlet (230-240 V AC, 50 Hz). Ensure the power cord is not trapped or damaged.
물 배수
This heat pump dryer collects condensed water in a drawer. Ensure the drawer is correctly inserted. For continuous drainage, connect the provided drain hose to a suitable drain point.
작동 지침
제어판
The dryer features a control panel with a combination of a rotary knob and touch controls, along with an integrated LED display for easy program selection and monitoring.
이미지: 자세한 view of the Smeg DN83SE control panel, showing the program selection knob, touch buttons, and LED display.
세탁물 적재
Open the door and load laundry into the 110 L stainless steel drum. Do not overload the dryer beyond its 8 kg capacity to ensure optimal drying performance.
Image: The Smeg DN83SE dryer with its door open, showing various colored clothes placed inside the drum, ready for drying.
프로그램 선택
Turn the rotary knob to select a drying program. Available programs include: Shirts, Cotton, Duvet, Eco, Anti-allergy Hygiene, Jeans, Mix, Sport Outdoor, Quick, Refresh, Silent, Steam, Synthetics, Wool. The display will show the estimated cycle time.
설정 조정
Use the touch controls to adjust additional settings such as the anti-crease function, delayed start (up to 24 hours), or child lock.
사이클 시작
Press the Start/Pause button to begin the drying cycle. The internal drum light will illuminate during operation.

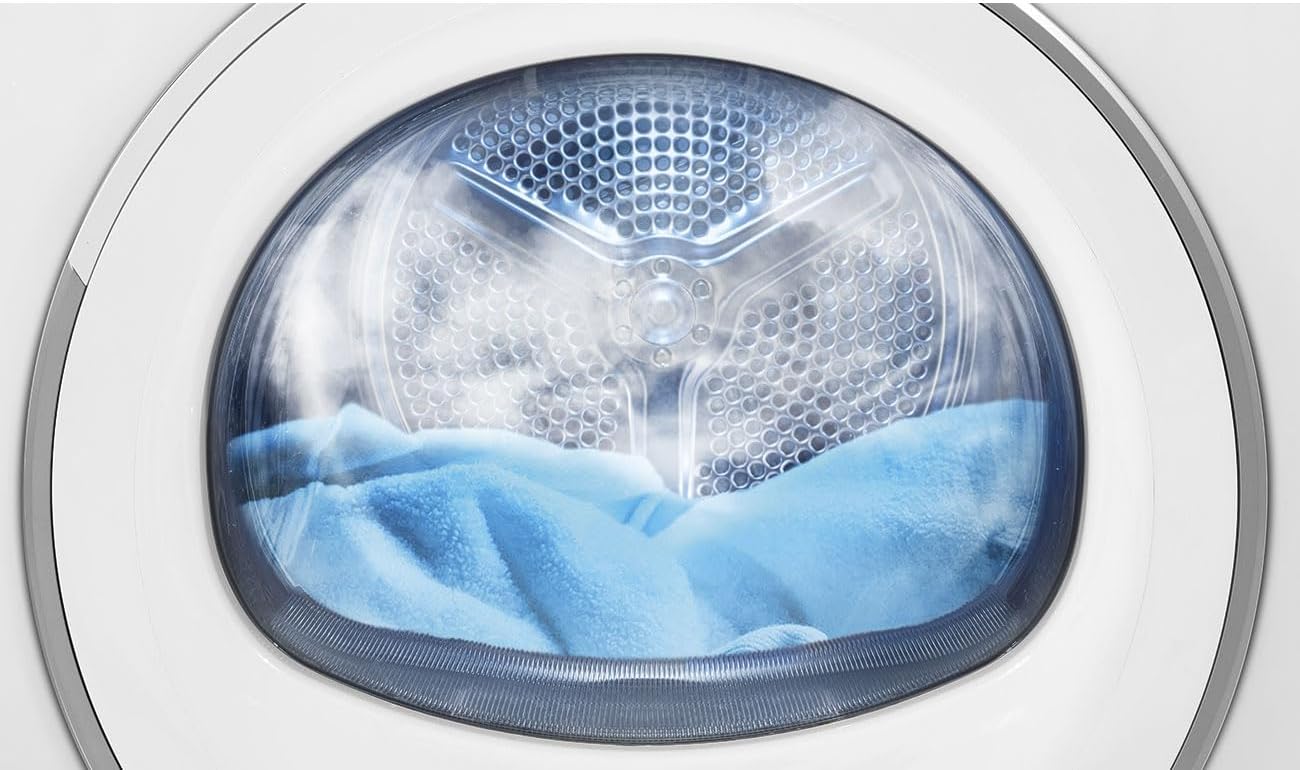

이미지: 클로즈업 view of clothes tumbling inside the illuminated drum of the Smeg DN83SE dryer during a cycle.
사이클 종료
The dryer will signal the end of the cycle. Remove laundry promptly to minimize creasing.
유지
린트 필터 청소
After each cycle, clean the lint filter located inside the door opening. Remove accumulated lint to maintain drying efficiency and prevent fire hazards.
Image: The interior of the Smeg DN83SE dryer drum, brightly lit, showing the textured surface and the lint filter area.
Emptying the Water Condenser Drawer
Empty the water condenser drawer after each cycle. If connected to a drain, this step is not necessary.
Image: A close-up of the Smeg DN83SE dryer's water condenser drawer, partially pulled out, showing its design.
콘덴서 청소
Periodically clean the main condenser unit, typically located at the bottom of the appliance. Refer to the full manual for detailed instructions on accessing and cleaning the condenser.
외부 청소
부드러운 d로 외부 표면을 닦으십시오.amp 옷감. 연마성 세제를 피하십시오.
문제 해결
- 건조기가 시작되지 않음: Check if the power cord is properly plugged in and the door is fully closed. Ensure the child lock is not activated.
- Laundry not drying properly: Clean the lint filter and condenser. Do not overload the dryer. Select an appropriate drying program for the fabric type.
- 이상한 소음: 드럼 내부에 이물질이 있는지 확인하십시오. 건조기가 수평인지 확인하십시오.
- 오류 코드 : If an error code appears on the display, consult the full user manual for specific solutions or contact customer support.
명세서
| 특징 | 값 |
|---|---|
| 위치 지정 | 독립형 |
| 로딩 유형 | 프론트로드 |
| 건조 시스템 | 히트펌프 |
| 제품 색상 | 하얀색 |
| 양면 도어 | 예 |
| 제어 유형 | Knob, touch |
| 통합 디스플레이 | 예(LED) |
| 도어 힌지 | 오른쪽 (가역적) |
| 문 스타일 | 유리문 |
| 드럼 볼륨 | 110리터 |
| 드럼 소재 | 스테인리스 스틸 |
| 케이블 길이 | 1.5분 |
| 문 열림 각도 | 160° |
| 드럼 용량 | 8kg |
| 건조 효율 등급 | A |
| 소음 방출 | 63데시벨 |
| 건조 프로그램 수 | 15 |
| 주름 방지 기능 | 예 |
| Refrigerant Medium | R290 |
| 지연된 시작 | Yes (up to 24 H) |
| 내부 드럼 조명 | 예 |
| 아동 잠금 | 예 |
| 에너지 효율 등급 | A+++ (on a scale of A+++ to D) |
| 에너지 소비 | 1.44킬로와트 |
| 연간 에너지 소비량 | 177킬로와트 |
| 열원 | 전기 같은 |
| 연결된 부하 | 800와트 |
| AC 입력 볼륨tage | 230-240V(전기) |
| AC 입력 주파수 | 50Hz |
| 치수(폭x깊이x높이) | 59.8 x 60.7 x 84.6cm |
| 무게 | 46kg |
| 모델 번호 | DN83SE |
Image: The energy efficiency label for the Smeg DN83SE dryer, indicating an A+++ rating.
보증 및 지원
보증 정보
This product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions, including coverage period and registration details.
고객 지원
For technical assistance, spare parts, or service requests, please contact Smeg customer support. Contact details can be found on the Smeg official website or in the documentation provided with your dryer. When contacting support, please have your model number (DN83SE) and serial number ready.
