1. 서론
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Danfoss MCI 15 Motor Controller, model 037N0039. Please read this manual thoroughly before attempting to install or operate the device. Retain this manual for future reference.
2. 안전 정보
신체 부상이나 장비 손상을 방지하려면 항상 다음 안전 예방 조치를 준수하세요.
- 설치 및 유지관리는 자격을 갖춘 인력만이 수행해야 합니다.
- 배선 작업이나 유지 보수 작업을 하기 전에 반드시 전원 공급 장치를 차단하십시오.
- Verify all connections are secure and correctly wired according to the provided diagrams.
- 기기를 습기, 먼지, 극한 온도로부터 보호하세요.
- Do not operate the controller if it appears damaged.
3. 제품 오버view
The Danfoss MCI 15 Motor Controller is designed for controlling motor speed and soft starting applications. It features robust construction with an integrated heat sink for efficient thermal management.
4. 사양
Key technical specifications for the Danfoss MCI 15 Motor Controller:
| 매개변수 | 값 |
|---|---|
| 모델 번호 | MCI 15 (037N0039) |
| 정격 전류(즉) | Max 15 A AC 53a |
| 컨트롤 볼륨tag전자(Uc) | 24-480V 교류/직류 |
| 운영 볼륨tage(우에) | 380-480V 50/60Hz |
| 절연체 Voltag전자(Ui) | 660V |
| 임펄스 내력량tag전자(Uimp) | 4kV(XNUMXkV) |
| 제품 치수 | 5 x 5 x 2 인치 |
| 품목 무게 | 1.35파운드 |
| 재료 | Copper (heat sink) |
| 최대 퓨즈 | 50 A gL/gG |
| Overload Relay Trip Class | 10 |
| HP Rating (400-480V) | 10마력 |
5. 설정 및 설치
5.1 장착
The Danfoss MCI 15 Motor Controller is designed for panel mounting. Ensure adequate ventilation around the heat sink to prevent overheating. Use appropriate fasteners through the mounting brackets shown in Figure 3.4.
5.2 배선

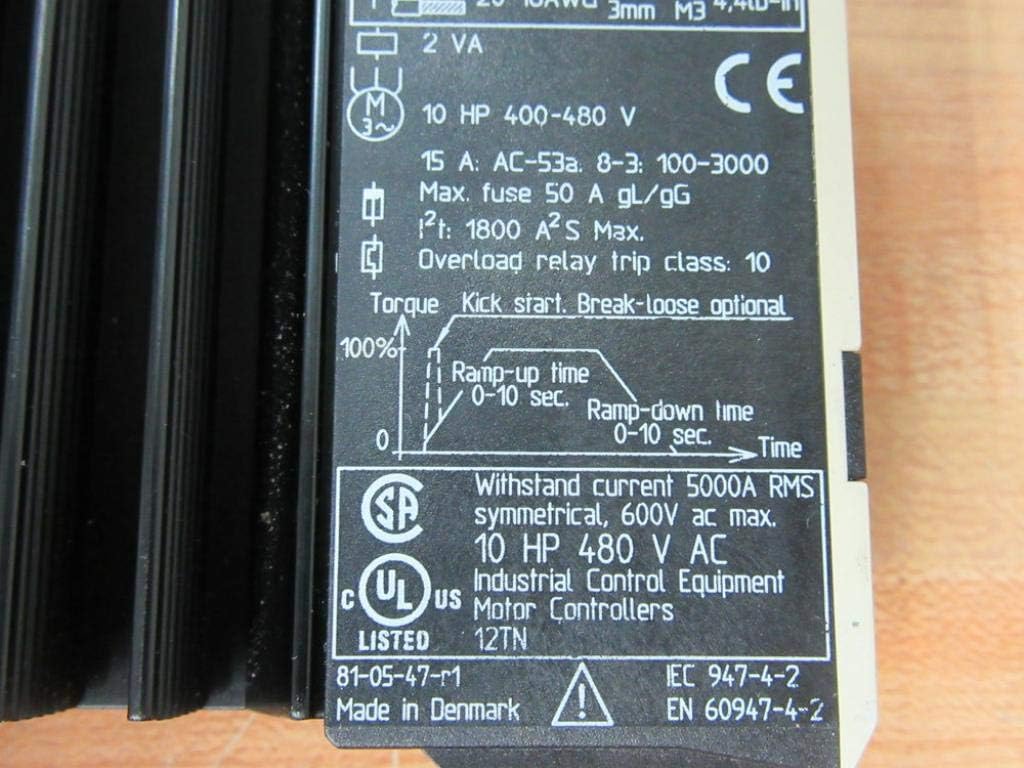

Refer to the wiring diagram on the device label (Figure 4.1) for correct connections. Ensure all wiring adheres to local electrical codes and safety standards.
- 전원 입력(L1, L2, L3): Connect the three-phase power supply to terminals 1/L1, 3/L2, and 5/L3.
- Motor Output (T1, T2, T3): Connect the motor leads to terminals 2/T1, 4/T2, and 6/T3.
- Control Input (A1, A2): 제어 볼륨 연결tag터미널 A1과 A2로 가세요.
- Use recommended wire sizes (e.g., 0.75-6mm² or 18-10AWG for power, 0.5-1.5mm² or 20-16AWG for control) and tighten terminals to the specified torque (e.g., 0.5Nm or 4.4lb-in for M3 screws).
5.3 초기 설정
Before initial operation, adjust the potentiometers on the front panel (Figure 3.2) to desired settings:
- Ramp 가동 시간: Adjust the 'up' potentiometer to set the motor acceleration time (0-10 seconds).
- Ramp Down Time: Adjust the 'down' potentiometer to set the motor deceleration time (0-10 seconds).
- Kick Start: Adjust this potentiometer to provide an initial torque boost for starting loads.
- 초기 토크: Adjust this potentiometer to set the initial torque level during startup.
6. 사용 설명서
Once installed and configured, the Danfoss MCI 15 Motor Controller operates by applying a controlled voltag어amp to the motor, providing a soft start and stop. The motor will accelerate to full speed over the set ramp-up time and decelerate over the set ramp- 다운타임.
- 제어 볼륨 적용tage to terminals A1 and A2 to initiate motor operation.
- Remove control voltage to initiate motor stop (soft stop).
- Monitor motor performance and adjust ramp times and torque settings as needed for optimal operation.
7. 유지관리
Regular maintenance ensures the longevity and reliable operation of the motor controller.
- 청소: Periodically clean the exterior of the controller, especially the heat sink fins, to ensure proper heat dissipation. Use a dry, soft cloth. Do not use solvents or abrasive cleaners.
- 점검: Regularly inspect wiring connections for tightness and signs of wear or damage. Check for any discoloration or unusual odors, which may indicate overheating.
- 환경: 작동 환경이 지정된 온도 및 습도 범위 내에 유지되도록 하세요.
8. 문제 해결
If the motor controller does not operate as expected, consider the following basic troubleshooting steps:
- No Motor Start: Verify power supply to the controller and motor. Check control signal to A1/A2. Ensure all wiring is correct and secure.
- 모터 과열: Check for proper ventilation around the heat sink. Ensure the motor is not overloaded. Verify motor parameters are correctly set.
- Incorrect Ramp 타임스: Re-adjust the 'up' and 'down' potentiometers on the front panel.
- Unexpected Stops: Check for power fluctuations or intermittent control signals. Inspect for any fault indicators if available on the device or system.
For complex issues, contact Danfoss technical support.
9. 보증 및 지원

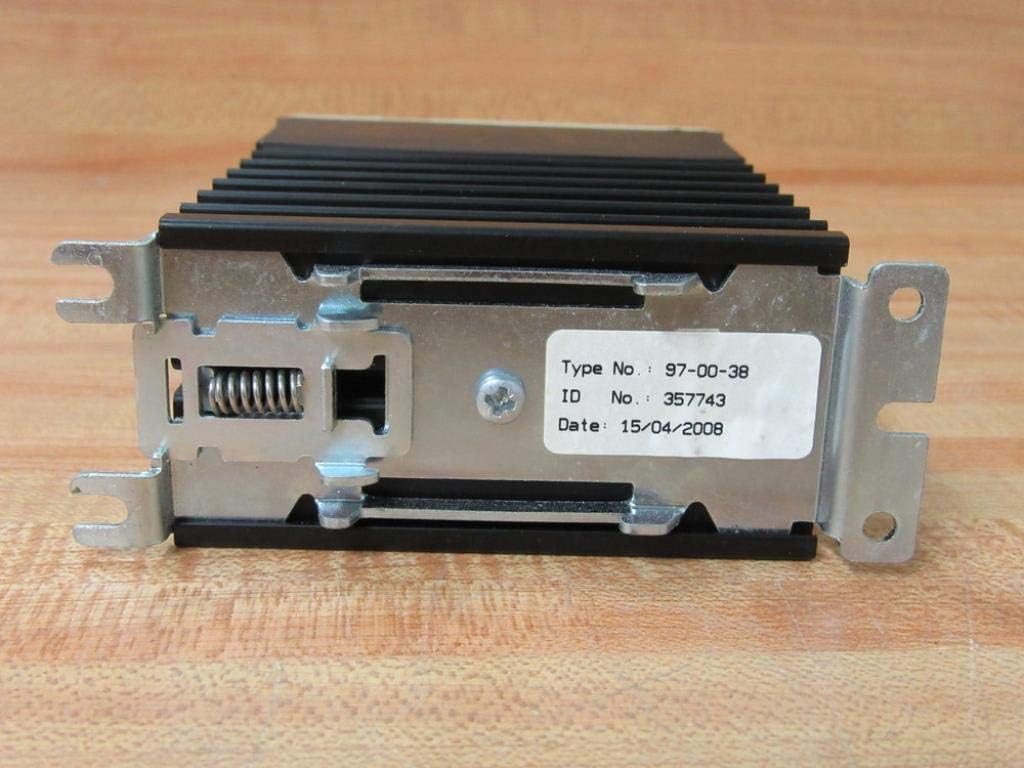

제품 보증, 기술 지원 또는 서비스에 관한 정보는 Danfoss 공식 웹사이트를 참조하십시오. website or contact your local Danfoss representative. Ensure you have the model number (MCI 15) and serial number (if applicable, visible on the rear label, Figure 7.1) available when contacting support.
