LG 308 L 3 Star Inverter Linear Frost-Free Double-Door Refrigerator (GL-T322RASN) User Manual

1. 제품 오버view

This manual provides essential information for the safe and efficient operation of your LG 308 L 3 Star Inverter Linear Frost-Free Double-Door Refrigerator, model GL-T322RASN. This appliance is designed to keep your food fresh and beverages cool with advanced cooling technologies.

그림 1: 전면 view of the LG GL-T322RASN Refrigerator.

2. 안전 정보

Before operating the appliance, please read this user manual thoroughly to prevent potential hazards and ensure proper use. Keep this manual in a safe place for future reference.

• 냉장고를 안정적이고 평평한 곳에 놓으십시오.
• 제품 근처에 가연성 물질을 두지 마십시오.
• 통풍구에 장애물이 없도록 깨끗이 유지하세요.
• 제조업체에서 권장하는 것 외에는 해동 과정을 가속화하기 위해 기계적 장치나 기타 수단을 사용하지 마십시오.
• The appliance must be unplugged before cleaning or maintenance.

3. 설정 및 설치

Proper installation is crucial for optimal performance and safety. It is recommended to have the appliance installed by a qualified technician.

1. 짐 풀기: Carefully remove all packaging materials. Inspect the refrigerator for any damage.
2. 놓기: Position the refrigerator in a well-ventilated area, away from direct sunlight and heat sources. Ensure sufficient space around the unit for air circulation.
3. 수준 측량: Adjust the leveling feet to ensure the refrigerator is stable and level. This helps in proper door alignment and efficient operation.
4. 전원 연결: Plug the refrigerator into a dedicated grounded electrical outlet. This model supports stabilizer-free operation within a voltage range of 100~290V LVS.
5. 초기 작업: Allow the refrigerator to stand for at least 2-3 hours before plugging it in. Once plugged in, let it run for several hours empty to reach optimal cooling temperatures before loading food.

그림 2: 냉장고의 적절한 배치를 위한 치수.

For installation assistance, Amazon will coordinate with the brand for installation within 48 hours of delivery. Please check your pincode for scheduled delivery availability.

4. 사용 설명서

4.1 온도 조절

The Inverter Linear Compressor maintains precise temperature control within a variation range of ±0.5°C, ensuring uniform cooling throughout the refrigerator. Adjust the temperature settings using the internal control panel as needed for optimal food preservation.

4.2 Dual Fridge (Convertible) Feature

The Dual Fridge feature allows you to convert the freezer compartment into a refrigerator compartment with a single touch. This provides increased storage capacity for fresh food when required. To activate, locate the 'Dual Fridge' button on the control panel and press it. Hold for 3 seconds to switch between modes.

4.3 Auto Smart Connect

The Auto Smart Connect feature enables the refrigerator to function optimally even during power cuts. It automatically connects to your home inverter, ensuring continuous cooling and food preservation without manual intervention.

5. 주요 특징

Your LG refrigerator is equipped with several advanced features designed for convenience and efficiency:

• 인버터 리니어 컴프레서: Provides efficient, quiet operation and precise temperature control, contributing to energy savings and longer food freshness.
• 도어 쿨링+: This technology helps maintain a uniform temperature throughout the refrigerator, including the door side, by delivering cold air from the top of the refrigerator. This ensures items stored in the door bins stay cooler and fresher.
• MOIST ‘N’ FRESH: A special lattice-patterned box cover that maintains optimal moisture levels for fruits and vegetables, keeping them fresh for longer.
• 강화 유리 선반: Durable shelves designed to hold heavy food items without breaking.
• 2 L Bottle Storage: Spacious door bins designed to accommodate large 2-liter bottles effortlessly.
• Double Twist Moving Ice Tray: Conveniently dispenses ice cubes with a simple twist.
• 항균 개스킷: Prevents the entry of bacteria and dust particles, maintaining hygiene inside the refrigerator.
• 스마트 진단: A smart feature that helps diagnose and troubleshoot issues with the refrigerator quickly and efficiently via the LG SmartThinQ app.

그림 3: 이상view 주요 특징

그림 4: 내부 view with food items, highlighting storage capacity.

6. 유지관리 및 청소

정기적인 유지관리는 냉장고의 수명과 효율성을 보장합니다.

• 내부 청소 : 내부는 순한 세제와 따뜻한 물로 정기적으로 청소하십시오. 부드러운 천으로 물기를 닦아내십시오. 더욱 깨끗하게 청소하려면 선반과 서랍을 분리하십시오.
• 외부 청소: 부드러운 d로 외부 표면을 닦으십시오.amp 천으로 닦아주세요. 잘 지워지지 않는 얼룩에는 부드럽고 연마성이 없는 세제를 사용하세요.
• 도어 개스킷: Clean the door gaskets regularly to ensure a tight seal. A dirty or damaged gasket can lead to inefficient cooling.
• 콘덴서 코일: Periodically clean the condenser coils located at the back or bottom of the refrigerator. Dust and debris can accumulate, reducing cooling efficiency.
• 제상 : As this is a frost-free model, manual defrosting is not required. The system automatically prevents ice buildup.

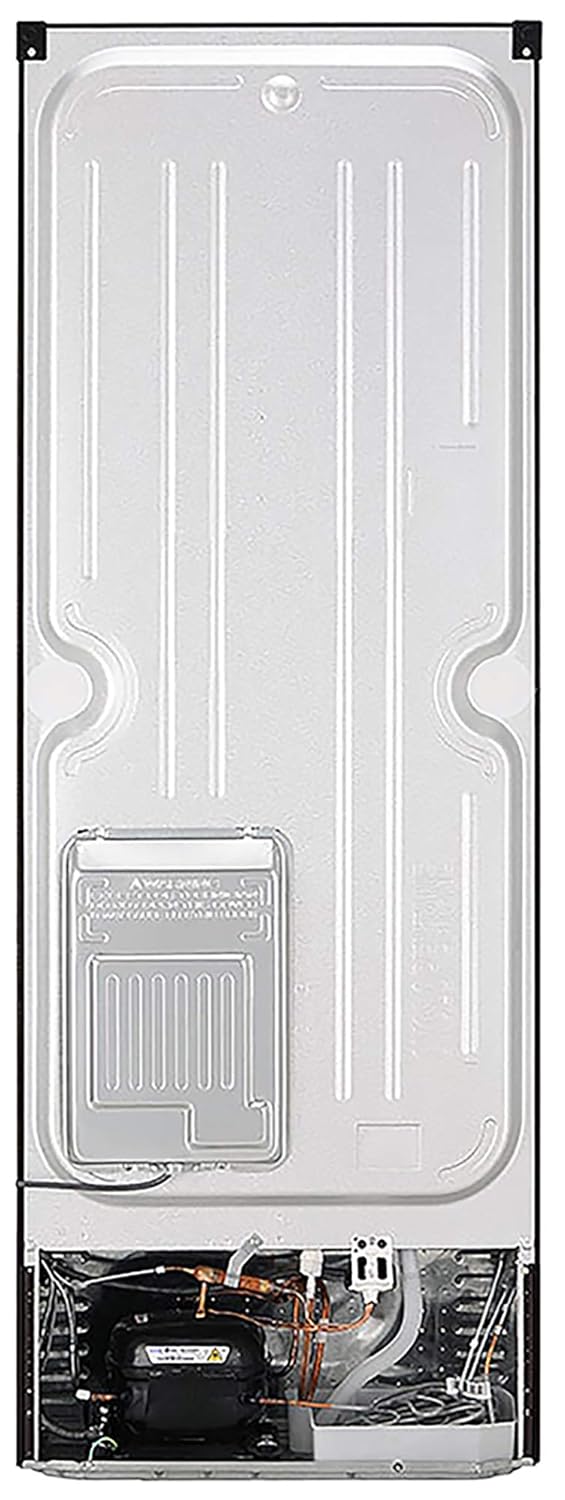

그림 5: 후면 view of the refrigerator, indicating areas for condenser coil cleaning.

7. 문제 해결

If you encounter any issues with your refrigerator, refer to the following common troubleshooting tips:

• 냉장고가 식지 않음: Check if the power cord is securely plugged in. Ensure the temperature settings are correct. Verify that the door is fully closed and not obstructed.
• 과도한 소음: Ensure the refrigerator is level. Check if any items inside are vibrating against each other. The Inverter Linear Compressor operates quietly, but slight operational sounds are normal.
• 물 누출: Check if the drain pan is properly positioned. Ensure the drain hose is not clogged. Verify that the refrigerator is level.
• 스마트 진단: For more complex issues, utilize the Smart Diagnosis feature. This allows LG service centers to diagnose problems over the phone, saving time and effort. Refer to the LG SmartThinQ app for instructions.

이러한 해결 방법을 시도한 후에도 문제가 지속되면 LG 고객 지원팀에 문의하세요.

8. 사양

Figure 6: Energy Savings Guide for GL-T322RASN.

9. 보증 및 지원

Your LG refrigerator comes with comprehensive warranty coverage:

• 제품 보증: 전체 제품에 대해 1년의 보증 기간이 적용됩니다.
• 압축기 보증: 10 years on the Inverter Linear Compressor.

For service requests, technical support, or warranty claims, please contact LG customer care. Contact details can be found on the LG official web사이트 또는 구매 문서.
