셀레스트론 익스플로라스코프 80AZ 굴절 망원경 사용 설명서

소개

The Celestron ExploraScope 80AZ is a refractor telescope designed for both celestial and terrestrial observations. Its manual alt-azimuth mount provides intuitive navigation of the night sky, making it suitable for beginners. This manual provides essential information for setting up, operating, and maintaining your telescope to ensure optimal performance and longevity.

상자 안에 무엇이 들어있나요?

포장을 풀 때 모든 구성품이 들어 있는지 확인하세요.

• 망원경 튜브
• 높이 조절 가능 삼각대
• 액세서리 트레이
• 렌즈 캡
• 90° Erect Image Diagonal
• StarPointer 파인더스코프
• 20mm 접안렌즈
• 4mm 접안렌즈
• 3x 바로우 렌즈
• TheSkyX - First Light Edition DVD-ROM (소프트웨어)

설정

Follow these steps to assemble your Celestron ExploraScope 80AZ telescope:

1. 삼각대 조립: Extend the tripod legs to the desired height and secure them. Attach the accessory tray to the center brace of the tripod.
2. Mounting the Telescope Tube: Place the telescope tube onto the alt-azimuth mount, aligning the mounting screws with the holes on the tube. Secure the tube firmly.
3. Finderscope 부착: Slide the StarPointer finderscope into its bracket on the telescope tube and tighten the retaining screw.
4. Inserting the Diagonal: Insert the 90° erect image diagonal into the focuser. Tighten the thumbscrew on the focuser to hold it in place.
5. Inserting an Eyepiece: Insert the desired eyepiece (e.g., 20mm for lower magnification) into the diagonal. Tighten the thumbscrew on the diagonal to secure it.
6. Barlow Lens (Optional): For increased magnification, insert the 3x Barlow lens into the diagonal before inserting an eyepiece.

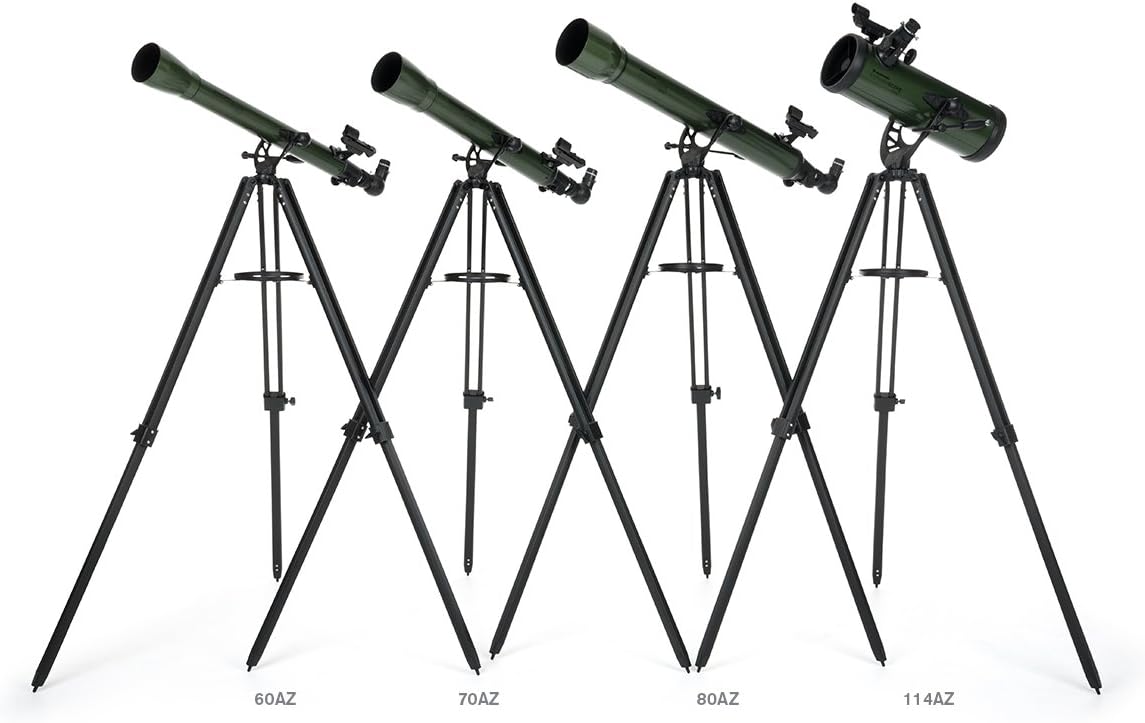

The Celestron ExploraScope 80AZ Refractor Telescope fully assembled on its adjustable tripod, ready for observation.

클로즈업 view of the focuser, where the eyepiece and diagonal are inserted, along with the StarPointer finderscope.

시각적 설정 가이드

This video provides a visual guide to setting up and using a Celestron ExploraScope telescope, demonstrating key features and accessories for observing celestial objects.

망원경 작동

The ExploraScope 80AZ features a manual alt-azimuth mount with a panning handle and clutch for smooth and accurate pointing. This allows you to move the telescope up/down and left/right to track objects.

Using the StarPointer Finderscope

The StarPointer red dot finderscope helps you quickly locate objects in the sky. Look through the finderscope and align the red dot with your target. Once aligned, the object should be visible in your telescope's eyepiece.

A close-up of the StarPointer red dot finderscope, used for aiming the telescope at celestial objects.

배율 변경

Your telescope comes with two eyepieces (20mm and 4mm) and a 3x Barlow lens. The 20mm eyepiece provides lower magnification and a wider field of view물체를 찾는 데 이상적입니다. 4mm 접안렌즈는 더 높은 배율을 제공하여 더욱 세밀한 관찰이 가능합니다. views. The 3x Barlow lens triples the magnification of any eyepiece it's used with.

The 4mm and 20mm eyepieces, along with the 3x Barlow lens, which are included with the telescope.

Daytime Observations

Thanks to the 90° erect image diagonal, your ExploraScope 80AZ can also be used for daytime observations of birds, wildlife, and distant landscapes. The erect image diagonal ensures that images are correctly oriented (not inverted or reversed).

The Celestron ExploraScope 80AZ Refractor Telescope, suitable for both astronomical and terrestrial view주고받음.

유지

적절한 관리는 망원경의 수명과 성능을 향상시켜 줍니다.

• 세척 광학 장치: Use a soft, lint-free cloth and specialized optical cleaning fluid. Avoid touching optical surfaces with bare hands.
• 저장: Store the telescope in a dry, dust-free environment. Keep lens caps on when not in use to protect the optics.
• 기계 부품: 주기적으로 모든 나사와 손잡이가 단단히 조여졌는지 확인하십시오. 너무 세게 조이지 마십시오.

문제 해결

문제가 발생하면 다음 사항을 고려하세요.

• 흐릿한 이미지: Ensure the focuser is properly adjusted. Check if the eyepiece is securely seated. Atmospheric conditions can also affect image clarity.
• Cannot Find Objects: Verify that the finderscope is aligned with the main telescope. Start with the lowest magnification eyepiece (20mm) to locate objects.
• Image is Upside Down/Reversed: 천문학을 위해 viewing, this is normal. For terrestrial viewing, ensure the erect image diagonal is correctly installed.

명세서

보증 정보

자세한 보증 정보는 제품에 포함된 설명서를 참조하거나 셀레스트론 공식 웹사이트를 방문하십시오. web사이트. 보증 조건은 일반적으로 구매일로부터 특정 기간 동안 제조상의 결함에 대한 보증을 제공합니다.

지원하다

For additional assistance, technical support, or to explore more Celestron products, please visit the official Celestron website or contact their customer service department. You can also find resources and community forums for astronomy enthusiasts.
