REOLINK ಆರ್ಗಸ್ ಸರಣಿ B430-B ಬ್ಯಾಟರಿ-ವೈಫೈ ಕ್ಯಾಮೆರಾ ಬಳಕೆದಾರ ಕೈಪಿಡಿ

ಪರಿಚಯ

This manual provides comprehensive instructions for the installation, operation, and maintenance of your REOLINK Argus Series B430-B Battery-WiFi Camera. Please read this manual carefully before using the product to ensure proper functionality and safety.

ಬಾಕ್ಸ್‌ನಲ್ಲಿ ಏನಿದೆ

• REOLINK Argus Series B430-B Camera
• ಮೌಂಟಿಂಗ್ ಕಿಟ್ (ಸ್ಕ್ರೂಗಳು, ವಾಲ್ ಆಂಕರ್‌ಗಳು)
• USB ಚಾರ್ಜಿಂಗ್ ಕೇಬಲ್
• ತ್ವರಿತ ಪ್ರಾರಂಭ ಮಾರ್ಗದರ್ಶಿ

ಉತ್ಪನ್ನ ಮುಗಿದಿದೆview

Familiarize yourself with the camera's components and design.

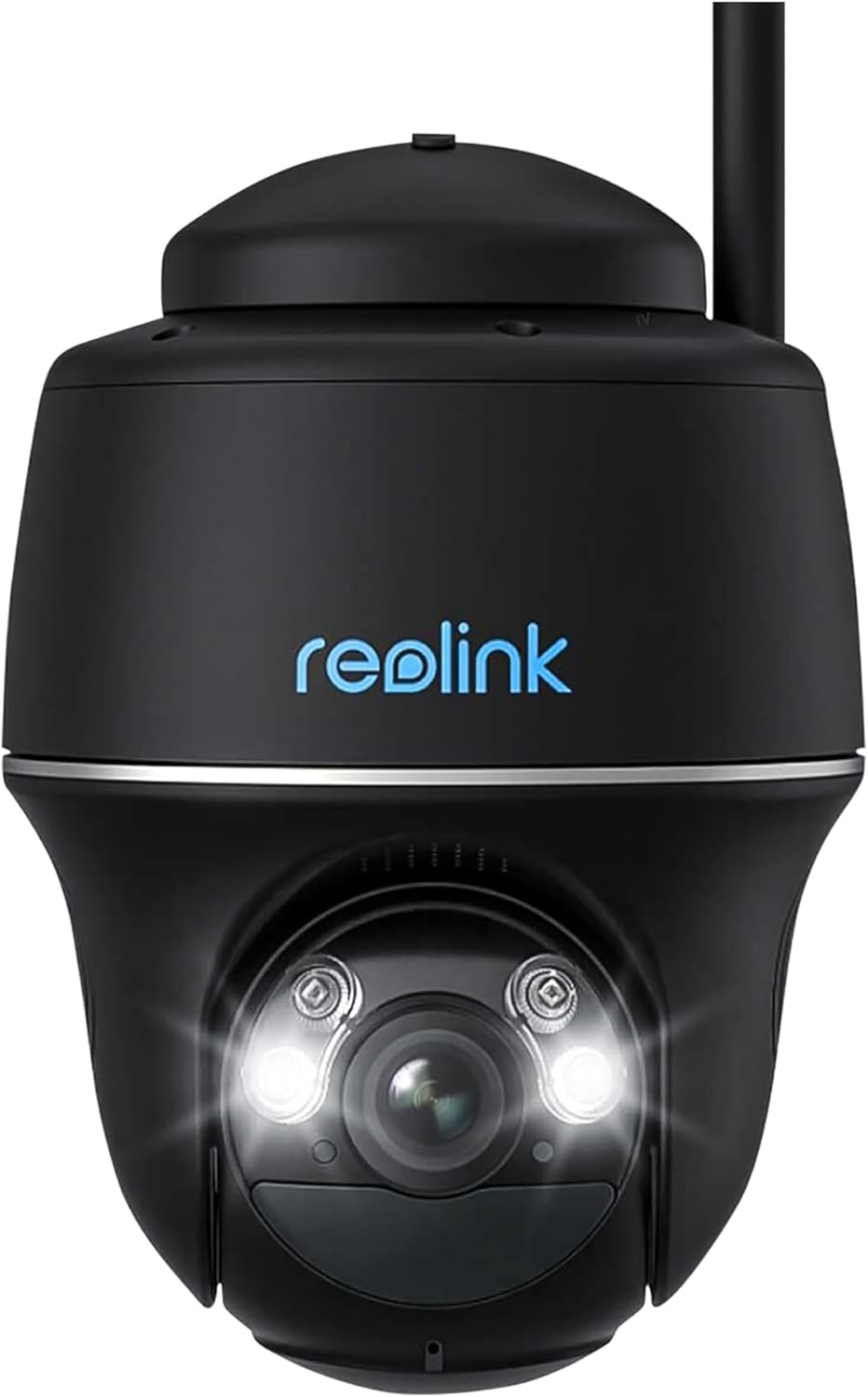

ಚಿತ್ರ 1: ಮುಂಭಾಗ view of the REOLINK Argus Series B430-B Battery-WiFi Camera, showing the lens, LED lights, and Reolink logo. This camera features a dome form factor and is designed for versatile placement.

The REOLINK Argus Series B430-B is a battery-powered Wi-Fi security camera designed for both indoor and outdoor use. It features a dome form factor, 1440p video resolution, and supports voice control via Amazon Alexa and Google Assistant.

ಸೆಟಪ್

1. ಬ್ಯಾಟರಿಯನ್ನು ಚಾರ್ಜ್ ಮಾಡುವುದು

Before initial use, fully charge the camera battery using the provided USB cable and a 5V/2A power adapter (not included). The charging indicator light will turn solid blue when fully charged.

2. Downloading the Reolink App

Download and install the Reolink App from the App Store (iOS) or Google Play (Android). The app is essential for camera setup and operation.

3. Initial Camera Setup

1. Open the Reolink App and tap the "+" icon to add a new device.
2. Scan the QR code on the camera body.
3. Follow the on-screen instructions to connect the camera to your 2.4GHz Wi-Fi network.
4. Create a device password and name for your camera.

4. ಕ್ಯಾಮೆರಾವನ್ನು ಅಳವಡಿಸುವುದು

The camera can be mounted indoors or outdoors, including ceiling installation. Ensure the mounting location has good Wi-Fi signal strength.

ಚಿತ್ರ 2: The REOLINK Argus Series B430-B camera mounted on an exterior wall, demonstrating a typical installation scenario for outdoor surveillance.

ಗೋಡೆಯ ಆರೋಹಣ:

1. ಆರೋಹಿಸುವಾಗ ಟೆಂಪ್ಲೇಟ್ ಪ್ರಕಾರ ರಂಧ್ರಗಳನ್ನು ಕೊರೆಯಿರಿ.
2. Insert wall anchors if mounting on masonry or concrete.
3. ಸ್ಕ್ರೂಗಳೊಂದಿಗೆ ಆರೋಹಿಸುವಾಗ ಬ್ರಾಕೆಟ್ ಅನ್ನು ಸುರಕ್ಷಿತಗೊಳಿಸಿ.
4. Attach the camera to the bracket and adjust the angle.

Optional Solar Panel Installation: For continuous power, consider connecting a compatible REOLINK solar panel. Ensure the solar panel is positioned to receive maximum sunlight.

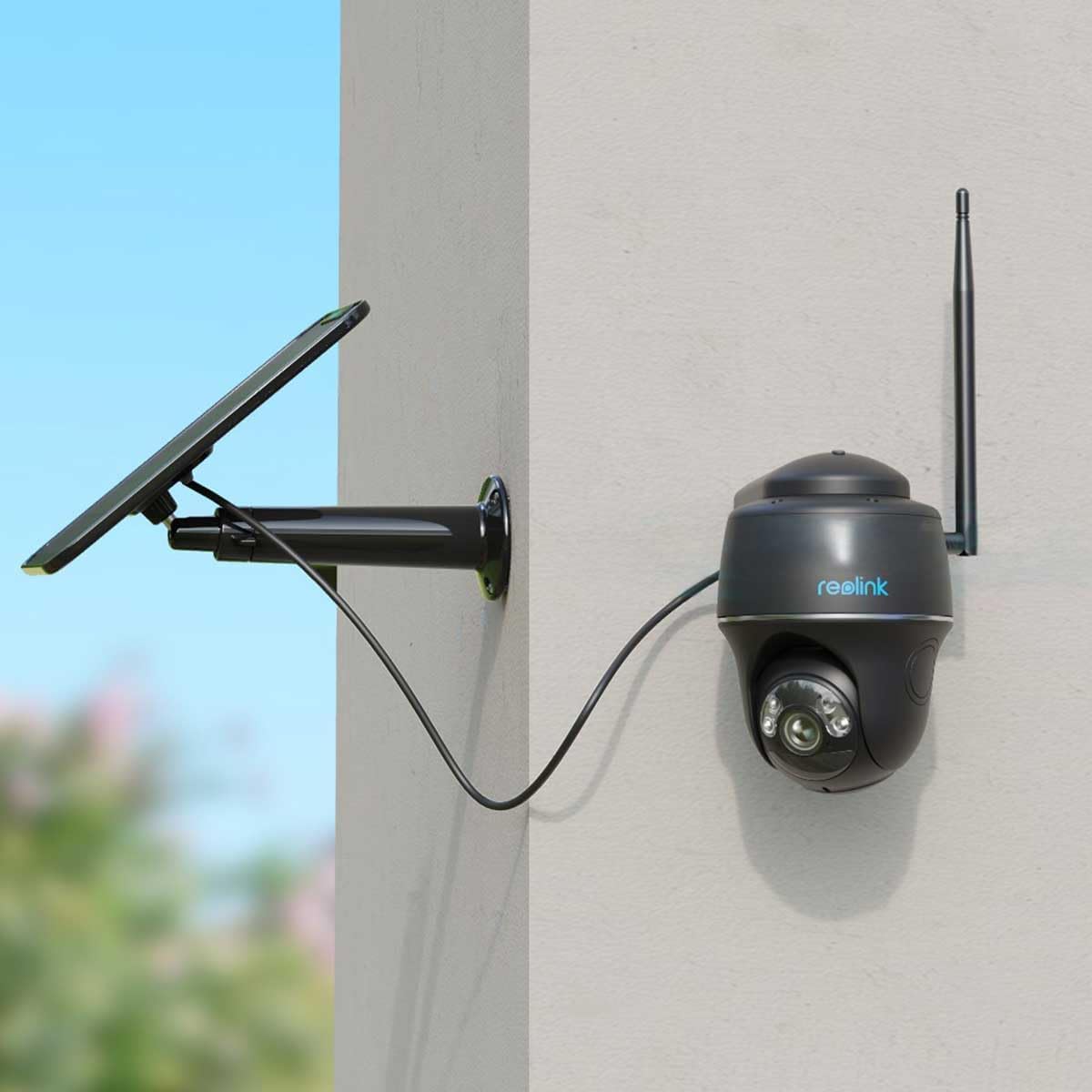

ಚಿತ್ರ 3: The REOLINK Argus Series B430-B camera connected to an external solar panel for continuous charging, mounted on a wall. This setup provides extended battery life.

ಚಿತ್ರ 4: The REOLINK Argus Series B430-B camera and its solar panel installed outdoors, demonstrating its waterproof design and resilience in rainy conditions.

ಕ್ಯಾಮರಾ ಆಪರೇಟಿಂಗ್

1. ಲೈವ್ View

Open the Reolink App and tap on your camera to access the live view. You can pan, tilt, and zoom digitally, as well as use two-way audio to communicate through the camera.

2. ರೆಕಾರ್ಡಿಂಗ್ ಮತ್ತು ಪ್ಲೇಬ್ಯಾಕ್

The camera records motion-triggered events. Access recorded footage via the "Playback" section in the Reolink App. You can filter by date and event type to quickly find specific recordings.

3. Motion Detection Settings

Customize motion detection sensitivity, detection zones, and notification preferences in the camera settings within the app. This helps reduce false alarms and ensures you receive relevant alerts.

4. ಸ್ಮಾರ್ಟ್ ಹೋಮ್ ಇಂಟಿಗ್ರೇಷನ್

The REOLINK Argus Series B430-B supports Amazon Alexa and Google Assistant. Follow the instructions in the Reolink App or your smart home device app to link your camera for voice control and live view on compatible smart displays.

ನಿರ್ವಹಣೆ

1. ಬ್ಯಾಟರಿ ಕೇರ್

• Avoid exposing the camera to extreme temperatures, which can affect battery life.
• Recharge the battery promptly when the low battery notification appears.
• If using a solar panel, ensure it is clean and receives adequate sunlight for optimal charging.

2. ಸ್ವಚ್ಛಗೊಳಿಸುವಿಕೆ

Wipe the camera lens and body with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners, as these can damage the camera's surfaces or lens coating.

3. ಫರ್ಮ್‌ವೇರ್ ನವೀಕರಣಗಳು

Regularly check for and install firmware updates via the Reolink App to ensure optimal performance, security, and access to new features.

ದೋಷನಿವಾರಣೆ

Camera Not Connecting to Wi-Fi

• Ensure your Wi-Fi network is 2.4GHz, as the camera does not support 5GHz networks.
• Check Wi-Fi signal strength at the camera's location. Move the camera closer to the router if the signal is weak.
• Restart your router and the camera to refresh network connections.
• Verify the Wi-Fi password entered during setup is correct.

ಕಳಪೆ ವೀಡಿಯೊ ಗುಣಮಟ್ಟ

• Check your internet upload speed; a stable connection is crucial for clear video.
• ಕ್ಯಾಮೆರಾ ಲೆನ್ಸ್ ಸ್ವಚ್ಛವಾಗಿದೆ ಮತ್ತು ಧೂಳು ಅಥವಾ ಕಲೆಗಳಿಂದ ಮುಕ್ತವಾಗಿದೆ ಎಂದು ಖಚಿತಪಡಿಸಿಕೊಳ್ಳಿ.
• Adjust video quality settings in the Reolink App to a lower resolution if bandwidth is limited.

ಬ್ಯಾಟರಿ ಬೇಗನೆ ಬರಿದಾಗುತ್ತದೆ

• Reduce motion detection sensitivity or detection zones to minimize unnecessary recordings.
• Ensure the camera is not in an area with constant motion, which triggers frequent recordings.
• Consider connecting a REOLINK solar panel for continuous charging and extended battery life.

ವಿಶೇಷಣಗಳು

ಖಾತರಿ ಮತ್ತು ಬೆಂಬಲ

For warranty information and technical support, please visit the official REOLINK website or contact their customer service. You can also find more resources on the REOLINK Brand Store.
