សេចក្តីផ្តើម
Thank you for choosing the FLEXISPOT EC5 Plus Electric Sit-Stand Desk Frame. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new desk frame. Designed with ergonomics in mind, this dual-motor frame offers smooth and quiet height adjustment, allowing you to effortlessly switch between sitting and standing positions for a healthier work environment.
សេចក្តីណែនាំអំពីសុវត្ថិភាពសំខាន់ៗ
សូមអានការណែនាំទាំងអស់ដោយប្រុងប្រយ័ត្នមុនពេលដំឡើង និងប្រើប្រាស់។ ការខកខានក្នុងការធ្វើតាមការណែនាំទាំងនេះអាចបណ្តាលឱ្យមានរបួស ឬខូចខាតដល់ផលិតផល។
- Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or damaged.
- Keep children and pets away from the desk during operation to prevent injury from moving parts.
- Do not place hands or other body parts near the lifting columns or crossbar during height adjustment to avoid pinching.
- Ensure the desk is placed on a level surface to prevent tipping.
- Do not overload the desk. The maximum load capacity is 120 kg (265 lbs).
- Only use the provided power adapter and cables.
- ផ្តាច់ថាមពលមុនពេលសម្អាត ឬថែទាំ។
- The anti-collision system is designed to prevent damage, but always exercise caution during operation.
មាតិកាកញ្ចប់
ផ្ទៀងផ្ទាត់ថាសមាសធាតុខាងក្រោមទាំងអស់ត្រូវបានរួមបញ្ចូលនៅក្នុងកញ្ចប់របស់អ្នក៖
- Desk Legs (2)
- របារឈើឆ្កាង (1)
- តង្កៀបចំហៀង (2)
- ប្រអប់បញ្ជា (1)
- Handset/Control Panel (1)
- អាដាប់ទ័រថាមពល (1)
- ខ្សែថាមពល (1)
- ថាសគ្រប់គ្រងខ្សែ (1)
- Hardware Kit (screws, tools, etc.)
- សៀវភៅណែនាំអ្នកប្រើ (ឯកសារនេះ)
ការណែនាំអំពីការដំឡើង
សេចក្តីណែនាំអំពីការជួបប្រជុំគ្នា។
Assembly typically requires two people. Follow the steps below for a successful setup. Refer to the detailed diagrams in the included printed manual for visual guidance.
- ពន្លាសមាសធាតុ៖ យកផ្នែកទាំងអស់ចេញពីវេចខ្ចប់ដោយប្រុងប្រយ័ត្ន ហើយដាក់វានៅលើផ្ទៃទន់ស្អាត ដើម្បីការពារការកោស។
- Attach Side Brackets to Legs: Secure the side brackets to the top of each lifting column (leg) using the provided screws.
- Assemble Crossbar: Connect the two halves of the crossbar, ensuring the motor cables are properly routed.
- Connect Legs to Crossbar: Attach the assembled legs to the crossbar. Ensure all connections are secure.
- ដំឡើងប្រអប់ត្រួតពិនិត្យ៖ Mount the control box to the designated area on the crossbar using the provided screws.
- Connect Motors and Handset: Plug the motor cables from each leg into the control box. Connect the handset/control panel cable to the control box.
- ភ្ជាប់អាដាប់ទ័រថាមពល៖ Connect the power adapter to the control box and then to the power cable.
- Mount Tabletop: Carefully place your chosen tabletop (not included) onto the assembled frame. Ensure it is centered and aligned. Secure the tabletop to the frame using appropriate screws (ensure screw length is suitable for your tabletop thickness to avoid piercing through). The frame is compatible with tabletops from 120 to 180 cm in length and 60 to 80 cm in width.
- ការគ្រប់គ្រងខ្សែកាបៈ Use the included cable management tray and ties to organize all cables neatly.
- ការបញ្ចូលថាមពលដំបូង៖ Plug the power cable into a wall outlet. The desk should be ready for initial calibration or operation.
សេចក្តីណែនាំប្រតិបត្តិការ

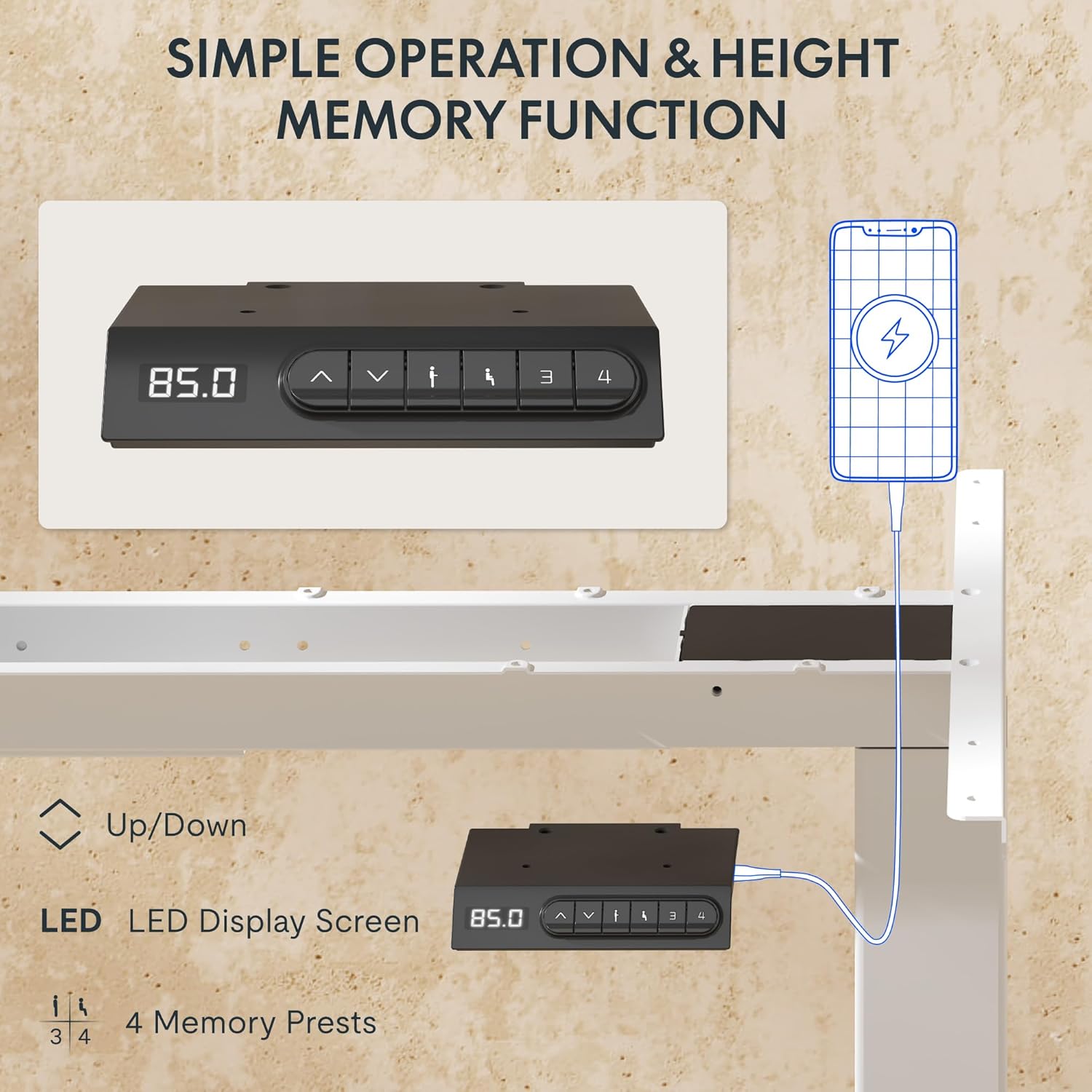

ផ្ទាំងបញ្ជាពីលើview
The EC5 Plus features an intuitive control panel with an LED display and memory functions.
- ការបង្ហាញ LED៖ Shows the current height of the desk in centimeters.
- Up/Down Arrows (▲ / ▼): ចុចឱ្យជាប់ដើម្បីកែតម្រូវកម្ពស់តុដោយដៃ។
- ការកំណត់ជាមុននៃការចងចាំ (1, 2, 3, 4): Store and recall preferred height settings.
- USB-A & USB-C Ports: Integrated charging ports for your devices.

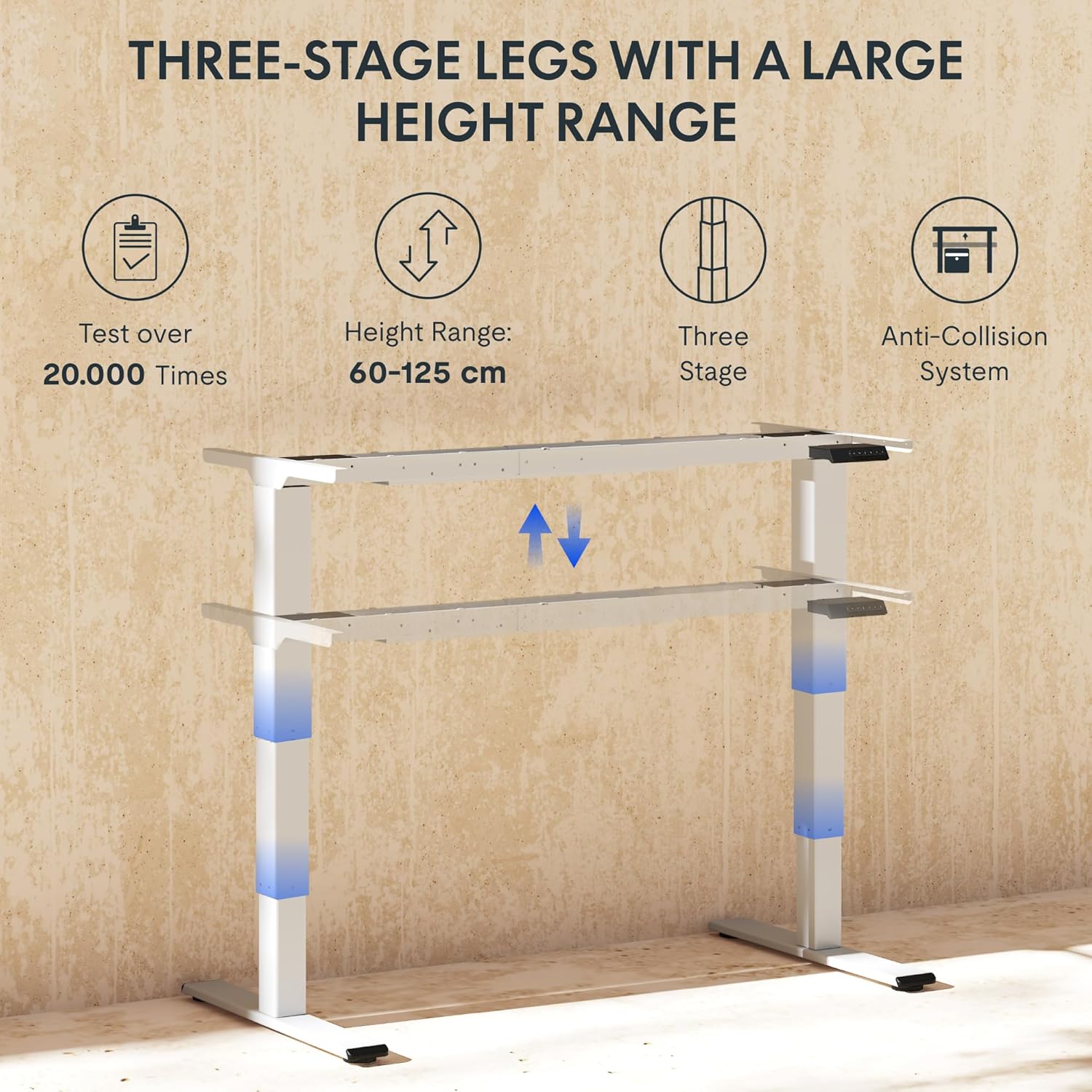

ការលៃតម្រូវកម្ពស់
To adjust the desk height, press and hold the ▲ (ឡើង) ឬ ▼ (Down) arrow button until the desk reaches your desired height. The LED display will show the current height in real-time. The desk frame supports a height range of 60 cm to 125 cm.
ការកំណត់ជាមុននៃការចងចាំ
តុនេះអនុញ្ញាតឱ្យអ្នករក្សាទុកការកំណត់កម្ពស់ដែលពេញចិត្តរហូតដល់បួនសម្រាប់ការរំលឹកឡើងវិញបានរហ័ស៖
- លៃតម្រូវតុទៅកម្ពស់ដែលអ្នកចង់បានដោយប្រើព្រួញឡើងលើ/ចុះក្រោម។
- Press the "M" or "SET" button (if available, otherwise proceed to step 3).
- Press one of the numbered memory preset buttons (1, 2, 3, or 4) within 3 seconds. The LED display will show "S-" followed by the number, indicating the height has been saved.
- To recall a saved height, simply press the corresponding numbered memory preset button. The desk will automatically move to the saved position.
Anti-Collision System
The EC5 Plus is equipped with an intelligent anti-collision system. If the desk encounters an obstacle during height adjustment, it will automatically stop and reverse slightly to prevent damage or injury. This system has adjustable sensitivity levels. Refer to the detailed manual for instructions on adjusting sensitivity.
រន្ធសាក USB
The control panel includes integrated USB-A and USB-C charging ports. Simply connect your smartphone, tablet, or other compatible devices to these ports for convenient charging directly from your desk.
ថែទាំ
Regular maintenance ensures the longevity and optimal performance of your FLEXISPOT EC5 Plus desk frame.
- ការសម្អាត៖ ជូតស៊ុមតុដោយប្រើក្រណាត់ទន់amp cloth. Avoid using abrasive cleaners or solvents that may damage the finish. Ensure the desk is unplugged before cleaning.
- អធិការកិច្ច៖ ពិនិត្យមើលវីស និងចំណុចភ្ជាប់ទាំងអស់ជាប្រចាំ ដើម្បីធានាថាវាតឹង។ រឹតវាឡើងវិញប្រសិនបើចាំបាច់។
- ការគ្រប់គ្រងខ្សែកាបៈ Ensure cables are not pinched or tangled, which could affect desk operation or cause damage.
- ប្រេងរំអិល៖ The lifting columns are designed to be maintenance-free and do not require lubrication.
ការដោះស្រាយបញ្ហា
If you encounter any issues with your desk frame, refer to the table below for common problems and solutions.
| បញ្ហា | មូលហេតុដែលអាចកើតមាន | ដំណោះស្រាយ |
|---|---|---|
| តុមិនរើទេ។ | Power cable disconnected; control box not connected; motor cables loose. | Check all power and motor connections. Ensure the power outlet is functional. |
| តុរើមិនស្មើគ្នា ឬបង្កើតសំឡេងរំខានខុសពីធម្មតា។ | Overload; loose connections; obstruction. | Reduce weight on the desk. Check all screws and connections. Ensure no obstructions are present. Perform a reset (refer to manual for specific reset procedure). |
| Anti-collision system triggers too often or not at all. | Sensitivity setting incorrect. | Adjust the anti-collision sensitivity via the control panel (refer to manual for specific steps). |
| LED display shows an error code. | ដំណើរការខុសប្រក្រតីជាក់លាក់។ | Refer to the full user manual for a list of error codes and their corresponding solutions. If the issue persists, contact customer support. |

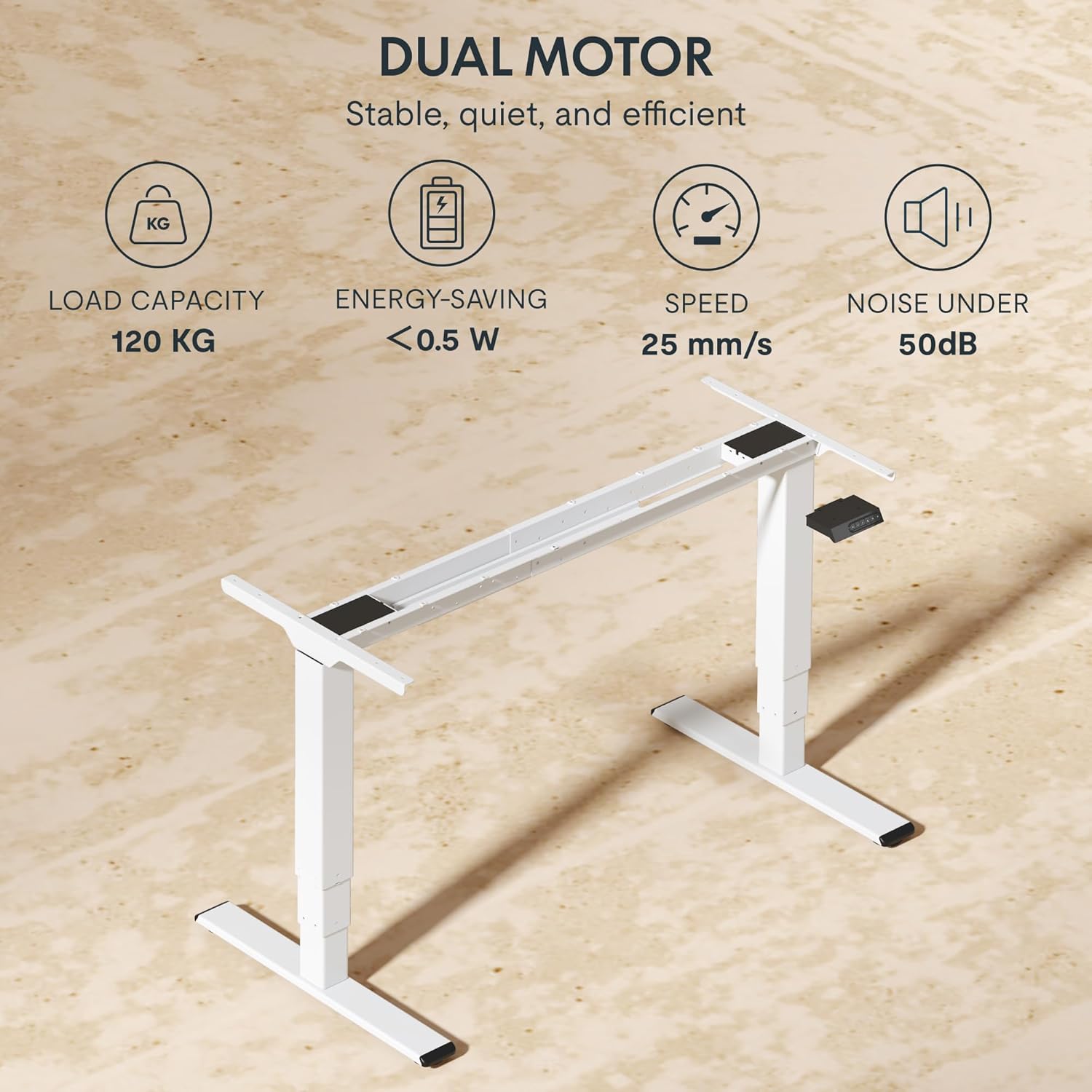

លក្ខណៈបច្ចេកទេស
Detailed technical specifications for the FLEXISPOT EC5 Plus Desk Frame:
| លក្ខណៈ | លម្អិត |
|---|---|
| ម៉ាក | FLEXISPOT |
| លេខម៉ូដែល | EC5W-PL-IE |
| ពណ៌ | ស |
| ទំហំផលិតផល (L x W x H) | 80 x 180 x 125 cm (frame dimensions, adaptable to tabletop) |
| ទំងន់ធាតុ | ០៩ គីឡូក្រាម |
| ផ្ទុកសមត្ថភាព | 120 គីឡូក្រាម (265 ផោន) |
| ប្រភេទម៉ូទ័រ | ប្រព័ន្ធម៉ូទ័រពីរ |
| ជួរលៃតម្រូវកម្ពស់ | 60 cm - 125 cm (23.6 inches - 49.2 inches) |
| ល្បឿនលើក | 25 mm/s |
| កម្រិតសំឡេងរំខាន | Under 50 dB |
| ជើង សtages | បី-សtage telescopic legs |
| ផ្ទាំងបញ្ជា | LED display, 4 memory presets, Up/Down buttons |
| ច្រកសាក | Integrated USB-A and USB-C ports |
| លក្ខណៈពិសេស | Ergonomic design, Anti-Collision System, Energy-saving (<0.5W standby) |
| Compatible Tabletop Sizes | Length: 120-180 cm; Width: 60-80 cm |
| សម្ភារៈមូលដ្ឋាន | លោហៈ |
ការធានា និងការគាំទ្រ
FLEXISPOT stands behind the quality of its products. Your EC5 Plus Desk Frame comes with the following warranty:
- ការធានាស៊ុម៖ 5 ឆ្នាំ។
- ការធានាម៉ូតូ៖ 3 ឆ្នាំ។
This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical assistance, please contact FLEXISPOT customer support. Lifetime free technical support is provided.
For the most up-to-date contact information, please visit the official FLEXISPOT website or refer to your purchase documentation.
Webគេហទំព័រ៖ www.flexispot.com
