សេចក្តីផ្តើម
This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Kenmore 2641202 2.2 cubic foot Compact Front Load Washer. This appliance is designed to thoroughly clean clothes, comforters, and other household fabric items while offering features like Accela Wash and a Steam Option to reduce wash time and wrinkles. It is ENERGY STAR certified for energy efficiency.
រូបភាពទី 1៖ ខាងមុខ view of the Kenmore 2.2 cubic foot compact front load washer.
ព័ត៌មានសុវត្ថិភាពសំខាន់ៗ
Please read all instructions carefully before using this appliance to reduce the risk of fire, electric shock, or injury to persons. Keep this manual for future reference. Always follow basic safety precautions, including:
- Ensure the washer is properly installed and grounded by a qualified technician.
- កុំបោកគក់ ឬសម្ងួតវត្ថុដែលបានសម្អាតពីមុនមក លាងក្នុង ត្រាំក្នុង ឬប្រឡាក់ដោយប្រេងសាំង សារធាតុរំលាយសម្អាតស្ងួត ឬសារធាតុងាយឆេះ ឬផ្ទុះផ្សេងទៀត។
- កុំអនុញ្ញាតឱ្យកុមារលេងនៅលើឬនៅក្នុងឧបករណ៍។ ការត្រួតពិនិត្យយ៉ាងជិតស្និទ្ធរបស់កុមារគឺចាំបាច់នៅពេលដែលឧបករណ៍ត្រូវបានប្រើប្រាស់នៅជិតកុមារ។
- កុំចូលទៅក្នុងឧបករណ៍ ប្រសិនបើបំពង់ ឬឧបករណ៍បំផ្ទុះកំពុងផ្លាស់ទី។
- កុំជួសជុល ឬជំនួសផ្នែកណាមួយនៃឧបករណ៍ ឬព្យាយាមសេវាកម្មណាមួយឡើយ លុះត្រាតែមានការណែនាំជាពិសេសនៅក្នុងសៀវភៅណែនាំនេះ ឬនៅក្នុងការណែនាំជួសជុលអ្នកប្រើប្រាស់ដែលបានបោះពុម្ពផ្សាយ ដែលអ្នកយល់ និងមានជំនាញក្នុងការអនុវត្ត។
- ផ្តាច់ឧបករណ៍ចេញពីការផ្គត់ផ្គង់ថាមពលជានិច្ច មុនពេលព្យាយាមសេវាកម្មណាមួយ។
សមាសធាតុរួមបញ្ចូល
នៅពេលវេចខ្ចប់ សូមប្រាកដថាធាតុខាងក្រោមទាំងអស់មានវត្តមាន៖
- សៀវភៅណែនាំ
- តម្រង (2)
- មគ្គុទេសក៍បង្ហូរបំពង់
- ខ្សែចង
For optimal performance and a leak-free connection, it is advisable to replace the installation kit with each new washer install.
រូបភាពទី 2៖ Illustration of the included components and optional accessories for the washer. This includes the instruction manual, filters, drain hose guide, and cable tie. Optional accessories like a drain hose extension and stacking kits are also shown.
ឧបករណ៍ដែលត្រូវការសម្រាប់ការដំឡើង
The following tools are recommended for proper installation:
- Adjustable wrench or 1/2" socket with ratchet
- Adjustable wrench or 9/16" open-end wrench
- ដង្កៀបដែលអាចលៃតម្រូវបាន
- Carpenter's level
ចំណាំ៖ Ensure all transit bolts are removed prior to first use.
ការដំឡើងនិងការដំឡើង
Proper installation is crucial for the performance and longevity of your Kenmore washer. Follow these guidelines for optimal setup.
តម្រូវការលំហ
This compact washer is designed for smaller spaces such as studio apartments, basements, condos, and vacation homes. It can be positioned side-by-side with a compatible dryer or stacked to save space. Refer to the dimensions below and ensure adequate clearance for installation and door opening.
រូបភាពទី 3៖ The Kenmore 2.2 cubic foot compact front load washer, illustrating its dimensions: 33.3 inches in height, 22.9 inches in depth, and 23.5 inches in width. This compact size is ideal for fitting into various living spaces.
រូបភាពទី 4៖ Demonstrates two common installation methods for the Kenmore compact washer: stacked vertically with a compatible dryer (stacking kit sold separately) or placed side-by-side under a countertop, highlighting its versatility for different laundry room configurations.
Water and Power Connections
Connect the washer to appropriate hot and cold water supply lines and a grounded electrical outlet. Ensure all connections are secure to prevent leaks. The drain hose should be properly routed to a standpipe or laundry tub.
វីដេអូទី ១៖ An official Kenmore video demonstrating the features and compact size of the 24-inch front load clothes washer machine. This video provides a visual overview of the appliance's design and functionality, including its compact nature suitable for various living spaces.
វីដេអូទី ១៖ An official Kenmore video titled "Walk the Path Laundry," which guides users through the process of measuring their home for appliance delivery and installation. This video emphasizes checking clearances for gates, hallways, doorways, corners, and stairways to ensure a smooth delivery and setup experience for laundry appliances.
សេចក្តីណែនាំប្រតិបត្តិការ
Your Kenmore washer features intuitive controls and a variety of cycles to meet your laundry needs.
ផ្ទាំងបញ្ជាពីលើview
The washer is equipped with light-touch controls and an LED display that provides time remaining and cycle status information. Use the central dial to select your desired wash cycle and the touch buttons for additional options.
រូបភាពទី 5៖ លម្អិត view of the washer's control panel, featuring an LED display for cycle time and status, along with capacitive touch buttons for customizing wash settings such as delay start, soil level, extra rinse, wash temperature, spin speed, and steam options.
កំពុងផ្ទុក Washer
Open the front load door and load your clothes into the stainless steel wash basket. Avoid overfilling to ensure optimal cleaning performance. The 2.2 cubic foot capacity can accommodate various items, including comforters.
រូបភាពទី 6៖ The interior of the washer, showcasing the durable stainless steel wash basket, designed for household laundry needs.
ការជ្រើសរើសវដ្តលាងសម្អាត
Choose from 15 wash cycles to customize your load based on fabric type and soil level. Turn the cycle selector dial to the desired setting:
- ធម្មតា៖ សម្រាប់ការបោកគក់ប្រចាំថ្ងៃ។
- កាតព្វកិច្ចធ្ងន់៖ For tough, ground-in stains.
- Comforter: For bulky loads.
- កន្សែង៖ For thick, absorbent fabrics.
- បន្ទុកចម្រុះ៖ To clean a variety of items in one go.
- ខោខូវប៊យ៖ To tackle tough denim.
- Workout Wear: For active fabrics.
- រោមចៀម៖ For an effective clean without hand washing.
- ឆ្ងាញ់៖ Treats fragile fabrics with care.
- ការលាងរហ័ស៖ To clean lightly soiled clothes quickly (12 minutes for a 3 lb load).
- Clean Washer: For one-touch maintenance of the washer.
- បង្ហូរ និង បង្វិល៖ To remove excess water.
- លាងជម្រះ និងបង្វិល៖ To refresh clothes fast.
- អនាម័យ៖ Uses high heat for a deep clean, perfect for bedding, baby clothes, and allergy sufferers.
រូបភាពទី 7៖ Illustrates key washing features: Accela Wash for faster cleaning, Steam Treat for stain removal, and Sani Cycle for deep sanitization, suitable for various laundry needs.

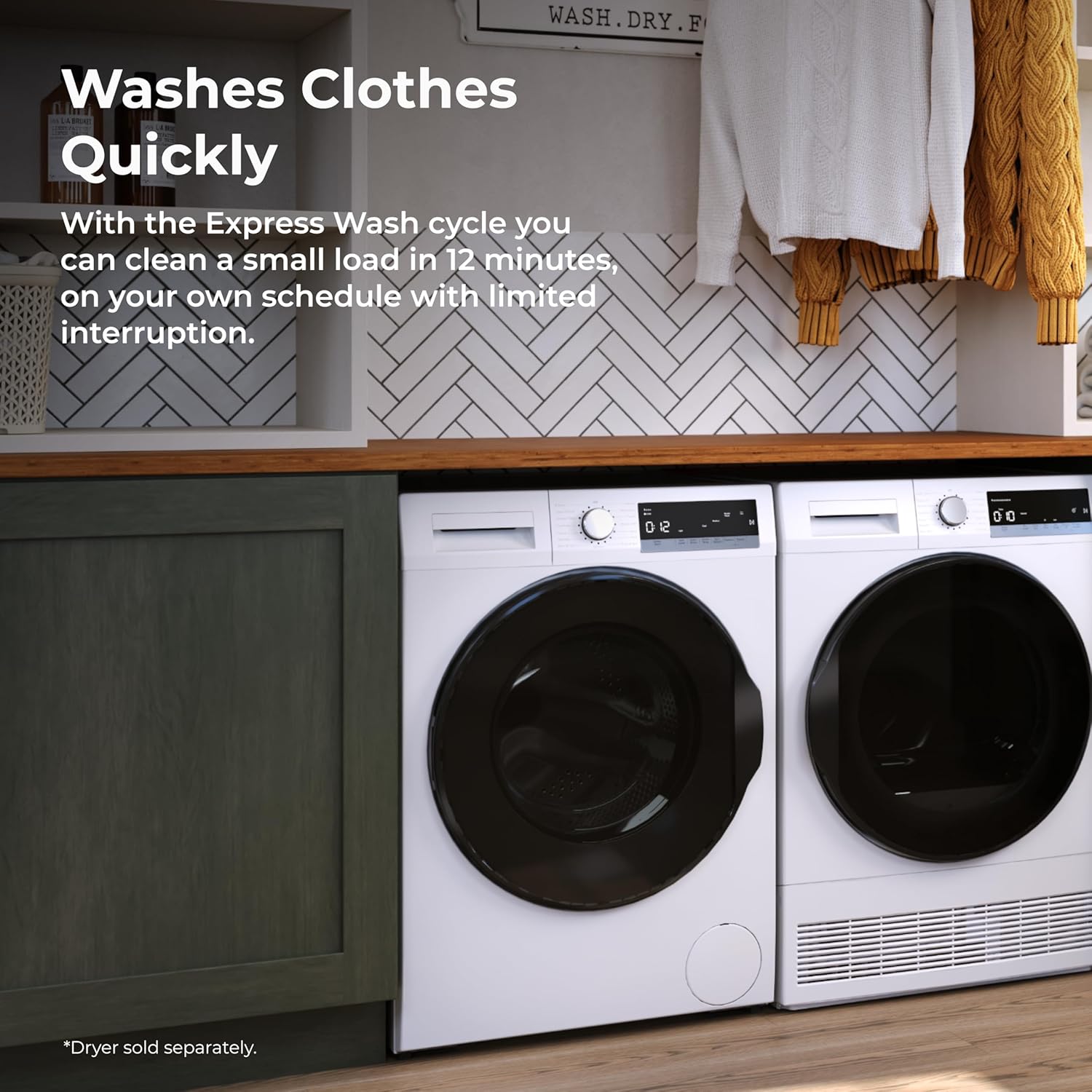

រូបភាពទី 8៖ The Kenmore compact washer in a laundry room, highlighting its Express Wash cycle, capable of cleaning a small load in 12 minutes, ideal for quick laundry needs.
ការកំណត់ជម្រើសលាងសម្អាតតាមបំណង
After selecting a cycle, you can further customize your wash with these options:
- ជម្រើសស្ទីម៖ Adds steam at the end of the cycle to relax wrinkles and reduce the need for ironing.
- Accela Wash: Features powerful sprays for faster soaking and cleaning. Active Spray delivers a concentrated detergent mix onto clothes from dual nozzles.
- Active Rinse: Provides effective rinsing during high spin speeds.
- លាងបន្ថែមទៀត: Adds additional rinses to help protect sensitive skin by removing detergent residue.
- Iron Ready: Stops short of drying clothes so they are slightly damp, making ironing easier.
- ពន្យាពេលចាប់ផ្តើម៖ Allows you to set the washer to start at a later time.
- សីតុណ្ហភាពលាង៖ Select from 5 temperature options (Hot, Warm, Cold, Ex-Hot, Max).
- ល្បឿនវិល៖ Adjust spin speed for different fabric types.
- កម្រិតដី៖ Choose the appropriate soil level for your load.
ការថែទាំនិងការថែទាំ
Regular maintenance ensures your Kenmore washer continues to perform efficiently and extends its lifespan.
ការសម្អាតម៉ាស៊ីនបោកគក់
- ប្រើ លាងសម្អាតម៉ាស៊ីនបោកគក់ cycle regularly to maintain freshness and prevent odor buildup.
- ជូតផ្នែកខាងក្រៅដោយទន់ ឃamp ក្រណាត់។
- Clean the detergent dispenser drawer periodically to remove any residue.
- Inspect and clean the drain pump filter (2 filters included) as recommended in the full instruction manual to prevent blockages.
- The stainless steel wash basket is designed for durability and easy cleaning.
Winterizing Your Washer
If your washer is in an area subject to freezing temperatures, follow the winterizing procedures in the full instruction manual to prevent damage.
ការដោះស្រាយបញ្ហា
មុនពេលហៅទូរសព្ទមកទទួលសេវា សូមពិនិត្យមើលបញ្ហាទូទៅ និងដំណោះស្រាយខាងក្រោម៖
| បញ្ហា | មូលហេតុដែលអាចកើតមាន | ដំណោះស្រាយ |
|---|---|---|
| ម៉ាស៊ីនបោកគក់មិនចាប់ផ្តើមទេ។ | ផ្តាច់ខ្សែថាមពល; ទ្វារបិទមិនត្រឹមត្រូវ; ប៊ូតុងចាប់ផ្តើម / ផ្អាកមិនត្រូវបានចុចទេ។ | Check power connection; ensure door is latched; press Start/Pause button firmly. |
| ការលេចធ្លាយទឹក។ | Hose connections loose; drain hose improperly installed. | Tighten all hose connections; ensure drain hose is secure and not kinked. |
| រំញ័រខ្លាំងពេក | Washer not level; transit bolts not removed; uneven load. | Level the washer using adjustable feet; remove all transit bolts (refer to installation); redistribute laundry evenly. |
| សម្លៀកបំពាក់មិនស្អាត | Overloading; incorrect detergent amount; wrong cycle selection. | Reduce load size; use recommended detergent amount; select appropriate wash cycle for fabric and soil level. |
| លេខកូដកំហុសនៅលើការបង្ហាញ | ដំណើរការខុសប្រក្រតីជាក់លាក់។ | Refer to the full instruction manual for a list of error codes and their corresponding solutions. |
លក្ខណៈបច្ចេកទេសផលិតផល
- ម៉ាក៖ ខេនម័រ
- លេខម៉ូដែល៖ 2641202
- សមត្ថភាព៖ 2.2 ហ្វីតគូប
- ចូលប្រើទីតាំង៖ បន្ទុកខាងមុខ
- ប្រភេទការដំឡើង៖ អាចជង់បាន។
- វិមាត្រផលិតផល (D x W x H): 22.9 "x 23.5" x 33.3"
- ទំងន់ធាតុ៖ 73.5 ផោន
- ល្បឿនបង្វិលអតិបរមា៖ 1400 RPM
- កម្រិតសំឡេងរំខាន៖ ៣០ ដេស៊ីបែល
- កុងសូលគ្រប់គ្រង៖ ប៉ះ
- វដ្តស្តង់ដារ៖ 15 (Normal, Heavy Duty, Comforter, Towels, Mixed Load, Jeans, Workout Wear, Wool, Delicates, Express, Clean Washer, Drain & Spin, Rinse & Spin, Sanitize)
- វដ្តជម្រើស៖ 5 (Steam, Accela Wash, Active Rinse, Extra Rinse, Iron Ready, Delay Start, Wash Temp, Spin Speed, Soil Level)
- លក្ខណៈពិសេស៖ ស្ទីមអនាម័យ
- ពណ៌៖ ស
- វ៉ុលtage: 115 វ៉ុល
- ប្រភេទប្រេងឥន្ធនៈ៖ អគ្គិសនី
- វិញ្ញាបនប័ត្រ៖ តារាថាមពល
ការធានា និងការគាំទ្រអតិថិជន
For warranty information, product registration, or to schedule service, please refer to the warranty card included with your appliance or visit the official Kenmore website. Kenmore offers various protection plans for extended coverage.
- ផែនការការពារ៖ Available for purchase, including 3-Year Protection Plan and Complete Protect.
- ជំនួយអតិថិជន៖ For assistance, please contact Kenmore customer service.
For the most up-to-date support information, please visit the Kenmore website or consult your product's specific documentation.
