RAB Lighting SR8 8 ft. LED Strip Fixture Instruction Manual

1. ផលិតផលលើសview

The RAB SR8 is an 8-foot LED strip fixture designed for commercial lighting applications. This fixture features field-adjustable power settings (40W, 50W, 60W) and color temperatures (3500K, 4000K, 5000K), providing flexibility to suit various lighting needs. It is 0-10V dimmable and compatible with 120-277V electrical systems, offering efficient and versatile illumination.

រូបភាពទី 1.1៖ ជាងview of the RAB SR8 8 ft. LED Strip Fixture. This image displays the full length of the white LED strip fixture, highlighting its sleek and linear design suitable for surface mounting in commercial environments.

2. ព័ត៌មានសុវត្ថិភាព

• ព្រមាន៖ ហានិភ័យនៃការឆក់អគ្គិសនី។ ផ្តាច់ថាមពលនៅហ្វុយហ្ស៊ីប ឬឧបករណ៍បំលែងសៀគ្វី មុនពេលដំឡើង ឬផ្តល់សេវា។
• ការដំឡើងត្រូវតែធ្វើឡើងដោយអ្នកជំនាញអគ្គិសនីដែលមានលក្ខណៈសម្បត្តិគ្រប់គ្រាន់ស្របតាមលេខកូដអគ្គិសនីជាតិ និងក្នុងស្រុកទាំងអស់។
• ត្រូវប្រាកដថាការផ្គត់ផ្គង់វ៉ុលtage is correct for the fixture (120-277V).
• កុំ​ប៉ះ​ឧបករណ៍​ដែល​មាន​ចរន្ត​អគ្គិសនី​ដោយ​ដៃ​សើម។
• កុំដំឡើងនៅជិតសម្ភារៈងាយឆេះ។
• This fixture is intended for indoor use only.

3. ការដំឡើងនិងការដំឡើង

3.1. ការដំឡើងជាមុន

• Unpack the fixture and inspect for any damage.
• Ensure all necessary components are present (LED Fixture).
• បិទថាមពលនៅឧបករណ៍បំលែងសៀគ្វី មុនពេលចាប់ផ្តើមដំឡើង។

3.2. ការដំឡើងឧបករណ៍

The SR8 fixture is designed for surface mounting. Refer to the dimensional drawing for precise measurements and mounting hole locations.

រូបភាពទី 3.1៖ Dimensional drawing of the RAB SR8 fixture. This diagram illustrates the length (94.49 inches), width (2.36 inches), and height (2.79 inches) of the fixture, along with potential mounting points.

1. Mark the desired mounting locations on the ceiling or wall, ensuring they align with the fixture's mounting points.
2. Drill appropriate holes for mounting screws (not included).
3. Secure the fixture to the mounting surface using suitable hardware.

3.3. ខ្សែភ្លើង

Connect the fixture to the electrical supply according to the wiring diagram below. Ensure all connections are secure and comply with local electrical codes.

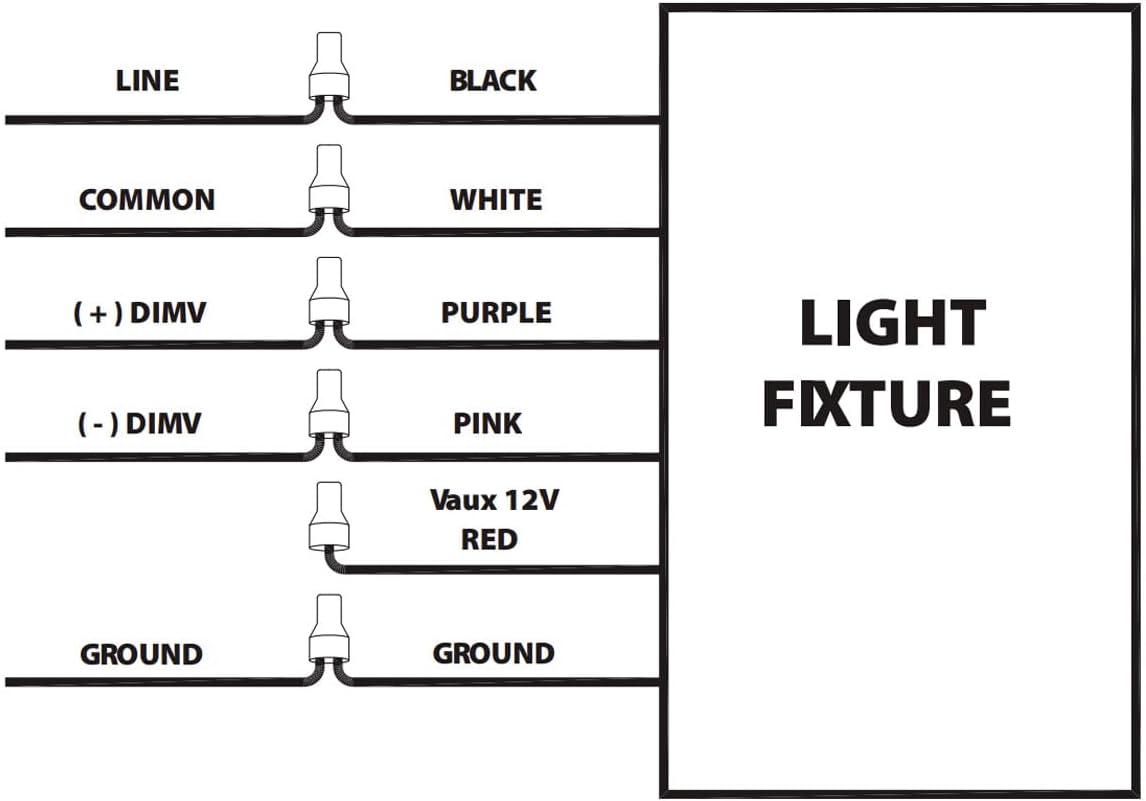

រូបភាពទី 3.2៖ Wiring diagram for the RAB SR8 LED Strip Fixture. This diagram shows the connections for Line (Black), Common (White), (+) DIMV (Purple), (-) DIMV (Pink), Vaux 12V (Red), and Ground (Ground) to the light fixture.

• Connect the black wire from the fixture to the LINE (hot) wire from the supply.
• Connect the white wire from the fixture to the COMMON (neutral) wire from the supply.
• Connect the green or bare copper wire from the fixture to the GROUND wire from the supply.
• For 0-10V dimming, connect the purple wire to (+) DIMV and the pink wire to (-) DIMV from the dimming control. If dimming is not used, cap these wires individually.
• Ensure all wire nuts or connectors are tightened securely.

4. សេចក្តីណែនាំប្រតិបត្តិការ

The RAB SR8 fixture allows for field adjustment of both power output and color temperature to customize lighting performance.

រូបភាពទី 4.1៖ ការបិទជិត view of the power (W) and color temperature (CCT) adjustment switches on the RAB SR8 fixture. This image shows the physical switches used to select desired wattage and Kelvin temperature settings.

4.1. Power Adjustment (Wattage)

The fixture includes a switch to select the desired wattage output. This allows for optimization of brightness and energy consumption.

• Locate the "Power (W)" switch on the fixture.
• ជ្រើសរើសការកំណត់មួយក្នុងចំណោមការកំណត់ខាងក្រោម៖ 40 វ៉, 50 វ៉, ឬ 60 វ៉.
• Ensure power is disconnected before adjusting this switch.

4.2. Color Temperature Adjustment (CCT)

The fixture also features a switch to select the desired color temperature, allowing you to choose between different light appearances.

• Locate the "Color Temperature (CCT)" switch on the fixture.
• ជ្រើសរើសការកំណត់មួយក្នុងចំណោមការកំណត់ខាងក្រោម៖ 3500K (Neutral White), 4000K (Cool White), or 5000K (Daylight).
• Ensure power is disconnected before adjusting this switch.

4.3. Dimmable Functionality

The SR8 fixture supports 0-10V dimming. When connected to a compatible 0-10V dimmer, the light intensity can be adjusted from 100% down to 10% (or lower, depending on dimmer specifications).

• Ensure the fixture is correctly wired for 0-10V dimming as per Section 3.3.
• Use a compatible 0-10V dimmer switch (sold separately) to control the light output.

5. ការថែទាំ

The RAB SR8 LED Strip Fixture requires minimal maintenance. Regular cleaning can help maintain optimal performance and appearance.

• ការសម្អាត៖ ផ្តាច់ចរន្តអគ្គិសនីមុនពេលសម្អាត។ ប្រើក្រណាត់ទន់ ស្ងួត ឬជូតបន្តិច។amp cloth to wipe the exterior of the fixture. Do not use abrasive cleaners or solvents.
• LEDs៖ ប្រភពពន្លឺ LED រួមបញ្ចូលគ្នាត្រូវបានរចនាឡើងសម្រាប់អាយុកាលវែងហើយមិនត្រូវការការជំនួសទេ។

6. ការដោះស្រាយបញ្ហា

If the fixture is not operating as expected, refer to the following common issues and solutions:

If troubleshooting steps do not resolve the issue, contact RAB Lighting customer support.

7. លក្ខណៈបច្ចេកទេស

8. ព័ត៌មានធានា

The RAB SR8 LED Strip Fixture comes with a Limited Warranty. For detailed information regarding warranty terms, conditions, and duration, please refer to the official RAB Lighting webគេហទំព័រ ឬទាក់ទងសេវាកម្មអតិថិជនរបស់ពួកគេដោយផ្ទាល់។ រក្សាភស្តុតាងនៃការទិញរបស់អ្នកសម្រាប់ការទាមទារធានា។

៥.៧. ជំនួយអតិថិជន

For technical assistance, replacement parts, or any questions not covered in this manual, please contact RAB Lighting customer support:

• Webគេហទំព័រ៖ www.rablighting.com
• យោងទៅ website for current contact information, including phone numbers and email support.
