HYPERLITE LED Work Light with Stand

1. សេចក្តីផ្តើម

This manual provides instructions for the safe and efficient operation of your HYPERLITE LED Work Light with Stand, Model HP-JL-AU01. This product is designed to provide bright, adjustable illumination for various indoor and outdoor tasks, including workshops, construction sites, garages, and general maintenance. Please read this manual thoroughly before use and retain it for future reference.

2. ព័ត៌មានសុវត្ថិភាព

អនុវត្តតាមការប្រុងប្រយ័ត្នសុវត្ថិភាពខាងក្រោមជានិច្ច ដើម្បីកាត់បន្ថយហានិភ័យនៃការរងរបួស ឬការខូចខាត៖

• ត្រូវប្រាកដថាប្រភពថាមពលត្រូវគ្នានឹងវ៉ុលtage requirements (120 Volts).
• កុំដំណើរការភ្លើងដោយខ្សែ ឬដោតដែលខូច។
• រក្សាពន្លឺការងារឱ្យឆ្ងាយពីវត្ថុងាយឆេះ។
• Avoid direct eye exposure to the LED light, as it is extremely bright.
• ត្រូវប្រាកដថាកន្លែងឈរត្រូវបានដាក់លើផ្ទៃដែលមានស្ថេរភាព ដើម្បីការពារការរអិល។
• Do not immerse the product in water, despite its splash-proof design.
• ដោះ​ឧបករណ៍​ចេញ​មុន​ពេល​សម្អាត ឬ​ធ្វើ​ការ​ថែទាំ។
• ផលិតផលនេះមិនមែនជារបស់លេងទេ។ រក្សាឱ្យឆ្ងាយពីដៃកុមារ។

3. មាតិកាកញ្ចប់

ផ្ទៀងផ្ទាត់ថាសមាសធាតុទាំងអស់មានវត្តមាន៖

• 3 x LED Lamp ក្បាល
• 1 x ជើងកាមេរ៉ាដែលអាចលៃតម្រូវបាន។
• 1 x Power Cord (integrated)

រូបភាពទី 3.1៖ ជាងview of components and features, including the non-slip grip, removable lamp heads, height adjustment mechanism, waterproof switch, and integrated power cord.

4. ការដំឡើងនិងការជួបប្រជុំគ្នា។

1. ពន្លាសមាសធាតុ៖ យកផ្នែកទាំងអស់ចេញពីវេចខ្ចប់ដោយប្រុងប្រយ័ត្ន។
2. Assemble Tripod Stand: Extend the legs of the tripod stand to a stable position. Ensure all locking mechanisms are secure.
3. ភ្ជាប់ Lamp ក្បាល៖ Mount the three LED lamp heads onto the horizontal bar of the stand. Use the manual twist-lock knobs to secure them firmly.
4. លៃតម្រូវកម្ពស់៖ Loosen the locking collar on the main pole of the stand, extend it to the desired height (between 45.7 and 81 inches), and then tighten the collar securely.
5. ទីតាំង Lamp ក្បាល៖ Adjust the angle of each lamp head as needed. They can rotate 360° horizontally and tilt 270° vertically. Tighten the adjustment knobs to fix their position.
6. ភ្ជាប់ថាមពល៖ Plug the 10ft power cord into a standard 120V electrical outlet.

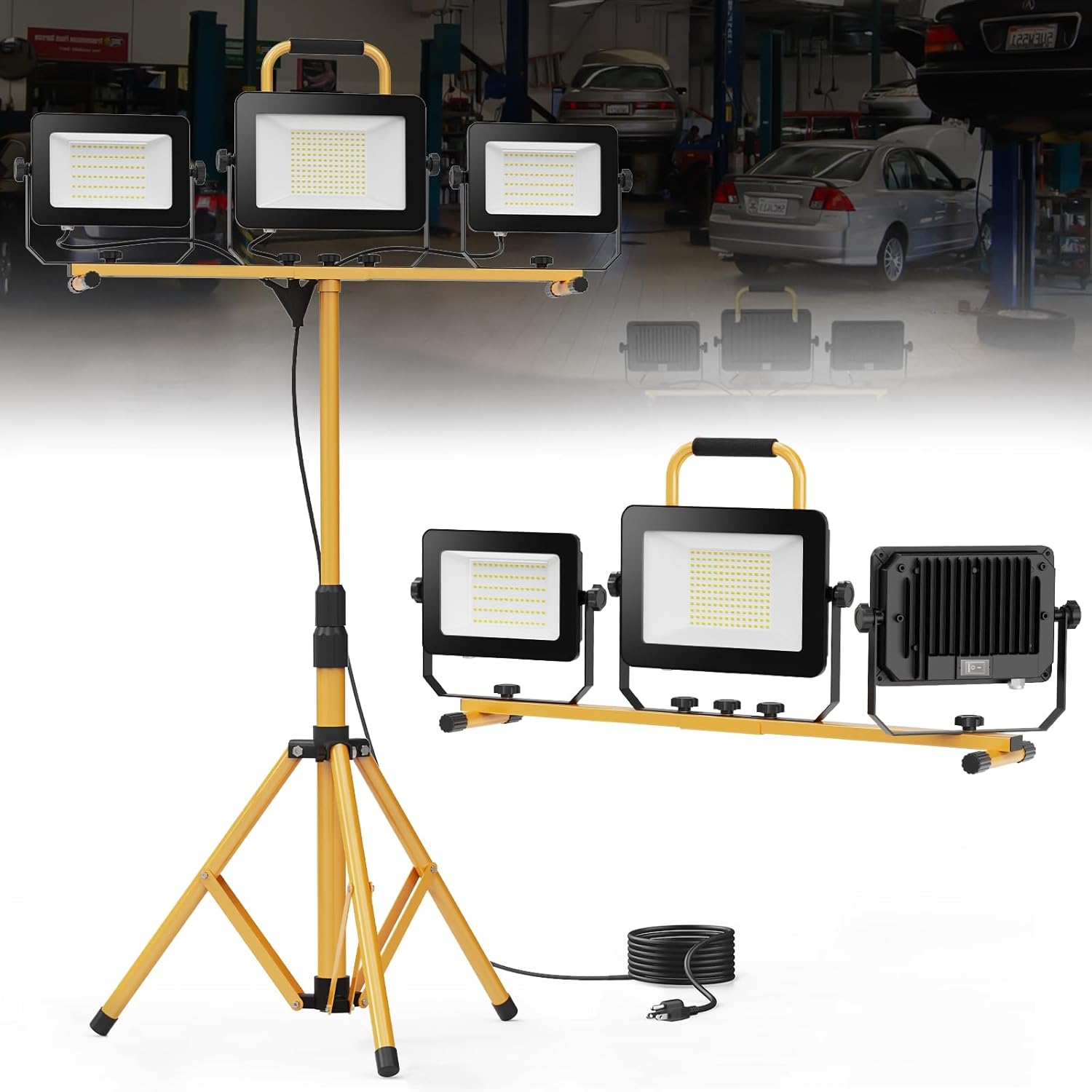

រូបភាពទី 4.1៖ The HYPERLITE 3-Head LED Work Light fully assembled on its adjustable stand.

រូបភាពទី 4.2៖ លម្អិត view នៃ lamp head adjustment mechanism, allowing for 360° horizontal rotation and 270° vertical tilt.

5. សេចក្តីណែនាំប្រតិបត្តិការ

1. បើក/បិទថាមពល៖ Once plugged in, use the main switch on the power cord or the individual switches on each lamp head to turn the lights on or off.
2. បុគ្គល Lamp គ្រប់គ្រង៖ Each of the three lamp heads features its own ON/OFF switch. This allows for flexible lighting configurations, such as using one, two, or all three heads simultaneously.
3. ការកែតម្រូវទិសដៅពន្លឺ៖ Loosen the twist-lock knobs on the lamp heads to adjust their horizontal and vertical angles. Tighten the knobs once the desired position is achieved.
4. Detached Use: អិលamp heads can be detached from the tripod stand for use as individual, portable work lights. Simply loosen the twist-lock knobs completely to remove them from the horizontal bar.

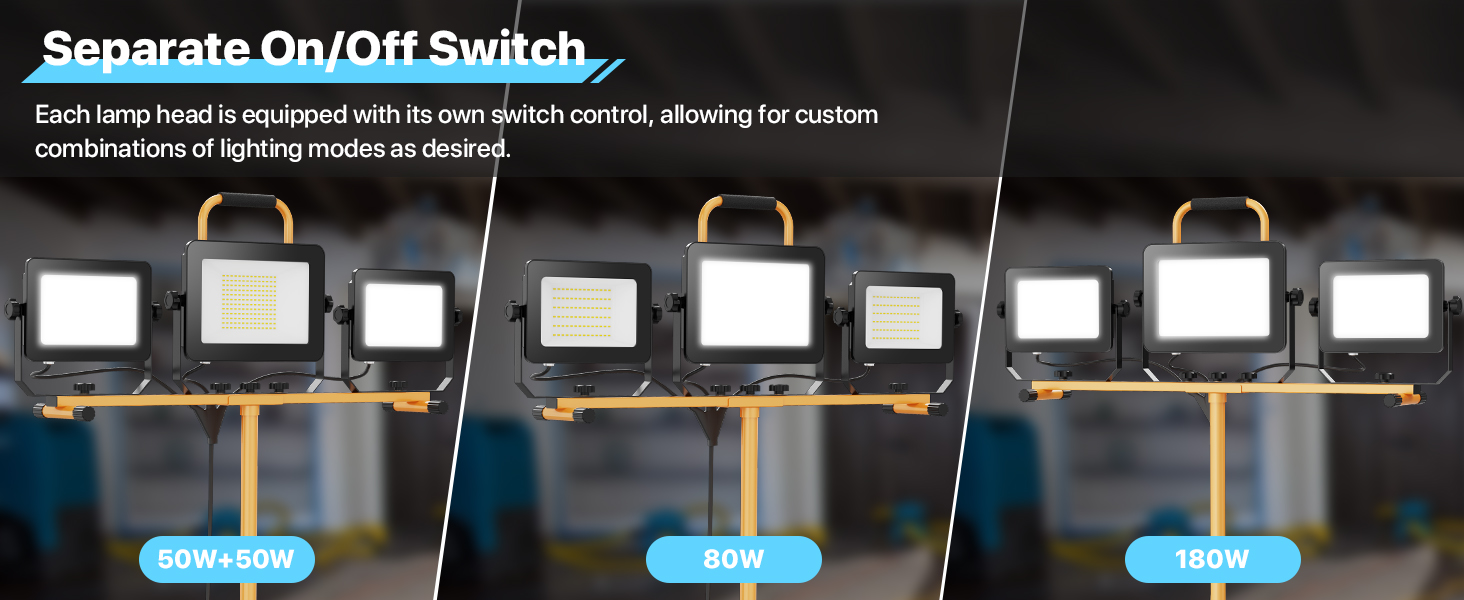

រូបភាពទី 5.1៖ Illustration of the individual on/off switches located on each lamp head, enabling customized lighting modes.

រូបភាពទី 5.2៖ Demonstrates the versatility of the work light, usable on its stand or with detached lamp heads for various applications.

6. លក្ខណៈពិសេសលើសview

• ពន្លឺខ្ពស់៖ Equipped with 288 high-efficiency LED chips, delivering 20,000 lumens of 6500K cool white light.
• ប្រសិទ្ធភាពថាមពល៖ Replaces traditional halogen bulbs, saving up to 80% on electricity costs.
• ការបំភ្លឺដែលអាចលៃតម្រូវបាន៖ Lamp heads rotate 360° horizontally and tilt 270° vertically for precise light positioning.
• សំណង់រឹងមាំ៖ Die-cast aluminum housing for superior heat transfer and extended component lifespan. Tempered glass lens and sealed switch for protection against water, dust, and rust.
• ការរចនាមិនជ្រាបទឹក៖ Airtight and splash-proof construction suitable for various environments.
• ការប្រើប្រាស់ដែលអាចបត់បែនបាន៖ Can be used on the adjustable tripod stand (45.7" - 81" height) or with individual lamp heads detached for portable use.
• កុងតាក់ផ្ទាល់ខ្លួន៖ លីត្រនីមួយៗamp head has its own switch for independent control.
• បញ្ចេញកំដៅប្រកបដោយប្រសិទ្ធភាព៖ Alloy heat dissipation fins maintain optimal operating temperature.

រូបភាពទី 6.1៖ Detail of the LED light panel, showcasing the 288 high-brightness light beads.

រូបភាពទី 6.2៖ The work light's waterproof capabilities are highlighted, showing its resilience in wet conditions.

រូបភាពទី 6.3៖ ខាងក្រោយ view នៃ lamp heads, illustrating the alloy heat dissipation fins for optimal thermal management.

7. ការថែទាំ

• ការសម្អាត៖ ផ្តាច់ចរន្តអគ្គិសនីមុនពេលសម្អាត។ ជូតសម្អាត។amp heads and stand with a soft, damp ក្រណាត់។ កុំប្រើសារធាតុសម្អាត ឬសារធាតុរំលាយ។
• ការផ្ទុក៖ When not in use, store the work light in a dry, cool place. Ensure the stand is collapsed and secured to prevent damage.
• ការត្រួតពិនិត្យខ្សែ៖ Periodically inspect the power cord for any signs of damage. If damaged, discontinue use and contact customer support.

8. ការដោះស្រាយបញ្ហា

9. លក្ខណៈបច្ចេកទេស

10. ការធានា និងការគាំទ្រ

The HYPERLITE LED Work Light with Stand (Model HP-JL-AU01) is covered by a ការធានារយៈពេល 2 ឆ្នាំ។ ចាប់ពីថ្ងៃទិញ។ ការធានានេះគ្របដណ្ដប់លើពិការភាពនៃសម្ភារៈ និងការងារក្រោមការប្រើប្រាស់ធម្មតា។

For warranty claims, technical support, or any questions regarding your product, please contact HYPERLITE customer service. Refer to the product packaging or the official HYPERLITE webគេហទំព័រសម្រាប់ព័ត៌មានទំនាក់ទំនងបច្ចុប្បន្ន។
