Sunrosa Frameless Double Sliding Shower Door Instruction Manual

1. សេចក្តីផ្តើម

This manual provides detailed instructions for the installation, operation, and maintenance of your Sunrosa Frameless Double Sliding Shower Door. Please read all instructions carefully before beginning installation to ensure proper function and safety. Retain this manual for future reference.

1.1. ព័ត៌មានសុវត្ថិភាពសំខាន់ៗ

• ពាក់វ៉ែនតាសុវត្ថិភាពជានិច្ចក្នុងអំឡុងពេលដំឡើង។
• Tempered glass, while strong, can shatter if struck at the edges. Handle with extreme care.
• This product is heavy. A minimum of two people is required for safe handling and installation of glass panels.
• Ensure all mounting surfaces are structurally sound and capable of supporting the weight of the shower door.
• Use appropriate tools and follow all local building and plumbing codes.
• ប្រសិនបើអ្នកមិនប្រាកដអំពីផ្នែកណាមួយនៃដំណើរការដំឡើង សូមពិគ្រោះជាមួយអ្នកជំនាញដែលមានលក្ខណៈសម្បត្តិគ្រប់គ្រាន់។

លក្ខណៈពិសេសនៃផលិតផល

The Sunrosa Frameless Double Sliding Shower Door is designed for durability and ease of use, incorporating several key features:

• Double Sliding Design: Allows for entry from either side, optimizing space and accessibility.
• Safety Tempered Glass: Constructed with 5/16" (8mm) SGCC certified clear tempered glass, offering strength and resistance against breakage.
• Easy-Clean Glass: Treated surface designed to repel water and reduce mineral buildup, simplifying maintenance.
• Soft-Close System: Robust stainless steel buffer pulleys ensure smooth, quiet, and effortless sliding operation with an anti-jumping design.
• សម្ភារៈពិសេស៖ Shower door frame and handle crafted from high-quality stainless steel, resistant to corrosion and rust in humid environments.
• Water Containment: Double sliding seal strip along the glass effectively keeps bathwater within the enclosure.
• ទទឹងអាចលៃតម្រូវបាន៖ Designed for easy installation in shower stalls with varying wall spacing (44"-48" W).

រូបភាពទី 2.1: ជាងview of the Sunrosa Frameless Double Sliding Shower Door installed in a bathroom.

Image 2.2: Illustration of the easy-clean glass feature, showing water beading off the treated surface.

វិមាត្រផលិតផល

Accurate measurements are critical for proper installation. Please verify your shower opening dimensions before proceeding.

• ទទឹង៖ 44" - 48" (1119 - 1219 មម)
• កម្ពស់៖ 76" (1930 មម)
• Walk-in Opening Width: 18 1/8" - 22" (460 - 560 mm)
• កម្រាស់កញ្ចក់៖ 5/16" (8mm)

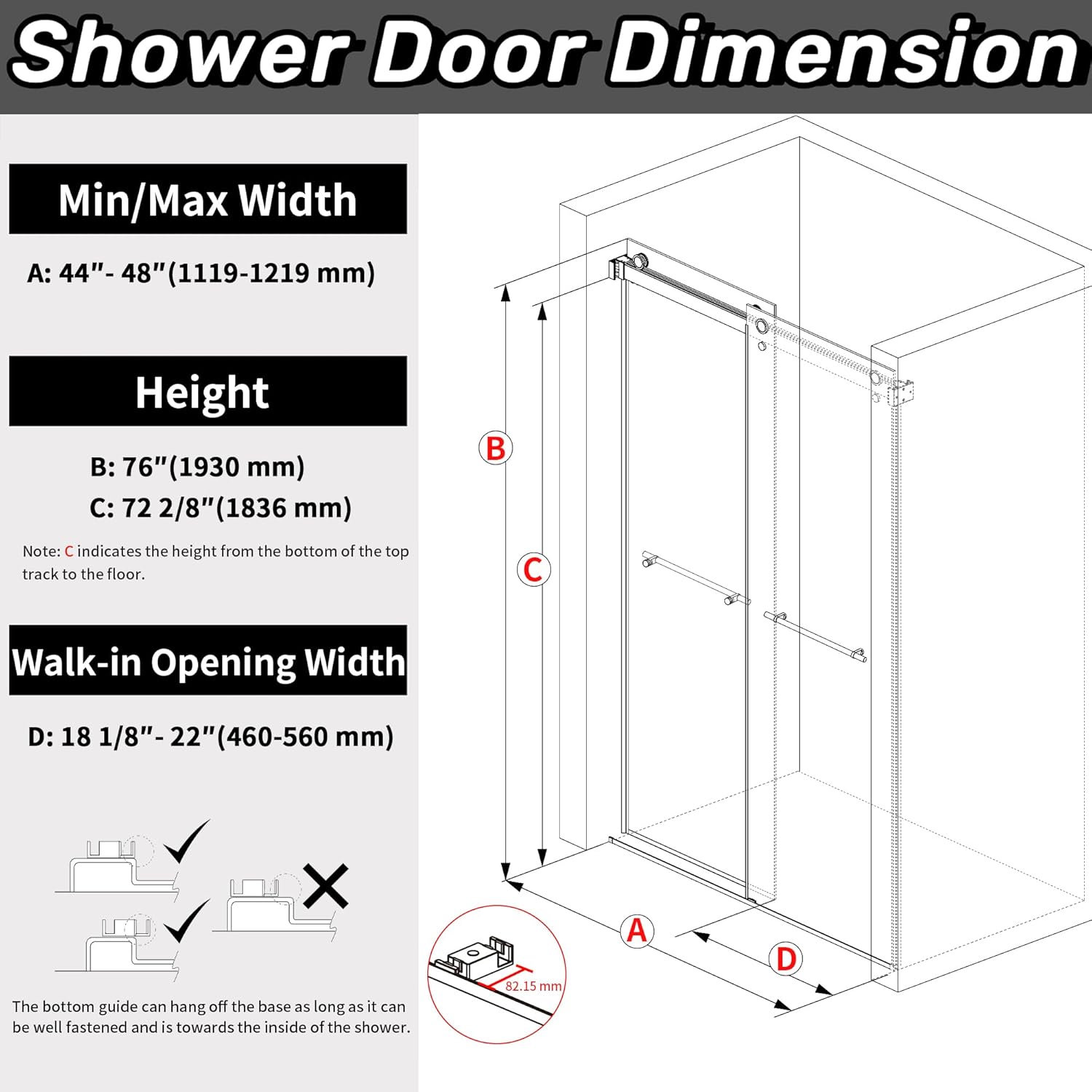

Image 3.1: Detailed dimension diagram for the shower door, including minimum/maximum width, height, and walk-in opening.

4. បញ្ជីផ្នែក

Before beginning installation, ensure all components are present and undamaged. Refer to the packaging for a complete list of included hardware. Typical components include:

• Glass Panels (2)
• Top Track/Rail
• Bottom Guide/Track
• Wall Profiles/Channels
• Roller Assemblies (for sliding mechanism)
• Door Handles/Towel Bars
• Water Seal Strips (vertical and bottom)
• Mounting Hardware (screws, anchors, gaskets, washers)
• Soft-Close Mechanism Components

5. ការដំឡើងនិងការដំឡើង

Installation of a shower door requires precision and careful handling. Due to the complexity and weight of the glass panels, professional installation is highly recommended. If you choose to install it yourself, ensure you have the necessary tools and assistance.

5.1. ឧបករណ៍ដែលត្រូវការ (មិនរួមបញ្ចូល)

• កាសែតវាស់
• កម្រិត
• Drill with appropriate bits (for tile/masonry)
• ទួណឺវីស (Phillips និង Flathead)
• Caulking Gun and Silicone Sealant (mildew-resistant)
• ខ្មៅដៃ/សញ្ញាសម្គាល់
• កាំបិតឧបករណ៍ប្រើប្រាស់
• វ៉ែនតាសុវត្ថិភាព និងស្រោមដៃ

5.2. General Installation Steps (Consult detailed diagram for specifics)

1. រៀបចំតំបន់៖ Ensure the shower base/curb is level and clean.
2. វាស់វែង និងសម្គាល់៖ Accurately measure the width of your shower opening at the top, middle, and bottom. Mark the positions for the wall profiles and top track according to the provided template or measurements.
3. ដំឡើង Wall Profiles: Secure the vertical wall profiles to the shower walls using appropriate screws and anchors. Ensure they are plumb.
4. ដំឡើងបទកំពូល៖ Cut the top track to the correct length (typically 1/4" shorter than the opening width, as per user feedback) and secure it to the wall profiles.
5. Assemble Rollers and Handles: Attach the roller assemblies to the top edge of the glass panels and the handles/towel bars to the designated holes in the glass.
6. បន្ទះកញ្ចក់ព្យួរ៖ With assistance, carefully lift and hang the glass panels onto the top track rollers. Ensure the soft-close mechanism components are correctly aligned.
7. ដំឡើងមគ្គុទ្ទេសក៍ខាងក្រោម៖ Position and secure the bottom guide to the shower base, ensuring it aligns with the glass panels.
8. Install Water Seals: Attach the vertical and bottom water seal strips to the edges of the glass panels to prevent leaks.
9. Adjust and Test: Adjust the rollers and soft-close mechanism for smooth operation. Test the doors for proper sliding and closure.
10. ត្រា៖ Apply a bead of mildew-resistant silicone sealant along the exterior joints of the wall profiles and bottom guide to ensure a watertight seal. Allow adequate curing time before use.

Image 5.1: Detail of the top roller assembly, part of the smooth sliding system.

Image 5.2: Detail of the bottom guide and soft-close buffer, ensuring stable and quiet door movement.

6. សេចក្តីណែនាំប្រតិបត្តិការ

Your Sunrosa shower door is designed for simple and reliable operation.

• ការបើក/បិទ៖ Gently push or pull the door handles to slide the glass panels along the top track. The soft-close mechanism will engage to smoothly bring the door to a gentle stop.
• ចូល/ចេញ៖ The double sliding design allows you to open either panel to create an entry point.
• របារកន្សែង: The exterior handle doubles as a convenient towel bar.

7. ការថែទាំនិងការថែទាំ

Regular cleaning and maintenance will preserve the appearance and functionality of your shower door.

7.1. ការសម្អាតកញ្ចក់

• For daily cleaning, wipe down the glass panels with a soft cloth or squeegee after each use to prevent water spots and soap scum buildup.
• For deeper cleaning, use a non-abrasive glass cleaner or a solution of white vinegar and water. Apply with a soft cloth and wipe dry.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the easy-clean coating and the glass surface.

7.2. Frame and Hardware Care

• Clean the matte black finish frame and stainless steel hardware with a soft, damp ក្រណាត់និងសាប៊ូស្រាល។
• Do not use abrasive cleaners, steel wool, or harsh chemicals, as they can scratch or damage the finish.
• Regularly inspect the rollers and tracks for any debris or buildup that might impede smooth operation. Clean as needed.
• Check the water seal strips periodically for wear and tear. Replace if they become damaged to maintain water containment.

Image 7.1: Detail of the water containment seal strip at the bottom of the glass panel.

8. ការដោះស្រាយបញ្ហា

If you encounter issues with your shower door, refer to the following common problems and solutions:

ប្រសិនបើបញ្ហានៅតែបន្តកើតមានបន្ទាប់ពីការព្យាយាមដំណោះស្រាយទាំងនេះ សូមទាក់ទងផ្នែកជំនួយអតិថិជន។

9. លក្ខណៈបច្ចេកទេស

10. ការធានា និងការគាំទ្រ

Sunrosa is committed to providing quality products and customer satisfaction.

10.1. គោលនយោបាយត្រឡប់មកវិញ

This product is eligible for a 30-day easy return policy, offering a refund or replacement. Please refer to your purchase platform's specific return guidelines for detailed information.

៥.៧. ជំនួយអតិថិជន

For any questions, concerns, or assistance with your product, please contact Sunrosa customer support. If you receive a product with an issue, follow these steps:

1. Navigate to 'Your Orders' on your purchase platform.
2. Click 'Problem with order'.
3. Select 'Contact seller'.
4. Attach images showing the product issue and provide a detailed description of the problem.

The seller will provide a solution, such as complimentary replacement of damaged or missing parts or other appropriate resolutions.

Image 10.1: Steps to follow when contacting customer support regarding a product issue.
