1. សេចក្តីផ្តើម
Thank you for choosing the Toputure TP-TM01W Under Desk Treadmill. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read it thoroughly before operation and retain it for future reference.
The Toputure TP-TM01W is a versatile treadmill designed for home and office use, offering both walking and jogging modes. It features a powerful yet quiet motor, a spacious running belt, and smart connectivity options for an enhanced exercise experience.
Image: The Toputure TP-TM01W treadmill in use, demonstrating its compact design and suitability for under-desk use.
2. សេចក្តីណែនាំអំពីសុវត្ថិភាព
ដើម្បីធានាបាននូវប្រតិបត្តិការប្រកបដោយសុវត្ថិភាព និងការពារការរងរបួស សូមអនុវត្តតាមការណែនាំសុវត្ថិភាពខាងក្រោម៖
- Always consult with a physician before starting any new exercise program.
- Place the treadmill on a flat, stable surface, ensuring adequate clearance around the unit.
- រក្សាកុមារ និងសត្វចិញ្ចឹមឱ្យឆ្ងាយពីម៉ាស៊ីនហាត់ប្រាណកំឡុងពេលប្រតិបត្តិការ។
- Wear appropriate athletic footwear. Do not operate the treadmill barefoot or in socks.
- Ensure the safety key is properly attached to your clothing before starting. In case of emergency, pulling the safety key will immediately stop the treadmill.
- Do not step on or off the treadmill while the belt is moving.
- If you feel faint, dizzy, or experience pain, stop exercising immediately.
- ដកឌុយម៉ាស៊ីនហាត់ប្រាណចេញពីព្រីភ្លើងនៅពេលមិនប្រើប្រាស់ ឬមុនពេលសម្អាត និងថែទាំ។
- Do not use the treadmill if it is damaged or malfunctioning. Contact customer support.
- The maximum user weight capacity for this treadmill is 130 kg (286 lbs).
3. មាតិកាកញ្ចប់
ផ្ទៀងផ្ទាត់ថាសមាសធាតុទាំងអស់មាននៅក្នុងកញ្ចប់៖
- Toputure TP-TM01W Under Desk Treadmill
- សោសុវត្ថិភាព
- ខ្សែថាមពល
- សៀវភៅណែនាំអ្នកប្រើ (ឯកសារនេះ)
- កញ្ចប់ឧបករណ៍
- ការបញ្ជាពីចម្ងាយ
4. រៀបចំ
The Toputure TP-TM01W treadmill requires no assembly. It is ready for use directly out of the box.
- យកម៉ាស៊ីនហាត់ប្រាណចេញពីវេចខ្ចប់របស់វាដោយប្រុងប្រយ័ត្ន។
- Place the treadmill on a level, hard surface. Ensure there is sufficient space around the unit for safe operation.
- ដោតខ្សែភ្លើងចូលទៅក្នុងព្រីភ្លើងដែលមានដី។
- Attach the safety key to the designated slot on the treadmill and clip the other end to your clothing.
Image: The treadmill features transport wheels for easy movement and an oil filling hole for maintenance.
5. សេចក្តីណែនាំប្រតិបត្តិការ
5.1 បើក/បិទថាមពល
- To power on, ensure the power cord is connected and the safety key is in place. The LED display will illuminate.
- To power off, press the stop button on the remote control or remove the safety key. Unplug the unit from the wall for complete power disconnection.
5.2 របៀបនៃប្រតិបត្តិការ
The treadmill supports two primary modes:
- របៀបដើរ៖ Speed range of 1-4 km/h. Ideal for light activity or under-desk use.
- របៀបរត់ហាត់ប្រាណ៖ Speed range of 5-10 km/h. Suitable for more intense cardio workouts.
Image: The treadmill offers distinct walking and jogging speed ranges to accommodate various fitness levels.
អេក្រង់ LED ចំនួន ២
The integrated LED display provides real-time feedback on your workout:
- ល្បឿន៖ Current belt speed (km/h).
- ពេលវេលា៖ រយៈពេលនៃការហាត់ប្រាណរបស់អ្នក។
- ចម្ងាយ៖ ចម្ងាយសរុបគ្របដណ្តប់។
- កាឡូរី៖ កាឡូរីដែលបានប៉ាន់ស្មានត្រូវបានដុត។
Image: The LED display clearly shows key workout metrics such as speed, time, distance, and calories.
៣.៣ ការបញ្ជាពីចំងាយ
The wireless remote control allows for convenient adjustment of settings during your workout:
- បើក/បិទ៖ Start and stop the treadmill.
- ល្បឿន +/-៖ Increase or decrease the belt speed.
- ការជ្រើសរើសកម្មវិធី៖ Cycle through the 12 predefined workout programs (P01-P12).
5.5 FITSHOW App and Bluetooth Connectivity
Enhance your workout experience by connecting the treadmill to the FITSHOW app via Bluetooth:
- Download the FITSHOW app from your device's app store (available on Google Play and the App Store).
- បើកប៊្លូធូសនៅលើស្មាតហ្វូនឬថេប្លេតរបស់អ្នក។
- Open the FITSHOW app and follow the on-screen instructions to pair with your Toputure treadmill.
- The app allows for real-time recording of exercise data, access to professional fitness courses, and data sharing.
Image: Control your treadmill and track progress using the FITSHOW app and the included remote control.
5.6 Predefined Programs
The treadmill includes 12 predefined programs (P01-P12) designed to simulate various exercise scenarios. Select a program that aligns with your fitness level and goals using the remote control.
6. ការថែទាំ
ការថែទាំជាទៀងទាត់ធានាបាននូវភាពជាប់បានយូរ និងដំណើរការល្អបំផុតនៃម៉ាស៊ីនហាត់ប្រាណរបស់អ្នក។
6.1 ការសម្អាត
- Before cleaning, always unplug the treadmill.
- Wipe down the display and exterior surfaces with a soft, damp ក្រណាត់។ ជៀសវាងសារធាតុសម្អាត ឬសារធាតុរំលាយ។
- Regularly vacuum underneath the treadmill to prevent dust and debris buildup.
6.2 ប្រេងរំអិលខ្សែក្រវ៉ាត់
The running belt requires periodic lubrication to reduce friction and extend its lifespan. The frequency depends on usage:
- Light use (less than 3 hours/week): Lubricate every 5-6 months.
- Moderate use (3-5 hours/week): Lubricate every 3-4 months.
- Heavy use (more than 5 hours/week): Lubricate every 1-2 months.
ដើម្បីរំអិល៖
- ផ្តាច់ម៉ាស៊ីនហាត់ប្រាណ។
- Locate the oil filling hole (as shown in the 'Easy to move' image in Section 4).
- Apply a small amount of silicone lubricant (not included, typically) into the hole.
- Plug in the treadmill and run it at a low speed (e.g., 2 km/h) for 5 minutes to distribute the lubricant evenly.
6.3 ការលៃតម្រូវខ្សែក្រវ៉ាត់
If the running belt becomes misaligned or feels loose, refer to the detailed instructions in the full user manual for adjustment procedures. Incorrect adjustment can damage the belt or motor.
7. ការដោះស្រាយបញ្ហា
ប្រសិនបើអ្នកជួបប្រទះបញ្ហាជាមួយម៉ាស៊ីនហាត់ប្រាណរបស់អ្នក សូមសាកល្បងជំហានដោះស្រាយបញ្ហាជាមូលដ្ឋានដូចខាងក្រោម៖
- ម៉ាស៊ីនហាត់ប្រាណមិនបើកទេ៖ Ensure the power cord is securely plugged into both the treadmill and the wall outlet. Check if the safety key is correctly inserted. Verify the wall outlet is functional.
- Belt stops unexpectedly: Check if the safety key has been dislodged. Reinsert it firmly.
- ការបញ្ជាពីចម្ងាយមិនដំណើរការទេ៖ Ensure the remote's battery is functional and correctly inserted. Point the remote directly at the treadmill's sensor.
- សំលេងរំខានមិនធម្មតា៖ Stop the treadmill immediately. Check for any foreign objects caught in the belt or motor area. If the noise persists, contact customer support.
- ការរអិលខ្សែក្រវ៉ាត់៖ The belt may require tension adjustment or lubrication. Refer to Section 6.2 for lubrication. For tension adjustment, consult the full manual or customer support.
For issues not resolved by these steps, please contact Toputure customer support.
8. លក្ខណៈបច្ចេកទេស
| លក្ខណៈ | ការបញ្ជាក់ |
|---|---|
| លេខម៉ូដែល | TP-TM01W |
| ម៉ាក | Toputure |
| កម្លាំងម៉ូតូ | 2.25 HP |
| ជួរល្បឿន | 1 - 10 គីឡូម៉ែត្រ / ម៉ោង។ |
| វិមាត្រខ្សែក្រវាត់រត់ (L x W) | 100 សង់ទីម៉ែត្រ x 40 សង់ទីម៉ែត្រ |
| Max User Weight Capacity | 130 គីឡូក្រាម |
| ទំហំផលិតផល (L x W x H) | 120 x 52 x 12 សង់ទីម៉ែត្រ |
| ទំងន់ផលិតផល | 22 គីឡូក្រាម |
| សម្ភារៈ | ដែកថែបកាបូន |
| កម្មវិធី | 12 Predefined Programs |
| ការតភ្ជាប់ | Bluetooth (FITSHOW App) |
| បង្ហាញ | LED (Speed, Time, Distance, Calories) |
| តម្រូវឱ្យមានការជួបប្រជុំគ្នា។ | ទេ |
Image: The spacious running belt measures 100 cm in length and 40 cm in width.

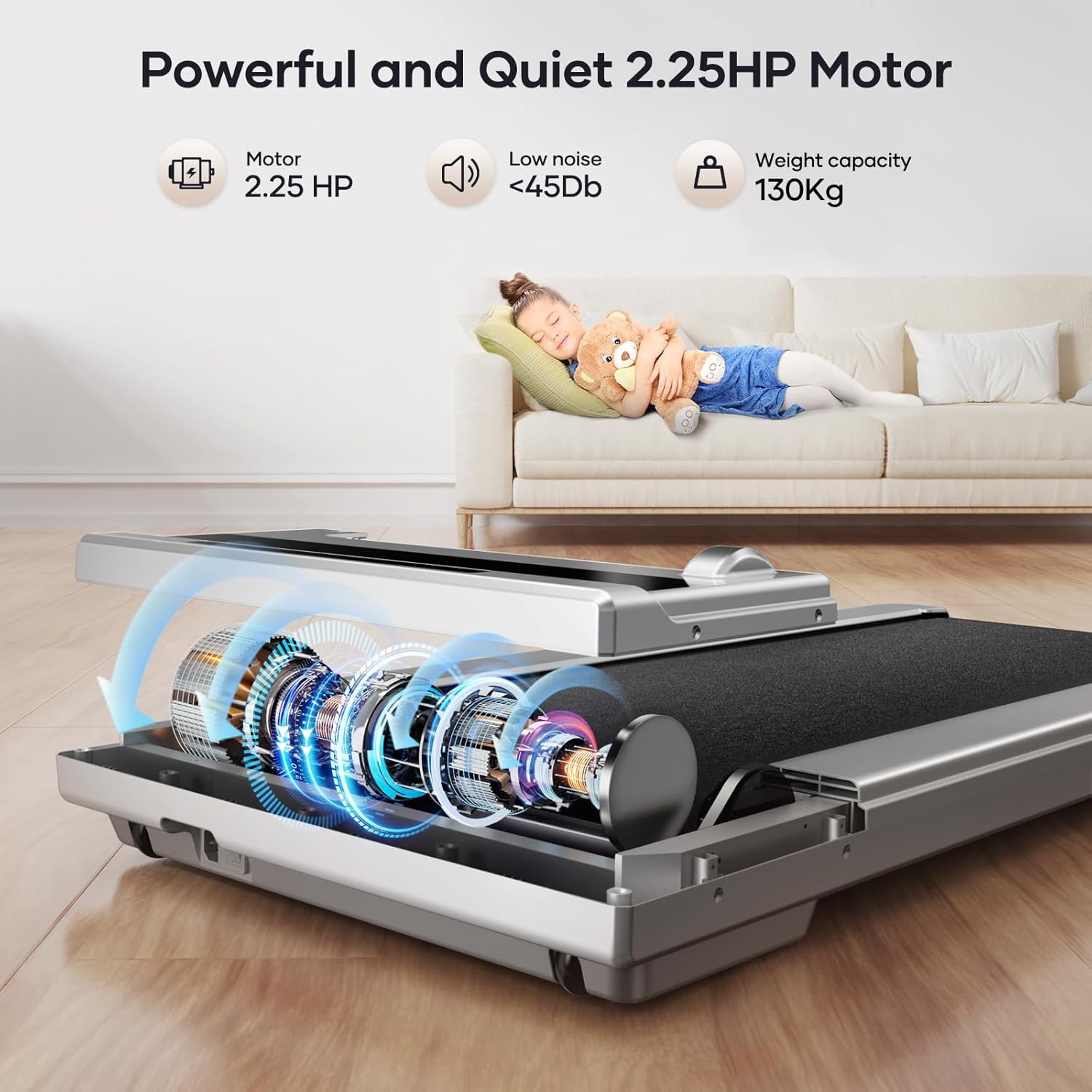

Image: The treadmill is equipped with a 2.25 HP motor, operating quietly at less than 45dB, and supports users up to 130 kg.
Image: The running belt features a 5-layer design for enhanced shock absorption and durability.
9. ការធានា និងការគាំទ្រ
Toputure provides a 2-year warranty for the TP-TM01W Under Desk Treadmill. This warranty covers manufacturing defects and ensures professional customer service for the lifetime of the product.
For warranty claims, technical assistance, or any questions regarding your treadmill, please contact Toputure customer support through the retailer where you purchased the product or visit the official Toputure webគេហទំព័រសម្រាប់ព័ត៌មានទំនាក់ទំនង។
