1. សេចក្តីផ្តើម
This manual provides essential information for the safe installation, operation, and maintenance of your Aigostar 30W LED Floodlight with Motion Sensor. Please read these instructions carefully before use and retain them for future reference.
Image 1: Aigostar 30W LED Floodlight with Motion Sensor. The image highlights the product's IP65 waterproof rating with simulated water droplets.
2. សេចក្តីណែនាំអំពីសុវត្ថិភាព
- ត្រូវប្រាកដថាការផ្គត់ផ្គង់ថាមពលត្រូវបានផ្តាច់មុនពេលដំឡើង ឬថែទាំ។
- Installation should be performed by a qualified electrician in accordance with local wiring regulations.
- Do not look directly into the LED light source when it is illuminated.
- This product is designed for outdoor use (IP65 rated) but should not be submerged in water.
- Do not modify the product or use it for purposes other than its intended use.
- ទុកសម្ភារៈវេចខ្ចប់ឱ្យឆ្ងាយពីកុមារ។
3. ផលិតផលលើសview
The Aigostar 30W LED Floodlight features a motion sensor, providing efficient and automated outdoor lighting. It is designed for durability and performance in various weather conditions.
លក្ខណៈសំខាន់ៗ៖
- ថាមពល៖ 30 វ៉
- លំហូរពន្លឺ៖ 2700 Lumens
- សីតុណ្ហភាពពណ៌៖ 4000K ពណ៌សធម្មជាតិ
- ការវាយតម្លៃមិនជ្រាបទឹក៖ IP65
- សម្ភារៈ៖ Die-cast Aluminum housing, Polycarbonate (PC) shade
- ឧបករណ៍ចាប់សញ្ញា៖ Integrated motion sensor with adjustable settings
- អាយុជីវិត៖ រហូតដល់ 30,000 ម៉ោង។

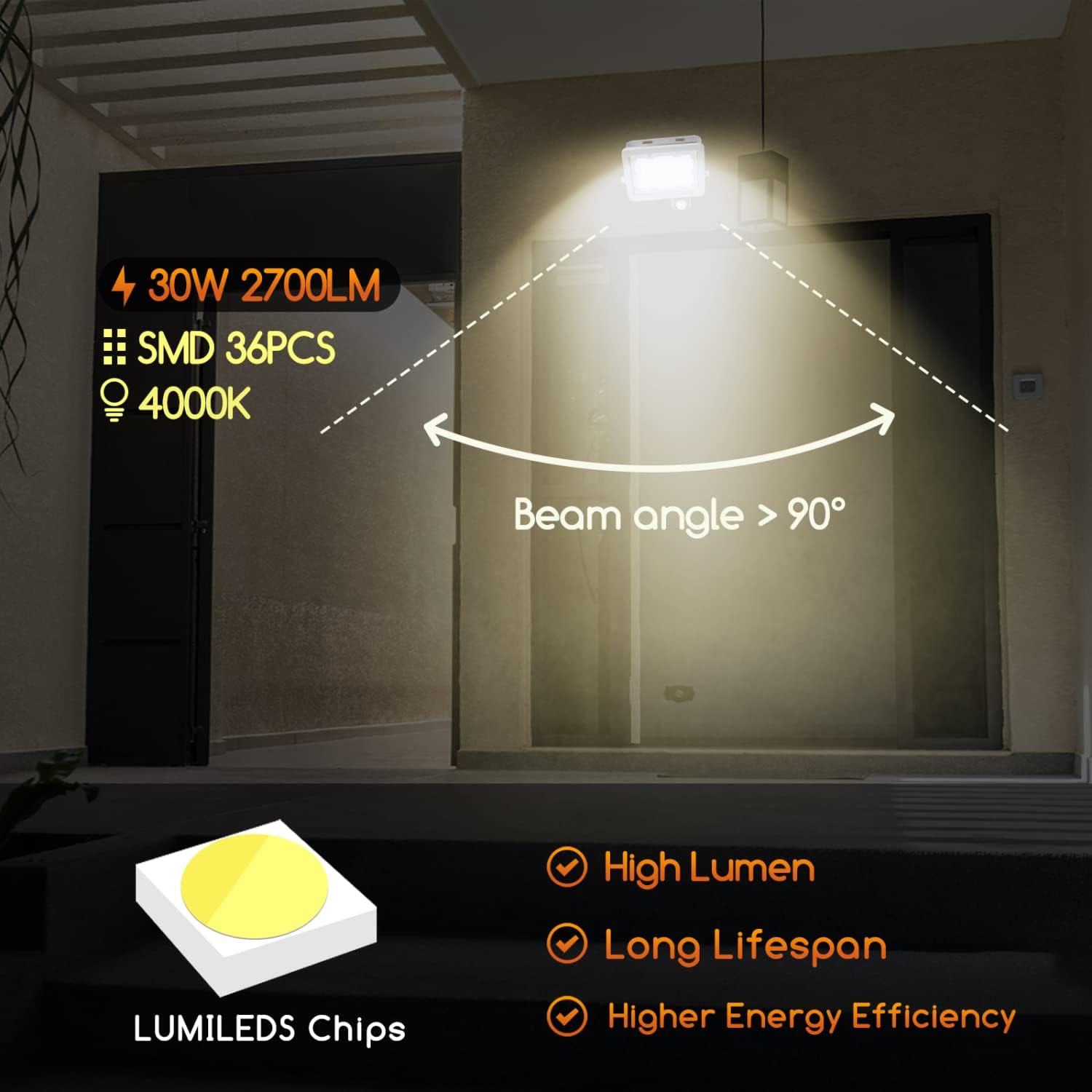

Image 2: Product specifications and features. This image illustrates the light's power, brightness, color temperature, LED chip type, and wide beam angle.
Image 3: Durability features. This image demonstrates the floodlight's resilience against rain, heat, and frost, confirming its IP65 rating and suitability for outdoor environments.
Image 4: Optical and thermal design. This image details the optical lens for enhanced light projection and the efficient heat dissipation system, which contributes to the product's long lifespan.
4. ការដំឡើង
Follow these steps for proper installation of your floodlight:
- ជ្រើសរើសទីតាំង៖ Select a suitable outdoor location that provides the desired illumination coverage and allows the motion sensor to detect movement effectively. Consider the sensor's detection range (up to 8 meters).
- ការដំឡើង៖ Securely attach the floodlight's mounting bracket to a solid surface using appropriate screws and anchors (not included). The bracket allows for angle adjustment.
- ខ្សែភ្លើង៖ Connect the floodlight to your main power supply. Ensure the power is OFF at the circuit breaker before wiring. Refer to the wiring diagram below:
- ខ្សែពណ៌ត្នោត៖ បន្តផ្ទាល់ (L)
- ខ្សែពណ៌ខៀវ៖ អព្យាក្រឹត (N)
- Yellow & Green Wire: ផែនដី (E)
Ensure all connections are secure and properly insulated, especially for outdoor use. The cable has a cross-sectional area of 3x1.0mm² and a length of 25cm ± 5cm.
- លៃតម្រូវមុំ៖ Once mounted and wired, adjust the floodlight and sensor to the desired angle. The sensor can rotate 350° horizontally and 180° vertically.
Image 5: Dimensions and wiring diagram. This image provides critical information for installation, including the physical size of the unit and the standard electrical wiring color codes.
5. Setup (Motion Sensor Adjustment)
The integrated motion sensor has three adjustable dials to customize its operation:
Image 6: Motion sensor adjustment dials. This image details how to configure the sensor's sensitivity, light duration, and ambient light threshold for activation.
- SENS (ភាពរសើប)៖ Adjusts the detection range of the motion sensor. Turn the dial to set the sensitivity from 2 meters to a maximum of 8 meters.
- TIME (Light Duration): Controls how long the light stays on after motion is detected. Set the duration from 10 seconds to 540 seconds (9 minutes).
- LUX (Ambient Light Threshold): Determines the ambient light level at which the sensor will activate the floodlight.
- Turn towards the 'sun' symbol for the light to work during both day and night.
- Turn towards the 'moon' symbol for the light to work only at night or in low-light conditions.
6. ប្រតិបត្តិការ
Once installed and configured, the Aigostar LED Floodlight will operate automatically based on your motion sensor settings. When motion is detected within the set range and the ambient light conditions meet the LUX setting, the floodlight will illuminate for the specified TIME duration.
Image 7: Application scenarios. This image provides examples of where the floodlight can be effectively used, such as roofs, garages, yards, and passages.
7. ការថែទាំ
- ការសម្អាត៖ Periodically clean the floodlight and sensor lens with a soft, damp cloth to remove dust and debris. Do not use abrasive cleaners or solvents.
- អធិការកិច្ច៖ Regularly check the wiring and mounting for any signs of damage or loosening. Ensure the waterproof seals are intact.
- បិទថាមពល៖ ផ្តាច់ថាមពលជានិច្ច មុនពេលអនុវត្តការថែទាំណាមួយ។
8. ការដោះស្រាយបញ្ហា
| បញ្ហា | មូលហេតុដែលអាចកើតមាន | ដំណោះស្រាយ |
|---|---|---|
| ពន្លឺមិនបើកទេ។ | គ្មានការផ្គត់ផ្គង់ថាមពល។ Incorrect LUX setting. ខ្សែភ្លើងខុស។ | ពិនិត្យការភ្ជាប់ថាមពល និងឧបករណ៍បំបែកសៀគ្វី។ Adjust LUX dial towards 'sun' symbol for testing. ផ្ទៀងផ្ទាត់ការតភ្ជាប់ខ្សែ។ |
| ពន្លឺនៅជាប់ជាបន្តបន្ទាប់។ | បានរកឃើញចលនាជាប់រហូត។ ការកំណត់ TIME វែងពេក។ LUX setting too high (always on). | Check for obstructions or constant movement in sensor range. កែតម្រូវប៊ូតុង TIME ឲ្យខ្លីជាងមុន។ Adjust LUX dial towards 'moon' symbol. |
| Sensor does not detect motion. | SENS setting too low. Obstruction in sensor's field of view. មុំឧបករណ៍ចាប់សញ្ញាមិនត្រឹមត្រូវ។ | Increase SENS setting. ជម្រះរាល់ឧបសគ្គ។ Adjust sensor angle for optimal coverage. |
9. លក្ខណៈបច្ចេកទេស
- ម៉ូដែល៖ BK02-30W-4000K
- ថាមពល៖ 30 វ៉
- លំហូរពន្លឺ៖ 2700 អិល
- សីតុណ្ហភាពពណ៌៖ 4000K (ពណ៌សធម្មជាតិ)
- ការវាយតម្លៃមិនជ្រាបទឹក៖ IP65
- សម្ភារៈ៖ Aluminum (housing), Polycarbonate (PC) (shade)
- មុំធ្នឹម៖ > 90°
- អាយុជីវិត៖ រហូតដល់ 30,000 ម៉ោង។
- ជួរចាប់សញ្ញាឧបករណ៍ចាប់សញ្ញា៖ Max 8 meters (adjustable 2-8m)
- Sensor Time Setting: 10s - 540s
- វិមាត្រ៖ 176.8mm (L) x 179.6mm (W) x 54.1mm (H)
- ថ្នាក់ប្រសិទ្ធភាពថាមពល៖ F (as per EU 2019/2015)
For detailed product information and energy label data, please refer to the EPREL database:

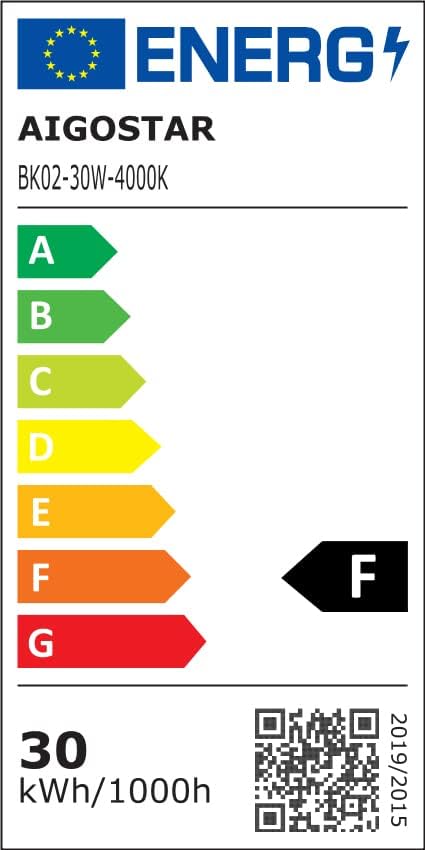

Image 8: EU Energy Label. This label provides information on the product's energy efficiency class and consumption, along with the model number.
