1. សេចក្តីផ្តើម
1.1 សូមស្វាគមន៍
This manual provides detailed instructions for the installation, operation, and maintenance of your BTF-LIGHTING FCOB CCT 24V LED Strip Kit. Please read this manual thoroughly before use to ensure proper function and safety.
1.2 មាតិកាកញ្ចប់
ផ្ទៀងផ្ទាត់ថាធាតុទាំងអស់ដែលបានរាយខាងក្រោមត្រូវបានរួមបញ្ចូលនៅក្នុងកញ្ចប់របស់អ្នក៖
- 1x 16.4FT FCOB CCT LED Strip
- 1x RF Controller
- 1x DC24V Power Supply

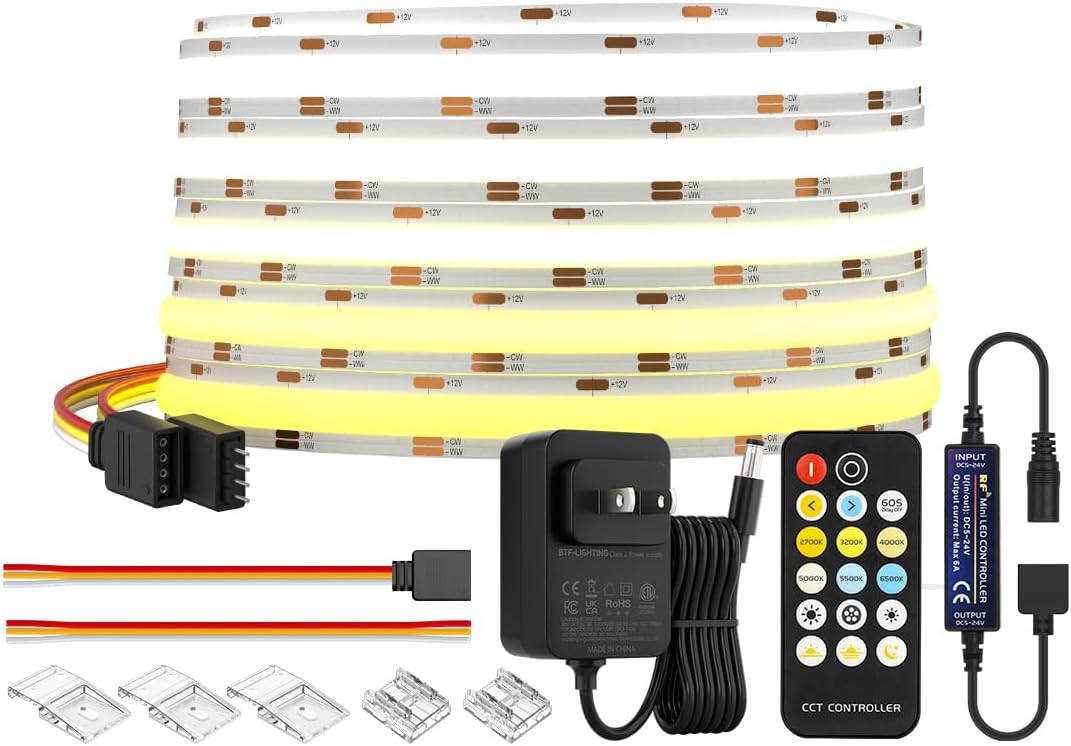

Image 1.1: Included components of the BTF-LIGHTING FCOB CCT 24V LED Strip Kit, featuring the LED strip, RF controller, and DC24V power supply.
2. ព័ត៌មានសុវត្ថិភាព
Please observe the following safety precautions to prevent damage to the product or personal injury:
- ផលិតផលនេះត្រូវបានរចនាឡើងសម្រាប់ ប្រើតែក្នុងផ្ទះប៉ុណ្ណោះ។ (IP30 rating). Do not expose to water or high humidity.
- ត្រូវប្រាកដថាការផ្គត់ផ្គង់ថាមពលវ៉ុលtage matches the product requirements (DC24V).
- Do not connect the LED strip directly to AC power.
- Avoid bending the LED strip sharply or applying excessive force, which may damage the circuit.
- Disconnect power before any installation, maintenance, or troubleshooting.
- រក្សាឱ្យឆ្ងាយពីដៃកុមារ។
- Do not cover the LED strip with flammable materials.
3. លក្ខណៈបច្ចេកទេស
| លក្ខណៈ | ការបញ្ជាក់ |
|---|---|
| លេខម៉ូដែល | FCOBCCT5M640L24VRF3A-US |
| ប្រភេទ LED | FCOB CCT (Flexible Chip On Board Correlated Color Temperature) |
| វ៉ុលtage | DC 24V |
| ការប្រើប្រាស់ថាមពល | 36 វ៉ាត់ (អតិបរមា 72 វ៉ាត់) |
| ដង់ស៊ីតេ LED | 640 chips/meter (320 Warm White + 320 Cool White) |
| ប្រវែង | 16.4 ហ្វីត (5 ម៉ែត្រ) |
| សីតុណ្ហភាពពណ៌ | Tunable 2700K (Warm White) - 6500K (Cool White) |
| សន្ទស្សន៍បង្ហាញពណ៌ (CRI) | > 90 |
| មុំធ្នឹម | 180 ដឺក្រេ។ |
| វិធីសាស្រ្តត្រួតពិនិត្យ | RF Remote Control (17 Keys) |
| អាយុកាល | > 50,000 ម៉ោង។ |
| ការវាយតម្លៃមិនជ្រាបទឹក។ | IP30 (Non-waterproof, Indoor Use Only) |
| ទទឹងបន្ទះ | 10 ម។ |
4. ការដំឡើងនិងការដំឡើង
០២ ការរៀបចំ
- Unroll the LED strip and inspect it for any damage.
- Ensure the installation surface is clean, dry, and smooth for optimal adhesive performance.
- Plan the layout of your LED strip before peeling off the adhesive backing.
- If cutting is required, cut only along the designated cut marks (usually indicated by copper pads) on the LED strip.
Image 4.1: The flexible LED strip being installed using mounting clips, demonstrating its adaptability to various surfaces.
4.2 Mounting the LED Strip
- Carefully peel off the blue protective film from the adhesive backing on the LED strip.
- Press the LED strip firmly onto the desired clean surface, ensuring good contact along its entire length.
- For additional security, especially on textured surfaces or corners, use the provided mounting clips (if included).
4.3 ការភ្ជាប់សមាសធាតុ
- Connect the 4-pin connector of the LED strip to the output of the RF controller. Ensure the arrows on the connectors align.
- Connect the DC24V power supply to the input of the RF controller.
- Plug the DC24V power supply into a standard electrical outlet.
Image 4.2: A clear wiring diagram illustrating how to connect the FCOB CCT LED strip, RF controller, and DC24V power supply.
Image 4.3: The RF controller connected to the LED strip, ready for operation in a kitchen setting.
4.4 បើកដំណើរការ
Once all connections are secure, plug in the power supply. The LED strip should illuminate. If not, refer to the Troubleshooting section.
5. សេចក្តីណែនាំប្រតិបត្តិការ
5.1 ការប្រើឧបករណ៍បញ្ជាពីចម្ងាយ RF
The kit includes a 17-key RF remote control for convenient operation. Ensure the plastic tab is removed from the remote's battery compartment before first use.

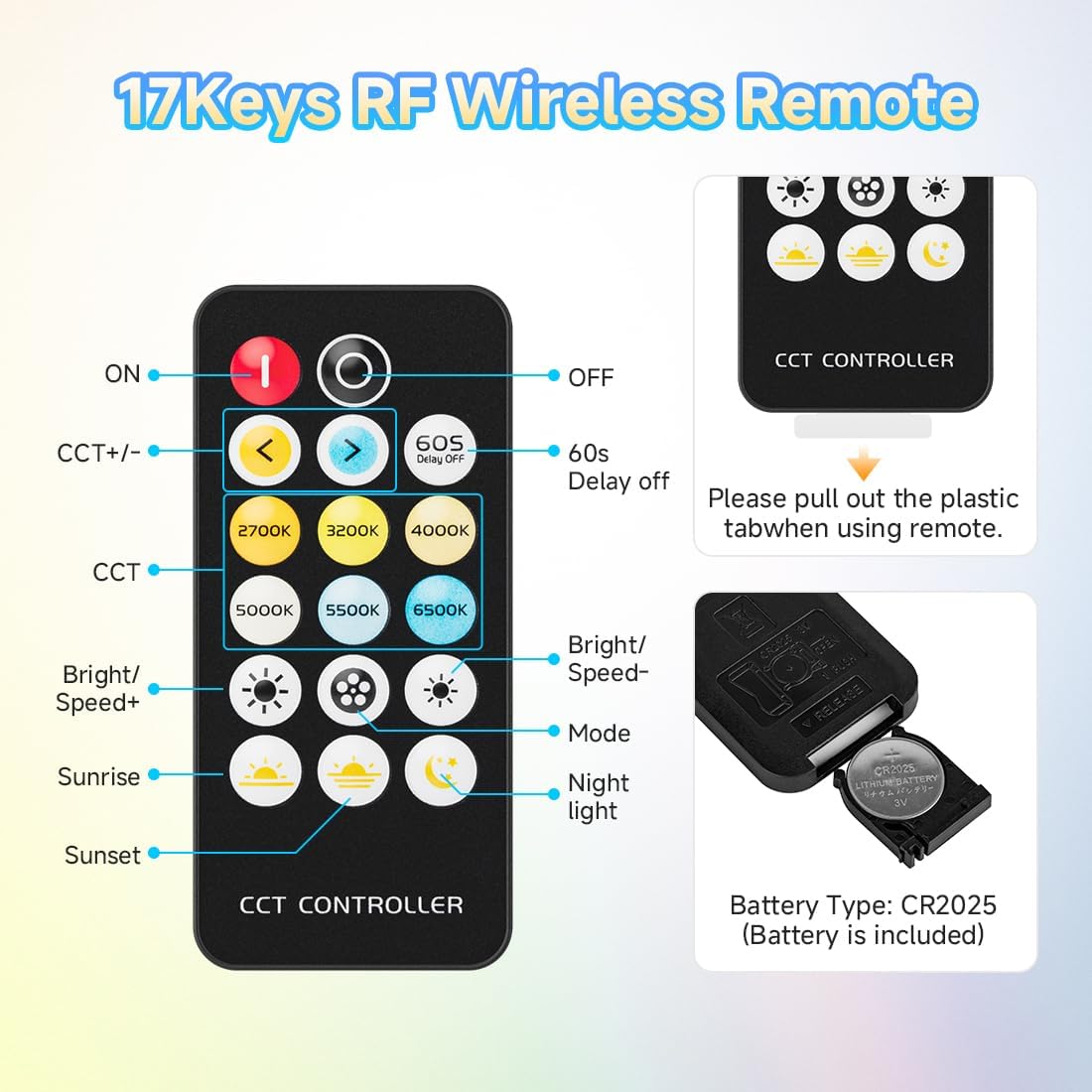

រូបភាព 5.1៖ លម្អិត view of the 17-key RF wireless remote control, highlighting its various buttons for light adjustment.
5.2 មុខងារជាមូលដ្ឋាន
- បើក/បិទ៖ ចុច ក្រហម ប៊ូតុងដើម្បីបើកភ្លើង និង ខ្មៅ ប៊ូតុងដើម្បីបិទពួកវា។
- 60s Delay Off: Press the "60S DELAY OFF" button to set a 60-second timer before the lights turn off.
5.3 ការលៃតម្រូវសីតុណ្ហភាពពណ៌
The FCOB CCT LED strip allows for tunable white light from 2700K (Warm White) to 6500K (Cool White).
- CCT +/-: ប្រើ ព្រួញខាងឆ្វេង to decrease color temperature (warmer) and the ព្រួញស្តាំ to increase color temperature (cooler).
- Preset CCT: Directly select desired color temperatures using the dedicated buttons: 2700K, 3200K, 4000K, 5000K, 5500K, 6500K.
Image 5.2: Visual representation of color temperature adjustment, ranging from warm 2700K to cool 6500K, suitable for various environments.
5.4 Brightness Control
- Bright/Speed+: បង្កើនពន្លឺ។
- Bright/Speed-: បន្ថយពន្លឺ។
Image 5.3: Illustration of multiple brightness levels, from 0% to 100%, demonstrating the dimming capability of the LED strip.
5.5 Dynamic Modes and Scenes
The remote offers various dynamic modes and preset scenes:
- របៀប៖ Cycle through different dynamic lighting effects.
- ព្រះអាទិត្យរះព្រះអាទិត្យលិច: Activate preset lighting scenes simulating sunrise or sunset.
- ពន្លឺពេលយប់៖ Activate a low-brightness night light mode.
Image 5.4: The RF wireless remote control offers memory function, 3 scenes, and 6 dynamic modes for versatile lighting options.
5.6 មុខងារចងចាំ
The controller features a memory function. After the controller is powered off and then restarted, the last used lighting effect (color temperature and brightness) will be maintained, eliminating the need to reset it.
Image 5.5: The memory function ensures that the LED strip retains its last lighting settings after being powered off and on.
6. ការថែទាំ
6.1 ការថែទាំ និងការសម្អាត
- To clean the LED strip, gently wipe it with a soft, dry cloth.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the strip.
- ត្រូវប្រាកដថាបានផ្តាច់ថាមពលមុនពេលសម្អាត។
6.2 ការផ្ទុក
- If storing the LED strip for an extended period, ensure it is clean and dry.
- រក្សាទុកនៅកន្លែងត្រជាក់ និងស្ងួតឆ្ងាយពីពន្លឺព្រះអាទិត្យដោយផ្ទាល់ និងសីតុណ្ហភាពខ្លាំង។
7. ការដោះស្រាយបញ្ហា
If you encounter issues with your LED strip, refer to the table below for common problems and solutions.
| បញ្ហា | មូលហេតុដែលអាចកើតមាន | ដំណោះស្រាយ |
|---|---|---|
| បន្ទះ LED មិនភ្លឺទេ។ | No power, incorrect connection, faulty power supply/controller. | Check power outlet. Ensure all connections are secure and correctly aligned (arrow to arrow). Test power supply with another device if possible. |
| ការបញ្ជាពីចម្ងាយមិនដំណើរការទេ។ | Battery depleted, plastic tab not removed, remote out of range, interference. | Remove plastic tab from battery. Replace battery (CR2025). Ensure remote is within 49-66ft (15-20m) range and pointed towards the controller. Reduce potential interference. |
| ភ្លើងភ្លឹបភ្លែតៗ ឬរលត់ដោយមិននឹកស្មានដល់។ | Loose connection, insufficient power, damaged strip. | Check all connections. Ensure power supply meets wattage requirements. Inspect the strip for physical damage. |
| Inconsistent color temperature. | Controller issue, partial strip damage. | Ensure the controller is functioning correctly. If only a section is affected, that part of the strip may be damaged. |
8. ការធានា និងការគាំទ្រអតិថិជន
8.1 ព័ត៌មានធានា
BTF-LIGHTING provides a ការធានារយៈពេល 12 ខែដោយគ្មានការបារម្ភ for this product. This warranty covers manufacturing defects and issues arising from normal use. It does not cover damage caused by misuse, improper installation, or unauthorized modifications.
8.2 ជំនួយអតិថិជន
For technical assistance, warranty claims, or any questions regarding your BTF-LIGHTING product, please contact our customer service team. We offer សេវាកម្មអតិថិជន 24/7.
Visit the official BTF-LIGHTING store for more information: BTF-LIGHTING Store
9. វីដេអូផលិតផល
9.1 BTF-LIGHTING FCOB CCT LED Strip Overview
វីដេអូទី 9.1: ជាផ្លូវការview of the BTF-LIGHTING FCOB CCT LED strip, showcasing its features and applications.
9.2 FCOB CCT LED Strip Features
Video 9.2: A detailed look at the FCOB CCT LED Strip, demonstrating its tunable white capabilities and seamless illumination.
២.១. លក្ខណៈសំខាន់ៗ
10.1 Ultra Bright and Uniform Illumination
The FCOB (Flip Chip On Board) technology provides a dense light-emitting surface, resulting in a brighter, softer, and more uniform light output without visible light spots, unlike traditional SMD LED strips.
Image 10.1: Comparison of beam angles, showing the FCOB LED strip's 180-degree illumination versus traditional SMD strips' 120-degree, highlighting uniform light distribution.
10.2 High Color Rendering Index (CRI 90+)
With a CRI of over 90, the LED strip accurately renders colors, making objects appear more vibrant and true to their original hues.
Image 10.2: A visual comparison demonstrating the superior color rendering of CRI 90+ lighting compared to CRI 80+, showing more natural and vibrant colors.
10.3 Durable and Energy Efficient Design
Constructed with a double-layer PCB board and high-quality materials, this LED strip is designed for durability and a long lifespan of over 50,000 hours. The FCOB technology also contributes to higher energy efficiency.
Image 10.3: Infographic highlighting key features such as better conductivity, ultra-bright efficiency, seamless glow, tunable color temperature, and a long lifespan of 65,000+ hours.
11. កម្មវិធី
The BTF-LIGHTING FCOB CCT LED Strip Kit is suitable for a wide range of indoor lighting applications, including:
- Kitchen under-cabinet lighting
- Bedroom accent lighting
- Stairway illumination
- Mirror backlighting
- Corridor lighting
- DIY lighting projects
- Shelf and display lighting
Image 11.1: Collage showcasing diverse indoor applications, such as kitchen, office, and living room lighting, demonstrating the strip's versatility.
