Moen T6820 Method Two-Handle Low Arc Bathroom Faucet Instruction Manual

1. សេចក្តីផ្តើម

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Moen T6820 Method Two-Handle Low Arc Bathroom Faucet. Designed with clean lines and a simple profile, this faucet contributes to a sleek, uncluttered aesthetic in any contemporary bathroom.

Key features of this faucet include:

• Chrome finish for a bright, highly reflective, cool grey metallic look.
• Low-arc spout design for conventional styling.
• Two-handle lever design for ease of use.
• Elegant 8-inch to 16-inch widespread installation.
• Aerated flow for everyday use.

2. ការដំឡើងនិងការដំឡើង

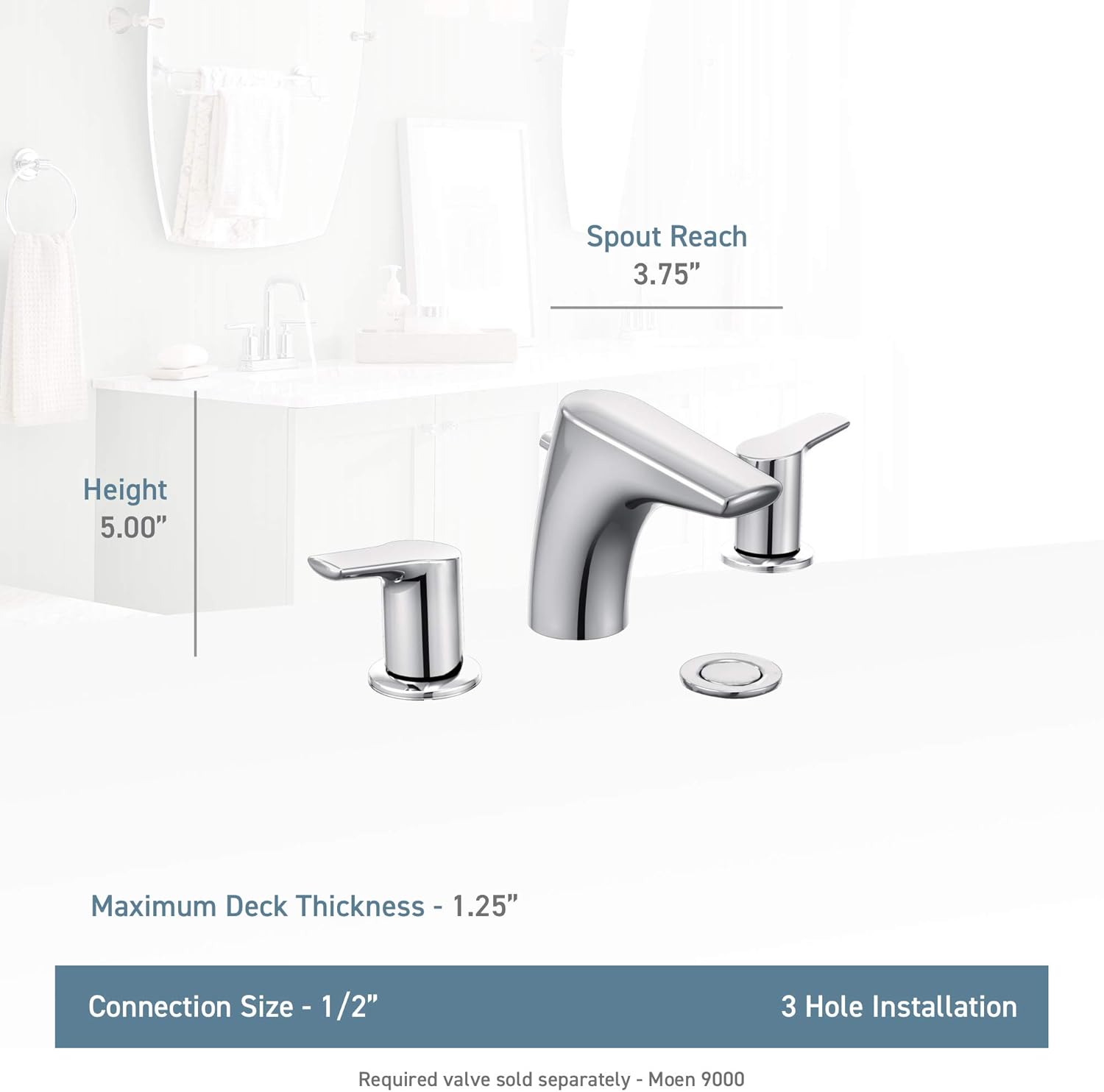

The Moen T6820 faucet is designed for widespread installation, requiring three holes in your countertop or sink. The connection size for water lines is 1/2 inch.

ចំណាំសំខាន់៖ The valve (Moen Part Number 9000) is not included with this faucet set and must be purchased separately for complete installation.

For detailed step-by-step installation instructions, please refer to the separate installation guide provided with your Moen 9000 valve or visit the official Moen webគេហទំព័រ។

3. សេចក្តីណែនាំប្រតិបត្តិការ

ការគ្រប់គ្រងលំហូរទឹក។

This faucet features two separate lever handles: one for controlling hot water and one for cold water. To operate, simply lift the desired lever to initiate water flow. Adjust the levers to achieve your preferred water temperature and flow rate. Pushing the levers down will stop the water flow.

Drain Stopper Operation

The drain stopper is controlled by a lift rod located at the back of the faucet's main body. To close the drain and fill the sink, pull the lift rod upwards. To open the drain and allow water to flow out, push the lift rod downwards.

4. ការថែទាំ

To maintain the chrome finish and ensure the longevity of your Moen faucet, follow these simple cleaning guidelines:

• លាងសម្អាតឱ្យបានទៀងទាត់ដោយទន់, ឃamp ក្រណាត់។
• ជៀសវាង​សារធាតុ​សម្អាត​ដែល​មាន​ជាតិ​គីមី​អាក្រក់ ឬ​បន្ទះ​សម្អាត ព្រោះ​សារធាតុ​ទាំងនេះ​អាច​បំផ្លាញ​ការ​បញ្ចប់។
• For stubborn spots, use a mild soap and water solution, then rinse thoroughly and dry with a soft cloth to prevent water spots.

5. ការដោះស្រាយបញ្ហា

If you encounter issues with your Moen T6820 faucet, consider the following common troubleshooting steps:

លំហូរទឹកទាប

• Check if the aerator is clogged. Unscrew the aerator from the spout and clean any debris.
• Ensure that the water supply valves under the sink are fully open.

Leaks or Drips

• Tighten any loose connections at the water supply lines.
• If leaks persist from the spout, the cartridge may need to be replaced. Refer to the Moen website or contact customer support for guidance on cartridge replacement.

For more complex issues or if troubleshooting steps do not resolve the problem, please contact Moen customer support.

6. លក្ខណៈបច្ចេកទេស

7. ព័ត៌មានធានា

Moen products are manufactured under the highest standards of quality and workmanship. Most Moen faucets are backed by Moen's Lifetime Limited warranty. Moen warrants to the original consumer purchaser, for as long as the original consumer purchaser owns their home (the "Warranty Period" for homeowners), that this faucet will be leak- and drip-free during normal use and all parts and finishes of this faucet will be free from defects in material and manufacturing workmanship. All other purchasers (including purchasers for industrial, commercial, and business use) are warranted for a period of 5 years from the original date of purchase (the "Warranty Period" for non-homeowners).

៥.៧. ជំនួយអតិថិជន

For further assistance, technical support, or warranty claims, please contact Moen customer service. You can find contact information and additional resources on the official Moen webគេហទំព័រ៖

Visit Moen's Official Webគេហទំព័រ
