Quick Start Guide
RN01 Chassis
RN01 Chassis Frame NDI Encoders Decoders
Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to the device, please strictly follow the instructions of this guide to install and use it under the guidance of professionals. Incorrect electrical connections or physical installation may cause permanent damage to the device and even threaten personal safety.
RN01 Installation
Align the device to the screw holes at the bottom of the chassis, and push in parallel, then tighten the doublesided screws. Reverse the process for removal.
Note
- The chassis is a plug-in structure, which can easily complete the replacement/mixing of N series codec, realizing thesame chassis compatible with 1/2/3/4 channels and multi-interface, encoding/decoding mixed solutions. The chassis has no centralize power supply, and each module needs to be powered separately for normal operation.
- Tally-green light: indicates that the current video is in Preview state; red light: indicates that the current video is in Program state.
- LED indicator. Power: always white indicates that power is connected；LINK: white flashing indicates normal network access；Run: flashing white indicates normal work in progress.
Application

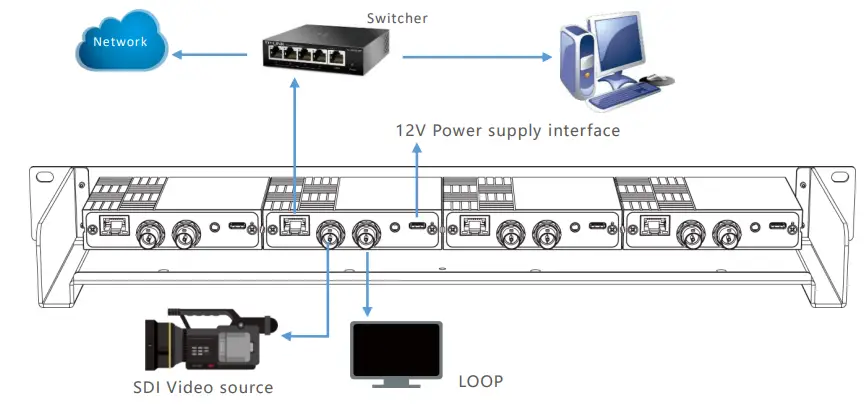

2.1 Encoding application
2.2 Decoding application
Others
To prolong the device life please unplug the power and keep it properly if you do not use it for a long time.
For more questions, please contact us via: https://www.kiloview.com/en/support
Please scan with browser.
 |
 |
