NineLeaf Bike Turn Signals User Manual

1. შესავალი

The NineLeaf Bike Turn Signals (Model KS-SF31-02C) is a versatile 5-in-1 device designed to enhance cycling safety. It integrates a warning light, brake light, turn signal, electric bell, and anti-theft vibration alarm. Featuring 31 high-end LED lights, it provides up to 160 lumens of brightness for visibility in various conditions. This manual provides instructions for proper installation, operation, and maintenance of your device.

2. პაკეტის შიგთავსი

გთხოვთ, დარწმუნდეთ, რომ თქვენს პაკეტში ყველა ნივთია:

• Bike Taillight Unit
• Wireless Remote Control (Oval)
• Seat Post Mounting Bracket
• Handlebar Mounting Bracket for Remote
• USB-C დამტენი კაბელი
• Installation Hardware (screws, silicone rings)
• მომხმარებლის სახელმძღვანელო (ეს დოკუმენტი)

სურათი 2.1: Contents of the NineLeaf Bike Turn Signals package.

3. სპეციფიკაციები

4. მონტაჟი

4.1. Taillight Installation

1. Place the silicone ring onto the bike seat post at the desired height.
2. Insert the taillight's mounting brackets into the silicone grooves. Align the nut and secure it with the provided screws.
3. Slide the taillight unit into the bracket slot until it clicks securely into place.

შენიშვნა: The taillight is designed to be difficult to remove after installation for anti-theft purposes. It is recommended to remove the bracket or use a power bank/long cable for charging if the taillight cannot be easily detached.

სურათი 4.1: Taillight installation steps.

4.2. დისტანციური მართვის ინსტალაცია

Attach the remote control to your bike's handlebar using the provided handlebar mounting bracket. Ensure it is positioned within easy reach for safe operation while riding. The remote control is compatible with handlebars measuring 0.78 to 0.94 inches in diameter.

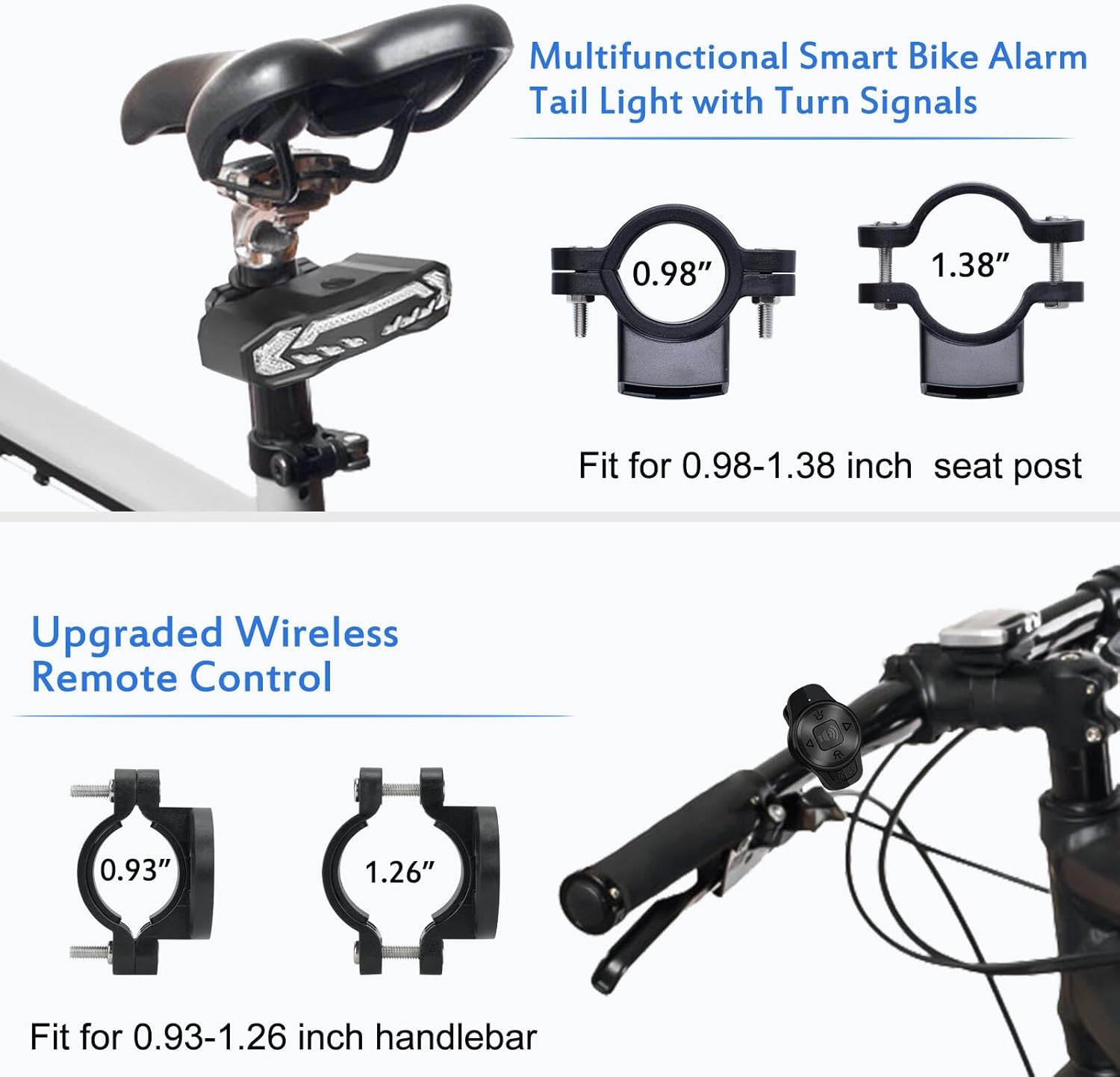

სურათი 4.2: Remote control mounted on a handlebar.

5. ოპერაცია

5.1. Charging the Taillight

Before first use, fully charge the taillight. Connect the supplied USB-C cable to the taillight's charging port and to a USB power source (e.g., wall adapter, power bank, computer). The right turn signal lights will flash to indicate the charge level (1-4 flashes for 25% to 100% charge). A full charge typically provides up to 70 hours of work time.

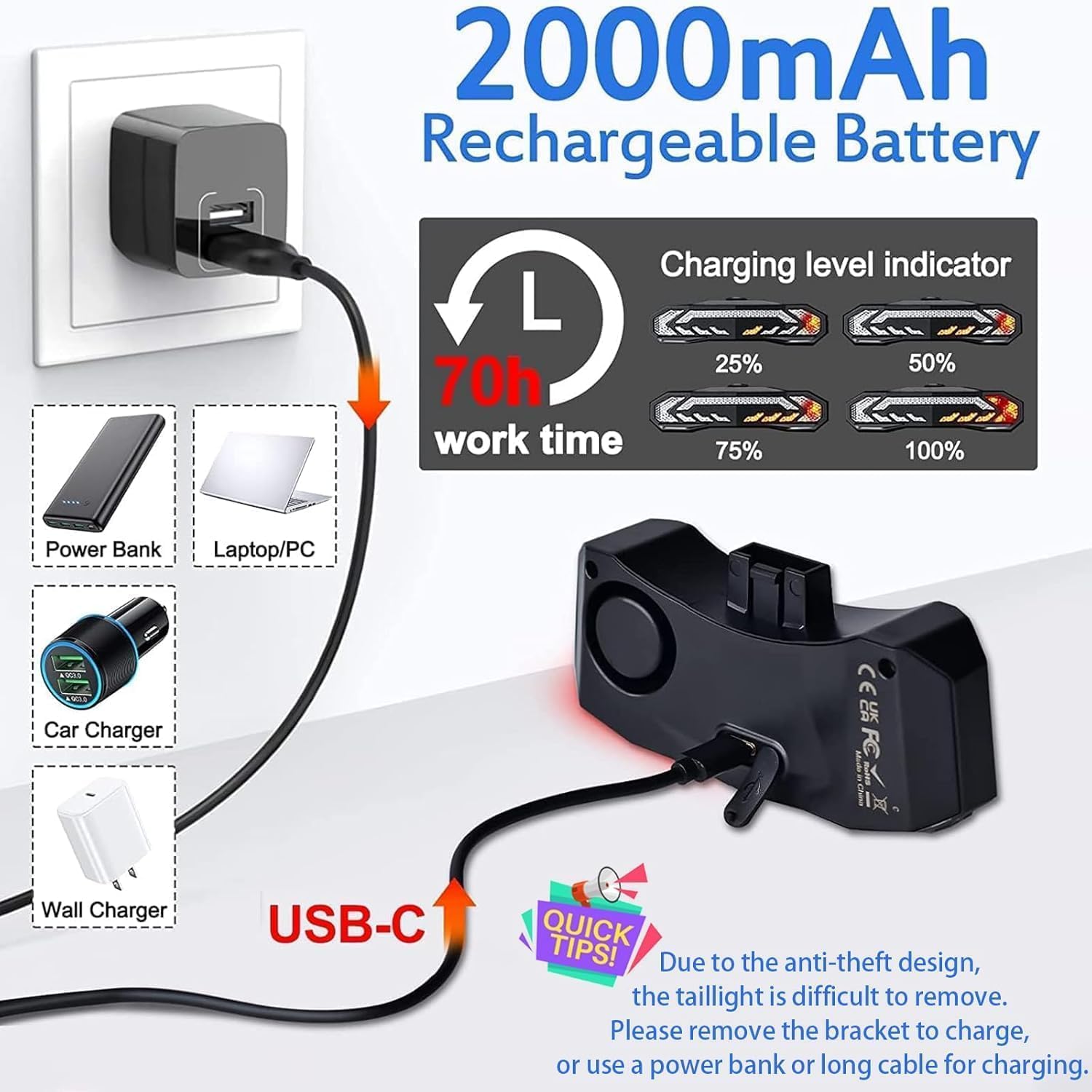

სურათი 5.1: Taillight charging via USB-C.

5.2. დისტანციური მართვის ფუნქციები

The oval-shaped remote control allows easy access to all functions. Refer to the diagram below for button identification:

• 1. Left Turn Light Button: ააქტიურებს მარცხენა მოხვევის სიგნალს.
• 2. Electric Bell Button: Activates the bike horn.
• 3. Right Turn Light Button: ააქტიურებს მარჯვენა მოხვევის სიგნალს.
• 4. Headlight Button: (Reserved/Waiting for upgrading)
• 5. სინათლის რეჟიმის ღილაკი: Cycles through the 6 light modes.
• 6. Arm Button: Activates the anti-theft alarm.
• 7. Disarm Button: Deactivates the anti-theft alarm.
• 8. ინდიკატორის შუქი: აჩვენებს დისტანციური მართვის სტატუსს.

სურათი 5.2: Remote control button layout and functions.

5.3. სინათლის რეჟიმები

The taillight offers 6 lighting modes, selectable via the remote control's Light Mode Button (5):

1. ნელი ციმციმი: Red slow flashing light. This is an automatic mode; the light turns off after 30 seconds of inactivity in a dark environment and reactivates upon motion.
2. სუნთქვა: Red breathing light. This is an automatic mode; the light turns off after 30 seconds of inactivity in a dark environment and reactivates upon motion.
3. სწრაფი მოციმციმე: Red fast blinking light. The light remains on until manually turned off.
4. სტაბილური შუქი: Red steady light. The light remains on until manually turned off.
5. გადაუდებელი შუქი: Yellow flashing light. The light remains on until manually turned off.
6. გამორთულია: უკანა ფარს აქრობს.

სურათი 5.3: Available light modes.

5.4. შემობრუნების სიგნალები

To indicate a turn, press the Left Turn Light Button (1) or Right Turn Light Button (3) on the remote control. The corresponding signal will flash with an audible clicking sound to alert others. The turn signal remains active for two minutes or until the button is pressed again to cancel.

5.5. Automatic Brake Light

The taillight features a smart brake sensor. When you brake or slow down, the light will automatically highlight brightly for 2 seconds to warn riders behind you.

სურათი 5.4: Smart Brake and Turn Signal operation.

5.6. Electric Bell (Horn)

Press the Electric Bell Button (2) on the remote control to activate the 110dB horn. There are 3 selectable horn sounds. This function can be used to alert pedestrians or other cyclists.

5.7. Anti-Theft Vibration Alarm

To activate the anti-theft alarm, press the Arm Button (6) on the remote control. The alarm is triggered by vibration and emits a loud 110dB sound to deter thieves. It has 7 adjustable sensitivity levels and 3 volume levels. In vigilant mode, a first touch triggers a 2-second warning sound. A second touch within 2-12 seconds activates a continuous 30-second alarm with various sound effects.

To deactivate the alarm, press the Disarm Button (7) on the remote control.

სურათი 5.5: Anti-theft alarm in action.

6. მოვლა

6.1. დასუფთავება

უკანა ფარი და დისტანციური მართვა რბილი ქსოვილით გაწმინდეთamp cloth. Do not use abrasive cleaners or solvents, as these may damage the device's surface or internal components.

6.2. ჰიდროიზოლაცია

The taillight is IP65 rated, protecting it from rain, dust, and snow. The remote control is IP44 rated. While designed to withstand various weather conditions, avoid submerging the device in water.

6.3. ბატარეის მოვლა

To prolong battery life, avoid fully discharging the battery frequently. Recharge the device regularly, especially if it will be stored for an extended period.

7. Დიაგნოსტიკა

• მოწყობილობა არ ირთვება: დარწმუნდით, რომ ბატარეა დატენილია. შეაერთეთ USB კვების წყაროსთან და შეამოწმეთ დატენვის ინდიკატორი.
• დისტანციური მართვა არ პასუხობს: Check if the remote control's battery needs replacement (if applicable, or if it's rechargeable, ensure it's charged). Ensure the remote is within range of the taillight.
• მოხვევის სიგნალები არ მუშაობს: Verify the remote control is paired with the taillight. Re-pair if necessary (refer to manufacturer's specific pairing instructions if not automatically paired).
• Alarm triggering unexpectedly: Adjust the alarm sensitivity settings to a lower level.
• სამუხრუჭე შუქი არ ირთვება: Ensure the taillight is securely mounted and the brake sensor is not obstructed.

8. გარანტია და მხარდაჭერა

NineLeaf products are designed for durability and performance. For specific warranty information, please refer to the product packaging or contact NineLeaf customer support directly. If you encounter any issues or have questions regarding your NineLeaf Bike Turn Signals, please visit the official NineLeaf store on Amazon or contact their customer service for assistance.

NineLeaf Store Link: Visit the NineLeaf Store
