1. პროდუქტი დასრულდაview
The NineLeaf Motion Sensor Doorbell (Model KS-SF20R) is a versatile wireless alert system designed to detect movement and provide various notifications. It is suitable for business entrances, home security, caregiver reminders, and more. The system consists of a receiver and a motion sensor, offering multiple operational modes and customization options.
Image 1: The NineLeaf Motion Sensor Doorbell system, showing the receiver unit on the left and the motion sensor unit on the right.
2. პაკეტის შიგთავსი
გთხოვთ, დარწმუნდეთ, რომ თქვენს პაკეტში ყველა ნივთია:
- 1 x NineLeaf Motion Sensor Receiver
- 1 x NineLeaf Motion Sensor
- Mounting accessories (screws, adhesive tape)
- მომხმარებლის სახელმძღვანელო (ეს დოკუმენტი)
3. პროდუქტის კომპონენტები
Familiarize yourself with the different parts of your NineLeaf Motion Sensor Doorbell system:
Image 2: Detailed diagram illustrating the components of both the receiver and the motion sensor. Key features include the ON/OFF switch, mode switch key, Micro USB power interface, alarm horn, wall hanging hole, battery case, song selection key, volume key, colorful LED flashing indicator, speaker, LED light indicator, infrared motion sensor, and base support/adjustment.
- მიმღები: ON/OFF switch, Mode switch key, Micro USB Power Interface, Alarm horn, Wall hanging hole, Battery case, Select Songs key, Volume key, Colorful LED Flashing Indicator, Speaker.
- მოძრაობის სენსორი: ON/OFF switch, Micro USB Power Interface, Base support/Adjustment, LED Light Indicator, Infrared Motion Sensor.
4. დაყენება
4.1 მოწყობილობების კვება
Both the receiver and the motion sensor can be powered by batteries or via a Micro USB power supply.
- მიმღები: Open the battery case and insert the required batteries (not included). Alternatively, connect a Micro USB cable to the power interface.
- მოძრაობის სენსორი: Open the battery compartment and insert the required batteries (not included). Alternatively, connect a Micro USB cable to the power interface.
შენიშვნა: ელემენტები არ მოყვება და ცალკე უნდა შეიძინოთ.
4.2 მონტაჟი
The receiver and sensor are designed for easy installation.
- მიმღები: The receiver features self-adhesive installation. Choose a suitable indoor location and secure it using the adhesive or by hanging it on a wall using the wall hanging hole.
- მოძრაობის სენსორი: The detector is wall-mounted. Secure it in your desired location using the provided screws or adhesive.
4.3 Adjusting Sensor Angle
To optimize detection and avoid false alarms, adjust the motion sensor's angle. The sensor offers 180° and 360° adjustable angles.
Image 3: Illustration of the motion sensor's adjustable angle (180° and 360°) and its detection range of approximately 2-8 meters (6.6-26 feet). It also shows the transmission range of up to 280 meters (918 feet) between the sensor and receiver.
The detection range is approximately 2 to 8 meters (6.6 to 26 feet). Position the sensor to cover the desired area while minimizing exposure to irrelevant movements (e.g., pets, swaying curtains).
5. საოპერაციო ინსტრუქციები
The NineLeaf Motion Sensor Doorbell offers five distinct operational modes and various customization options.
5.1 რეჟიმების შერჩევა
Use the Mode switch key on the receiver to cycle through the following modes:
- Welcome Mode: Plays a welcome message when motion is detected. Five languages are selectable.
- კარის ზარის რეჟიმი: Functions as a traditional doorbell, playing one of 36 selectable ringtones upon motion detection.
- განგაშის რეჟიმი: Emits a loud alarm (up to 113dB) when motion is detected, providing a security alert.
- ფერის სინათლის რეჟიმი: Activates a colored light (4 colors selectable) without sound when motion is detected. Ideal for silent alerts or individuals with hearing disabilities.
- განათების რეჟიმი: Activates a white light for 2 minutes upon motion detection. Features 4 levels of brightness adjustment.
Image 4: Visual representation of the doorbell's features, including 4 light colors, 4 volume levels (25-113dB), Welcome Mode with 5 languages, Doorbell Mode with 36 ringtones, and Alarm Mode with a 110dB loud alarm.

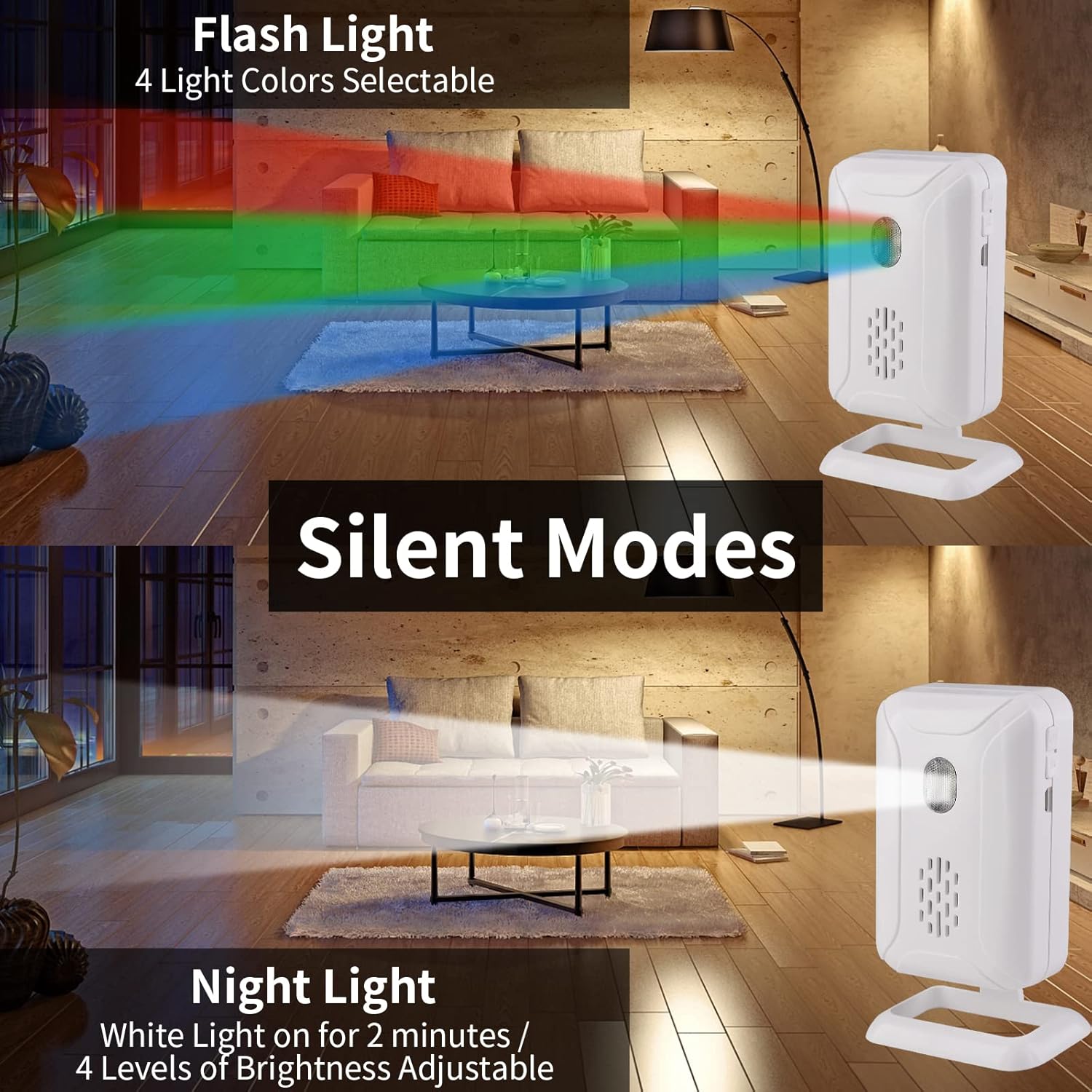

Image 5: Depicts the silent modes, specifically the Flash Light mode with 4 selectable colors and the Night Light mode, which provides white light for 2 minutes with 4 adjustable brightness levels.
5.2 Adjusting Volume and Selecting Tones/Languages
- ხმის რეგულირება: In Welcome, Doorbell, and Alarm modes, use the Volume key on the receiver to select one of four volume levels (Loud, High, Middle, Low), ranging from 25dB to 113dB.
- ზარის მელოდიის შერჩევა: In Doorbell mode, use the Select Songs key to choose from 36 available ringtones.
- ენის შერჩევა: In Welcome mode, use the Select Songs key to cycle through the 5 selectable welcome languages.
- სიკაშკაშის/ფერის რეგულირება: In Color Light and Lighting modes, the Volume key adjusts brightness, and the Select Songs key changes the light color (for Color Light mode).
Image 6: Illustrates the variety of sounds available, including 36 doorbell songs and 5 welcome songs, enhancing the customization of the receiver's alerts.
5.3 DIY Pairing and Expandable System
The system supports DIY pairing, allowing you to customize your setup:
- Each receiver can learn a maximum of 32 wireless sensor accessories (infrared, vibration, magnetic, etc.) and 8 remote controllers.
- You can add additional transmitters (sensors) and receivers as needed to expand your coverage.
Image 7: Depicts an expandable system, demonstrating how additional sensors and remote controllers can be added to cover a larger area, such as a house with multiple entry points.
6. მოვლა
- დასუფთავება: გაწმინდეთ მოწყობილობები რბილი, მშრალი ქსოვილით. არ გამოიყენოთ აბრაზიული საწმენდები ან გამხსნელები.
- ბატარეის გამოცვლა: When the device's performance degrades or the indicator light signals low power, replace the batteries in both the receiver and the sensor. Ensure correct polarity.
- გარემო პირობები: Avoid exposing the devices to extreme temperatures, direct sunlight, or excessive moisture.
7. Დიაგნოსტიკა
| პრობლემა | შესაძლო მიზეზი | გამოსავალი |
|---|---|---|
| მოწყობილობა არ ირთვება. | Low or dead batteries; incorrect battery installation; USB cable not connected properly. | Replace batteries, ensuring correct polarity. Check USB cable connection and power source. |
| No alert when motion is detected. | Sensor out of range; sensor angle incorrect; receiver volume too low; sensor or receiver OFF. | Ensure sensor and receiver are within 280m range. Adjust sensor angle. Increase receiver volume. Turn ON both devices. |
| ცრუ განგაში. | Sensor detecting unintended movement (e.g., pets, wind, sunlight). | Adjust sensor angle and placement to focus on the desired detection area. Avoid direct sunlight. |
| Poor transmission range. | Obstructions (walls, metal objects); interference. | Relocate receiver and sensor to minimize obstructions. Avoid placing near large metal objects or other wireless devices. |
8. სპეციფიკაციები
- ბრენდი: NineLeaf
- მოდელის ნომერი: KS-SF20R
- დენის წყარო: Battery Powered (batteries not included) or Micro USB
- გადაცემის მაქსიმალური დიაპაზონი: 280 მ-მდე (918 ფუტი)
- მოძრაობის გამოვლენის დიაპაზონი: Approximately 2-8m (6.6-26ft)
- სამონტაჟო ტიპი: Surface (Receiver: self-adhesive; Sensor: wall-mounted)
- ხმის დონეები: 4 levels (25dB to 113dB)
- ზარის მელოდიები: 36 არჩევა
- Welcome Languages: 5 არჩევა
- ღია ფერები: 4 selectable (Color Light Mode)
- სიკაშკაშის დონეები: 4 adjustable (Lighting Mode)
- გაფართოებადობა: Each receiver supports up to 32 wireless sensors and 8 remote controllers.
- ნივთის წონა: დაახლოებით 7 უნცია
- პაკეტის ზომები: დაახლოებით 6.65 x 4.02 x 2.05 ინჩი
Image 8: Displays the approximate dimensions of both the receiver and the motion sensor units in inches.
9. გარანტია და მხარდაჭერა
For warranty information or technical support, please refer to the official NineLeaf webსაიტზე ან პირდაპირ დაუკავშირდით მათ მომხმარებელთა მომსახურების სამსახურს. შეინახეთ თქვენი შესყიდვის ქვითარი გარანტიის მოთხოვნებისთვის.
