juno JSF Series SlimForm LED Surface Mount Downlights Instruction Manual

The Juno Slim Form LED Surface Mount Downlights are round fixtures designed for J-Box installation. They feature light guide technology combined with diffusing lens to conceal the LEDs from direct view and provide
uniform lens luminance. The fixtures are rated for a life of 50,000 hours with over 70% lumen maintenance. They come with a 5-yearlimited warranty.

PRODUCT DESCRIPTION

Sleek, ultra-low profile energy efficient LED surface mount downlights in multiple sizes from 5″ to 13″

Provides economical installation by mounting directly over standard and fire-rated junction boxes
Optional finish trims available for custom, designer look similar to standard recessed downlights

Provides general illumination in residential and commercial applications including multi-family and hospitality
Ideal for use in corridors, living spaces, closets, hallways, pantries, stairways, outdoor covered areas with Emergency Option and much more.

PRODUCT SPECIFICATIONS

Construction Shallow, less than 1″, solid ring with white finish Non conductive fixture for shower light applications
Optional, field installable finish trims available for 5″ and 7″ versions to change the exterior finish of fixture Optics Light quire technology combined with diffusing lens conceals the LEDs from direct view and provides uniform lens luminance.

LED Light Engine LEDs mounted directly to heatsink designed to provide superior thermal management and ensure long life 2700K, 3000K, 3500K or 4000K LED color temperature LEDs binned for 4-step McAdam ellipse color consistency 90 CRI minimum.
LED Driver Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) driver that accommodates input voltages from 120-277 volts AC at 50/60Hz
- Power factor > 0.9 at 120V input
- 120 volt driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers
- Universal voltage driver is dimmable with the use of most 0-10V wall box dimmers
- External driver is only available on 5″ and 7″ models
- For a list of compatible dimmers, see JUNOSLIMFORM-DIM.
Life Rated for 50,000 hours at >70% lumen maintenance.

Labels ENERGY STAR® certified
- Certified to the high efficacy requirements of California T24 JA8-2016
- CSA listed for US and Canada
- Suitable for wet locations (covered ceilings).

Testing
All reports are based on published industry procedures; actual performance may differ as a result of the end-user environment and applications. All values are design or typical values, measured under laboratory conditions at 25 °C.

Warranty

5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.

INSTALLATION

Junction Box Mounting Fixture provided with leads for direct wire connection in j-box
Installs directly to industry standard junction boxes

Compatible boxes include 4″ metal or plastic octagonal standard and fire-rated junction boxes (3 1/2″ junction box screw-hole spacing required for installation)
Minimum 2 1/8″ deep junction box required for 5″ and 7″ fixtures (no depth requirement for 11″ and larger fixtures)

Quick mount bracket provides fast installation of fully assembled fixture to junction box
Suitable for ceiling mount
Suitable for use within closet storage spaces when installed per NEC requirements. Junction box sizes vary -Verify compatibility with fixture prior to installation

DIMENSIONS

External driver available on 5″ and 7″ models only.

ROUND SPECIFICATIONS

All dimensions are in inches (centimeters) unless otherwise indicated.

One Lithonia Way
Conyers, GA 30012
Phone 1-800-705-SERV (7378)
Visit us at www.acuitybrands.com Printed in U.S.A. © 2017-2023 Acuity Brands Lighting, Inc. Rev. 09/05/23

PERFORMANCE DATA

	JSF 5IN		JSF 7IN		JSF 11IN		JSF 13IN
	120V	MVOLT	120V	MVOLT	120V	MVOLT	120V	MVOLT
Lumens	700	700	1000	1000	1300	1300	1800	1800
CRI	90CRI		90CRI		90CRI		90CRI
CCT	27K, 30K, 35K, 40K		27K, 30K, 35K, 40K		27K, 30K, 35K, 40K		27K, 30K, 35K, 40K
Voltage	120V	120V-277V	120V	120V-277V	120V	120V-277V	120V	120V-277V
Input Power	10W	10W	13W	13W	15W	15W	20W	20W
Input Current	110MA	50MA	150MA	60MA	180MA	80MA	240MA	110MA
Frequency	50/60Hz		50/60Hz		50/60Hz		50/60Hz
Power Factor	>0.9		>0.9		>0.9		>0.9

ORDERING INFORMATION

Series

Size/Lumens

Color Temperature

CRI

Voltage/Driver

Finish

JSF

Slim Form Surface Mount Downlight – Round

5IN 07LM

7IN 10LM

11IN 13LM

13IN 18LM

5″, 700 Lumens

7″, 1000 Lumens

11″, 1300 Lumens

13″, 1800 Lumens

27K

30K

35K

40K

2700K

3000K

3500K

4000K

90CRI

90+ CRI

120 FRPC** Dedicated 120V,

Forward Reverse Phase Dimming

MVOLT ZT** Universal Voltage

120V-277V, 0-10V

Dimming

White

**Limited stock remaining. See table below for available ordering options.

ACCESSORIES

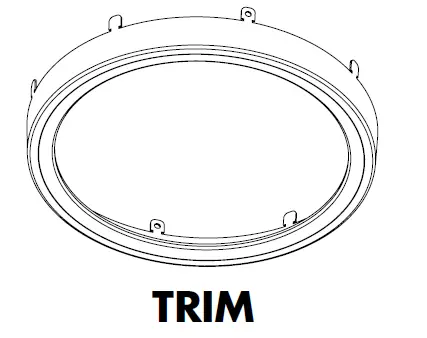

TRIM – Optional, field installable finish trim rings available to change the exterior finish of fixture.
Example: JSFTRIM 5IN BZ

Series

Size

Finish

JSFTRIM SlimForm

Accessory- Trim

5IN 5 inches

7IN 7 inches

BL Black

BZ Bronze

SN1 Satin Nickel

Notes
1 SN not available in 5IN.

**Remaining Ordering Options
JSF 120V Fixtures
Option Value	Catalog Number
5IN	JSF 5IN 07LM 27K 90CRI 120 FRPC WH M6
5IN	JSF 5IN 07LM 30K 90CRI 120 FRPC WH M6
7IN	JSF 7IN 10LM 27K 90CRI 120 FRPC WH M6
7IN	JSF 7IN 10LM 35K 90CRI 120 FRPC WH M6
7IN	JSF 7IN 10LM 40K 90CRI 120 FRPC WH M6
11IN	JSF 11IN 13LM 30K 90CRI 120 FRPC WH M6
11IN	JSF 11IN 13LM 35K 90CRI 120 FRPC WH M6
13IN	JSF 13IN 18LM 27K 90CRI 120 FRPC WH M6

**Remaining Ordering Options
JSF MVOLT Fixtures
Option Value	Catalog Number
5IN	JSF 5IN 07LM 27K 90CRI MVOLT ZT WH M6
5IN	JSF 5IN 07LM 30K 90CRI MVOLT ZT WH M6
7IN	JSF 7IN 10LM 27K 90CRI MVOLT ZT WH M6
7IN	JSF 7IN 10LM 30K 90CRI MVOLT ZT WH M6
13IN	JSF 13IN 18LM 30K 90CRI MVOLT ZT WH M6
13IN	JSF 13IN 18LM 40K 90CRI MVOLT ZT WH M6

To view a spec sheet of our newly launched Switchable 5CCT fixtures see JSF-5IN-7IN or JSF-11IN-13IN

PHOTOMETRICS

JSF 5IN 27K, 2700K LEDs, input watts: 9.72, delivered lumens: 727, LM/W = 74.8, test no. ISF 33599, tested in accordance to IESNA LM-79.

JSF 7IN 27K, 2700K LEDs, input watts: 12.8, delivered lumens: 1060, LM/W = 82.8, test no. ISF 33600, tested in accordance to IESNA LM-79.

JSF 11IN 27K, 2700K LEDs, input watts: 15 delivered lumens: 1305, LM/W = 85.9, test no. ISF 33661, tested in accordance to IESNA LM-79.

JSF 13IN 27K, 2700K LEDs, input watts: 20.2, delivered lumens: 1779, LM/W = 88, test no. ISF 33663, tested in accordance to IESNA LM-79.

For 30K fixtures, use 1.02 multiplier; For 35K fixtures, use 1.03 multiplier, For 40K fixtures, use 1.07 multiplier.
