Juniper APLSH Occasional Tables Angled Post Leg and X Base Instruction Manual
Angled Post Leg Tables
Overview
⚠ Occasional Tables All parts listed are for a single table; additional parts will be needed for additional tables.
Parts List
*Tables will have 3 or 4 legs depending on surface size.
36” Round Surface
36″ Round Sitting-Height Table
Find center of surface by measuring 18″ from edge. Once found, measure 2 1/4″ from center of surface to the edge of leg plate.
36″ Round Standing-Height Table
Find center of surface by measuring 18″ from the edge. Once found, measure 5 3/4″ from center of surface to edge of leg plate.
42” Round Surface
42″ Round Sitting-Height Table
Find center of surface by measuring 21″ from edge. Once found, measure 5 5/16″ from center of surface to edge of leg plate.

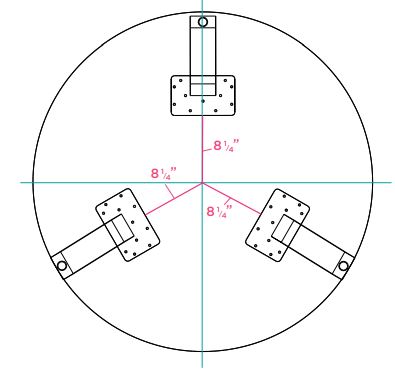

42″ Round Standing-Height Table
Find center of surface by measuring 21″ from edge. Once found, measure 8 1/4″ from center of surface to edge of leg plate.
48” Round Surface
48″ Round Sitting-Height Table
Find center of surface by measuring 24″ from edge. Once found, measure 7 3/4″ from center of surface to the edge of leg plate.

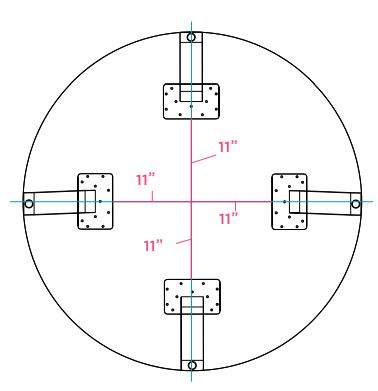

48″ Round Standing-Height Table
Find center of surface by measuring 24″ from the edge. Once found, measure 11″ from center of surface to edge of leg plate.
36”x 36” Squared Surface
36″ x 36″ Square Sitting-Height Table
Find center of surface by measuring 18″ from edge. Once found, measure 11 1/4″ from center of surface to edge of leg plate.
36″ x 36″ Square Standing-Height Table
Find center of surface by measuring 18″ from edge. Once found, measure 7 1/2″ from center of surface to edge of leg plate.
49”x 48” Squared Surface
49″ x 48″ Square Sitting-Height Table
Find center of surface by measuring 24″ from edge. Once found, measure 19 4/5″ from center of surface to the edge of leg plate.

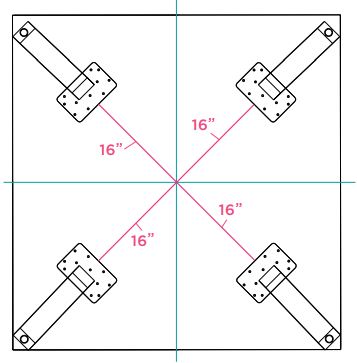

49″ x 48″ Square Standing-Height Table
Find center of surface by measuring 24″ from the edge. Once found, measure 16″ from center of surface to edge of leg plate.

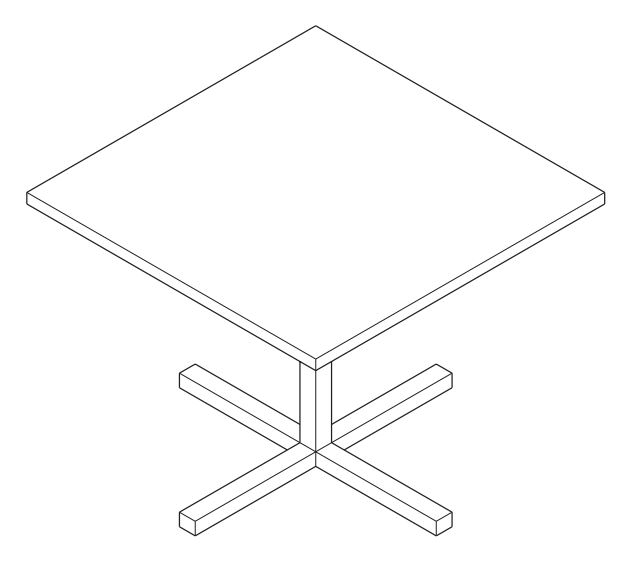

X-Base Tables
Overview
⚠ Occasional Tables All parts listed are for a single table; additional parts will be needed for additional tables.
Parts List
*Base will differ depending on surface size.

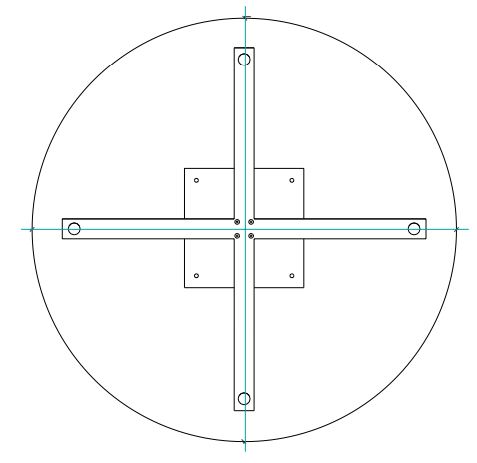

Round Surface
Align X-Base to center of surface and secure plate with wood screws.
- 36″ Surface Center: 18″
- 42″ Surface Center: 21″
- 48″ Surface Center: 24″

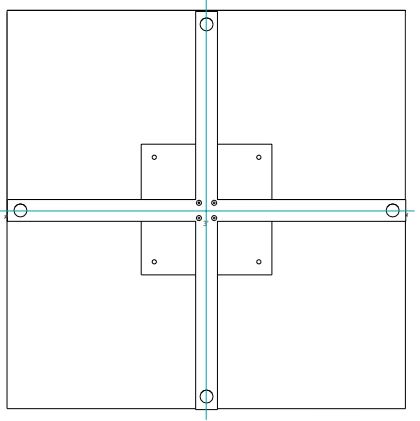

Square Surface
Align X-Base to center of surface and secure plate with wood screws.
- 36″x 36″ Surface Center: 18″
- 49″x48″ Surface Center: 24″
