SoftSecure
COMMODE WITH BACKREST
PRODUCT MANUAL
SoftSecure Commode with Backrest
Scan Here
With Your Phone To
Get Started!
PRIVACY.FLOWCODE.COM
COMMODE WITH BACKREST
Now with Microban® Antimicrobial Technology
www.shopjourney.com
INTRODUCTION AND NOTES
Welcome to Journey Health & Lifestyle
Thank you for purchasing your SoftSecure Commode with Backrest. You’ve invested in a high-quality, premium materials commode with backrest that will facilitate comfort and safety.
Safety Instructions
- Read these instruction for use carefully.
- All components should be checked for damage and a secure fit prior to use.
- Approved for indoor use only.
- Clothing or body parts can be pinched when sitting down, standing up, or inserting the toilet bucket.
- Prevent unauthorized use, for example, by children.
- Take note of the maximum user weight permitted.
PRODUCT DESCRIPTION
Parts of the Product
| 1. Armrest | |
 |
2. Seat |
| 3. Height Adjustable Leg | |
| 4. Rubber Tip | |
|
5. Backrest |
| 6. Commode Bucket |
MICROBAN® ANTIMICROBIAL PRODUCT PROTECTION
Microban® Antimicrobial Product Protection
- Microban® antimicrobial* product protection is built-in to make your Commode With Backrest last longer and look cleaner
- Microban® antimicrobial* product protection helps prevent the uncontrolled growth of bacteria, mold and mildew on the Commode With Backrest and provides 24/7 cleanliness protection
Microban® is a registered trademark of Microban Products Company
* These antimicrobial properties are built-in to protect the Commode With Backrest. The Commode With Backrest does not protect users or others against bacteria, viruses, germs or other disease organisms
INSTRUCTIONS FOR USE
Assembly
Step 1

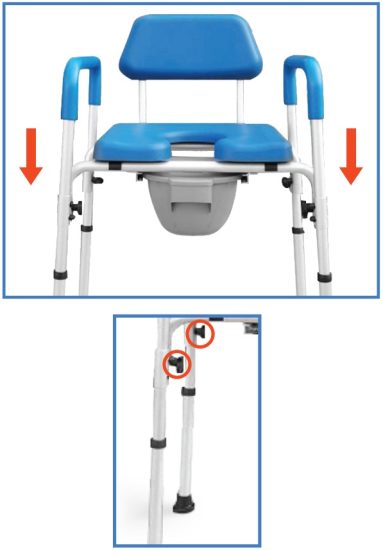

Attach armrests to the frame by turning the knobs and sliding the armrest into the tubes located on each side of the seat.
Step 2

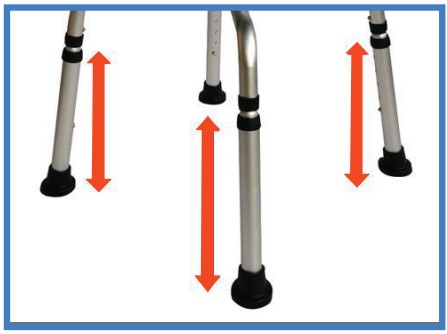

Attach the legs to the frame by depressing push buttons into the tubes located on each side of the legs. Make sure that the push buttons “snap” correctly through holes and are stable and adjusted to the same height.
Step 3

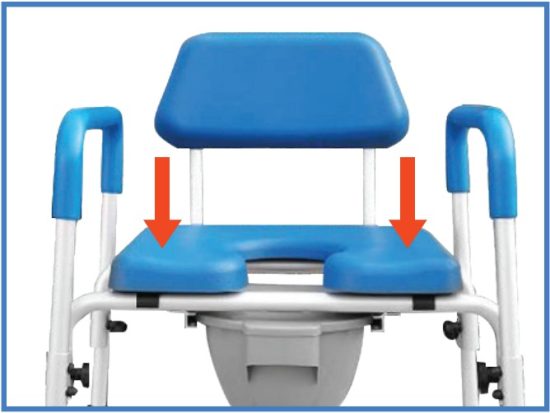

Attach the backrest tube to the frame.
Step 4
Slide Commode Bucket into guide rails under the seat.
SPECIFICATIONS AND WARRANTY
Product Specifications
| Product Dimension | (26”-27”) x 18” x (31”-35”) |
| Weight Capacity | 300 lbs |
| Packaging Dimensions | 22” x 10” x 25” |
| Net Weight | 20 lbs |
| Material on Product | Aluminum |
Warranty
Journey Health & Lifestyle warrants the SoftSecure Commode With Backrest frame to be free from defects in materials, workmanship assembly for twelve (12) months from the original purchase date. The warranty does not extend to non-durable components such as the rubber tips.
SoftSecure
COMMODE WITH BACKREST
If you have any questions, call us at our toll free number:
1-800-958-8324
