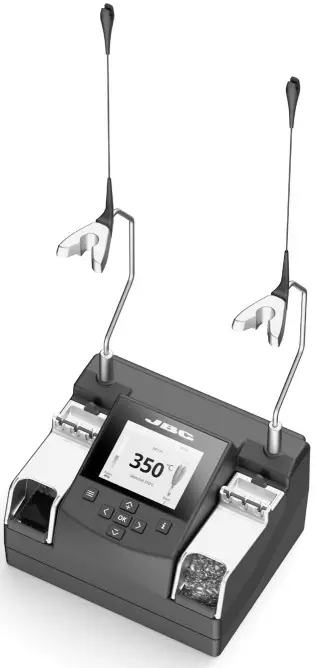

JBC NAE-9C (100 V) 2 Tool Nano Control Unit

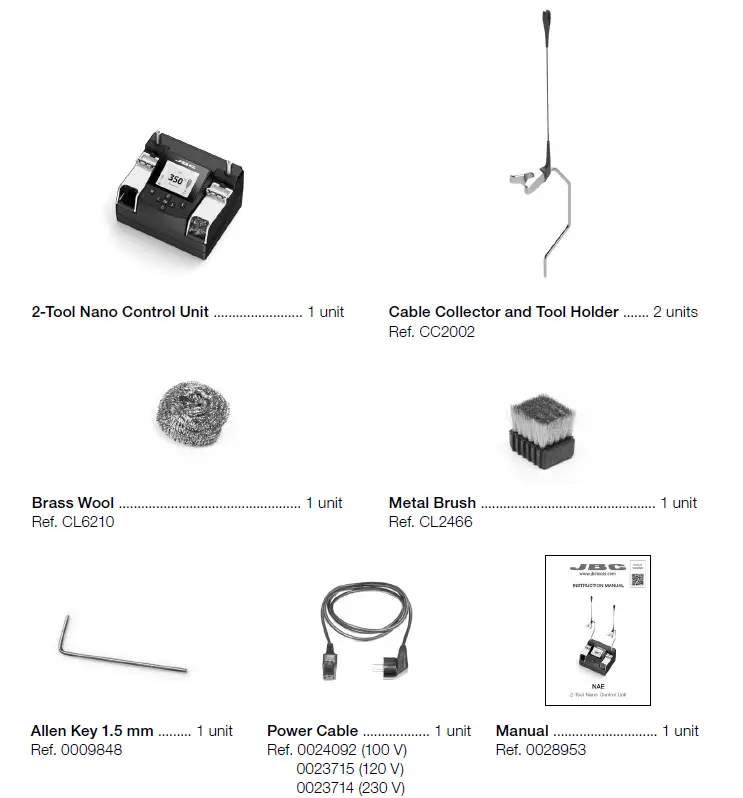

Packing List
The following items are included:

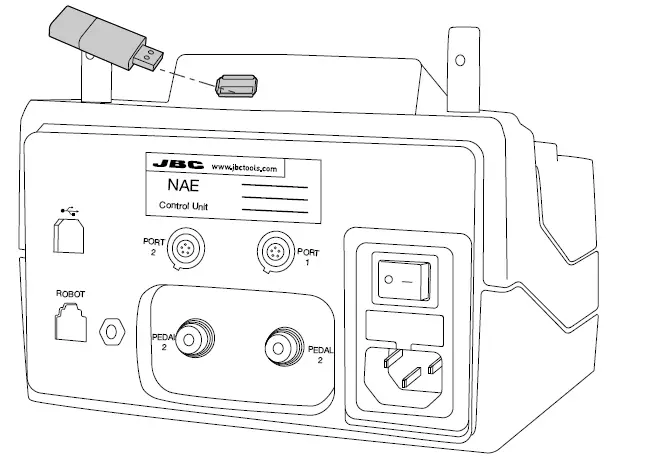

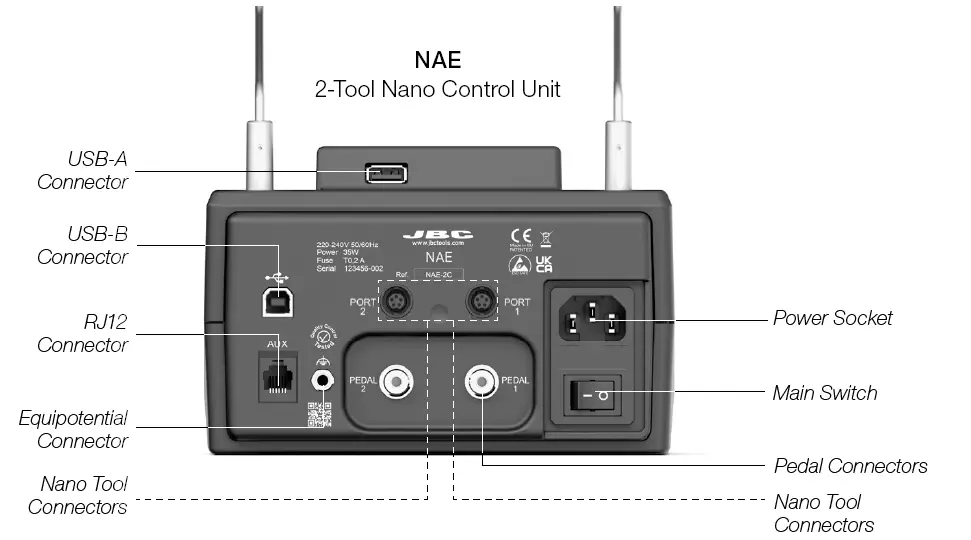

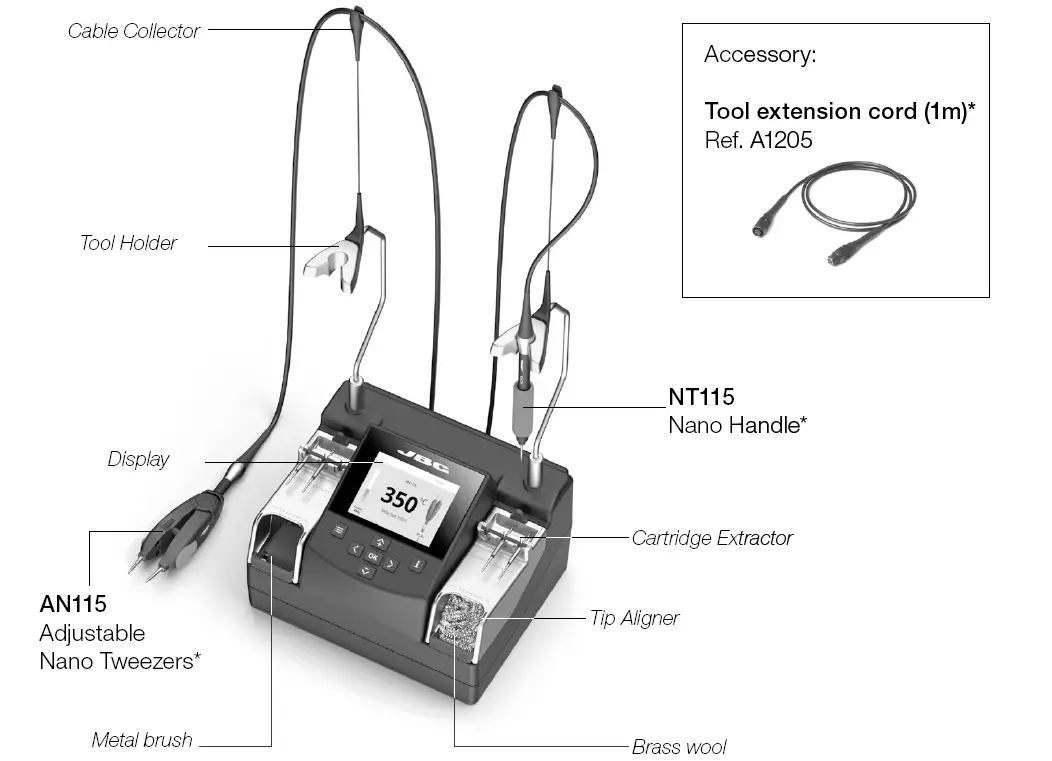

Features and Connections

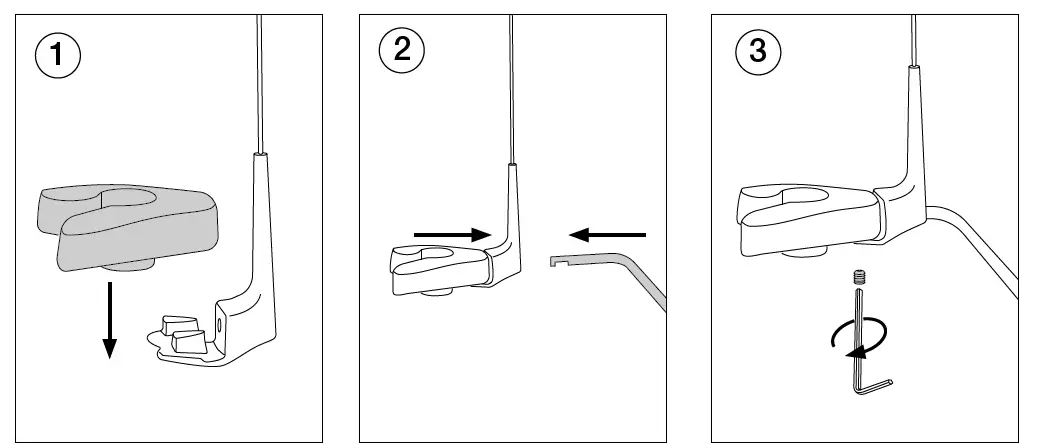

Tool Holder Assembly

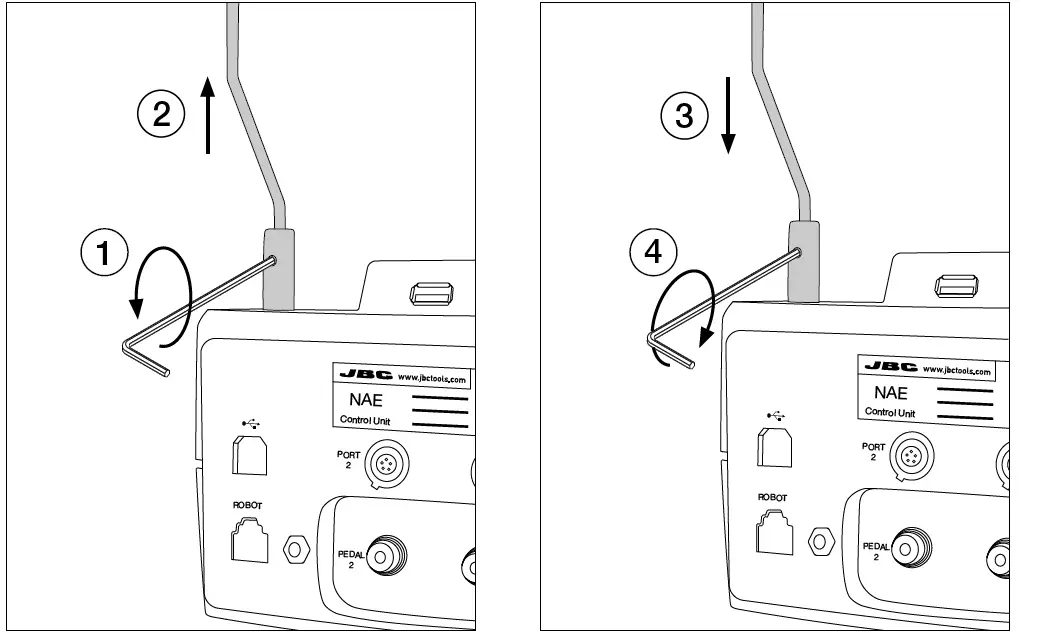

Tool Holder Replacement
- Loosen the screw (1) and remove the tool holder (2).
- Insert the new tool holder (3) and tighten the screw (4)
Connection: FAE with NAE Control Unit
JBC´s NAE control unit feature a connector that allows connecting it to the fume extractor using an RJ12 cable. This way, the fume extractor automatically starts extraction when the soldering tool is in use.
The minimum required software version for NEA control units is 8886160. To ensure correct operation, always update the control units with the latest available software Version, which can be downloaded from www.jbctools.com/software.html .

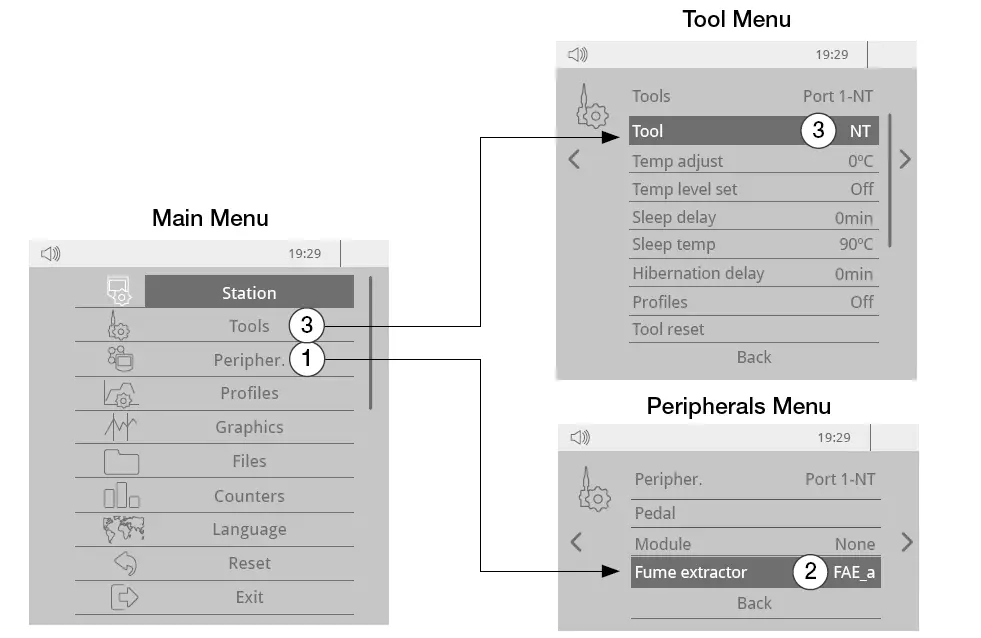

From version 8886784 on, the connected fume extractor can be configured and controlled through the peripherals menu (1) of the control unit.
Each control unit detects the fume extractor as “FAE_a” (2). The tool that should activate the fume extraction needs to be configured on the control unit main menu through the tool menu option (3).
Connect up to 4 of any JBC control units to the fume extractor connectors (STATION 1, STATION 2, etc.) Each tool connected to these control units can start and stop the fume extractor.

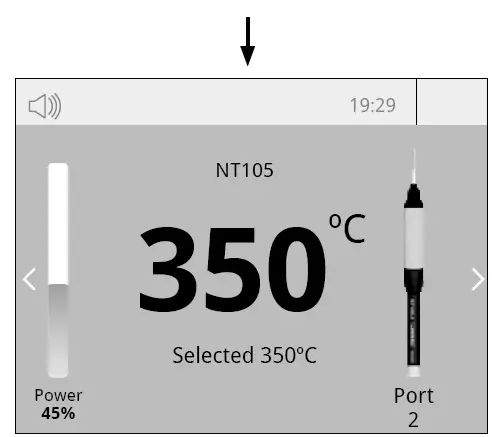

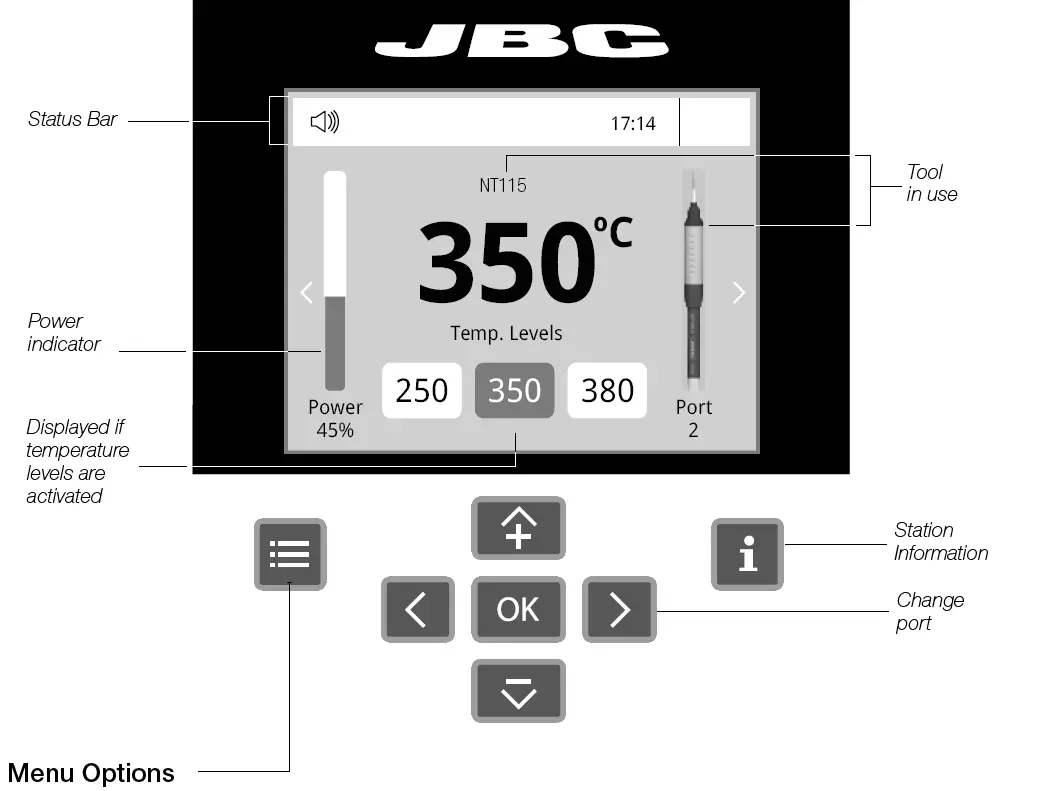

Work Screen
The work screen offers an intuitive user interface which provides quick access to station parameters. Default PIN: 0105

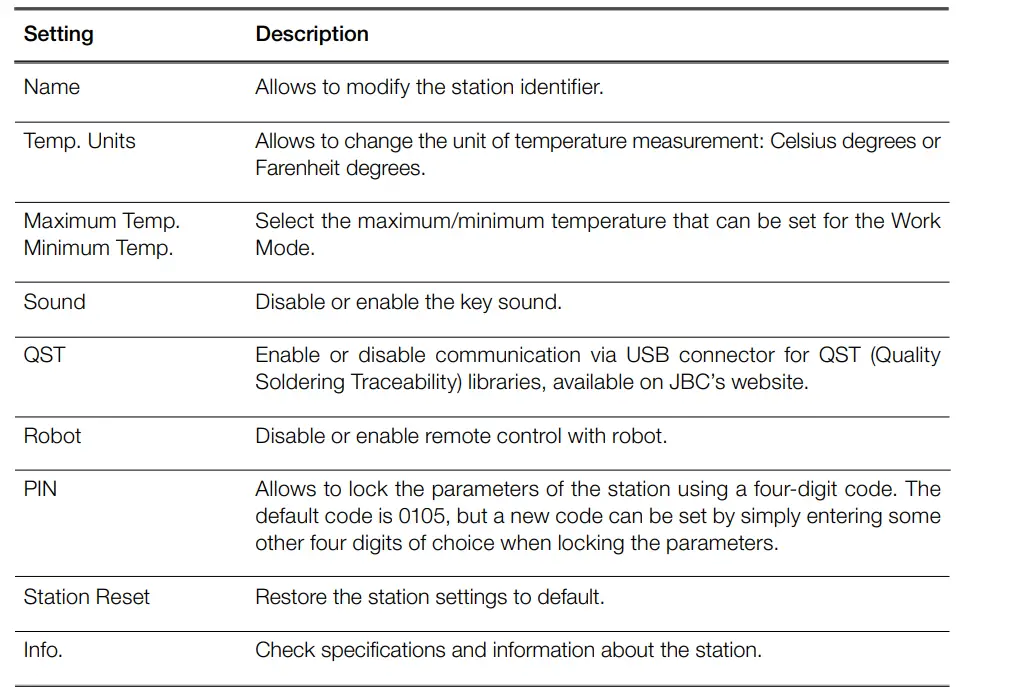

Set the station parameters
Set the tool parameters
Display the hours worked in each cycle
It is possible to choose the language from a list.
Restore station parameters to default values
Troubleshooting
Station troubleshooting available on the product page on www.jbctools.com
System Notifications
The following icons will be displayed on the screen’s status bar.
USB flash drive is connected
Station is controlled by a PC.
Station is controlled by a robot downloaded to the station.
Station software update. Press INFO to start the process.
Warning. Press INFO for failure description
Error. Press INFO for failure description, the type of error and how to proceed.
Operation
JBC’s Exclusive Heating System
This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature.
As a result, tip life increases by 5.

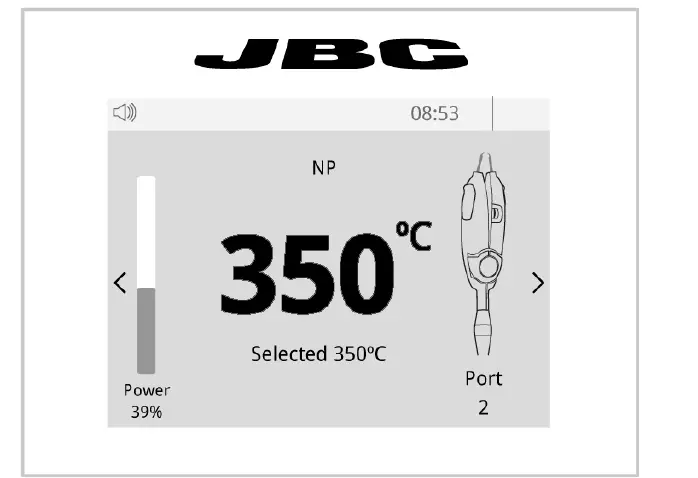

Work

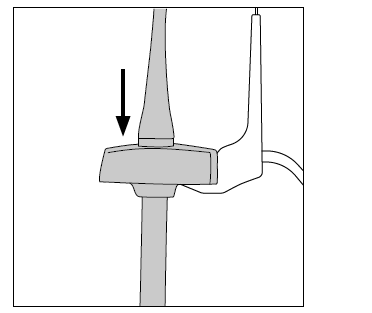

When the tool is lifted from the holder the tip will heat up to the selected temperature.
Tool Settings:
- Operating Temp. and Temp. Levels
- Press
, select Tool Settings and activate the Temp. Levels option. - Change Work temperature and Temp.
- Levels from 90 to 450 °C.
steps of #5 °C / °F

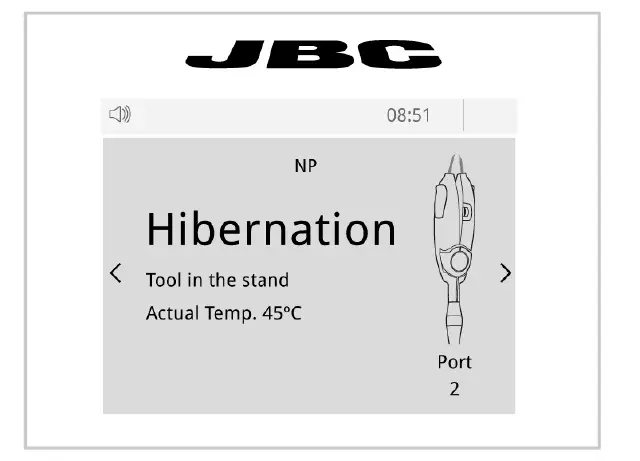

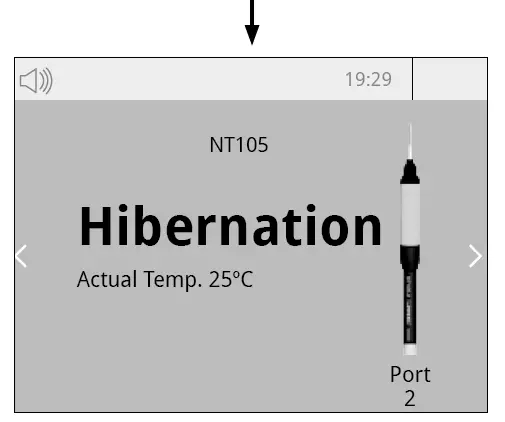

Hibernation
When the tool is in the holder, the power is cut off and the tool cools down to room temperature.
Tool Settings:
- Hibernation
Change Hibernation delay from 0 to 60 min or no Hibernation.
Changing Cartridges
Save time and change cartridges safely without having to switch the station off.
Removing
Place the cartridge into the extractor slot (1) and pull the handle to remove the cartridge (2).
Inserting
Push the new cartridge into the handle up to the reference ring*.
Aligning

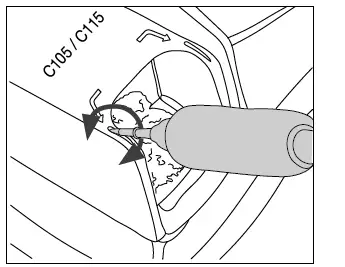

Use the holes to rotate the cartridges for proper alignment.

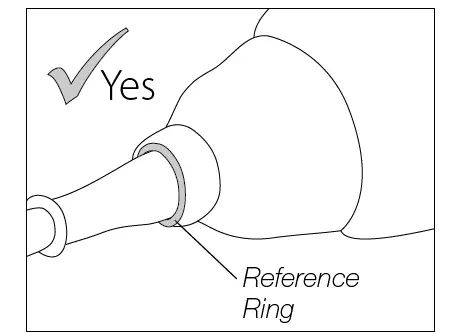

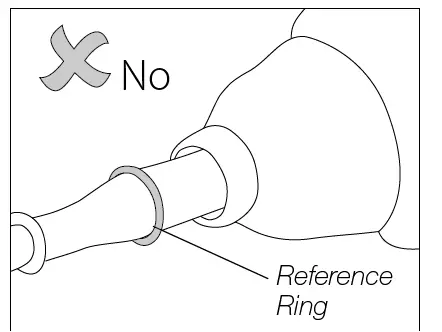

*Important It is essential to insert the cartridges up to the reference ring for a proper connection.
Example:
Chip Component Rework Process using Tweezers and Pedal
The pedal is frequently used to rework components with tweezers.
AN115, JBC’s Adjustable Nano Tweezers, is the most effective tool for desoldering chip components.
It also facilitates rapid placement and soldering of the components by using P405 Pedal with JBC’s NAE Control Unit.
Connections
Connect P405 Pedal to the same port number to which AN115 Nano Tweezers are connected. In the Peripherals menu, for “Pedal Activa- tion Mode” choose between “pressed” and “released”.
* “Press Mode” previously selected

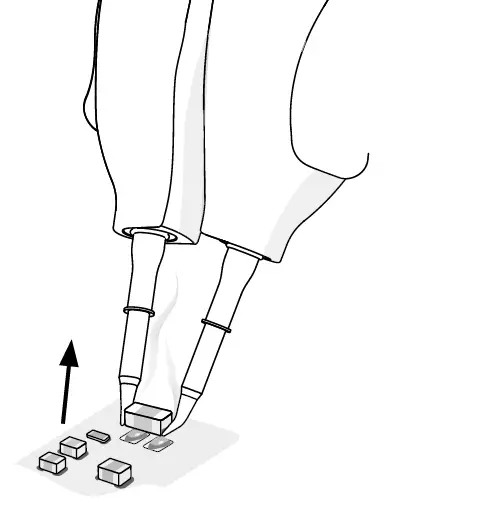

Desoldering*
Lift the tweezers from the holder, press and hold the pedal to activate the tweezers and desolder the component. Once the pedal is released, the tweezers enter in hibernation mode and cool down.

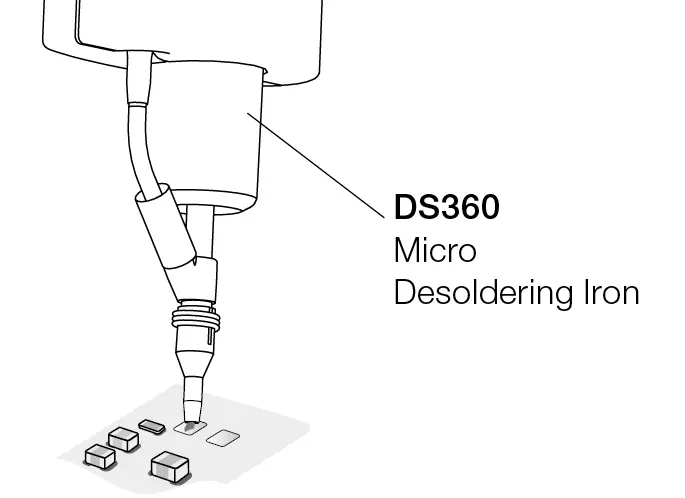

Pad Cleaning
Clean the pads with JBC’s desoldering tool DS360. For this operation, JBC’s desoldering station CS is needed.

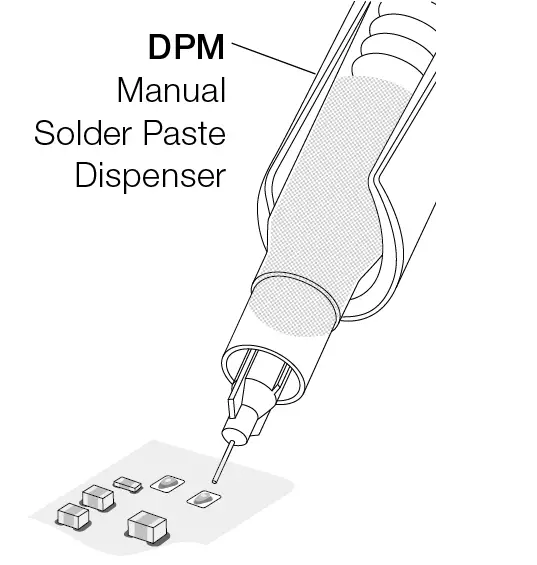

Solder Paste
Dispensing Apply the needed amount of solder paste to solder the new chip component. It is recommended to use JBC’s DPM Solder Paste Dispenser.

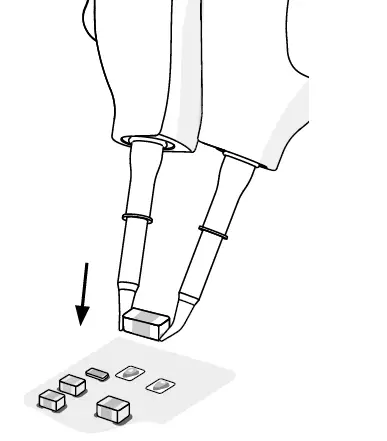

Placing
Do not press the pedal. Use the tweezers to position the component on the previously tinned pad.
Note: The inactive tweezers prevent the component from heating up prematurely.

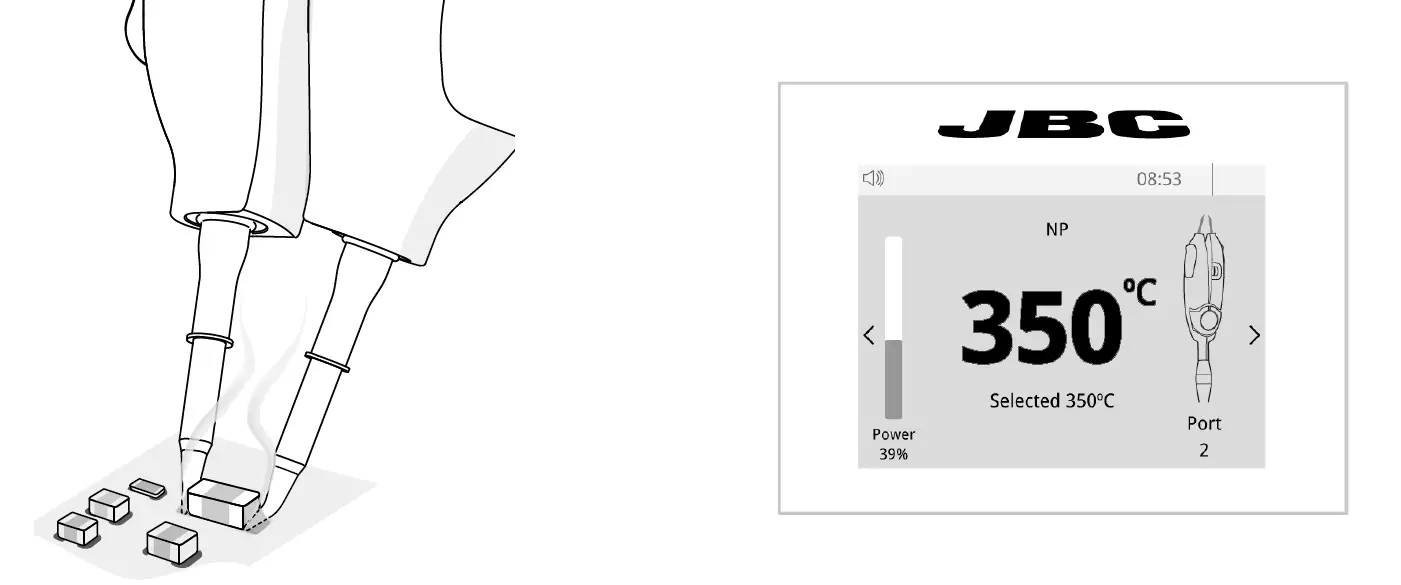

Soldering
Once in position, press and hold the pedal to activate the tweezers and perform the soldering.

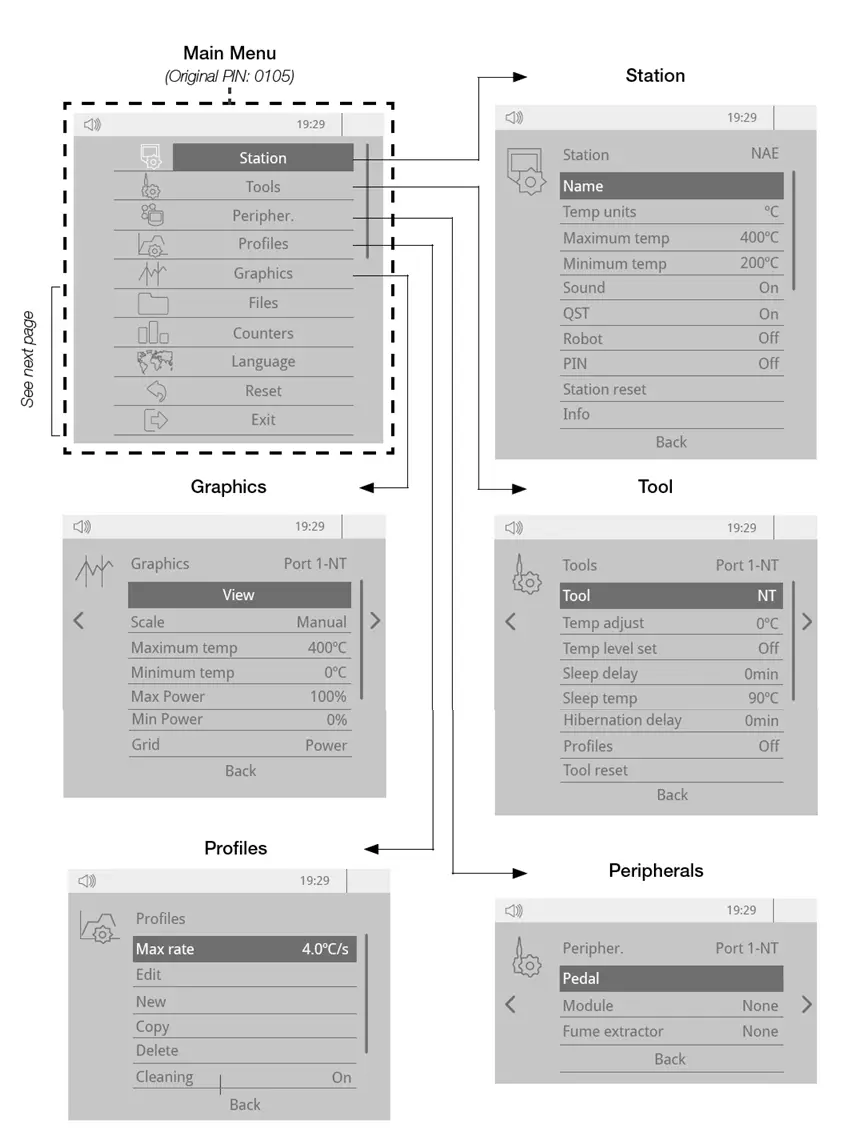

Station
Tool

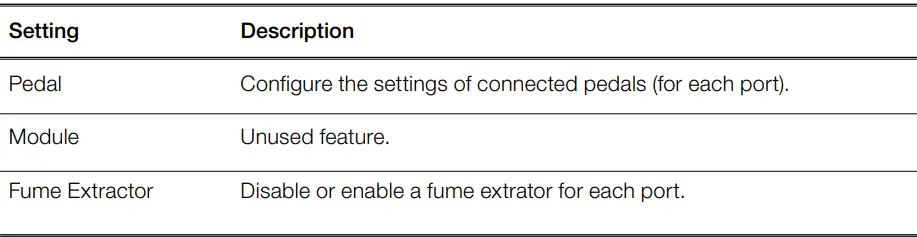

Peripherals

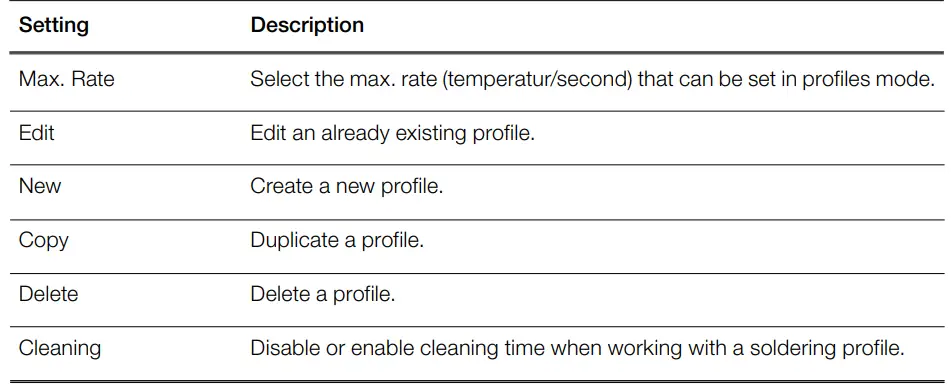

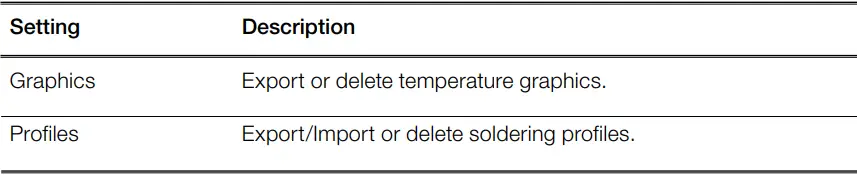

Profiles

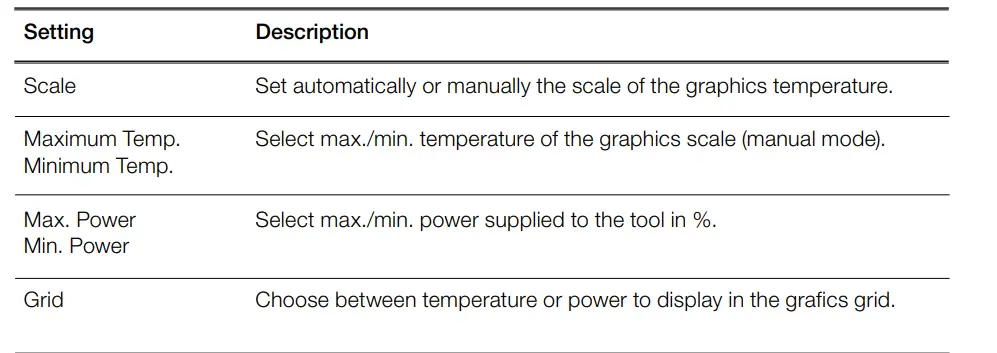

Graphics
Files

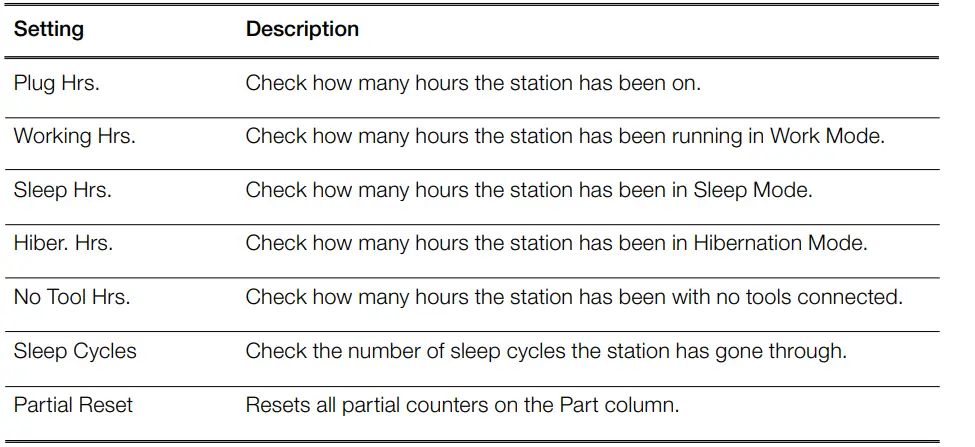

Counters

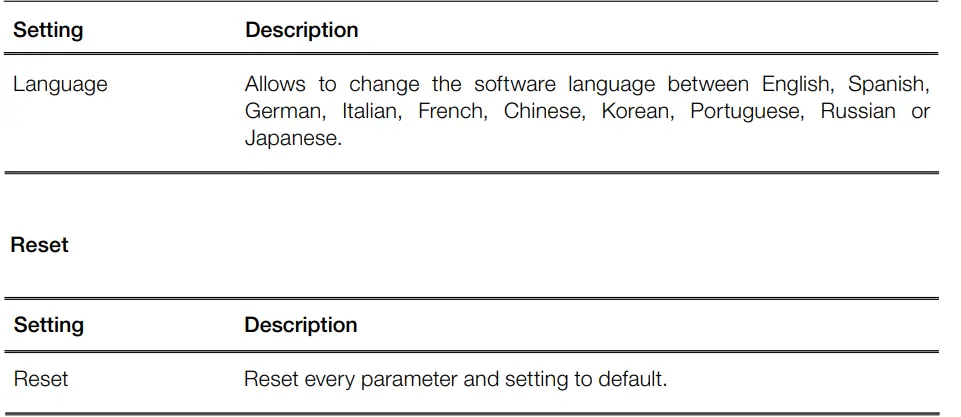

Language
Changing Soft Foam Grips
Soft foam grips for NT115 Nano Handles ensure better manual control of the handle and greater comfort when working.
Soft foam grips are available in 3 different colors:
- N8662 green Ref. 0018662 (incl. 4x grips)
- N3308 blue Ref. 0023308 (incl. 4x grips)
- N3309 black Ref. 0023309 (incl. 4x grips)
Replace the grips easily using the included fitters as shown in the following pictures.
Inserting Fitters
Insert the fitters into the new grip.

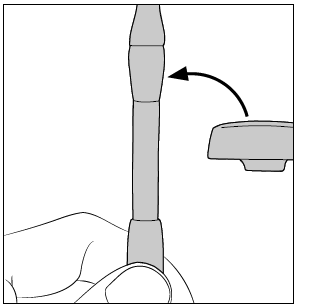

Assembling Grip
Push the grip with the fitters onto the nano handle.
Removing Fitters
To remove the fitters, hold the grip and pull the fitters out. Use pliers if necessary.
Changing the Tip Cleaning System
- Pull back the tab (1) to remove the cleaning system (2).
- Remove the splashguard from the drawer and insert a new one. Reattach the cleaning system to the station.
Maintenance
Before carrying out maintenance, always switch the device off and disconnect it from the mains. Allow the equipment to cool down.
- Clean the station screen with a glass cleaner or a damp cloth.
- Use a damp cloth to clean the casing and the tool. Alcohol can only be used to clean the metal parts.

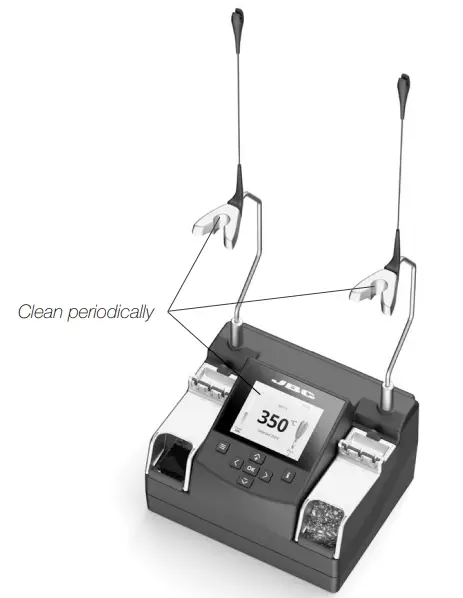

- Periodically check that the metal parts of the tool and stand are clean so that the station can detect the tool’s status.
- Maintain the tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty surfaces reduce heat transfer to the solder joint.
- Periodically check all cables and tubes.
- Replace any defective or damaged pieces.
Use original JBC spare parts only.-

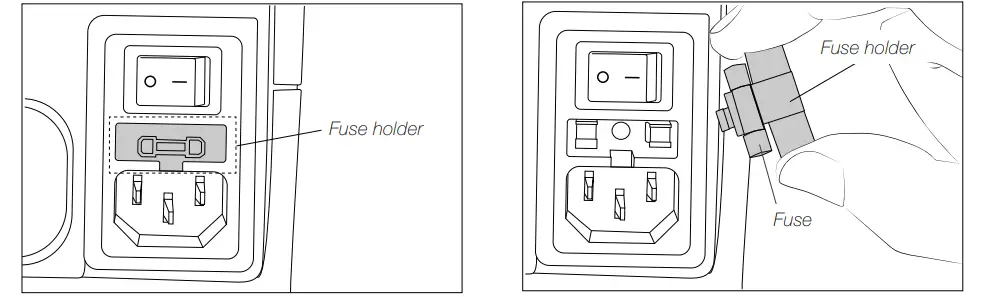

Replace a blown fuse as follows:
- Pull off the fuse holder and remove the fuse. If necessary use a tool to lever it off.
- Press the new fuse into the fuse holder and replace it in the station.
Repairs should only be performed by a JBC authorized technical service.
Safety
It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion.
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode. The soldering tip or nozzle, the metal part of the tool and the stand may still be hot even when the station is turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflammable products to ignite.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also people with reduced physical, sensory or mental capabilities or lack of experience provided that they have been given adequate
supervision or instruction concerning the use of the appliance and understand the hazards involved.
Children must not play with the appliance. - Maintenance must not be carried out by children unless supervised.
Specifications
NAE
2-Tool Nano Control Unit
- Ref. NAE-9C 100 V 50/60 Hz. Input fuse: 0.5 A. Output: 8.5 V.
- Ref. NAE-1C 120 V 50/60 Hz. Input fuse: 0.5 A. Output: 8.5 V.
- Ref. NAE-2C 230 V 50/60 Hz. Input fuse: 0.2 A. Output: 8.5 V.
- Peak Power (Tool): 14 W per tool
- Selectable Temperature: 90 – 450 °C / 190 – 840 ºF
- Idle Temp. Stability (still air): ±1.5 ºC / ±3 ºF (meets and exceeds IPC J-STD-001)
- Temp Accuracy: ±3 % (using reference cartridge)
- Temp Adjustment: ±50 ºC / ±90 ºF (through station menu setting)
- Tip to Ground Voltage/Resistance: Meets ANSI / ESD S20.20
- Connections: USB-A / USB-B / pedal connectors RJ12 connector
- Ambient Operating Temp: 10 – 50 ºC / 50 – 122 ºF
- Control Unit Dimensions: 140 x 170 x 125 mm
(L x W x H) 5.51 x 6.69 x 4.92 in - Total Net Weight: 2.12 kg / 4.67 lb
- Total Package Dimensions/Weight: 280 x 280 x 164 mm / 3.31 kg
(L x W x H) 11.02 x 11.02 x 6.46 in / 7.30 lb
Complies with CE standards.
ESD Safe.
Warranty
JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor.
Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase.
If you register, you will receive e-mail notifications about new software updates for your registered product.
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility
www.jbctools.com
Product website
FAQ
- Q: How can I troubleshoot station issues?
A: You can find troubleshooting guidance on the product page at www.jbctools.com for assistance with station issues. - Q: Can I connect multiple JBC control units to the fume extractor?
A: Yes, you can connect up to 4 JBC control units to the fume extractor connectors for efficient operation.
