JBC GN Nitrogen Generator Module

This manual corresponds to the following reference:  GN-A

Packing List

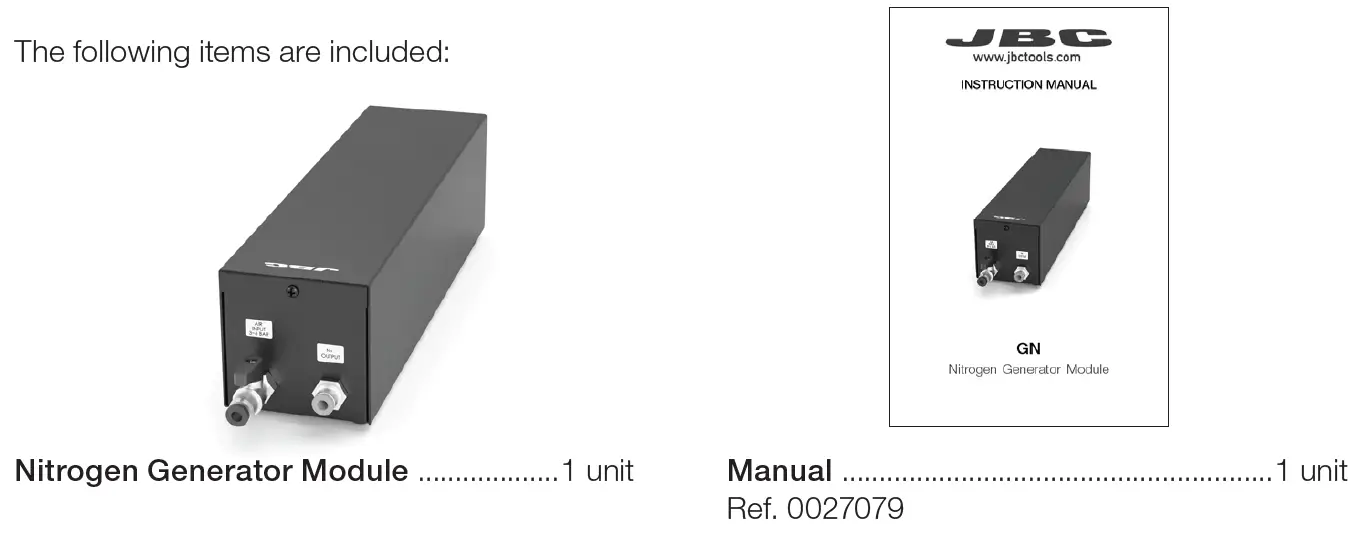

The following items are included:

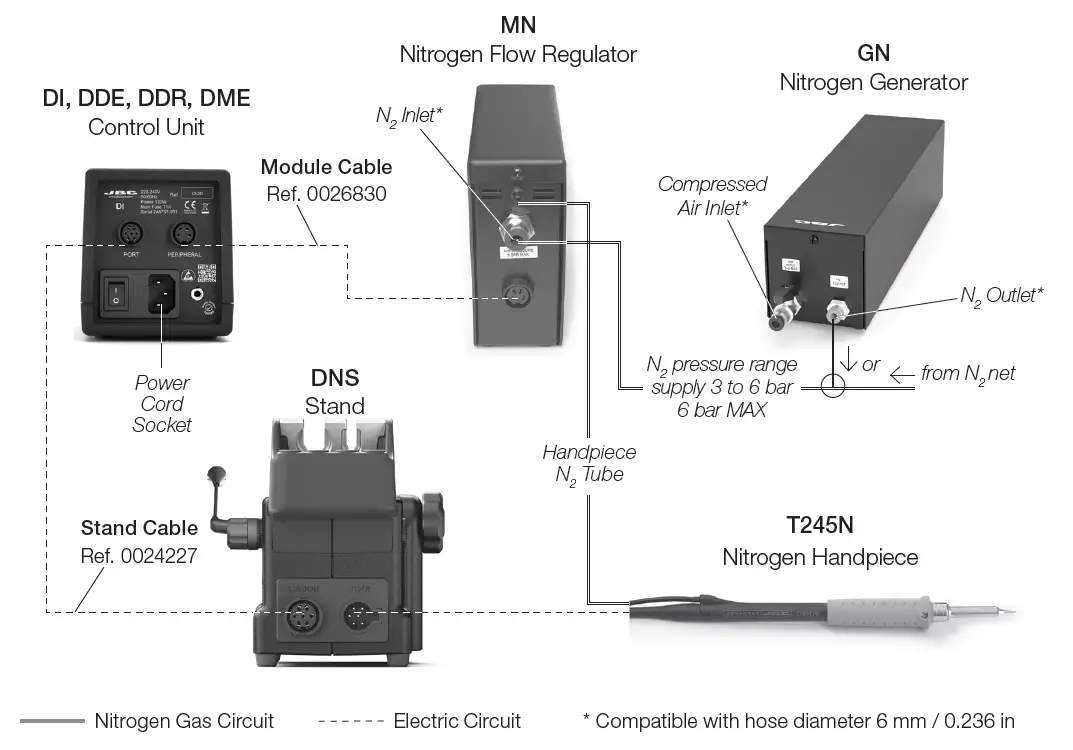

Connection

Description

GN is a Nitrogen Generator Module. Nitrogen gas (N2) simply obtained from compressed air through action of a high-performance separation membrane.
Features of the compressed air:

• Dry air and without oil
• Water filter of at least 0,01μm
• Particles filter of at least 0,3μm

The gas concentration and gas flow N2 generated, depends on the inlet pressure

	Concentration N2 (%)
	99,9% *	99,5%	99%	98%	97%	96%	95%
Pressure (bar)	Gas flow N2 (NL/min)
6	0,35	0,73	1,00	1,37	1,83	2,33	2,67
5	0,27	0,57	0,80	1,13	1,45	1,67	2,00
4	0,18	0,43	0,58	0,82	1,03	1,28	1,52

Specifications

GN
Nitrogen Generator Module
Ref. GN-A

• Ambient Operating Temperature: 10 – 50 ºC / 50 – 122 ºF
• Compressed Air Pressure: 4 – 6 bar
• Compressed Air Inlet / N2 Outlet: Hose diameter 6 mm / 0.236 in
• Gas Concentration: Up to 99%
• Concentrated N2 Gas Flow: 1 – 2 SLPM
• Modul Dimensions: 85 x 90 x 355 mm
  (L x W x H) 3.35 x 3.54 x 13.98 in
• Total Net Weight: 2 kg / 4.41 lb
• Total Package Dimensions / Weight: 368 x 368 x 125 mm / 2.6 kg
  (L x W x H) 14.49 x 14.49 x 4.92 in / 5.73 lb

Complies with CE standards.
ESD safe.

Warranty

JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour.
Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility.
