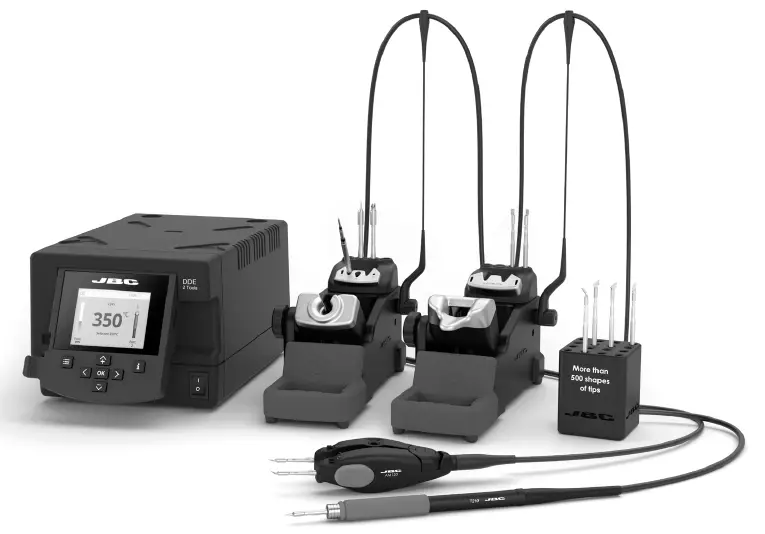

JBC DDPE-9QC (100 V) 2 Tool Precision Rework Station
JBC 2-Tool Precision Rework Station
Visit www.jbctools.com for more information.
Introduction
The JBC 2-Tool Precision Rework Station is designed for precise soldering and rework tasks. This guide provides a comprehensive overview of the station’s components and installation instructions.
References
- DDPE-9QC (100 V)
- DDPE-1QC (120 V)
- DDPE-2QC (230 V)
Video Guide
Watch the product video for more information.
Packing List
- 2-Tool Control Unit: 1 unit (Ref. DDE-9UC, DDE-1UC, DDE-2UC)
- Precision Handle: 1 unit (Ref. T210-A)
- Adjustable Micro Tweezers: 1 unit (Ref. AM120-A)
- Stand for T210 & T245: 1 unit (Ref. AD-SF)
- Stand for PA120 & AM120: 1 unit (Ref. AM-SB)
- Holder for Cartridges and Tips: 1 unit (Ref. SCH-A)
Installation
Follow these steps to install the 2-Tool Control Unit:
- Connect the power cord included with the DDE Control Unit.
- Attach the Stand Cable (Ref. 0024227) to the appropriate stands.
Components
- DDE 2-Tool Control Unit
- T210 Precision Handle
- AM120 Adjustable Micro Tweezers
- AD-SF Stand for T210 & T245
- AM-SB Stand for PA120 & AM120
Specifications
| Reference | Details |
|---|---|
| DDPE-9QC (100 V) | Net Weight: 7.16 kg / 15.79 lb |
| DDPE-1QC (120 V) | Package Dimensions: 545 x 345 x 275 mm / 10.4 kg |
| DDPE-2QC (230 V) | Complies with CE standards. ESD safe. |
Warranty
Get a 2-year JBC warranty by registering at JBC Product Registration within 30 days of purchase.
Recycling
This product should not be disposed of in the garbage. In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility.
FAQ
- How do I register for the warranty?
Register at JBC Product Registration within 30 days of purchase. - What is included in the packing list?
The packing list includes a 2-Tool Control Unit, Precision Handle, Adjustable Micro Tweezers, stands for various tools, and a holder for cartridges and tips. - Where can I find more information?
Visit www.jbctools.com for more details and to watch the product video.
DDPE
2-Tool Precision Rework Station
This Plug & Play Guide corresponds to the following references : Ref.
- DDPE-9QC (100 V)
- DDPE-1QC (120 V)
- DDPE-2QC (230 V)
Station
More Information at the product web page
Video Guide
Watch the product video
Packing List
The following items are included
Tool Control Unit .…………………… 1 unit
- Ref. DDE-9UC (100 V)
- Ref. DDE-1UC (120 V)
- Ref. DDE-2UC (230 V)
Precision Handle …………………………. 1 unit
Ref. T210-A
Adjustable Micro Tweezers .……….. 1 unit
Ref. AM120-A
Stand for T210 & T245 …………………. 1 unit
Ref. AD-SF
Stand for PA120 & AM120 ………….. 1 unit
Ref. AM-SB
Holder for Cartidges and Tips ……. 1 unit
Ref. SCH-A
Installation
Specifications
DDPE
- 2-Tool Precision Rework Station
Ref. DDPE-9QC (100 V)
Ref. DDPE-1QC (120 V)
Ref. DDPE-2QC (230 V)- Net Weight 7.16 kg / 15.79 lb
- Package Dimensions / Weight:(L x H x W) 545 x 345 x 275 mm / 10.4 kg 21.46 x 13.58 x 10.83 in / 22.93 lb
- Complies with CE standards. ESD safe.
Warranty
Get 2 year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase.
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility.
