JBC CU260 Pick and Place Handle
Product Information
Specifications

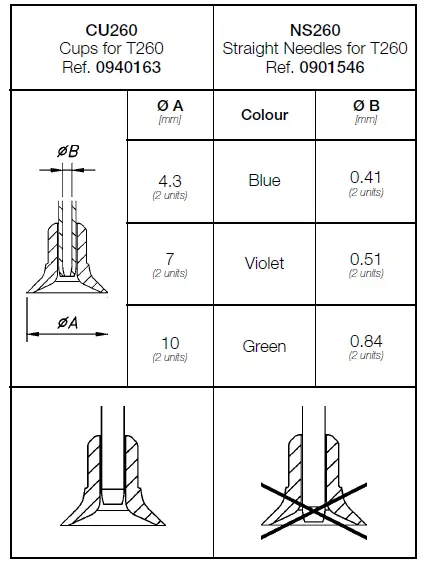

- Product Name: CU260 / NS260 Cups and Needles for T260 Pick & Place Handle
- Manufacturer: JBC Tools
- Model: CU260 Cups for T260 Ref. 0940163, NS260 Straight Needles for T260 Ref. 0901546
- Needle Colors: Blue, Violet, Green
- Needle Sizes: 4.3mm, 0.41mm, 7mm, 0.51mm, 10mm, 0.84mm
Product Usage Instructions
Cups (CU260) Usage
- Ensure the cups are compatible with the T260 Pick & Place Handle.
- Insert the cups securely into the handle.
- Check that the cups are firmly in place before use.
Straight Needles (NS260) Usage
- Select the appropriate needle size and color based on your needs.
- Gently insert the needles into the designated slots on the T260 handle.
- Make sure the needles are properly seated and secured.
FAQ
Are the CU260 cups and NS260 needles compatible with other handle models?
No, the CU260 cups and NS260 needles are specifically designed for use with the T260 Pick & Place Handle.
CU260 / NS260
Cups and Needles for T260 Pick & Place Handle
