ALU
Auto-Feed Soldering Control Unit
INSTRUCTION MANUAL
This manual corresponds to the following references:
- ALU-9A (100V)
- ALU-1A (120V)
- ALU-2A (230V)
Packing List
The following items are included:
 |
 |
| ALU Control Unit ……………………………….. 1 unit | Power Cord ………………………………………… 1 unit Ref. 0023717 (120V) 0024080 (230V) |
 |
 |

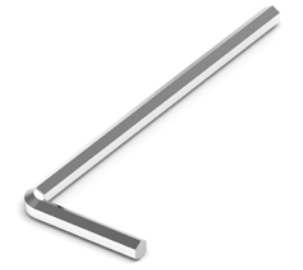

| Allen Key Ø 1,5 ……………………………………… 1 unit Ref. 0741610 |
Allen Key Ø 2,5 …………………………………….. 1 unit Ref. 0 012574 |
 |
 |

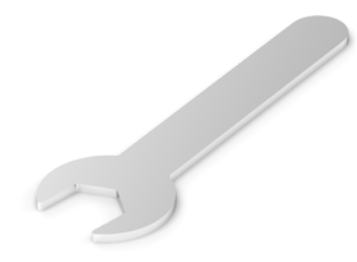

| Spanner …………………………………………………. 1 unit Ref. 0017631 |
Manual ……………………………………………….. 1 unit Ref. 0028141 |

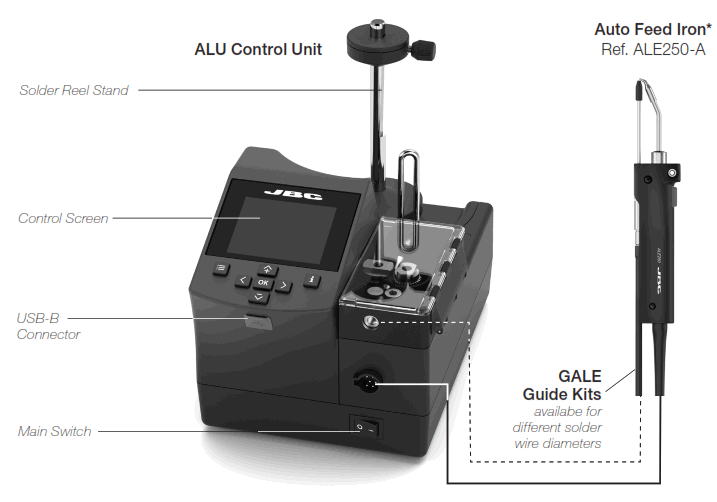

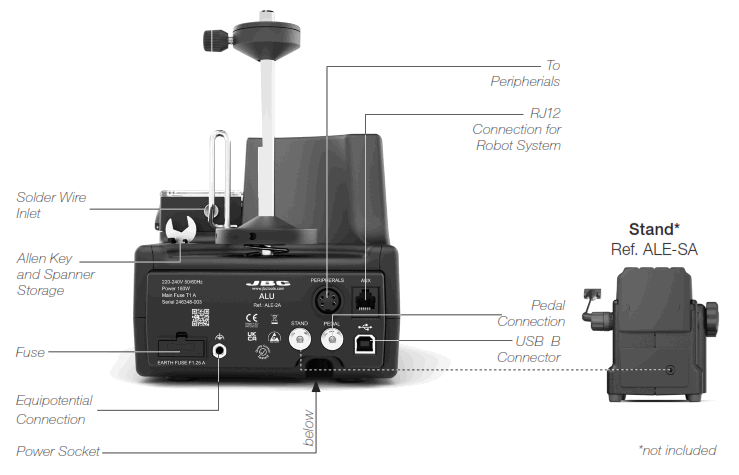

Features and Connections
 |
 |
Solder Reel Assembly

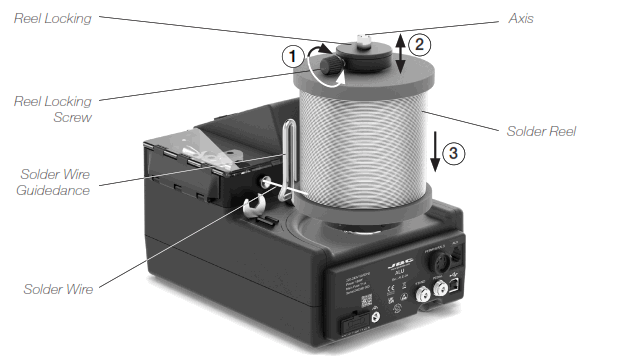

Open the reel locking screw (1) and remove the reel locking (2) from the axis.
Assemble the solder reel onto the axis (3) and reassemble the reel locking screw (1). The flat side of the aAs must align with the inner flat side of the reel locking.
Note: Press lightly the reel locking (1) down before tightening the reel locking screw (2) to prevent free reel spinning.

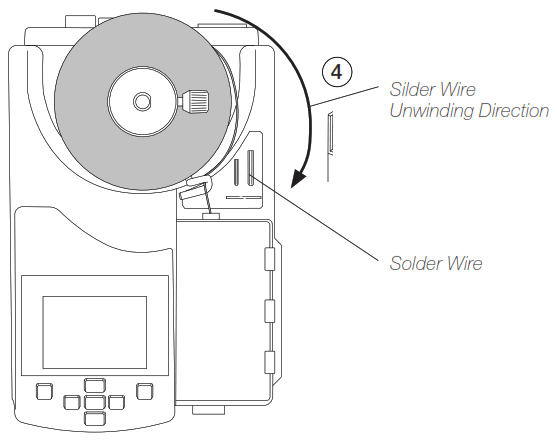

Insert the solder reel in such a way – when viewed from above – that the solder wire unwinds on the dispensing mechanism side (4).
Tool Assembly
Connects the tool to the control unit following these steps:

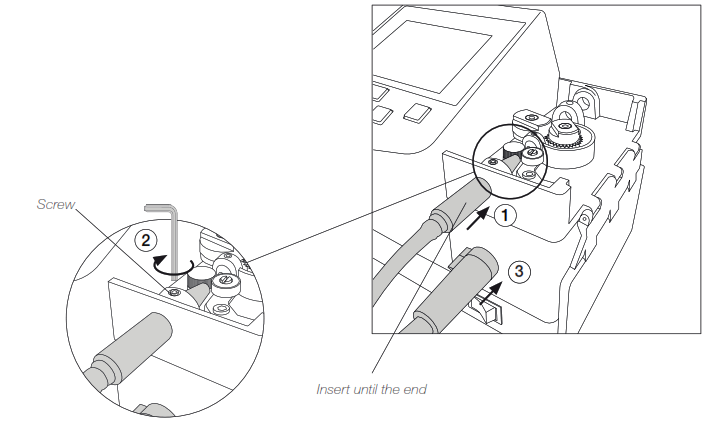

Insert and push the guide nozzle until the end (1) and tighten the screw (2). Then connect the tool connector (3).
Solder Wire Loading

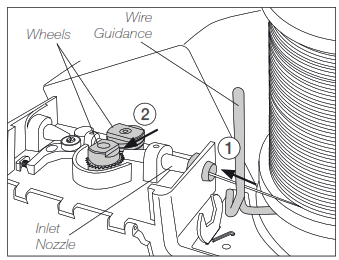

Pass the solder wire through the wire guidance and introduce the solder wire into the inlet nozzle (1) until it reaches the wheels (2).

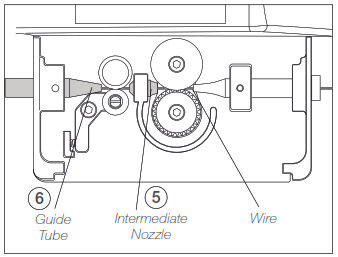

Ma. sure the wire passes through the Intermediate Nozzle (5) and enters into the Guide Tube (6).
Main Menu Screen
Access to Main Menu by

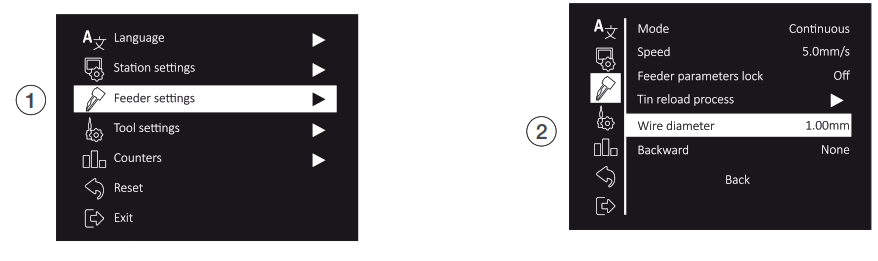

selecting “Feeder Settings” (1) and then Wire Diameter’ (2) to adjust the value to the current solder wire diameter.

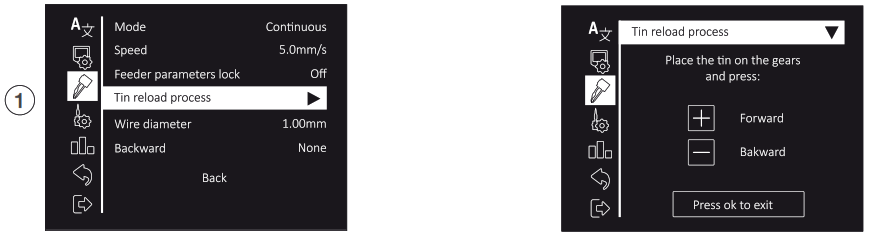

Tin Reloaded Process Screen
Select “Tin Reloaded Process” (1) and then use
to feed the solder wire and advance until it comes out through the outlet nozzle. Keep pressed a. after a while the wire will advance faster.
Solder Wire Feeding
Forward the solder wire by pushing the dragging button (4) until the wire comes out of the tip (5).

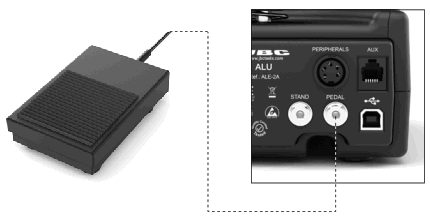

To feed the solder wire, alternatively, the pedal P405 can be used. The pedal should be plugged in at the rear of the feeder control unit into the pedal connector
Control Process
Feeder Setting Modes

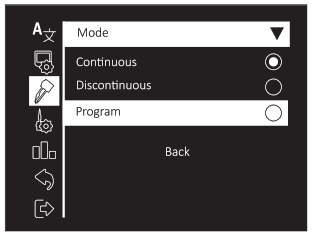

Choose between “continuous”, “discontinuous” and “program” mode. Acces to Main Menu byselect “Feeder Settings” and then “Mode”.
Depending on the selected mode, different parameters are available for setup.
Troubleshooting
Sation troubleshooting is available on the product page at www.jbctools.com
Control Process
Program Mode

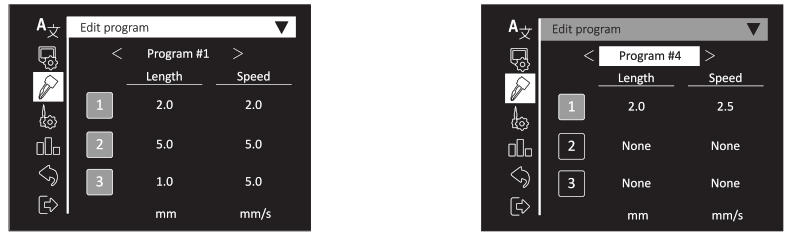

With AL you can define up to 5 feeder programs. Select “Edit Program” and access the pro-gram parameters.
For each program between 1 and 3 feeding steps (length and speed) should be defined. If less than 3 feeding steps are needed, set up wire length and speed to “0.0” and the parameter will change to “None”.

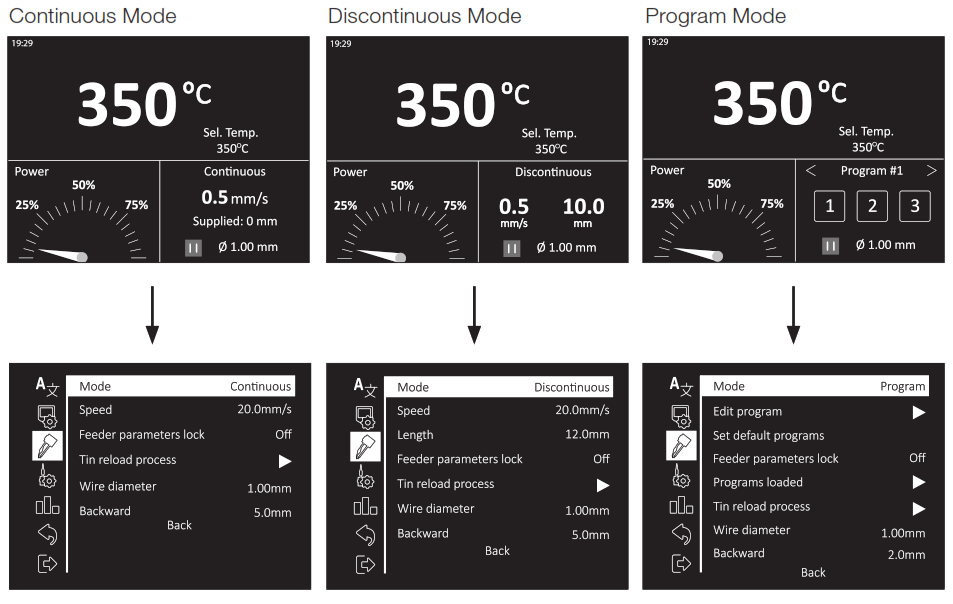

Quick Access to Feeder Setting Modes

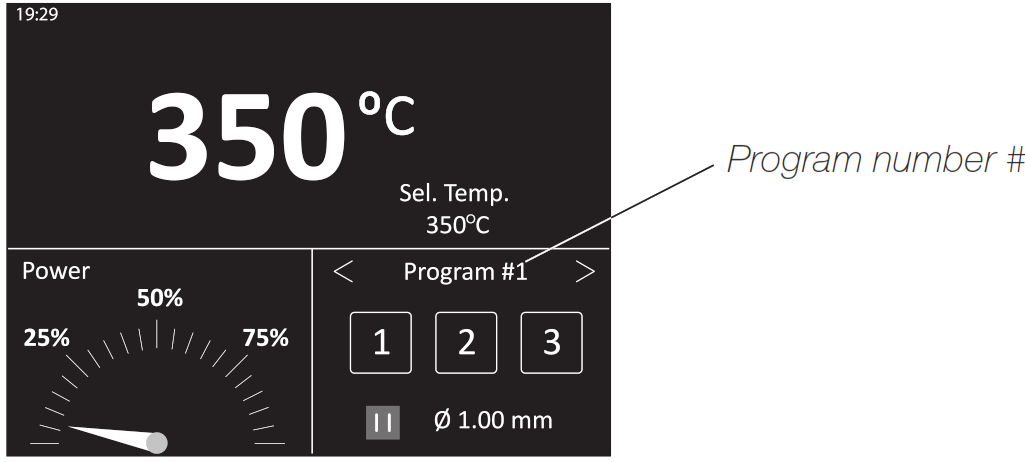

The solder wire dispensing values can be directly set up from the work screen.
Pressor
to change the tool temperature value.
When the main screen is displayed, by pressing the
button speed and length values can be set up. The following parameters can be changed according to the different dispensing modes:
– Continuous Mode: Speed – Discontinuous Mode: Speed and length – Program Mode: 3 feeding parameter pairs (length and speed) for every program.
Note: First select the program to be modified at the work screen by using
and
switching between the programs.
Control Process

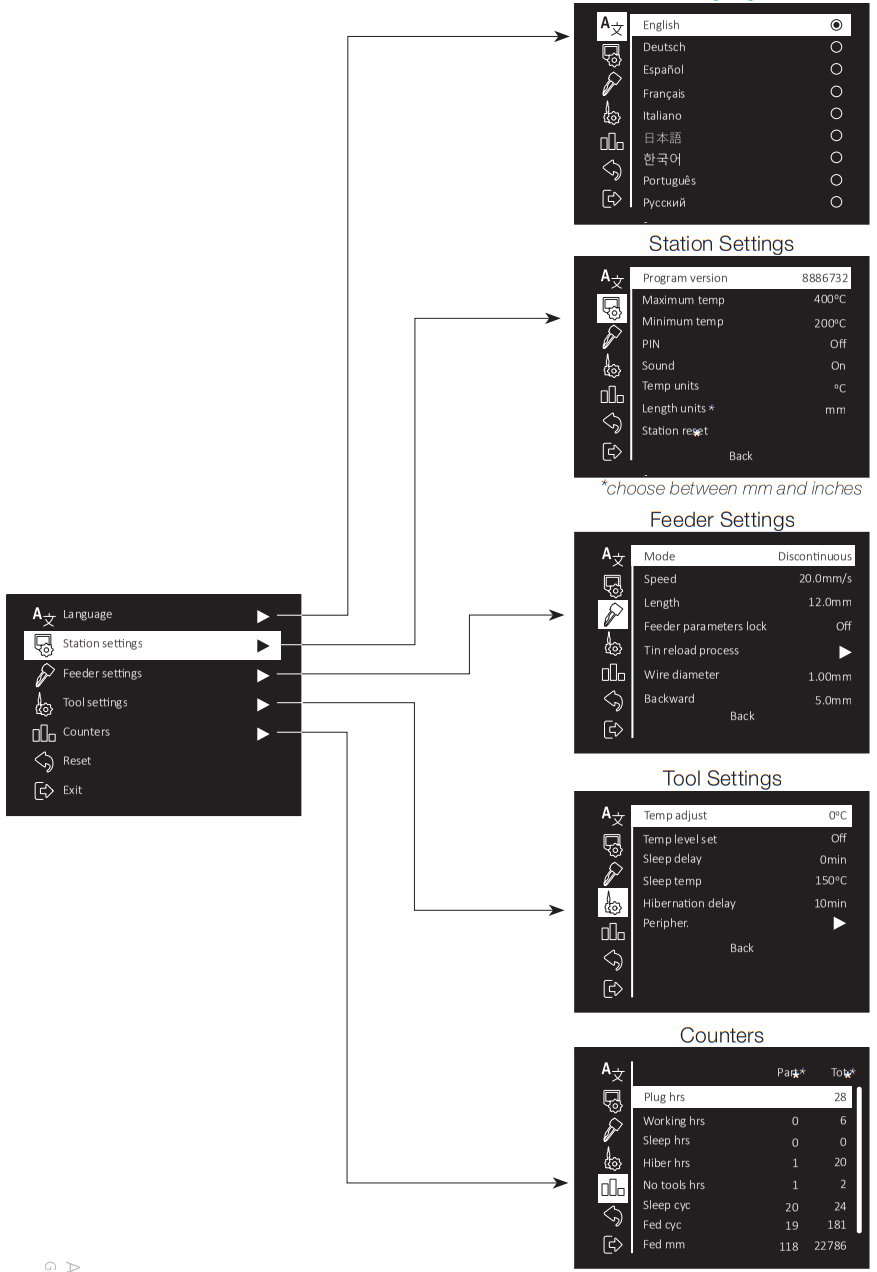

Menu screen
Default Pin:0105
* partial and total counters are
Changing Guide Kits
Changing Wheels and Blade
For this operation, disconnect the device from the mains. Disconnect the tool from the control unit and open its cover.

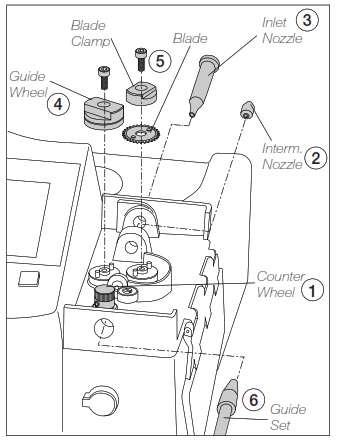

First disassemble the guide tube (6), the nozzles (210(3), then the Wheels, Blade, and Clamp (4)+(5). Disassemble the Counter Wheel (1). Use the alien key and the spanner, provided with the station.
Assembly with Solder Wire Perforation

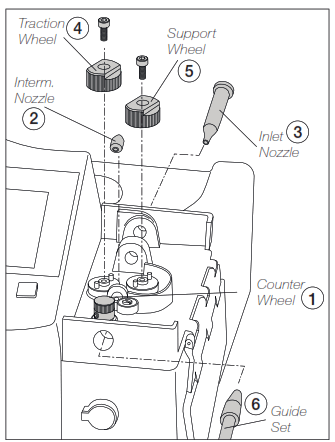

Assemble the counter wheel (1).
Insert the intermediate nozzle (2) until its collar rests against the housing and tightens the screw.
Assemble the inlet nozzle (3).
Assemble the guide wheel (4) and tighten the screw.
Assemble the blade first, then mount the blade clamp (5) onto the same axis and tighten the screw. Caution: handle the blade carefully to avoid injury.
Insert the guide set (6).
Assembly without Solder Wire Perforation
Assemble the counter wheel (1).
Insert the intermediate nozzle (2) until Is collar rests against the housing and tightens the screw.
Assemble the inlet nozzle (3).
Assemble the traction wheel (4) onto the axis and tighten the screw.
Assemble the support wheel (5) and tighten the screw.
Insert the guide set (6).
Accesories
Various guide sets are available. Select the appropriate guide set depending on the solder wire diameter to be used.

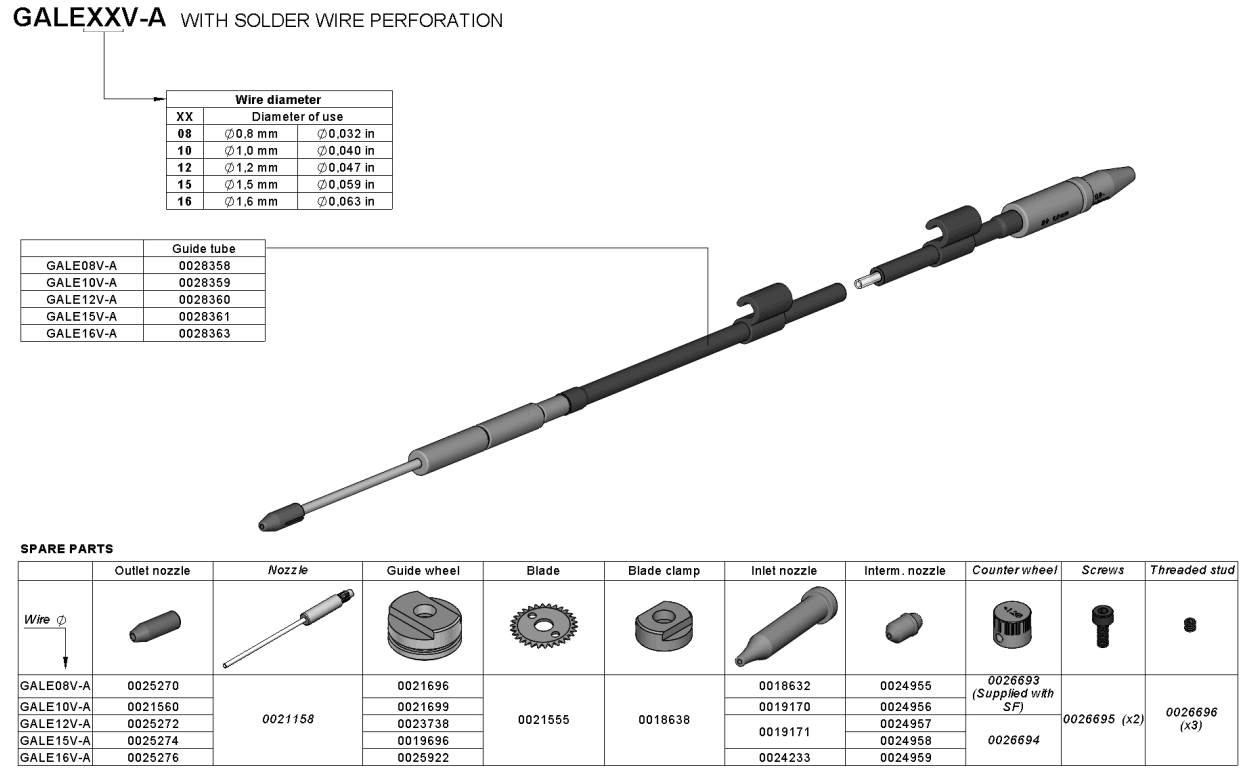

GALE Guide Sets for ALE250 with Solder Wire Perforation

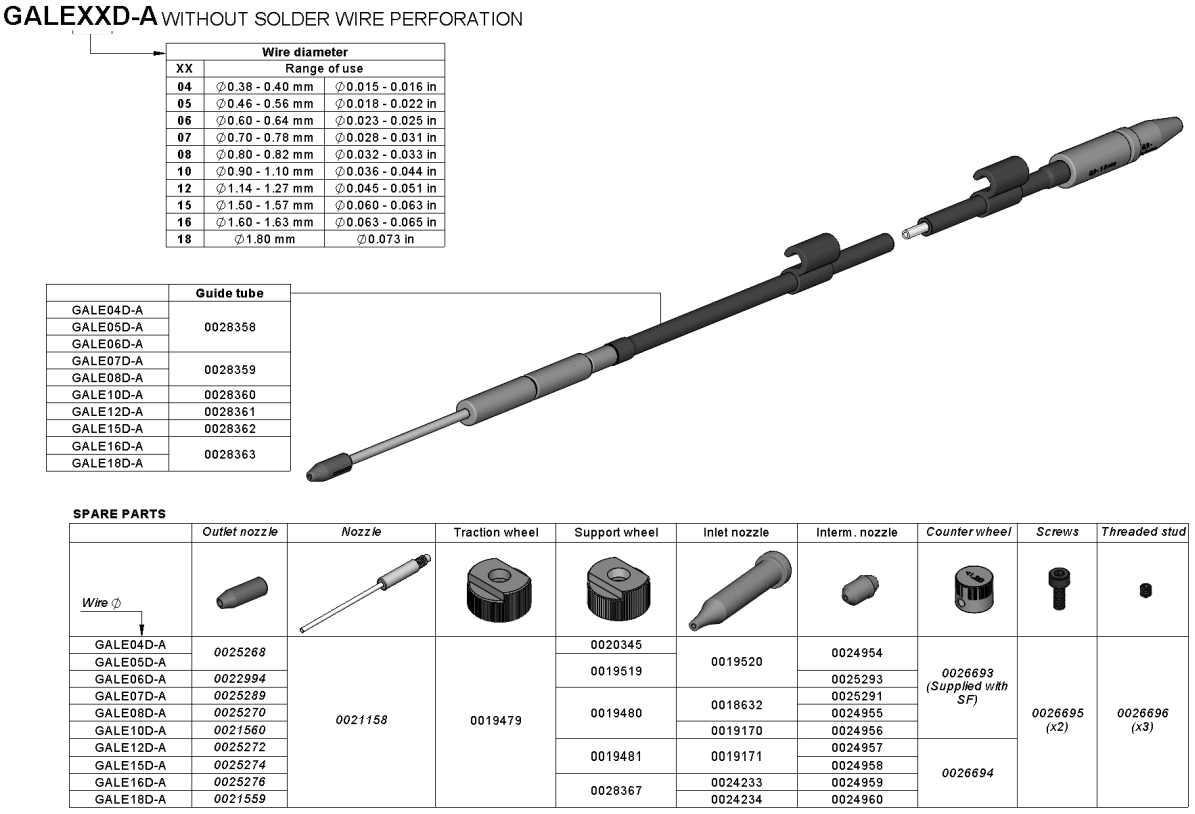

GALE Guide Sets for ALE250 without Solder Wire Perforation
Maintenance
Before carrying out maintenance, always switch the device off and disconnect it from the mains. Allow the equipment to cool down.

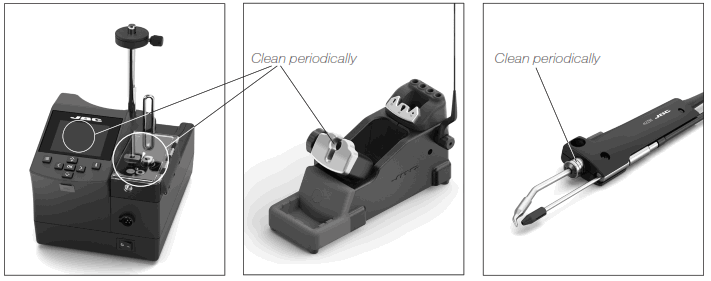

- Clean the station screen with a glass cleaner or a damp cloth.
- Use a damp cloth to clean the casing and the tool. Alcohol can only be used to clean the metal parts.
- Periodically check that the metal pads of the tool and stand are clean so that the station can detect the tool status.
- Maintain tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty surfaces reduce heat transfer to the solder joint.
– Periodically check all cables and tubes.
– Replace a blown fuse as follows:

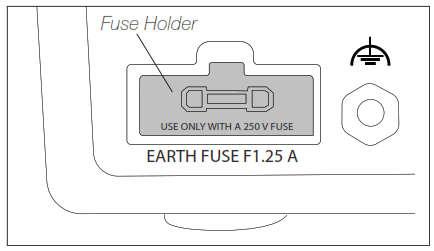

- Pull off the fuse holder and remove theIf necessary use a tool to lever it off.

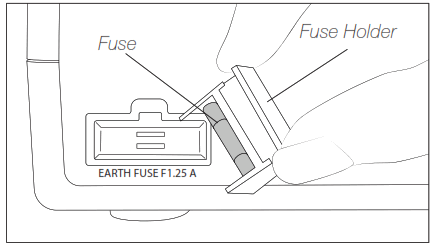

- Insert the new fuse into the fuse holder fuse. and return it to the station.
– Replace any defective or damaged pieces. Only use original JBC spare parts.
– Repairs should only be performed by a JBC-authorized technical service.
Safety
It is imperative to follow safety guidelines to prevent electric shock, injury, fire, or explosion.
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed on the stand when not in use in order to activate the sleep mode. The soldering tip or nozzle, the metal part of the tool, and the stand may still be hot even when the station is turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflammable products to ignite.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced physical, sensory or mental capabilities or lack of experience provided that they have been given adequate supervision or instruction concerning the use of the appliance and understand the hazards involved.
Children must not play with the appliance. - Maintenance must not be carried out by children unless supervised.
Specifications
ALU
Auto-Feed Soldering Control Unit
ALU-9A 100V 50/60Hz. Input fuse: T2A. Earthing Fuse: F 1.25A. Output: 23.5V
ALU-1A 120V 50/60Hz. Input fuse: T2A. Earthing Fuse: F 1.25A. Output: 23.5V
ALU-2A 230V 50/60Hz. Input fuse: T1A. Earthing Fuse: F 1.25A. Output: 23.5V
| – Output Peak Power: – Selective Temperature Range: – Idle Temp. Stability (still air): – Temp. Accuracy: – Temp. Adjustment: – Connections: – Equipontencial bonding: – Tip to Ground Voltage/Resistance – Ambient Operating Temp: – Solder Wire Diameter: – Max. Wire Length: – Min. Wire Length: – Forward Speed Range – Speed of Backward Funktion – Number of Programs: – Number of Program Steps: – Control Unit Dimensions: (L x W x H) – Total Net Weight: – Package Dimensions / Weight: (L x W x H) |
130 W / 23.5 V 90 – 450 °C / 190 – 840 °F ±1.5ºC / ±3ºF (Meets and exceeds IPC J-STD-001) ±3% (Using reference cartridge) ±50ºC / ±90ºF (Through station menu settings) USB-A Uptade and files import-export USB-B Software PC RJ12 Fume extractor connection Optional connection to EPA <2 mV RMS / <2 ohms Meets and exceed ANSI/ESD S20.20-2014 / IPC J-STD-001F 10 – 50 ºC / 50 – 122 ºF 0.4 – 1.6 mm / 0.02 – 0.06 in 250 mm / 9.84 in (for discontinous + program mode) 0.5 mm / 0.02 in 0.5 to 50 mm/s / 0.02 to 1.97 in/s 0.0 to 5.0 mm/s / 0.5 to 0.20 in/s 5 Programs 1 to 3 Steps (for each program) 235 x 145 x 150 mm 9.25 x 5.71 x 5.91 in 5.81 kg / 12.81 lb 368 x 368 x 195 mm / 6.72 Kg 14.49 x 14.49 x 7.68 in / 14,82 lb |
Compatible Solder Reel:
| – Reel Weight: | up to 2 kg / 4.41 lb |
| – Max. Reel Diameter: | 100 mm / 3.94 in |
| – Max. Reel Height: | 100 mm / 3.94 in |
Complies with CE standards.
ESD safe.
Warranty
JBC’s 2-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor.
The warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
Get 1 extra year of JBC warranty by registering here: https://www.jbctools.com/productregistration/within 30 days of purchase.
This product should not be thrown in the garbage.
