FOTING FT-CLP2502 Sand Filter Pump User Manual

1. 重要な安全上の注意事項

Read and follow all instructions before installing and using this product. Failure to follow these instructions can result in serious injury or death.

• 電気安全: Always disconnect power to the pump before performing any service or maintenance. Ensure the pump is connected to a grounded outlet protected by a Ground Fault Circuit Interrupter (GFCI). Do not operate the pump if the power cord is damaged.
• 水の安全性： Never operate the pump dry. Ensure the pump is filled with water before starting. Keep children and unauthorized persons away from the pump and filter system during operation.
• 圧力安全性: Do not exceed the maximum operating pressure of the filter. Ensure all clamps and connections are securely fastened before operating.
• 化学物質の安全性: Handle pool chemicals with care and follow manufacturer's instructions. Do not mix different chemicals.

2.製品オーバーview

The FOTING FT-CLP2502 Sand Filter Pump is designed for efficient water filtration in above-ground pools up to 7500 gallons. It features a 12-inch sand filter tank, a 1/2 HP pump with a 2800 GPH flow rate, and a 6-way multi-port valve for various operational modes. A built-in timer allows for automated filtration cycles.

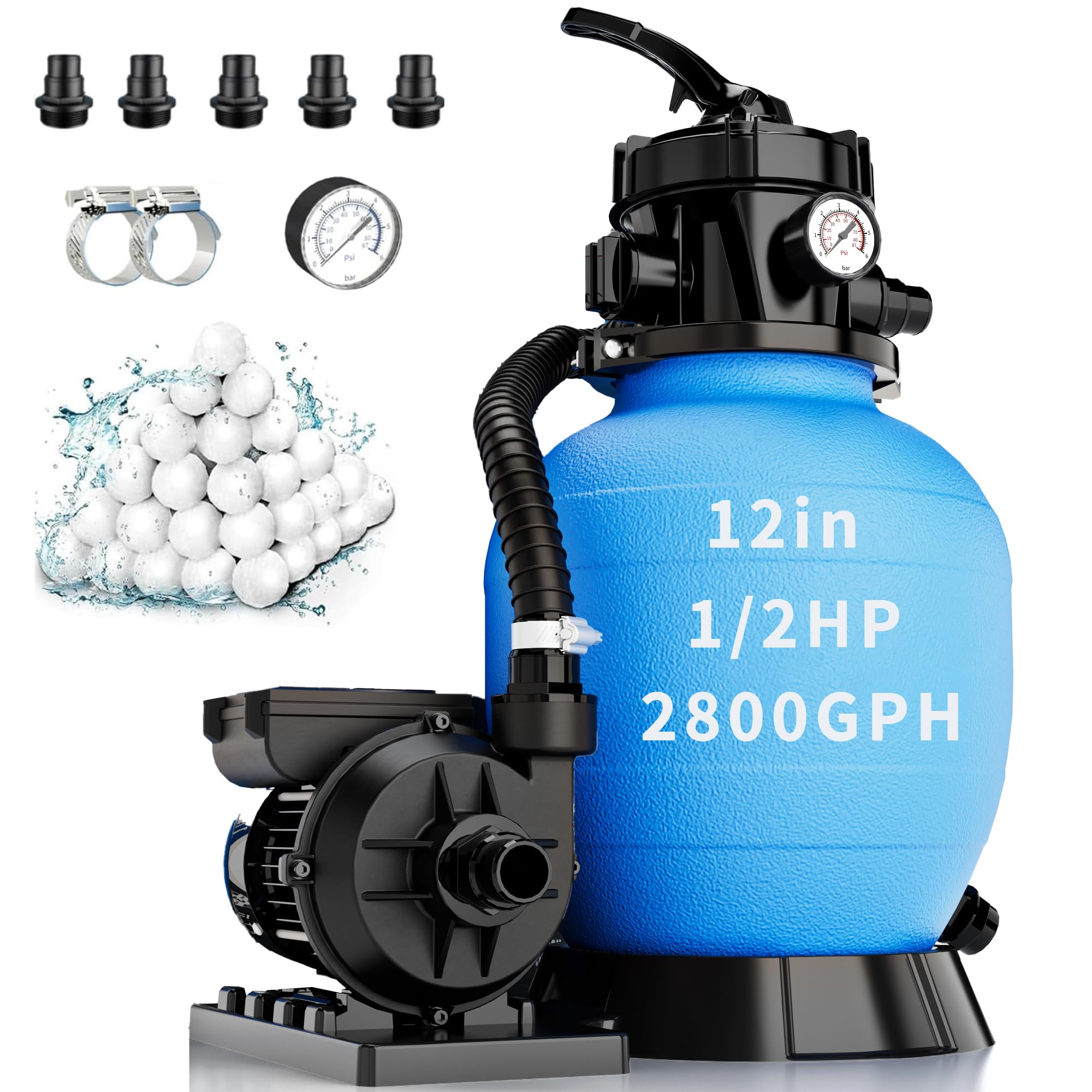

図2.1：以上view of the FOTING FT-CLP2502 Sand Filter Pump, highlighting its capacity and features.

主な特徴:

• 高流量: 2800 GPH (Gallons Per Hour) for pools up to 7500 gallons.
• 6-Way Multi-Port Valve: Provides versatile control for filtration, backwash, rinse, recirculate, waste, and closed positions.
• 統合タイマー: 24-hour dual-mode timer for single or continuous cycle operation.
• クリア-View 圧力計: Allows for easy monitoring of filter performance and indicates when backwashing is required.
• 互換性: Designed for standard above-ground pools, compatible with 1.5" or 1.25" hose fittings.

3.インストールガイド

Proper installation is crucial for the safe and efficient operation of your sand filter pump. Follow these steps carefully.

3.1. 敷地選定

• Place the filter pump on a firm, level surface, preferably concrete, at least 10 feet (3 meters) from the pool.
• Ensure the location is well-drained and protected from direct sunlight and extreme weather.
• Allow sufficient space around the filter for maintenance and service.

3.2. 組み立て

1. Attach Pump to Base: Secure the pump to the filter base using the provided hardware.
2. Install Drain Plug: Ensure the drain plug at the bottom of the filter tank is securely tightened.
3. フィルターメディアを追加: Remove the multi-port valve and standpipe from the filter tank. Carefully pour the recommended amount of filter sand (44 lbs) or filter balls (4.6 lbs) into the tank. Ensure the standpipe is centered during this process.


図3.1：例ample of filter balls used as filter media.

4. Install Multi-Port Valve: Carefully place the multi-port valve onto the filter tank, ensuring the standpipe aligns correctly with the valve's opening. Secure the valve with the provided clamp そしてボルト。
5. ホースを接続する: Connect the pump outlet to the filter inlet (marked 'PUMP' or 'IN') on the multi-port valve. Connect the filter outlet (marked 'RETURN' or 'OUT') to the pool return line. Connect the pump inlet to the pool skimmer/main drain line. Use hose clampすべての接続を保護します。

Figure 3.2: Diagram illustrating the correct hose connections for the filter pump system.
6. 接続電源： Plug the pump into a grounded GFCI-protected electrical outlet.

3.3. ポンプのプライミング

Before starting the pump for the first time, it must be primed to ensure it is filled with water.

1. プールの水位が適切であることを確認してください。
2. マルチポートバルブを バックウォッシュ 位置。
3. Open all skimmer and main drain valves.
4. Turn on the pump. Water should begin to flow through the system. Allow it to run for 1-2 minutes to purge air from the system.
5. ポンプをオフにします。
6. Proceed to the Operating Instructions section for initial backwash and rinse.

4. 操作手順

The FOTING sand filter pump features a 6-way multi-port valve and a dual-mode timer for flexible operation.

4.1. 6-Way Multi-Port Valve Functions

The multi-port valve allows you to select different operational modes. 損傷を防ぐため、バルブの位置を変更する前に必ずポンプをオフにしてください。

Figure 4.1: Diagram illustrating the six positions of the multi-port valve and their functions.

• 1. フィルター: This is the normal operating position for filtering pool water. Water flows through the filter media, and clean water returns to the pool.
• 2. BACKWASH: Used for cleaning the filter media. Water flow is reversed, flushing accumulated debris out through the waste port.
• 3. RINSE: Used after backwashing to flush out any remaining debris from the filter and settle the sand bed before returning to FILTER mode. Water flows out through the waste port.
• 4. WASTE: Bypasses the filter and sends water directly out through the waste port. Used for lowering pool water level or vacuuming heavy debris directly to waste.
• 5. CLOSED: Shuts off all flow to the filter and pump. Never operate the pump when the valve is in the CLOSED position.
• 6. RECIRCULATE: Bypasses the filter and circulates water directly back to the pool. Used for mixing chemicals without filtering.

Figure 4.2: The multi-port valve with its various settings and the integrated pressure gauge.

4.2. タイマー操作

The integrated 24-hour timer allows for automated filtration. The timer display and control buttons are located on the pump.

Figure 4.3: Diagram showing the timer display and control options for single and continuous cycle modes.

• タイマーの設定： Refer to the specific instructions provided with your pump for detailed timer programming steps.
• シングルサイクルモード: The pump operates for a set duration once within a 24-hour period.
• 連続サイクルモード: The pump operates continuously until manually turned off or switched to another mode.

Figure 4.4: The digital display for setting and monitoring the pump's timer functions.

5. メンテナンス

Regular maintenance ensures optimal performance and longevity of your FOTING sand filter pump.

5.1. Backwashing the Filter

Backwashing cleans the filter media by reversing water flow. Perform backwashing when the pressure gauge reading is 8-10 PSI above the clean operating pressure, or when water flow to the pool decreases significantly.

1. ポンプをオフにします。
2. マルチポートバルブを バックウォッシュ 位置。
3. Turn on the pump. Observe the waste water through the sight glass (if available) or the waste port. Continue backwashing until the water runs clear (typically 1-3 minutes).
4. ポンプをオフにします。

5.2. Rinsing the Filter

After backwashing, rinsing is necessary to settle the filter media and flush out any remaining debris.

1. ポンプをオフにします。
2. マルチポートバルブを リンス 位置。
3. Turn on the pump. Run for 30-60 seconds.
4. ポンプをオフにします。
5. マルチポートバルブを フィルター 位置。
6. ポンプをオンにして通常のろ過を再開します。

Figure 5.1: The clear-view pressure gauge helps monitor filter performance and indicates when backwashing is needed.

5.3. 冬季対策

Before freezing temperatures arrive, prepare your filter pump for winter storage.

• Drain all water from the pump, filter tank, and hoses.
• Disconnect all hoses and store them in a dry, protected area.
• Remove the drain plug from the filter tank and store it separately to ensure complete drainage.
• Store the pump and filter in a dry, frost-free location.

6。 トラブルシューティング

このセクションでは、砂ろ過ポンプで発生する可能性のある一般的な問題について説明します。

7. 仕様

Technical details for the FOTING FT-CLP2502 Sand Filter Pump.

Figure 7.1: Detailed dimensions and key specifications of the FOTING FT-CLP2502 Sand Filter Pump.

8. 保証と顧客サポート

FOTING is committed to providing quality products and customer satisfaction. This product comes with a manufacturer's warranty against defects in materials and workmanship under normal use.

For warranty claims, technical support, or any questions regarding your FOTING sand filter pump, please contact FOTING customer service. Keep your purchase receipt as proof of purchase.

連絡先： Refer to the product packaging or the official FOTING web最新のカスタマー サービス連絡先の詳細については、サイトをご覧ください。
