1. 重要な安全上の注意事項
Please read all instructions carefully before using this electric fireplace. Failure to follow these instructions may result in electric shock, fire, or personal injury. Keep this manual for future reference.
- 電気安全: 電源コンセントが電圧と一致していることを確認してくださいtage requirements of the fireplace. Do not overload circuits. Do not use with damaged cords or plugs.
- 配置: Install the fireplace on a sturdy, flat wall surface. Maintain adequate clearance from combustible materials (curtains, furniture, bedding). Do not block air vents.
- 手術： Do not operate the fireplace if it has been dropped or damaged. Keep children and pets away from the appliance during operation. Do not insert foreign objects into any openings.
- メンテナンス： Always disconnect power before cleaning or performing any maintenance. Refer to the maintenance section for detailed instructions.
- 熱出力： The fireplace produces heat. The glass panel and air vents can become hot. Avoid direct contact.
2.製品オーバーview
The BYECOLD 36-inch Wall Mounted Electric Fireplace provides supplemental heating and a realistic flame effect for your living space. It features a 1700W heater, adjustable thermostat, LED flame simulation, and convenient control options.
主な特徴:
- Realistic LED flame effect for ambiance.
- Powerful 1700W heating element with 5000 BTU heat output.
- Built-in adjustable thermostat for precise temperature control.
- Remote control for convenient operation of all functions.
- Touch screen controls on the unit for direct adjustments.
- Independent operation of heating and flame effects.
- 低騒音動作。
- Anti-scalding fences for enhanced safety.
- Timer function for automatic shut-off.
- Far infrared heating technology.
コンポーネント:
- 電気暖炉ユニット
- リモートコントロール
- 取り付け金具
- ユーザーマニュアル
Image 2.1: The BYECOLD 36-inch electric fireplace unit shown with its remote control.
画像2.2: クローズアップ view of the side control panel, indicating the Flame ON/OFF button, Power switch, and Operating indicator light.
3. 仕様
| 特徴 | 仕様 |
|---|---|
| ブランド | BYECOLD |
| モデル番号 | 1S0804-Fl |
| 電源 | 電気 |
| 製品寸法（奥行き×幅×高さ） | 2インチ x 35.4インチ x 23.6インチ |
| インストールタイプ | 壁掛け |
| 熱出力 | 1700W/5000BTU |
| 特集 | Adjustable Thermostat, LED Flame, Remote Control, Touch Screen |
| 色 | 黒 |
| アイテム重量 | 23 ポンド |
4. インストール
This electric fireplace is designed for wall-mounted installation. Ensure you have the necessary tools and assistance before beginning.
4.1 壁面への取り付け
- 場所を選択してください： Select a suitable wall location away from drapes, furniture, and high-traffic areas. Ensure the wall material can support the weight of the fireplace (23 lbs).
- マーキング： Use a level to mark the desired height and position for the mounting bracket on the wall.
- 掘削: Drill pilot holes at the marked locations. If mounting into drywall, use appropriate wall anchors.
- ブラケットを取り付ける: Securely fasten the mounting bracket to the wall using the provided screws and anchors.
- マウント暖炉: 暖炉ユニットを慎重に持ち上げ、壁取り付けブラケットに引っ掛けます。しっかりと固定されていることを確認してください。
4.2 電気接続
The fireplace can be connected via a standard plug or hardwired.
- プラグイン: Simply plug the fireplace power cord into a grounded 120V AC outlet. Ensure the outlet is not shared with other high-wattageアプライアンス。
- ハードワイヤー: If hardwiring, it is recommended to have a qualified electrician perform the installation to ensure compliance with local electrical codes. Disconnect the plug from the cord and connect the wires directly to a dedicated circuit.

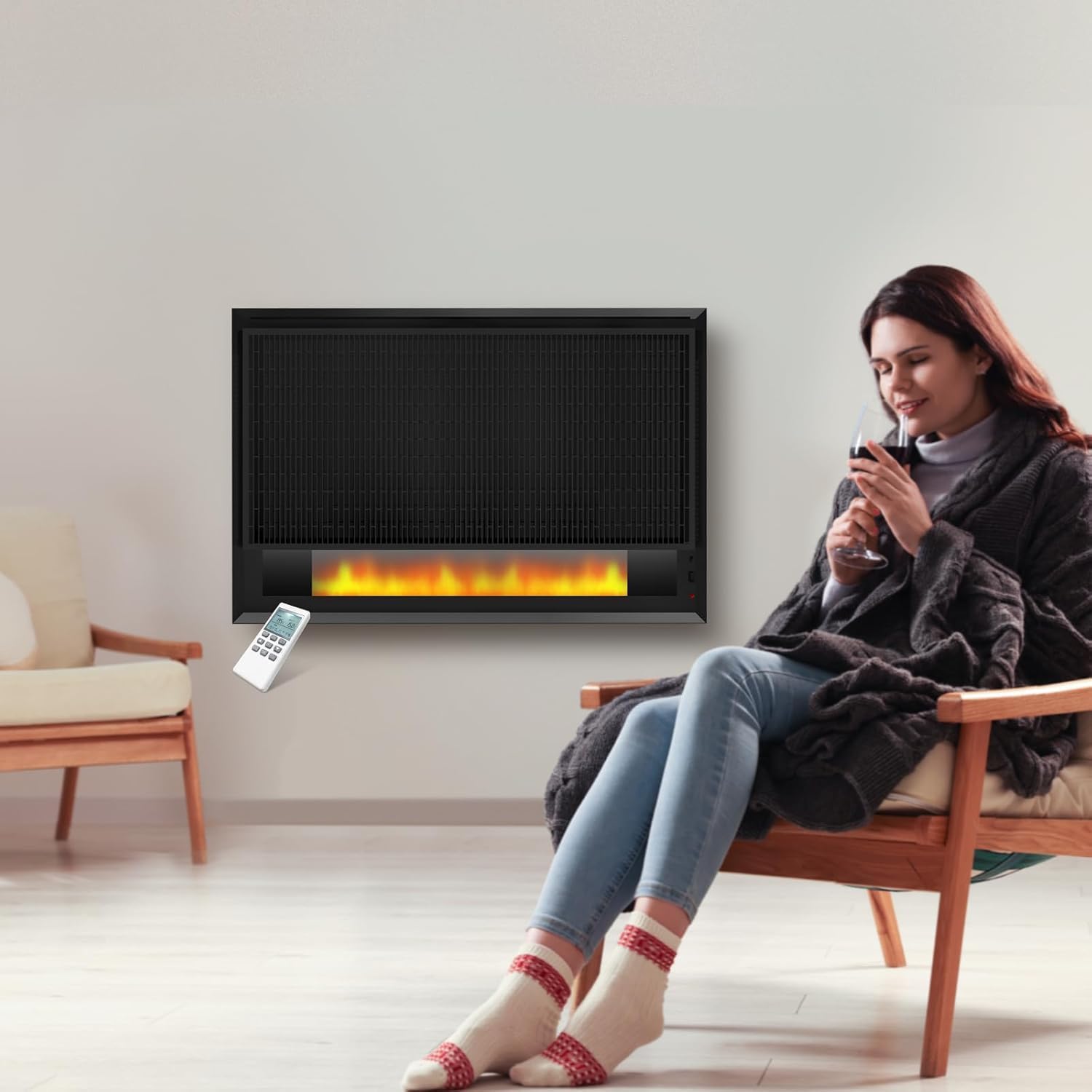

Image 4.1: The electric fireplace installed on a wall, providing warmth and ambiance to a room.
5. 操作
The BYECOLD electric fireplace can be operated using the included remote control or the touch screen controls on the unit.
5.1 電源のオン/オフ
- 主電源スイッチ： Locate the main power switch on the side of the fireplace (refer to Image 2.2). Flip it to the 'ON' position to supply power to the unit.
- Remote/Touch Screen: Press the power button on the remote control or the touch screen panel to turn the fireplace on or off.
5.2 リモコンの使用
The remote control allows full functionality from a distance. Ensure batteries are correctly installed.
- 電源ボタン: ユニットの電源をオンまたはオフにします。
- 温度制御: Use the '+' and '-' buttons to adjust the desired temperature setting. The built-in thermostat will maintain the set temperature.
- 炎効果ボタン: Cycles through different flame brightness levels or turns the flame effect on/off independently of the heater.
- タイマーボタン: Activates the timer function, allowing you to set an automatic shut-off time.
5.3 Using the Touch Screen Controls
The touch screen panel on the fireplace unit provides direct access to key functions.
- 電源アイコン： Tap to turn the fireplace on or off.
- Temperature Icons: Tap to increase or decrease the temperature setting.
- 炎のアイコン: Tap to adjust the flame effect.
- タイマーアイコン： Tap to set the timer.
Image 5.1: A graph demonstrating the intelligent temperature control system, showing fast warming and continuous heat dissipation to maintain a stable room temperature.
6. メンテナンス
Regular maintenance ensures the longevity and optimal performance of your electric fireplace. Always disconnect the power before cleaning.
6.1 クリーニング
- 外観： 外側の表面を柔らかい布で拭きます。amp 布で拭いてください。研磨剤や溶剤は使用しないでください。
- 通気口: ブラシ付きの掃除機を使用して、吸気口と排気口のほこりを丁寧に取り除きます。
- ガラスパネル: 柔らかい布と非研磨性のガラスクリーナーを使用してガラスパネルを清掃します。
6.2 ストレージ
If storing the fireplace for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging to protect it from dust and damage.
7。 トラブルシューティング
暖炉に問題が発生した場合は、以下の表で一般的な問題と解決策を参照してください。
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| 暖炉が点火しません。 | No power, main switch off, remote batteries dead. | Check power outlet, ensure main power switch is ON, replace remote batteries. |
| 熱出力はありません。 | Heater not activated, thermostat set too low, overheating protection. | Ensure heater function is ON, increase thermostat setting, check for blocked vents and allow to cool. |
| 炎の効果が機能しません。 | 炎のエフェクトをオフにしました。 | Activate flame effect using remote or touch screen. |
| リモコンが機能しない。 | 電池切れ、障害物、範囲外。 | 電池を交換し、障害物を取り除いて、範囲内で操作してください。 |
| 異常なノイズ。 | ファンにほこりがあり、部品が緩んでいます。 | Disconnect power and clean vents. If noise persists, contact support. |
8. 保証とサポート
BYECOLD products are manufactured to high-quality standards and are backed by a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical support, replacement parts, or warranty inquiries, please contact BYECOLD customer service. Contact information can typically be found on the product packaging or the official BYECOLD webサイト。
When contacting support, please have your model number (1S0804-Fl) and purchase date available.
