iUFlow App User Manual

which eliminates the need for direct handling of urine. With iUFlow, there is no need to write down the urination volume; an easy to use app captures volume and flowrates wirelessly with clinical grade accuracy for you to send by email to your physician!

Package contains:

1 Bowl
1 Sensor
1 Rinse container
1 User Manual

Intended purpose:

For measurement of urination (voiding) volume and flow rate when used in conjunction with iUFlow mobile device app.

Set-up the iUFlow device and App

Downloading & installing iUFlow® app

You can download and install iUFlow® app to your smart mobile device using the Apple App Store or Google Play Store. The app is downloaded the same way as other Apps on your smart mobile device. iUFlow® app is free of charge and is customized for your smart mobile device.

*Downloading the app requires data connectivity.
Scan the QR code according to your mobile device:

Alternatively, you can download the app from the App Store at the following link:
https://apps.apple.com/us/app/iuflow-fully-automated-voiding/id935581221?ls=1

Download the app from Google Play at the following link:
https://play.google.com/store/apps/details?id=com.paperact.android.iuflow

Then, open the app and complete the sign-up process

Set-up your iUFlow

Remove the parts of iUFlow from the packaging

Place the iUFlow Bowl upside down on a flat rigid surface as shown below. Align the unlock icon on the bowl with the orange dot on the sensor and rotate clockwise until it snaps into the locked position. When locked the orange dot aligns with the lock sign.

Place iUFlow device on the toilet bowl under the seat

Make sure your iUFlow is stable with all 3 flaps touching the bowl between the bowl and the toilet seat, and the bottom of the sensor of the iUFlow does not touch the water inside the toilet.

Before first use

Rinse container

Use iUFlow device and app

Use your iUFlow

Rinse

iUFlow indicator lights

assist@kesemhealth.com

Download sessions into your phone

On your smartphone, turn on Bluetooth and start iUFlow app. If the iUFlow device is nearby, a green check mark appears at the top left hand corner of the screen when connected.

Note:
Do not need to manually pair the iUFlow by searching the device. iUFlow will automatically connect when Bluetooth is enabled on the smart device.

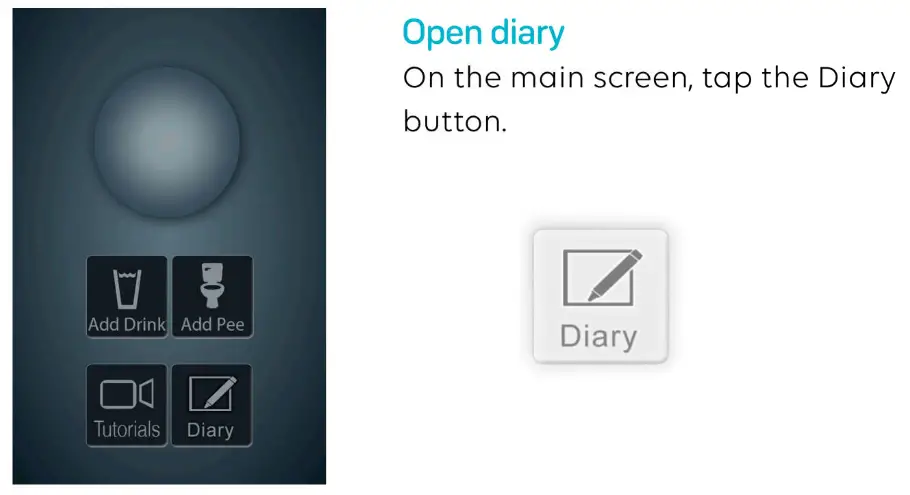

iUFlow Screens : Diary

Leakage: Unintentional loss of urine. Inability to hold urine in the bladder due to loss of voluntary control over the urinary sphincters resulting in the involuntary passage of urine.

Urgency: A sudden compelling desire to pass urine.

DOs and DON’Ts

Note
Repeat this for every urination over 24 or 48 or 72 hours as advised by your healthcare provider.

Recommended
Female position: Make sure both feet are flat on the floor. Your behinds should be at the back of the toilet seat and may touch iUFlow device. You can do several practice runs before starting your formal diary.

Other household members should not urinate into iUFlow.

Attention

Do not strain with urination.
Do not move your body during urination.
Handle with care. Do not shake, drop etc. the device at any time.
Make sure no hair goes into iUFlow.
Do not drop toilet paper into iUFlow.
Do not defecate (poop) into iUFlow.
Do not place any items, toys, materials etc. into iUFlow.

Do not spit or spill water into iUFlow during urination.
Avoid using iUFlow if any of the above occurred, as it may not work properly.
Always rinse the iUFlow after a recording session using the provided rinse container and cold water before storing.

Certain medication and constipation may affect the accuracy of the uroflowmeter readings.

Flow feature

iUFlow measures the volume, speed and time of urination.

Results are then used by your doctor to compare your urine flow rate with values considered normal for your age and sex

The flow measurement will help determine how your lower urinary tract is functioning.

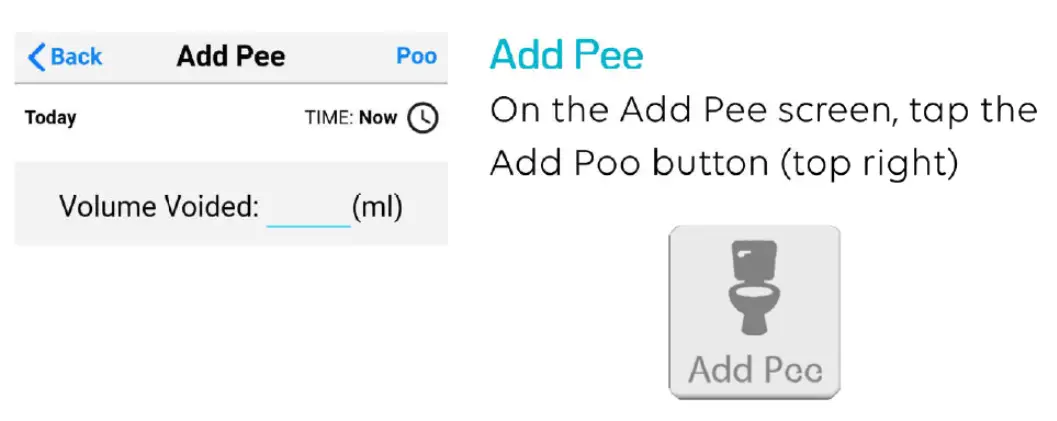

iUFlow Screens : Add Pee

Missed a urination into iUFlow?

iUFlow Screens : Add Poo

iUFlow Screens : Video Tutorials

Questions and Answers

How do I contact support?
You can email support on
iflowsupport@elevateweekly.com

Questions?
Check online at iUFlow frequently asked questions
http:/ /iuflow.com/frequently-asked-questions/

Product information

iUFlow is comprised of

The iUFlow device: The hardware device (Bowl + Sensor) placed on the toilet bowl under the toilet seat (for sitting position) to measure the volume and the flowrate of urination by a user throughout the voiding; capable of connecting to a mobile device via Bluetooth (e.g. Smartphone);, and
The iUFlow application software: A mobile device application (“app”) that collects data from the iUFlow device, analyses the data utilizing an algorithm and stores it.

Operating conditions

Temperature range: 12°C – 30°C
Altitude: 0 -2000 m
Shelf life: 2 years from the date of manufacture

Product life:
● iUFlow (Pro): 4 weeks from first use or 60 urination sessions
● iUFlow (XL): 10 weeks from first use or 300 urination sessions

Usage limitations

Use only when installed onto a western style toilet (The height between the seating surface (rim) of the toilet bowl to the lowest point (water surface) is 130mm or more.
For urine only.

Ensure the water level of toilet does not touch the bottom of the SEensor.
Do not use in a moving vehicle (e.g. plane, train, ferry).
Use only with iUFlow app.

Supported devices

iUFlow supports iOS 8 or later and Android 5 [Lollipop) and above.

The mobile devices that are officially compatible are these:

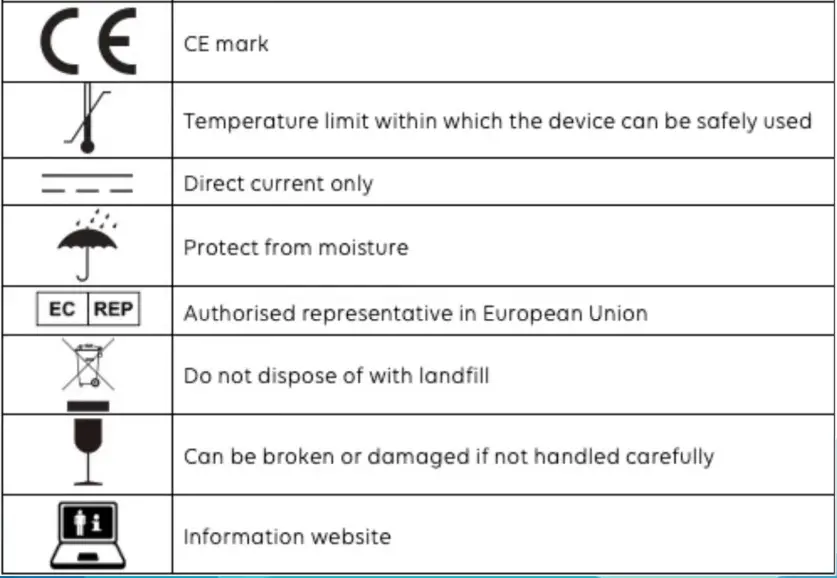

Symbols glossary

Specifications

iUFlow measuring accuracy and specifications

iUFlow measures uroflowmetry parameters in a single urination event by a user with the following accuracy;
Volume measurement:
• Measuring range: 50 to 750 ml (Total Flow Volume)
• Accuracy:+/- 5% or +/-10 ml (Whichever is greater)
Flowrate measurement:
• Measuring range: 5 to 50 ml/s
• Accuracy:+/- 5% or +/-1 ml/s (Whichever is greater)
iUFlow also measures and records the urination flowrate as it varies throughout the urination event. For each urination event, the user can access a graph showing the flowrate (ml/s) as a function of time (seconds) as well as the following parameters:
• The total flow duration (i.e. Voiding time, Flow time) (seconds);
• The average flowrate (ml/s);
• The highest instantaneous flowrate (i.e. O) (ml/s); and
• The time to the highest instantaneous flowrate (i.e. TO ) (seconds).

Energy exchange
iUFlow neither delivers energy to the user’s body, nor does it extract energy from the user’s body in any way or form.
iUFlow, however, includes one CR2032 battery (non-replaceable) to power its electronics. The battery and the electronics are housed in a secure sealed compartment which is insulated so as to prevent any contact with the user. iUFlow is designed so that the electronics compartment is NOT exposed to water and/or urine.

Substance exchange
iUFlow neither delivers any substance to the user’s body, nor does it extract any substance from the user’s body. iUFlow is activated by urine from the user; however, that urine is not extracted by the device, but rather flows naturally as in everyday life urination.

Cleaning:

Clean the device after use using clean cold water only.

Pour 240ml (or 8 fl oz) of clean water into the bowl and allow to drain into the toilet.
Do not wash with detergents.

Do not immerse product in water.

Storage:

The unit will self-drain when positioned correctly on the toilet.

Important: Allow unit to fully air dry before storage.
Store at 12-30°C (53-86ºF)

Servicing and adjustment:

The iUFlow contains no user-serviceable components.
No adjustment is required.
This device contains a non-rechargeable battery. Do not recharge.

Disposal of the iUFlow device:

Separate the bowl from the sensor by turning the sensor clockwise to align the orange dot with the unlock sign (see page 4).
Dispose of the sensor safely and according to the local procedures for household hazardous waste.

Recycle the iUFlow bowl with normal household recycling waste..

Do not remove the covers of the device components. Only perform maintenance procedures specifically described in this user manual.
