Manuale utente della bici elettrica FREEDARE Eden

1. Introduzione e oltreview

Welcome to the FREEDARE Eden Electric Bike user manual. This guide provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new electric bike. The FREEDARE Eden is designed for adults, featuring a powerful 250W motor, a long-lasting 48V 20Ah battery, and robust 26x4 inch KENDA fat tires, making it suitable for various terrains from urban roads to snow and sand.

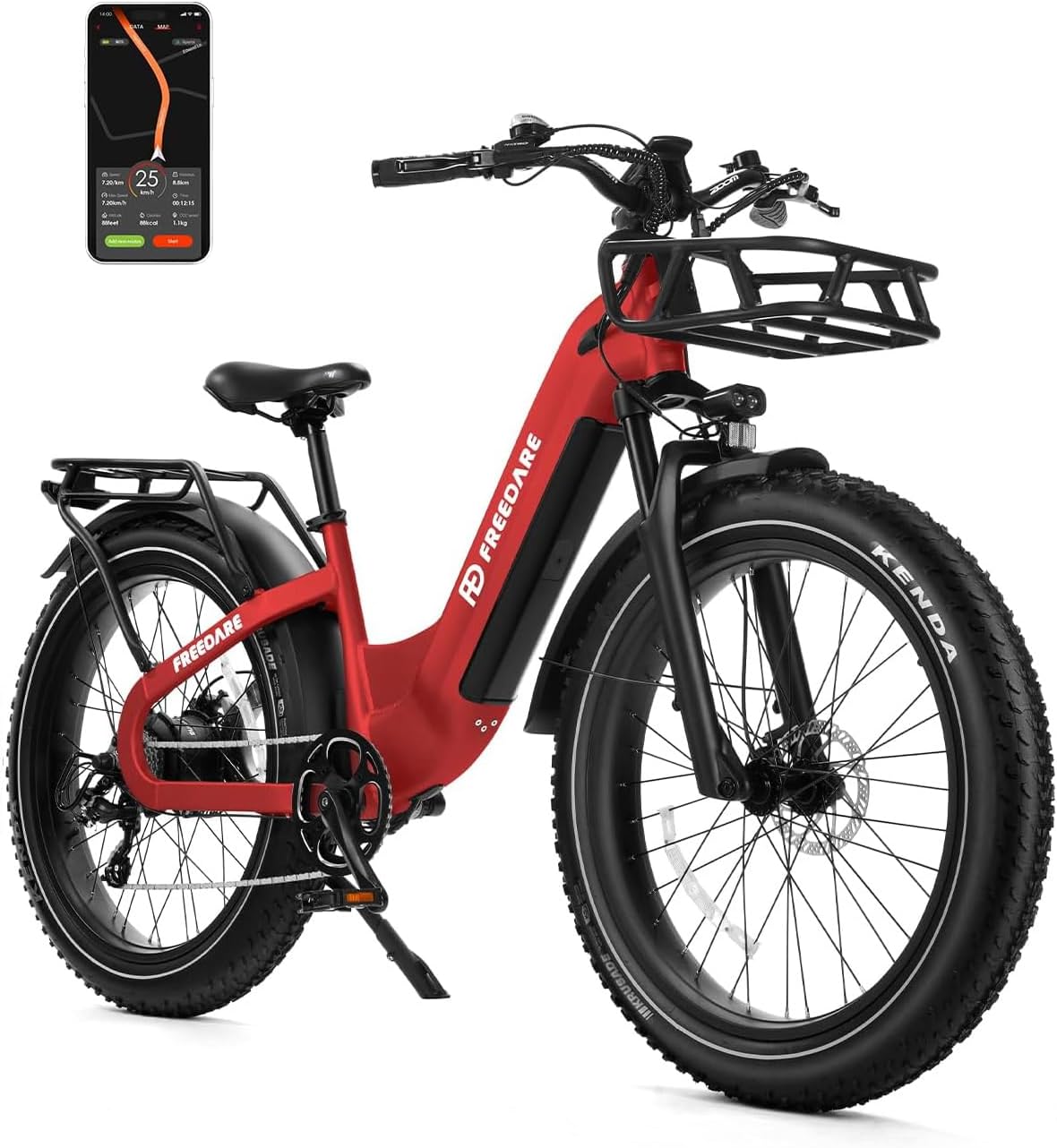

Figure 1.1: The FREEDARE Eden Electric Bike in red, showcasingrazie al suo design robusto e alle sue funzionalità integrate.

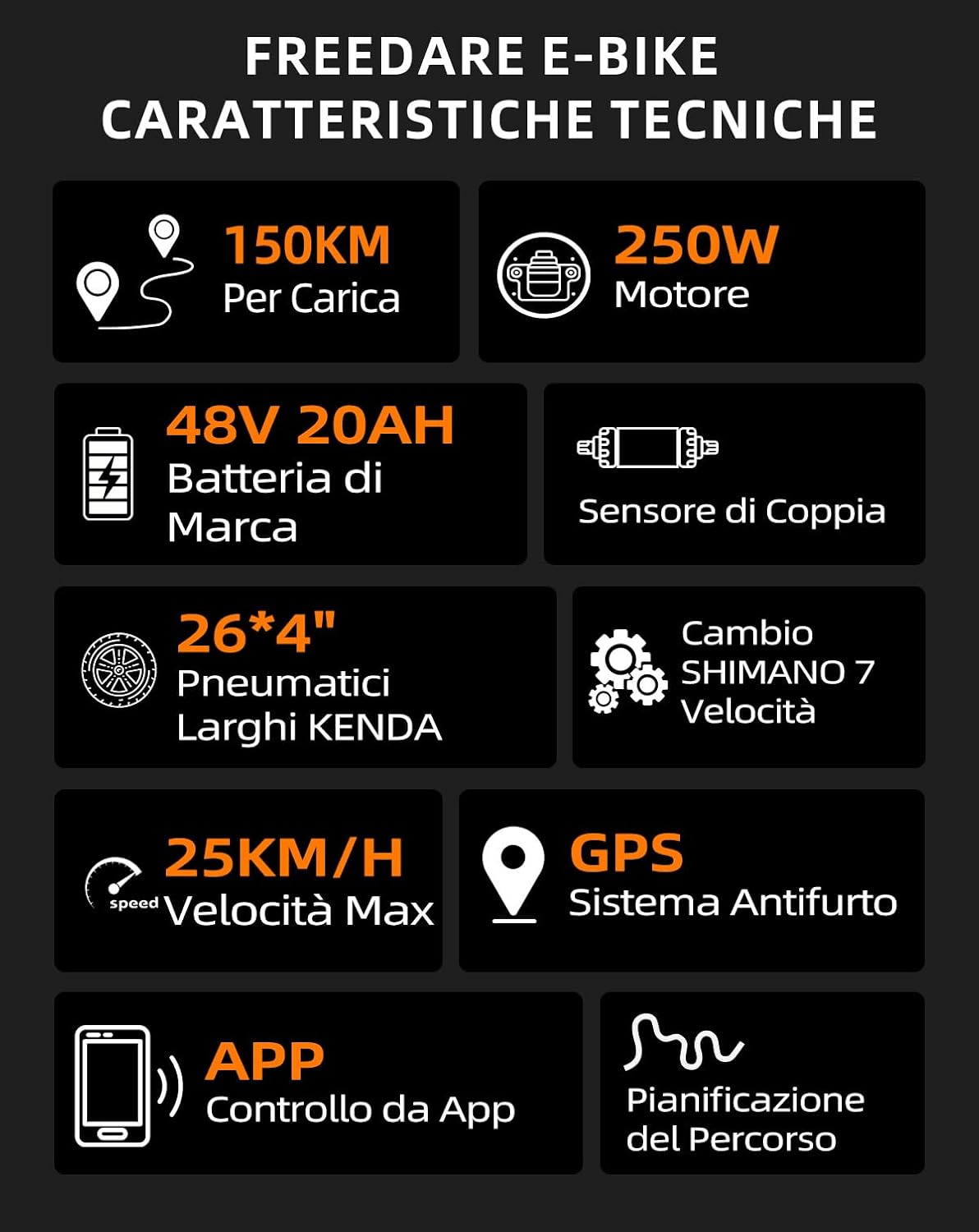

Figura 1.2: Oltreview of key technical specifications including 150KM per charge, 250W motor, 48V 20AH battery, torque sensor, 26x4 inch Kenda tires, Shimano 7-speed, 25KM/H max speed, GPS anti-theft system, APP control, and route planning.

2. Informazioni sulla sicurezza

Always prioritize safety when operating your electric bike. Read and understand all instructions before your first ride. Ensure all components are properly assembled and secured. Wear a helmet and appropriate safety gear. Be aware of local traffic laws and regulations.

2.1 Water Resistance and Certifications

The FREEDARE Eden Electric Bike has an Grado di resistenza all'acqua IPX6, providing protection against strong jets of water. This ensures reliable performance in various weather conditions, including rain. The bike is certified according to EN15194 and CE RED standards, ensuring compliance with European safety and quality requirements.

3. Componenti e caratteristiche

3.1 Motore

The bike is equipped with a powerful Motore brushless da 250 W, delivering 90-105NM of torque. This motor allows for a maximum speed of 25 km/h and can easily handle inclines up to 30 degrees, providing robust assistance for various riding conditions.

Figure 3.1: Illustration of the powerful 250W brushless motor, highlighting its internal components and power delivery.

3.2 Batteria

The FREEDARE Eden features a high-capacity 48V 20Ah removable battery. With intelligent BMS (Battery Management System) for safety and energy saving, it offers an impressive range of up to 150 km on a single charge. Full charging takes approximately 6-8 hours.

Figura 3.2: dettagliata view of the removable 48V 20Ah battery, showing its internal structure and key features like 960Wh capacity, 60-150km range, BMS, 6-8H fast charge, and IPX6 waterproofing.

3.3 Pneumatici

Dotato di KENDA 26x4 inch fat tires, the bike provides robust performance and excellent grip across various terrains, including urban roads, mountains, snow, and sand. The anti-puncture tread enhances durability and reliability.

Figure 3.3: Visual representation of the 26x4 inch fat tires, illustrating their suitability for snow, sand, mountain terrain, and city asphalt.

3.4 freni

The FREEDARE Eden features freni a disco idraulici, offering superior stopping power and reliability in all weather conditions, ensuring maximum safety during your rides.

Figure 3.4: A rider on the FREEDARE Eden E-bike, highlighting the hydraulic disc brakes for safe riding on various terrains.

3.5 Sospensione

An adjustable front suspension fork absorbs shocks and bumps, providing a smooth and comfortable ride even on uneven terrain. You can adjust the softness or rigidity of the shock absorber based on the terrain and riding needs.

Figure 3.5: Close-up of the adjustable suspension fork, illustrating its mechanism for absorbing impacts and ensuring a comfortable ride.

3.6 ingranaggi

The bike features a reliable SHIMANO 7-speed gear system, allowing you to easily adjust your pedaling effort to match different speeds and terrains.

3.7 Visualizzazione

Un chiaro Display a colori TFT provides real-time information such as battery level, current speed, and mileage, ensuring you have all necessary data at a glance.

Figure 3.6: The TFT digital display, showing battery level, speed, and trip information, designed for clear visibility even in wet conditions.

Illuminazione a 3.8°

L'integrato IPX6 waterproof headlight ensures visibility and safety during night rides or in low-light conditions. It can be controlled from the handlebar or via the app.

Figure 3.7: Close-up of the bright front headlight, designed for clear illumination during night rides and featuring IPX6 waterproofing.

3.9 Saddle and Handlebar

The bike features an ergonomic saddle for maximum comfort during long distances and a professional mountain bike handlebar for optimal control and handling.

Figure 3.8: The wide and soft saddle, designed for enhanced comfort during extended rides.

3.10 Accessori

The FREEDARE Eden includes a cestino anteriore, UN rear rack with a capacity of up to 25 kg, and fenders, enhancing its utility for daily commutes and weekend adventures.

Figure 3.9: The multi-function configuration, showcasing the integrated front basket and rear rack for carrying items.

4. Impostazione

4.1 Pre-assemblaggio

Your FREEDARE Eden Electric Bike arrives 85% pre-assemblato. This significantly simplifies the setup process. A detailed assembly video and guide are included to assist you with the final steps.

4.2 Carica iniziale della batteria

Before your first ride, fully charge the battery. Connect the charger to the battery port and then to a power outlet. The indicator light on the charger will change to signal a full charge. Refer to the battery section for more details on charging times.

5. Istruzioni per l'uso

5.1 Accensione/Spegnimento

Per accendere la bici, tieni premuto il pulsante di accensione sul display. Per spegnerla, tieni premuto lo stesso pulsante finché il display non si spegne.

5.2 Utilizzo del display

The TFT color display provides real-time data. Use the buttons near the display to cycle through information such as current speed, average speed, max speed, trip distance, total odometer, and battery level. Adjust assistance levels as needed.

5.3 Cambio marcia

Utilize the SHIMANO 7-speed shifter on the handlebar to change gears. Shift to a lower gear for climbing hills and a higher gear for flat terrain or downhill riding. Always shift gears while pedaling lightly to ensure smooth transitions and prevent damage to the drivetrain.

5.4 Controllo intelligente dell'app

The FREEDARE App enhances your riding experience with integrated Bluetooth, 4G, and GPS functionalities. It offers advanced features for smart and protected riding.

• Autodiagnosi: The app integrates an intelligent e-bike inspection system, allowing you to verify every electrical component and detect anomalies or malfunctions in real-time.
• Anti-Theft with GPS Tracking: The system includes an anti-theft feature with real-time location tracking and movement alarms. Once the bike is locked, the alarm monitors movements and notifies you of unauthorized activity, making it easy to locate your e-bike.
• Personal Route Planning: Plan unique routes in advance. The app will notify you upon reaching your destination and suggest recommended itineraries. You can also share these routes with friends.
• Theft and Fall Alerts: Receive real-time notifications for potential theft or if the bike falls over.

Figure 5.1: The FREEDARE App interface showing real-time speed, battery, and route information, alongside the bike's TFT display.

Figure 5.2: Diagram illustrating the GPS anti-theft system with 4G, GPS localization, and movement alarm features.

Figure 5.3: Visual representation of the app's smart journey planning feature, allowing users to define start and end points for their rides.

Figure 5.4: Diagram showing the IoT system integration for assisted diagnosis, allowing users to check various bike components via the app.

6. Manutenzione

6.1 Cura della batteria

• Utilizzare sempre il caricabatterie originale fornito.
• Non sovraccaricare o scaricare completamente la batteria.
• Store the battery in a cool, dry place when not in use, ideally charged to 50-70%.
• Evitare di esporre la batteria a temperature estreme.

6.2 Pressione dei pneumatici

Regularly check tire pressure to ensure optimal performance and safety. Refer to the tire sidewall for recommended pressure ranges. Proper inflation improves ride quality, battery range, and tire longevity.

6.3 Brake Checks

Inspect brake levers and pads regularly. Ensure the brakes engage smoothly and effectively. If you notice any issues with braking performance, consult a qualified bicycle mechanic.

6.4 Pulizia generale

Pulisci regolarmente la tua e-bike con un pannoamp cloth and mild soap. Avoid using high-pressure washers directly on electrical components. Lubricate the chain periodically to ensure smooth operation.

7. Risoluzione Dei Problemi

This section addresses common issues you might encounter. For more complex problems, utilize the self-diagnosis feature in the FREEDARE App or contact customer support.

8. Specifiche

Below are the detailed specifications for the FREEDARE Eden Electric Bike:

Figure 8.1: Detailed dimensions of the FREEDARE Eden E-bike and recommended rider height range (160-195 cm) and maximum load (150 kg).

9. Garanzia e supporto

The FREEDARE Eden Electric Bike comes with a Garanzia di 12 mesi, covering manufacturing defects and major component failures under normal use. Please retain your proof of purchase for warranty claims.

For any questions, technical assistance, or warranty support, please contact our customer service team. Refer to the contact information provided with your purchase documentation or visit the official FREEDARE websito per i dettagli del supporto.
