1. Introduzione
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Candy FIDCP X696 multifunction electric oven. Please read these instructions thoroughly before using the appliance and retain them for future reference.
2. Informazioni sulla sicurezza
For your safety and to ensure proper use, carefully read all instructions before installing and using the appliance. Keep this manual with the appliance for future reference. The manufacturer declines all responsibility for any damage resulting from incorrect installation or improper use.
- Sicurezza elettrica: Ensure the oven is correctly earthed and connected to a suitable power supply. Do not use adapters or extension cords. Disconnect the appliance from the power supply before any cleaning or maintenance.
- Superfici calde: The oven and its accessible parts become very hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
- Sicurezza dei bambini: Questo apparecchio può essere utilizzato da bambini di età pari o superiore a 8 anni e da persone con ridotte capacità fisiche, sensoriali o mentali o prive di esperienza e conoscenza, se sono state supervisionate o hanno ricevuto istruzioni sull'uso sicuro dell'apparecchio e se ne comprendono i pericoli. I bambini non devono giocare con l'apparecchio. La pulizia e la manutenzione da parte dell'utente non devono essere eseguite da bambini senza supervisione.
- Pulizia: Always allow the oven to cool down before cleaning. Use appropriate cleaning agents and methods as described in the maintenance section.
- Ventilazione: Assicurare un'adeguata ventilazione attorno all'apparecchio come specificato nelle istruzioni di installazione.
3. Prodotto finitoview
The Candy FIDCP X696 is a built-in multifunction electric oven designed for versatile cooking. It features a convection heating method, providing even heat distribution for consistent cooking results.

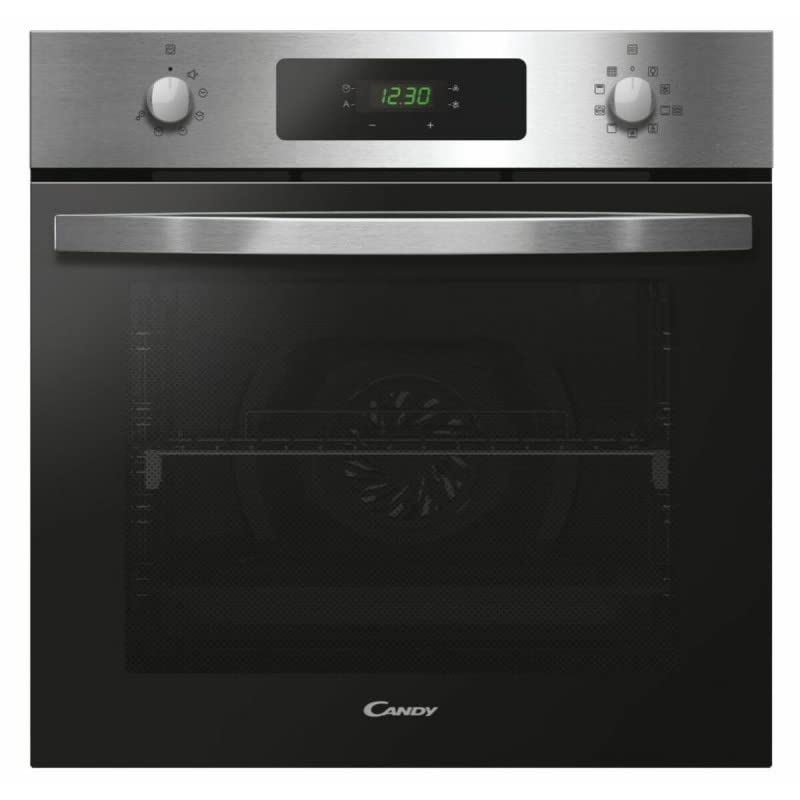

Figura 3.1: Fronte view of the Candy FIDCP X696 Multifunction Oven, showcasingrazie alla finitura in acciaio inox e al pannello di controllo.
Figura 3.2: Interno view of the Candy FIDCP X696 Multifunction Oven, showing the oven cavity and rack supports.
4. Installazione
Proper installation is crucial for the safe and efficient operation of your oven. It must be installed by a qualified technician in accordance with local regulations and the instructions provided.
4.1 Controlli pre-installazione
- Ensure the cabinet opening dimensions match the oven's requirements.
- Verify that the electrical supply meets the specifications listed on the rating plate of the oven.
- Check for any damage to the appliance during transit. Do not install a damaged appliance.
4.2 Collegamento elettrico
The oven must be connected to the mains electricity supply by a qualified electrician. Ensure the appliance is disconnected from the power supply before making any connections. The wiring diagram is typically located on the appliance itself or within the packaging.
4.3 Mounting the Oven
Carefully slide the oven into the prepared cabinet opening. Secure the oven to the cabinet using the screws provided, typically through holes in the oven frame. Ensure the oven is level and stable.
4.4 Ventilazione
Adequate ventilation is essential to prevent overheating. Ensure that the cabinet design allows for proper airflow around the oven, especially at the rear and sides.
5. Istruzioni per l'uso
Familiarize yourself with the control panel before operating the oven. The specific layout and functions may vary slightly, but the general principles remain consistent.
5.1 Uso iniziale
- Prima pulizia: Before first use, clean the oven interior and accessories with warm soapy water and dry thoroughly.
- Burning Off: Heat the empty oven at maximum temperature for approximately 30-60 minutes to burn off any manufacturing residues. Ensure the room is well-ventilated during this process.
5.2 Impostazione dell'orologio e del timer
Refer to the specific symbols on your control panel for setting the current time and using the minute minder or cooking timer functions. Typically, a clock symbol indicates time setting, and a bell symbol indicates the timer.
5.3 Selezione delle funzioni di cottura
The Candy FIDCP X696 offers multiple cooking functions. Use the function selector knob to choose the desired cooking mode. Common functions include:
- Riscaldamento convenzionale: Elementi riscaldanti superiori e inferiori per la cottura tradizionale e la tostatura.
- Convection (Fan-forced): Fan distributes heat evenly from a circular element, ideal for multi-level cooking and faster results.
- Griglia: Per grigliare e rosolare.
- Scongelare: Fan-only function to gently thaw frozen foods.
5.4 Impostazione della temperatura
Use the temperature selector knob to set the desired cooking temperature. The oven will begin to heat once a function and temperature are selected. An indicator light will typically turn off once the set temperature is reached.
5.5 Preriscaldamento
For best results, preheat the oven to the desired temperature before placing food inside, especially for baking.
6. Pulizia e manutenzione
Una pulizia e una manutenzione regolari garantiranno la longevità e le prestazioni ottimali del tuo forno.
6.1 Pulizia esterna
Pulire le superfici esterne con un panno morbido dampened with warm soapy water. For stainless steel finishes, use a specialized stainless steel cleaner and polish in the direction of the grain. Avoid abrasive cleaners or scourers.
6.2 Pulizia degli interni
Allow the oven to cool completely. Remove any loose food debris. Clean the interior with a damp cloth and a mild oven cleaner, following the cleaner's instructions. Rinse thoroughly and dry. Avoid harsh chemical cleaners on seals.
6.3 Porta del forno
Clean the glass panels of the oven door with a soft cloth and glass cleaner. For stubborn stains, a non-abrasive cream cleaner can be used. Some oven doors can be partially or fully removed for easier cleaning; refer to specific instructions if available.
6.4 Sostituzione Lampada Forno
Ensure the oven is disconnected from the power supply. Unscrew the protective glass cover, remove the old bulb, and replace it with a new heat-resistant bulb of the correct wattage (typically 25W/300°C). Replace the glass cover.
7. Risoluzione Dei Problemi
Before contacting customer service, consult the following troubleshooting guide for common issues.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il forno non riscalda | Nessuna alimentazione; impostazioni errate; fusibile scattato. | Check power connection; ensure correct function/temperature selected; check household fuse/circuit breaker. |
| Cottura irregolare | Posizione errata della griglia; forno sovraccarico; sportello non completamente chiuso. | Use recommended rack positions; avoid overcrowding; ensure door is sealed. |
| La luce del forno non funziona | La lampadina è difettosa o allentata. | Replace or tighten the oven bulb (see Section 6.4). |
| Eccessivo fumo durante la cottura | Food spills; excessive fat/grease. | Clean oven interior thoroughly; use appropriate cooking methods to minimize splatters. |
Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti.
8. Specifiche
The following table details the technical specifications of the Candy FIDCP X696 multifunction oven.
| Caratteristica | Dettaglio |
|---|---|
| Marca | Caramella |
| Nome del modello | FIDCP X696 |
| Produttore | CARAMELLA |
| Numero di modello | 33703579 |
| Tipo di installazione | Incorporato |
| Tipo di carburante | Elettrico |
| Metodo di riscaldamento | Convezione |
| Colore | Acciaio inossidabile |
| Capacità del forno | 70 litri |
| Classe di efficienza energetica | A |
| Consumo energetico (convenzionale) | 0.98 kWh/ciclo |
| Consumo energetico (ventilato) | 0.80 kWh/ciclo |
| ASIN | B0BTYVZJ3Y |
| Data prima disponibilità | 19 agosto 2023 |
Figure 8.1: Energy label for the Candy FIDCP X696 oven, indicating an energy efficiency class of A, a capacity of 70 liters, and energy consumption values for conventional and fan-forced modes.
9. Garanzia e supporto
Your Candy FIDCP X696 oven is covered by a manufacturer's warranty. The terms and conditions of the warranty are typically provided with the purchase documentation. Please retain your proof of purchase for any warranty claims.
For technical assistance, spare parts, or to report a fault, please contact Candy customer support. Contact details can usually be found on the manufacturer's official websito o nella documentazione di acquisto.
Quando contatti l'assistenza, tieni a portata di mano le seguenti informazioni:
- Model Name: FIDCP X696
- Numero modello: 33703579
- Data di acquisto
- descrizione del problema
