Grennix Robot Pool Cleaner Instruction Manual

1. Informazioni sulla sicurezza

Please read all safety instructions carefully before operating the Grennix Robot Pool Cleaner. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Prima di collegare il caricabatterie, assicurarsi sempre che la porta di ricarica sia completamente asciutta.
• Do not operate the cleaner if it or the charger appears damaged.
• Keep the cleaner out of reach of children and pets when in operation or charging.
• Only use the original charger and accessories provided by Grennix.
• Non tentare di smontare o riparare l'aspirapolvere da soli. Contattare personale qualificato per l'assistenza.
• Prima di utilizzare il pulitore, assicurarsi che la composizione chimica dell'acqua della piscina sia bilanciata.
• Remove large debris or objects from the pool before operating the cleaner to prevent damage.

2. Prodotto finitoview

2.1 Componenti

The Grennix GX-UFO-WH Robot Pool Cleaner package includes the following items:

• Grennix G900 Pool Cleaner Unit
• Caricabatterie
• Gruppo filtro
• Gancio di recupero
• Manuale di istruzioni
• Guida veloce

Image: All essential accessories included with the Grennix Robot Pool Cleaner, such as the main unit, charger, filter, retrieval hook, and manuals.

2.2 Caratteristiche

• Aspirazione potente: Equipped with brushless dual-motors providing 6000Pa suction power for effective debris collection.
• Filtrazione fine: Features an 80-micron filtering accuracy to capture leaves, dirt, and sand.
• Design senza fili: Offers real hands-free and fully automated cleaning without messy hoses or cluttered cords.
• Applicazione versatile: Suitable for both above-ground and in-ground pools up to 645 sq. ft. (60 m²) and flat pools with a depth of up to 3 meters.
• Batteria a lunga durata: Powered by a 2600mAh battery, providing 60-75 minutes of operating time on a full charge.
• Ricarica rapida: Si ricarica completamente in circa 2.3 ore.
• Funzione di parcheggio automatico: Automatically parks near a wall when cleaning is complete or battery is low (<5%).
• Indicatore LED: Provides clear status updates (Flashing blue: battery charging; Solid blue: charging complete; Flashing red: low battery; Solid white: cleaning in progress).
• Durevole e impermeabile: IP68 waterproof rating with a USA-designed robust build.

Image: The Grennix Robot Pool Cleaner, a compact and efficient device designed for automated pool cleaning.

Image: Visual representation of the cleaner's robust battery life, showing 2600mAh capacity, 75 minutes running time, and 2.3 hours charging time.

Image: Highlighting the cordless design of the pool cleaner, eliminating the need for messy hoses or cluttered cords.

Immagine: Un esploso view illustrating the dual-motors filtration system, showing how the filter and double suction ports work to capture various debris.

Image: Depiction of the cleaner's powerful 6000Pa suction, effectively pulling in debris from the pool floor.

Image: The automatic parking feature, showing the cleaner returning to the pool edge when its battery is low.

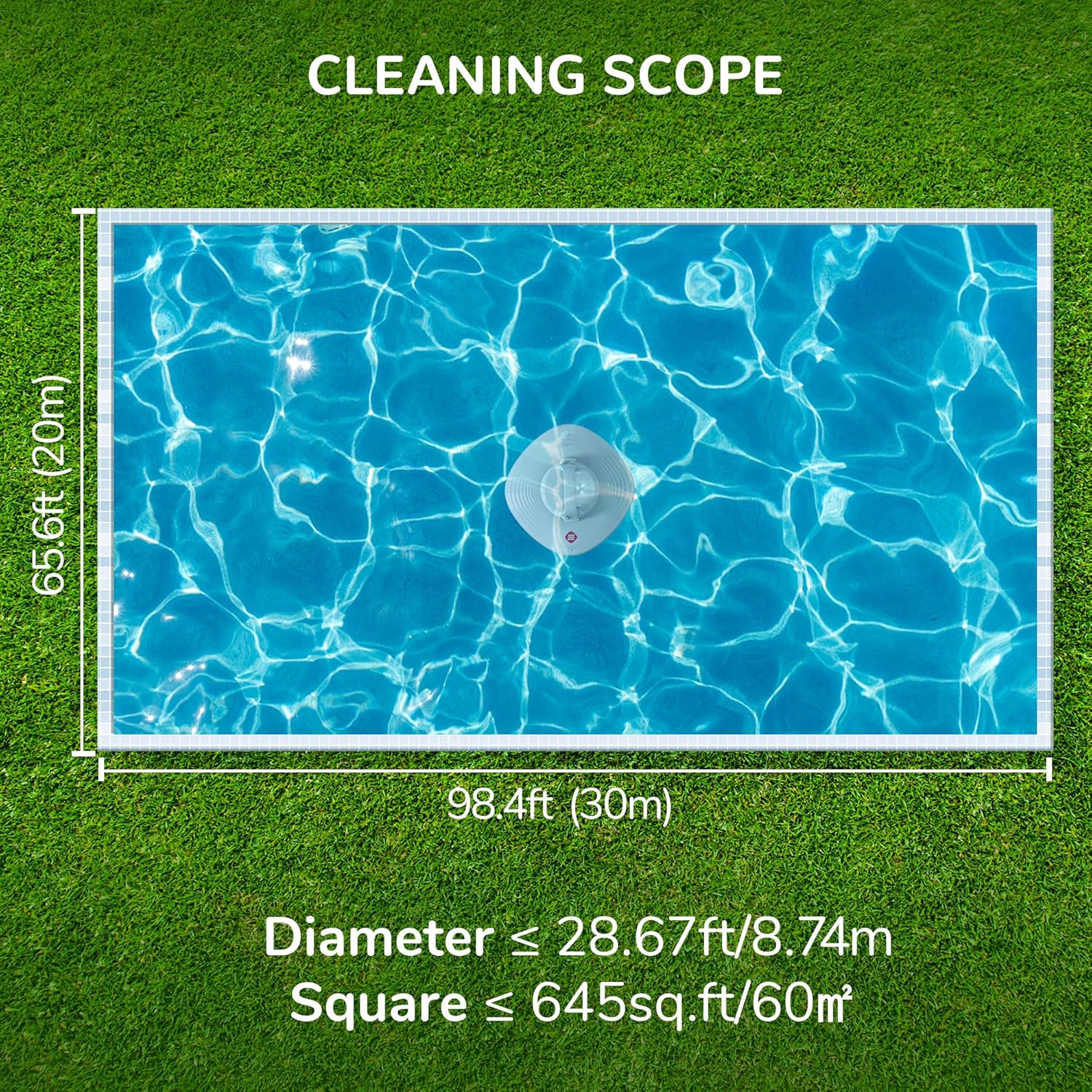

Image: Diagram illustrating the cleaning scope, indicating compatibility with pools up to 645 sq. ft. (60 m²) in size.

Image: Demonstrating the cleaner's compatibility with all pool shapes and both in-ground and above-ground flat pools.

2.3 Specifiche

3. Impostazione

3.1 Carica iniziale

1. Ensure the cleaner unit and its charging port are completely dry before charging.
2. Connect the provided charger to the cleaner's charging port.
3. Collegare il caricabatterie a una presa elettrica standard.
4. The LED indicator will flash blue during charging.
5. Charging is complete when the LED indicator turns solid blue (approximately 2.3 hours).

3.2 Montaggio (se necessario)

The Grennix Robot Pool Cleaner comes largely pre-assembled. Ensure the filter assembly is correctly seated inside the unit before first use. Refer to the 'Maintenance' section for details on accessing and installing the filter.

4. Funzionamento

4.1 Avvio del pulitore

1. Assicurarsi che l'aspirapolvere sia completamente carico.
2. Locate the power button on the underside of the unit. Press the button to turn the cleaner ON. The LED indicator will turn solid white, indicating it is ready for cleaning.
3. Gently place the cleaner into the pool water. Allow it to slowly sink to the bottom.
4. The cleaner will begin its cleaning cycle automatically, moving across the pool floor.

4.2 Ciclo di pulizia

The Grennix Robot Pool Cleaner operates for 60-75 minutes on a full charge. It navigates the pool floor, collecting debris through its powerful suction and filtration system.

4.3 Parcheggio automatico

When the cleaning cycle is complete or the battery level drops below 5%, the cleaner will automatically move towards the nearest pool wall and park itself for easy retrieval.

4.4 Recupero del pulitore

1. Once the cleaner has parked, use the provided retrieval hook (attached to a standard pool pole, not included) to gently lift the cleaner out of the water.
2. Allow excess water to drain from the unit before removing it completely from the pool.
3. Turn off the cleaner by pressing the power button.

5. Manutenzione

Regular maintenance ensures optimal performance and extends the lifespan of your Grennix Robot Pool Cleaner.

5.1 Pulizia del filtro

1. After each cleaning cycle, or as needed, remove the cleaner from the pool and turn it off.
2. Locate the side tabs on the top cover of the cleaner. Pull up on these tabs to open the unit.
3. Carefully lift out the filter assembly.
4. Empty any collected debris from the filter.
5. Rinse the filter thoroughly with a garden hose to remove fine particles and gunk.
6. Ensure the filter is clean and free of debris before reinserting it.
7. Place the clean filter assembly back into the unit, ensuring it is properly seated.
8. Close the top cover, pressing down until the side tabs click into place.

5.2 Cura della porta di ricarica

Always ensure the charging port on the underside of the cleaner is completely dry before connecting the charger. Wipe it with a clean, dry cloth if necessary.

5.3 Conservazione

Quando non viene utilizzato per lunghi periodi, conservare l'aspirapolvere in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme. Assicurarsi che la batteria sia completamente carica prima di riporlo.

6. Risoluzione Dei Problemi

7. Garanzia e supporto

The Grennix GX-UFO-WH Robot Pool Cleaner is backed by a Garanzia di 1 anno dalla data di acquisto.

For technical support, warranty claims, or replacement parts, please contact Grennix customer service through the retailer where the product was purchased or visit the official Grennix websito per le informazioni di contatto.

Conservare la prova d'acquisto per la convalida della garanzia.
