OMAIGA Home Steam Iron Bundle Set User Manual

Introduzione

This user manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your OMAIGA Home Steam Iron Bundle Set. This set includes one cordless steam iron and one corded steam iron, designed for effective wrinkle removal on various fabric types. Please read this manual thoroughly before first use and retain it for future reference.

Importanti istruzioni di sicurezza

• Always unplug the iron when filling or emptying water, and when not in use.
• Do not leave the iron unattended while it is switched on or connected to power.
• Tenere il ferro da stiro e il cavo di alimentazione fuori dalla portata dei bambini.
• Non utilizzare il ferro da stiro se il cavo o la spina sono danneggiati, oppure se il ferro è caduto o è danneggiato.
• Utilizzare il ferro solo per lo scopo previsto.
• Non immergere mai il ferro in acqua o altri liquidi.
• Prestare attenzione quando si capovolge il ferro da stiro, poiché potrebbe esserci acqua calda nel serbatoio.
• Il ferro da stiro deve essere utilizzato e appoggiato su una superficie stabile e resistente al calore.
• Non toccare le superfici calde. Utilizzare maniglie o manopole.
• Only use tap water unless otherwise specified.

Prodotto finitoview

Your OMAIGA Home Steam Iron Bundle Set includes two distinct irons, each with specific features for versatile ironing needs.

1. OMAIGA Cordless Steam Iron (Black Model)

Image: OMAIGA Cordless Steam Iron (black) on its 360-degree charging base, highlighting key features like ceramic soleplate and powerful steam output.

• Piastra in ceramica: Garantisce uno scorrimento fluido e una distribuzione uniforme del calore.
• Base di ricarica a 360°: Allows for easy docking and detachment from any direction for cord-free ironing.
• Emissione di vapore potente: Delivers continuous steam and a powerful steam boost for effective wrinkle removal.
• Fast Heat Up & Recharge: Minimizes waiting time during ironing sessions.
• Anti-Calc & Self-Clean Function: Helps prevent mineral buildup and maintains iron performance.

Image: Close-up of the OMAIGA Cordless Steam Iron's 360-degree charging base, illustrating its easy docking feature and dimensions (11.4" height, 5.6" width).

Immagine: dettagliata view of the OMAIGA Cordless Steam Iron's steam functions, showing 20g/min continuous steam and 0.8g/press powerful steam boost.

2. OMAIGA Corded Steam Iron (Purple Model)

Image: Diagram of the OMAIGA Corded Steam Iron (purple), pointing out key components such as the spraying water outlet, ceramic soleplate, variable steam & self-cleaning switch, spraying water button, temperature dial, and 15.21oz water tank.

• Piastra in ceramica: Ensures smooth gliding and efficient heat transfer.
• 15.21oz Water Tank: Large capacity for extended ironing without frequent refills.
• Variable Steam & Self-Cleaning Switch: Allows adjustment of steam output and activates the self-clean function.
• Spraying Water Button: Provides a fine mist for stubborn wrinkles.
• Quadrante della temperatura: Adjustable thermostat with settings for various fabric types.
• Steam Shot Trigger: Emette una potente esplosione di vapore.

Image: Close-up of the OMAIGA Corded Steam Iron's steam distribution, showing 0.8g/press powerful water spray and 35g/min continuous steam output.

Installazione e preparazione

Prima del primo utilizzo:

1. Rimuovere tutti i materiali di imballaggio e le etichette dal ferro da stiro.
2. Inspect the iron for any damage. Do not use if damaged.
3. For the corded iron, ensure the power cord is untangled. For the cordless iron, place the charging base on a stable surface and plug it into a power outlet.

Riempimento del serbatoio dell'acqua:

1. Ensure the iron is unplugged (or off its charging base for the cordless model) and cooled down.
2. Aprire il coperchio del serbatoio dell'acqua.
3. Fill the water tank with tap water up to the "MAX" fill line. Do not overfill.
4. Close the water tank cover securely to prevent leaks.

Nota: The irons are equipped with a silicone seal to minimize water leaks. Using distilled water is recommended in areas with hard water to prevent mineral buildup, though tap water is generally suitable.

Istruzioni per l'uso

1. Selezione della temperatura:

Turn the temperature dial to select the appropriate heat setting for your fabric. Always check the garment's care label. If unsure, start with a lower temperature on an inconspicuous area.

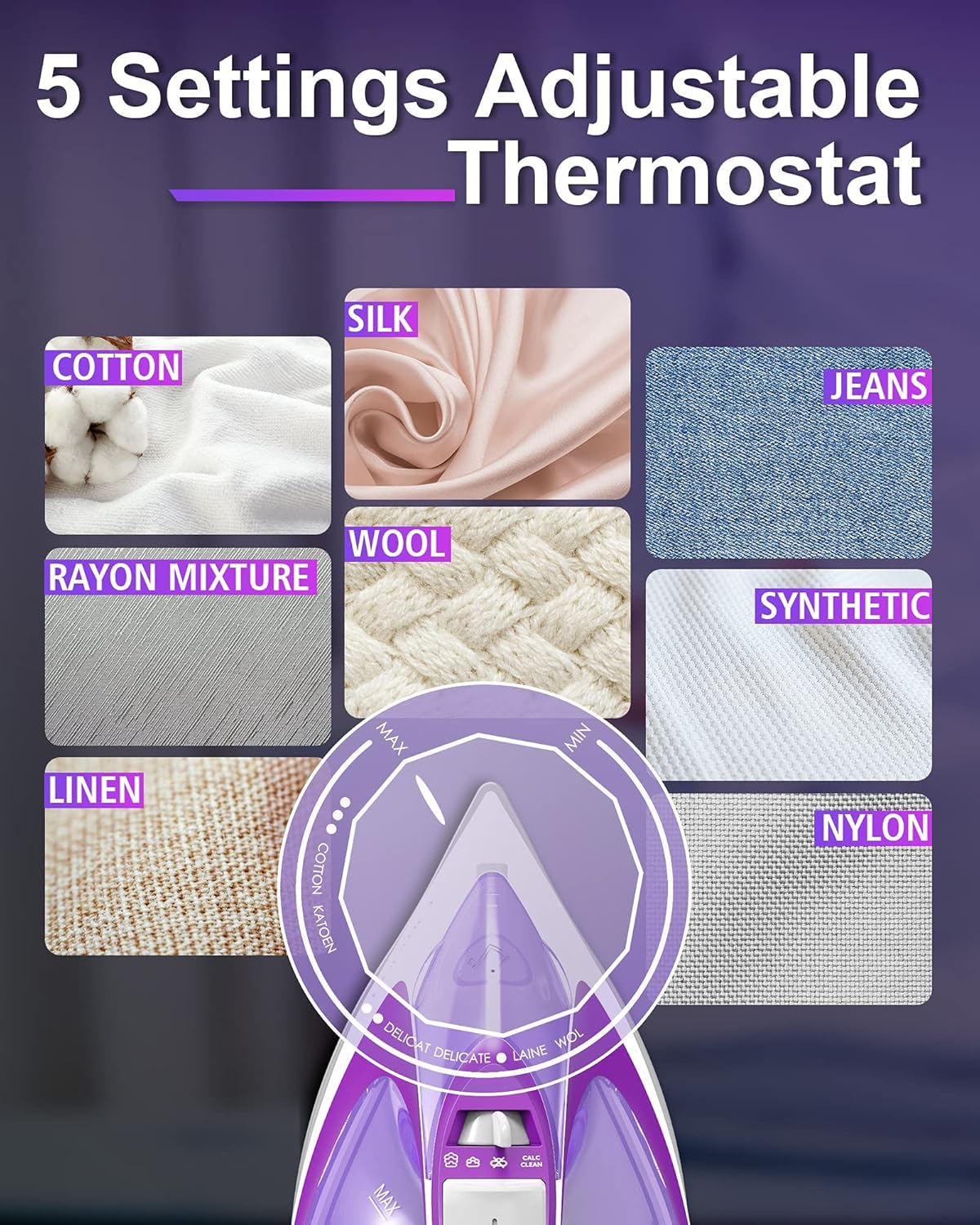

Image: The temperature dial of the OMAIGA Corded Steam Iron, showing 5 adjustable settings for various fabrics including Silk, Cotton, Jeans, Rayon Mixture, Wool, Synthetic, Linen, and Nylon.

• Bassa temperatura: Silk, Nylon, Synthetics
• Temperatura media: Wool, Rayon Mixture
• Alta temperatura: Cotton, Linen, Jeans

2. Ironing Techniques:

Allow the iron to reach the selected temperature before beginning. The indicator light will typically turn off or change color when ready.

• Stiratura a secco: For delicate fabrics or when steam is not desired, ensure the steam setting is off.
• Stiratura a vapore: Once the iron is hot, select the desired steam level using the variable steam switch. Glide the iron over the fabric.
• Steam Shot / Burst of Steam: Press the steam shot trigger for an extra burst of steam to remove stubborn wrinkles. Wait a few seconds between bursts.
• Acqua nebulizzata: Press the water spray button to lightly mist the fabric, aiding in wrinkle removal.
• Vaporizzazione verticale: Both irons are suitable for vertical steaming. Hold the iron upright, close to the fabric (curtains, hanging garments), and press the steam shot trigger.
• Cordless Iron Operation: Place the cordless iron on its charging base between passes to maintain optimal temperature. The iron will reheat quickly.

Image: A visual comparison showing a wrinkled shirt before ironing and the same shirt smooth and wrinkle-free after being ironed with an OMAIGA iron.

Manutenzione e cura

1. Self-Clean Function:

Regularly use the self-clean function to flush out mineral deposits and maintain steam performance.

1. Riempire il serbatoio dell'acqua fino alla linea MAX.
2. Set the iron to the highest temperature setting.
3. Once hot, unplug the iron (or remove from base for cordless).
4. Tieni il ferro orizzontalmente sopra un lavandino.
5. Press and hold the self-clean button/switch. Hot water and steam will flush out from the soleplate, carrying impurities.
6. Rilasciare il pulsante quando il serbatoio dell'acqua è vuoto.
7. Move the iron gently to remove any remaining water.
8. Lasciare raffreddare completamente il ferro prima di riporlo.

Image: A visual representation contrasting a standard steam iron with limescale buildup against a clean OMAIGA Cordless Iron, illustrating the effectiveness of the anti-calc and self-clean features.

2. Pulizia della piastra:

• Assicurarsi che il ferro da stiro sia scollegato e completamente freddo.
• Pulisci la piastra con l'annuncioamp panno e, se necessario, un detergente non abrasivo.
• Non utilizzare pagliette abrasive o detergenti per metalli, poiché potrebbero danneggiare la piastra.

3. Conservazione:

• Svuotare il serbatoio dell'acqua dopo ogni utilizzo.
• Lasciare raffreddare completamente il ferro prima di riporlo.
• Store the iron upright on its heel rest (corded) or on its charging base (cordless) in a dry, safe place.

Risoluzione dei problemi

Specifiche del prodotto

• Marca: OMGOOOO
• Modello: B0BGKDYMPF (Bundle Set)
• Special Feature (Cordless Iron): Cordless operation with 360° charging base
• Colore: Purple (Corded Iron), Black (Cordless Iron)
• Utilizzi consigliati: Steam Ironing, Dry Ironing, Vertical Steaming
• Materiale della piastra: Stainless Steel (Ceramic coating)
• Water Tank Capacity (Corded Iron): Circa 15.21 once
• Continuous Steam Output (Corded Iron): 35g / min
• Continuous Steam Output (Cordless Iron): 20g / min
• Aumento di vapore: 0.8g/press (both models)
• Produttore: OMGOOOO
• Prima data disponibile: 1 giugno 2023

Garanzia e supporto

Your OMAIGA Home Steam Iron Bundle Set comes with a garanzia di un anno dalla data di acquisto. La presente garanzia copre i difetti di fabbricazione in condizioni di normale utilizzo.

For technical consultation or any questions regarding your product, please contact OMAIGA customer support. We provide lifelong technical consultation to ensure your satisfaction.

Please refer to your purchase documentation for specific contact details or visit the official OMAIGA store on Amazon: OMAIGA Store
