Introduzione
Thank you for choosing the VyGrow Over the Door Pantry Organizer. This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your new 8-tier storage solution. Please read this manual thoroughly before installation and retain it for future reference.
Impostare
1. Controlli pre-installazione
- Dimensioni della porta: Ensure your door is at least 24 inches wide.
- Pantry Depth: Recommended pantry depth is greater than 5.5 inches to allow the door to close properly with the organizer installed.
- Door Hook Compatibility: The included door hooks are suitable for doors with a maximum thickness of 1.9 inches and a door gap greater than 0.08 inches.
2. Istruzioni di montaggio
No additional tools are required for assembly, which typically takes only minutes. Follow the steps below:
- Connect the Vertical Rails: Join the metal rail sections together using the provided screws and the included Allen wrench. Ensure all connections are secure.
- Attach Door Hooks: Secure the over-the-door hooks to the top of the assembled vertical rails.
- Installare i cestini: The 8 metal baskets are adjustable. Insert the hooks on the back of each basket into the desired slots on the vertical rails. You can customize the spacing between baskets to accommodate items of various heights.
- Secure to Door (Optional): For added stability and to prevent swinging, attach the 6 adhesive stickers to the back of the vertical rails where they contact the door. Alternatively, use the provided wall anchors and screws for a permanent wall-mounted installation.
3. Video di montaggio
Operating the Organizer
1. Adjusting Baskets
The baskets can be easily repositioned to suit your storage needs. Simply lift a basket from its current slots and re-insert it into a different set of slots on the vertical rails. This allows for flexible storage of items of varying heights, from small spice jars to taller bottles.
2. Caricamento degli articoli

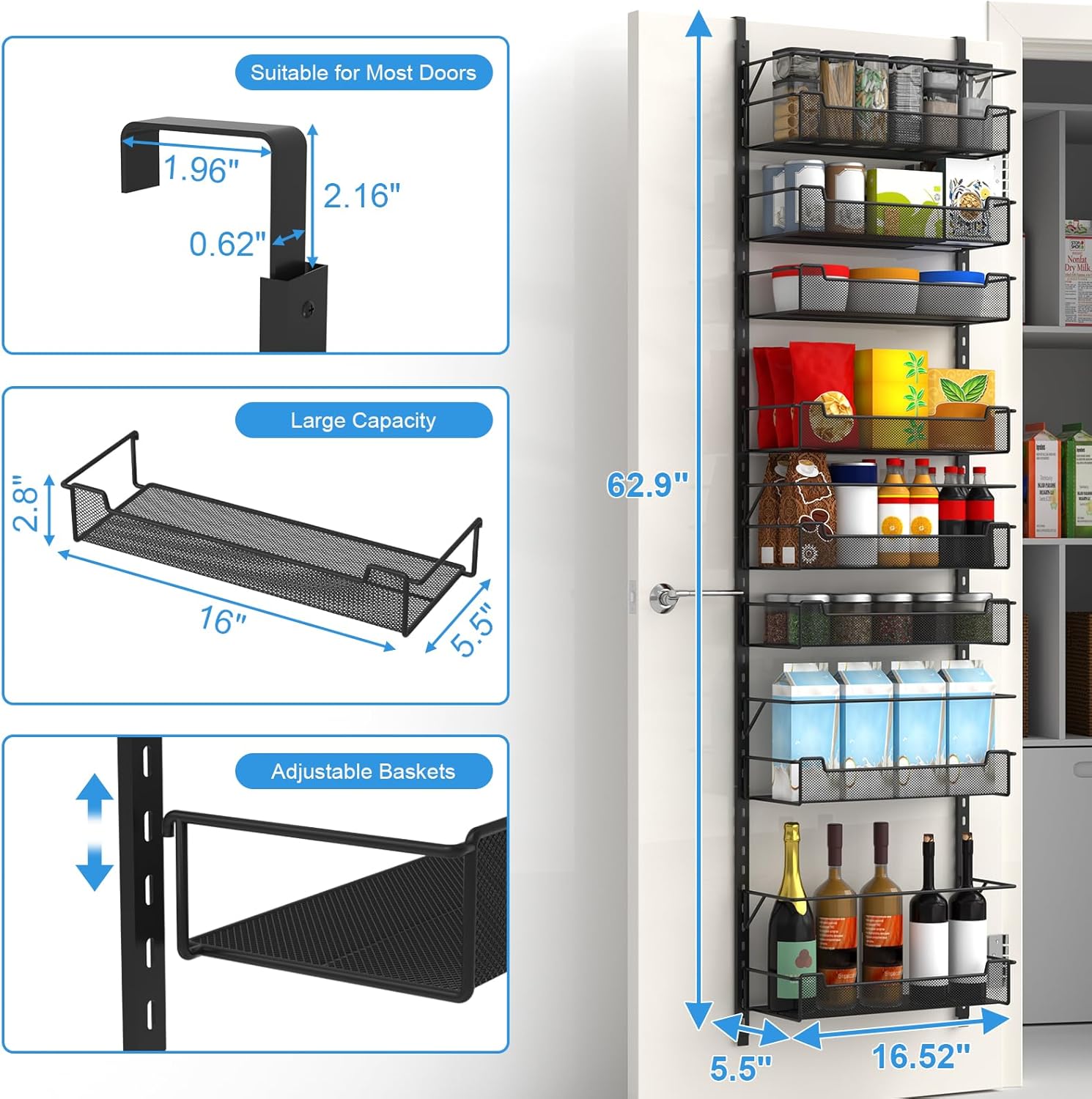

The organizer is designed for large capacity storage. Each basket measures 16"(L) x 5.5"(W) x 2.8"(H) and includes 4 matching fence lines to prevent tall items from falling. Distribute weight evenly across the baskets for optimal stability. This organizer is suitable for kitchen items, bathroom supplies, snacks, and more.
3. Uso multifunzionale
This versatile organizer can be used in various rooms beyond the pantry, including the living room, kitchen, laundry room, bedroom, and balcony, adapting to different storage needs.
Manutenzione
To ensure the longevity and optimal performance of your VyGrow Over the Door Pantry Organizer, follow these simple maintenance guidelines:
- Pulizia: Wipe down the metal baskets and rails with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used. Avoid abrasive cleaners or harsh chemicals, as these may damage the powder coating.
- Essiccazione: Ensure all components are thoroughly dried after cleaning to prevent rust, especially since the product is made of carbon steel.
- Ispezione regolare: Controllare periodicamente tutte le viti e i collegamenti per assicurarsi che siano ben serrati. Serrarli nuovamente se necessario per mantenere la stabilità.
- Distribuzione del peso: Always distribute items evenly across the baskets. Overloading one section can stress the frame and potentially lead to damage.
Risoluzione dei problemi
If you encounter any issues with your organizer, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Organizer swings when door opens/closes. | Insufficient stabilization. | Ensure the 6 adhesive stickers are properly applied to the back of the rails. For a more secure fit, consider using the provided wall anchors and screws for wall mounting. |
| Baskets are not level or feel unstable. | Incorrect basket placement or loose connections. | Verify that each basket's hooks are fully seated in the corresponding slots on the vertical rails. Check and tighten all screws on the vertical rail connections. Ensure weight is distributed evenly. |
| La porta non si chiude correttamente dopo l'installazione. | Door thickness or pantry depth incompatibility. | Re-check your door's thickness (max 1.9 inches) and the pantry's depth (greater than 5.5 inches). Ensure the door hooks are correctly positioned and not obstructing the door frame. |
If you continue to experience issues, please contact VyGrow customer support for assistance.
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | OTDO-01 |
| Dimensioni complessive | 5.5"P x 16.52"L x 62.9"A |
| Basket Dimensions (each) | 16 cm L x 5.5 cm P x 2.8 cm A |
| Numero di livelli | 8 |
| Materiale | Acciaio al carbonio |
| Colore | Nero |
| Caratteristiche speciali | Adjustable Basket, Large Space, Rust Proof |
| Tipo di montaggio | Montaggio su porta, montaggio a parete |
| Assemblaggio richiesto | SÌ |
| Peso dell'articolo | 7.7 libbre (3.5 chilogrammi) |
Garanzia e supporto
VyGrow is committed to providing high-quality products and customer satisfaction. For any questions, concerns, or support needs regarding your Over the Door Pantry Organizer, please contact our customer service team. We are dedicated to assisting you and ensuring your satisfaction with our product.
Please refer to your purchase documentation or the VyGrow official websito per dettagli specifici sulla garanzia e informazioni di contatto.
